Home page » Computers & IT»Computer components»Mainboards»ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX

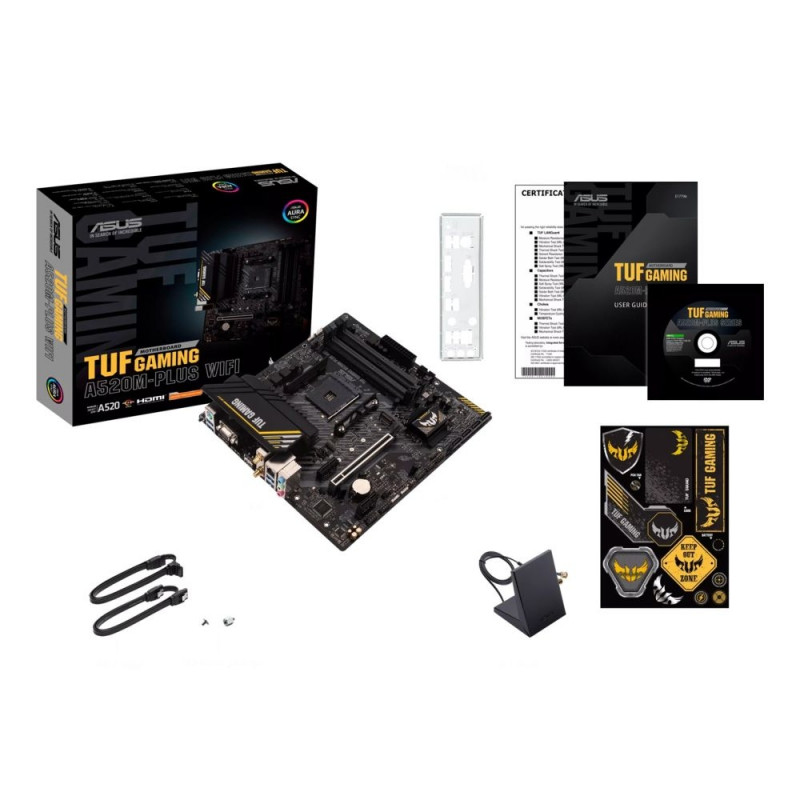

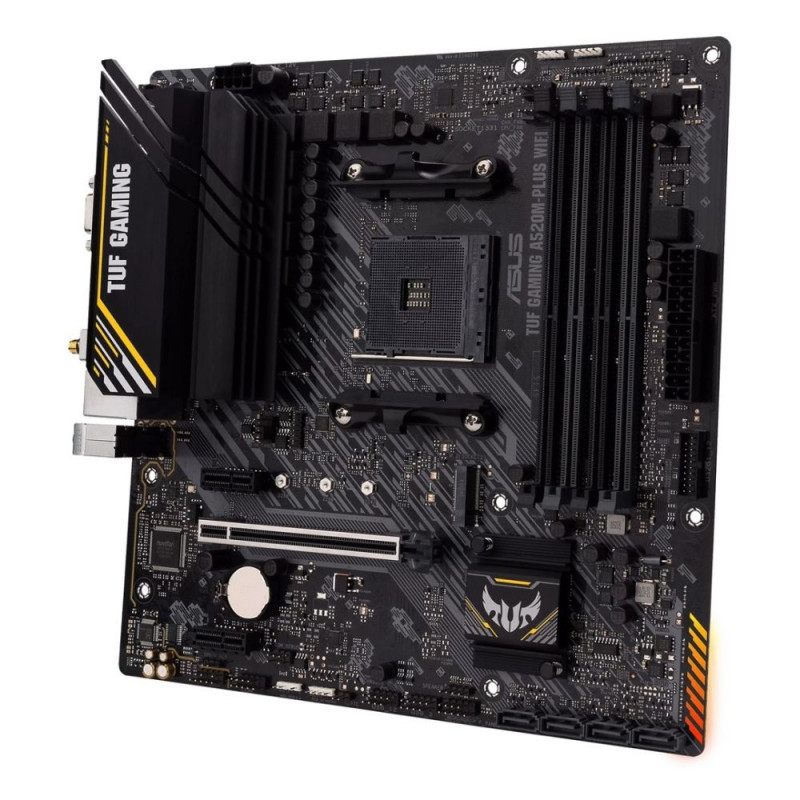

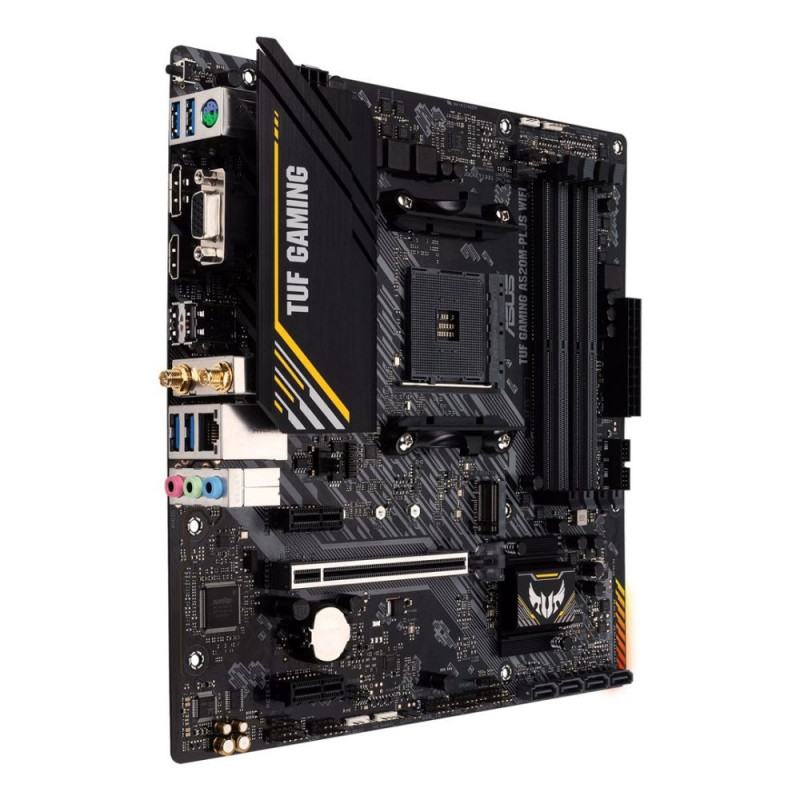

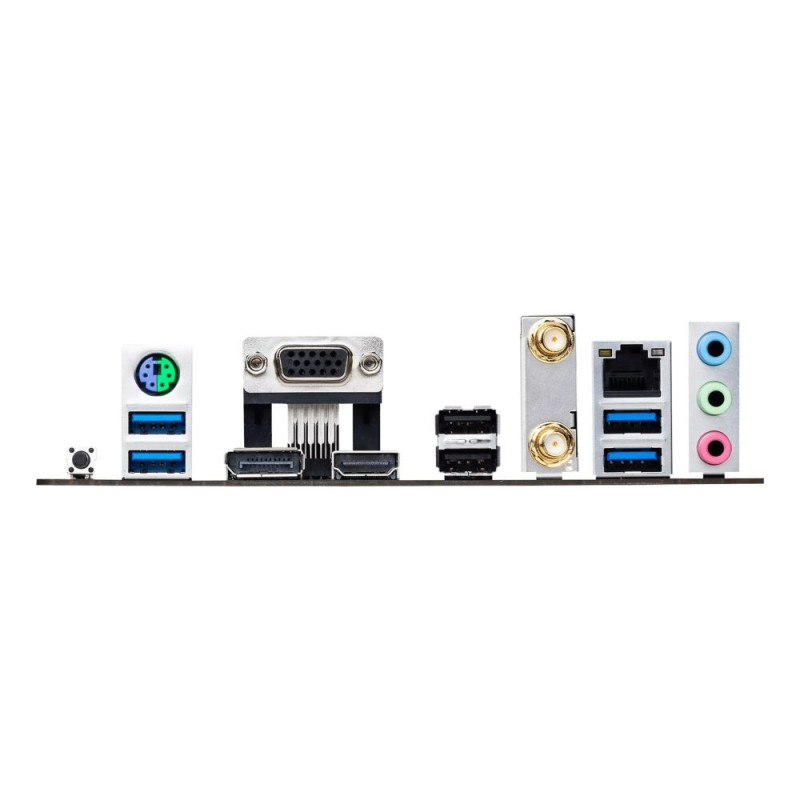

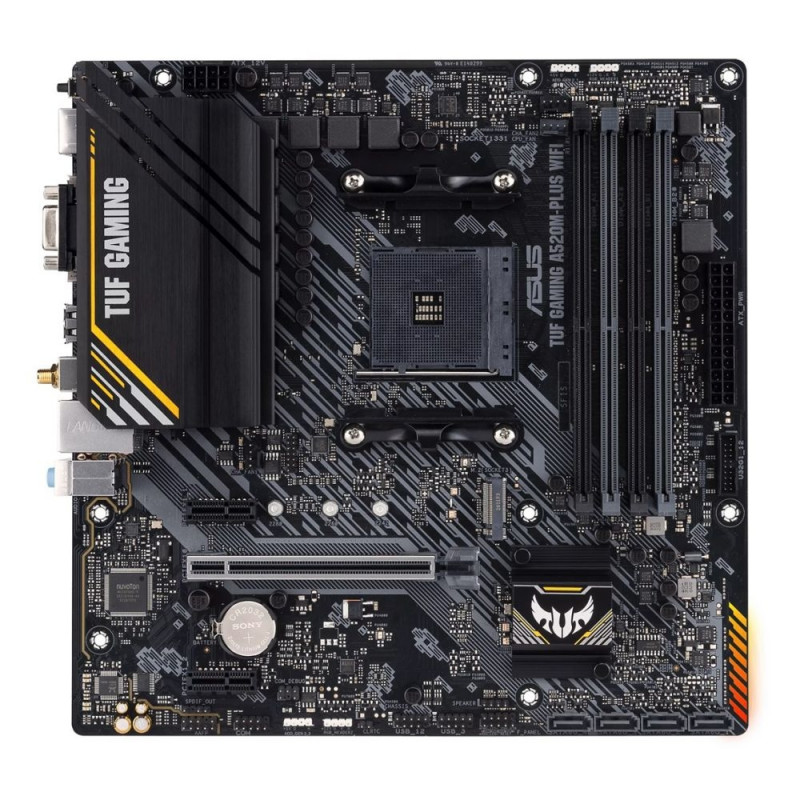

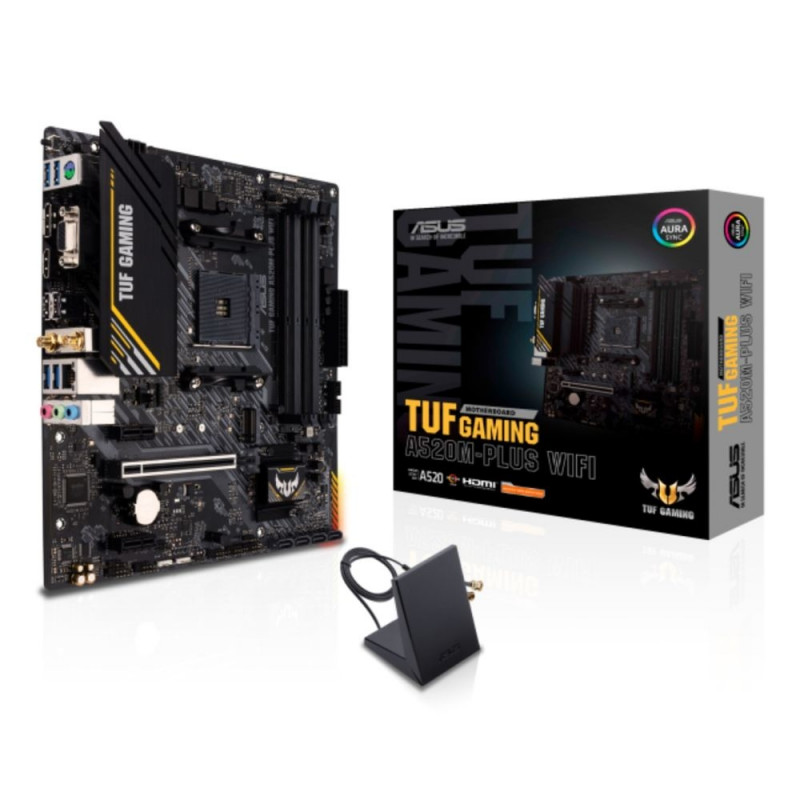

ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX

Addional discount of 6%
will be applied in shopping cart
(min. 12€ purchase)
127,99 €

Monthly payment starting from 4,36 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warranty 24 (G) Supported storage drive interfaces M.2, PCI Express 3.0, SATA III
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 24 (G)
Supported storage drive interfaces M.2, PCI Express 3.0, SATA III
Bluetooth Yes
DisplayPort version 1.2
Unbuffered memory Yes
Motherboard chipset family AMD
Weight 900 g
USB 2.0 connectors 2
Maximum internal memory 128 GB
Wake-on-LAN ready Yes
Supported storage drive types HDD & SSD
Audio chip Realtek ALC887 / Realtek ALC897
DisplayPorts quantity 1
Motherboard chipset AMD A520
Audio output channels 7.1 channels
Motherboard form factor micro ATX
S/PDIF out connector Yes
Maximum resolution 3840 x 2160 pixels
Number of SATA III connectors 4
Ethernet LAN (RJ-45) ports 1
Number of COM connectors 1
Clear CMOS jumper Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Number of M.2 (M) slots 1
USB connector type USB Type-A
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
EPS power connector (8-pin) Yes
PCI Express x1 (Gen 3.x) slots 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
TPM connector Yes
Cables included SATA
CPU fan connector Yes
Windows operating systems supported Windows 10 x64
PCI Express x16 (Gen 3.x) slots 1
Supported processor sockets Socket AM4
BIOS type UEFI AMI
Number of chassis fan connectors 2
Parallel processing technology support Not supported
USB 2.0 ports quantity 2
Headphone outputs 3
Drivers included Yes
Number of storage drives supported 5
Harmonized System (HS) code 84733020
Memory channels Dual-channel
HDMI ports quantity 1
RGB LED pin header Yes
Ethernet interface type Gigabit Ethernet
Bluetooth version 5.0
Supported memory types DDR4-SDRAM
Memory slots type DIMM
Processor socket Socket AM4
Width 244 mm
Height 67 mm
Depth 244 mm
WiFi-AP antenna jack 1
WLAN controller model Realtek RTL8821CE
Ethernet LAN Yes
HDMI version 2.1
PS/2 ports quantity 1
Microphone in Yes
VGA (D-Sub) ports quantity 1
Number of memory slots 4
12V power connector Yes
Wi-Fi Yes
Processor manufacturer AMD
ECC сompatibility ECC
Compatible processor series AMD Ryzen 3000 Series
Supported memory clock speeds 4266 MHz
Warnings Store away from water and sources of moisture.
RAID levels 1
Wi-Fi standards Wi-Fi 5 (802.11ac)

Dimensions and weights

Package width
69 cm
Package height
275 cm
Package length
277 cm

Product codes

EAN
4711081154273
Manufacturer code
90MB17F0-M0EAY0
