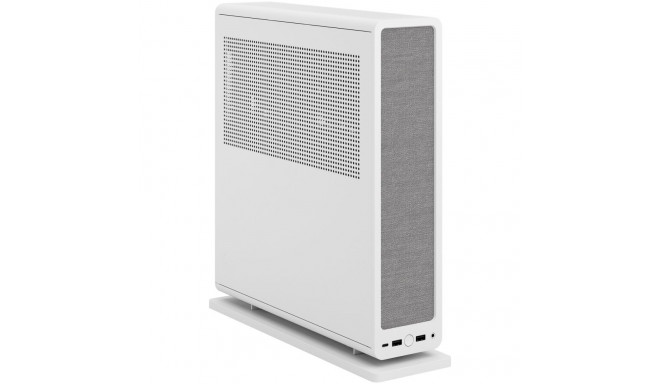

Fractal Design Ridge, Tower Case (White)

Main info

Product has been archived

The new Ridge from Fractal Design has been designed to take up as little desk space as possible and to fit perfectly into modern living and working spaces with a discreet, elegant style. Ridge places a particular focus on extremely good accessibility for a small form factor housing and easy installation, enabling high variability in the implementation of builds. Even the fabric insert on the aluminum front can be removed using screws, so that users can adapt their case even better to their individual preferences. Ridge supports either a 240/280mm radiator or a triple-slot GPU with three optional 80mm fans on the top. GPUs with a thickness of up to 57 mm benefit from two pre-installed 140 mm Aspect PWM fans, which ensure direct airflow to the GPU. It is also possible to install a 120 mm radiator in combination with shorter GPUs, or a CPU cooler up to 70 mm high. Thanks to these numerous options and the ventilation slots on the top and bottom panels as well as the side panels, Ridge can enable significantly higher cooling performance compared to cases of similar size. Item no.: 100029461


Tower case type
color white
EAN 7340172706106
Manufacturer no. FD-C-RID1N-12
Mini tower design
Mainboard form factor µATX
Material steel
Internal dimensions plug-in card length maximum 335 mm
Supported radiators side: 120 mm with a GPU up to 175 mm length, 120/140/240/280 mm without GPU
Slots full size 3 pieces
Front connections 1x audio, 2x USB-A 3.2 Gen 1 (5 Gbit/s), 1x USB-C 3.2 Gen 2 (10 Gbit/s)
Notes Cable management: 13.8 mm behind the PSU. Side: 2 x Aspect 140 mm PWM fans included, alternatively 2 x 120 mm fans can be installed, top: 3 x 80 mm fans can be installed.
Water cooling possible Yes
Feature fan: 4-pin connection, bearing rifle, speed 500-1700 RPM, volume 10-35.5 dB(A), max airflow 20-78 CFM, input power 2.16 watts, input voltage 12V, cable length: 500 mm.
Further information Installation of up to four 2.5" drives possible, including two positions behind the power supply and two positions at the front. (without SSDs)
Accessories available PCI-e 4.0 riser card pre-installed, four 2.5" SSD holders included, stand.
Volume 16 l
Dimensions Width: 11 cm x Height: 39.5 cm x Depth/Length: 37.4 cm
Weight 4.3kg

Dimensions and weights

Gross weight
5.85 kg

Product codes

EAN
7340172706106
Manufacturer code
FD-C-RID1N-12
