Home page » Computers & IT»Computer components»Mainboards»GIGABYTE B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (O

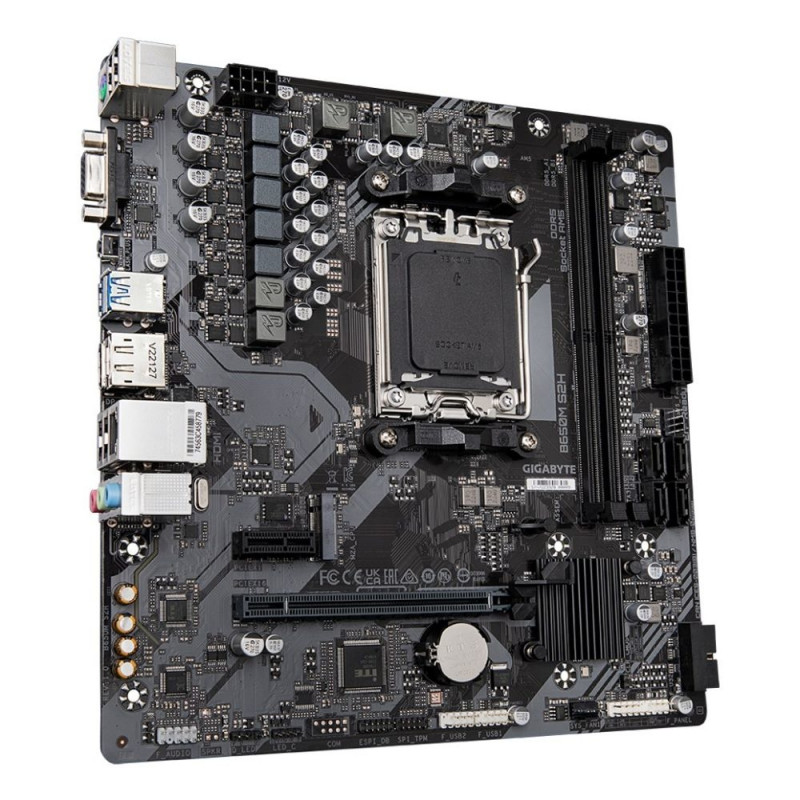

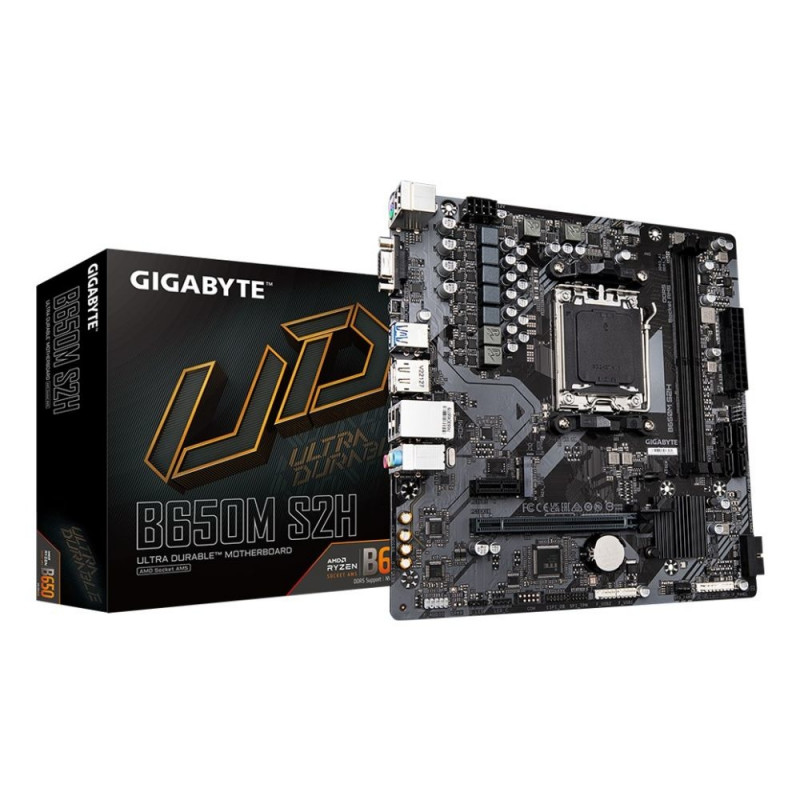

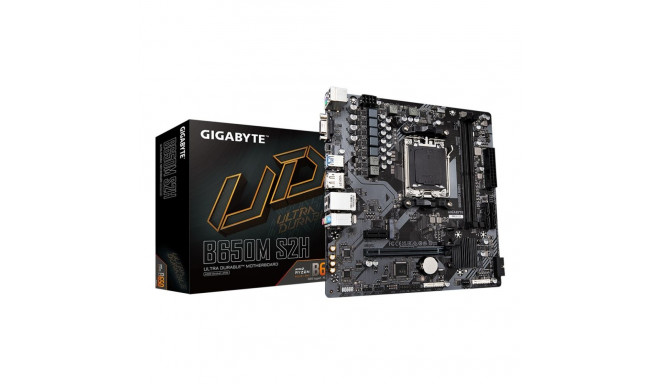

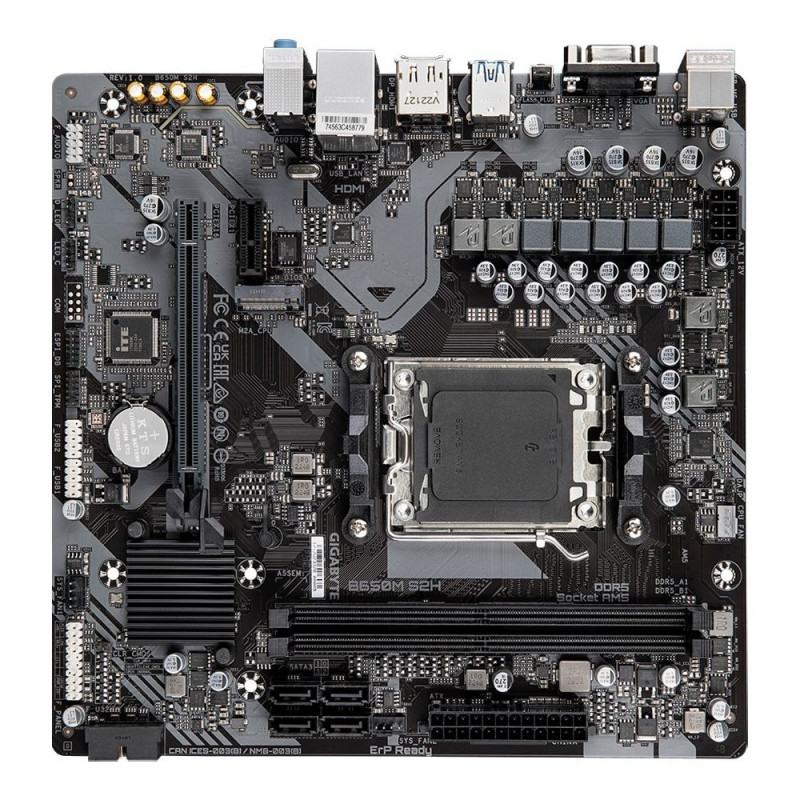

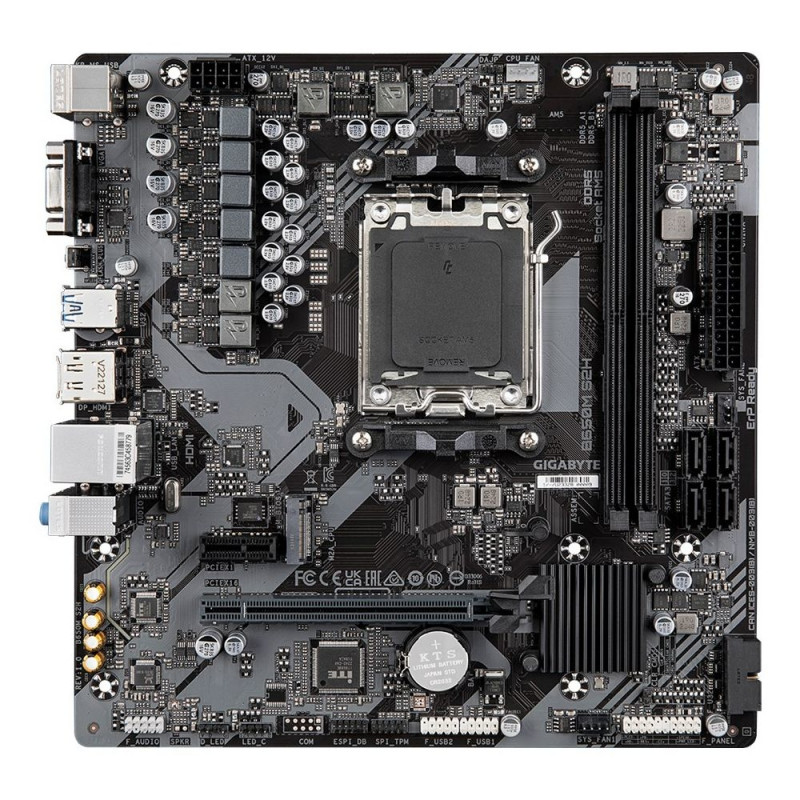

GIGABYTE B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (O

FREE SHIPPING
WITHIN ESTONIA!

107,99 €

0,02 € / M

Monthly payment starting from 3,23 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Motherboard chipset AMD B650
Product colour Bronze
Supported storage drive interfaces M.2, SATA III
HDCP Yes
Country of origin China
Unbuffered memory Yes
Audio output channels 7.1 channels
Supported storage drive types HDD & SSD
DirectX version 12.0
HDMI version 2.1
Ethernet LAN Yes
Clear CMOS jumper Yes
RAID support Yes
Package width 265 mm
Battery weight 3 g
Number of memory slots 2
Package weight 917 g
Package height 54 mm
Front panel connector Yes
Height 35 mm
Microphone in Yes
RGB LED pin header Yes
Wi-Fi No
Motherboard chipset family AMD
Number of HDDs supported 4
Desktop Management Interface (DMI) version 2.7
Supported memory types DDR5-SDRAM
Supported processor sockets Socket AM5
12V power connector Yes
VGA (D-Sub) ports quantity 1
CPU fan connector Yes
PS/2 ports quantity 1
Package depth 265 mm
TPM connector Yes
BIOS type UEFI AMI
DisplayPort version 1.4
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Ethernet LAN (RJ-45) ports 1
Parallel processing technology support Not supported
Number of SATA III connectors 4
USB 2.0 connectors 2
Products per shipping (inner) case 1 pc(s)
Processor socket Socket AM5
Front panel audio connector Yes
Memory slots type DIMM
DisplayPorts quantity 1
Maximum resolution 4096 x 2160 pixels
ATX Power connector (24-pin) Yes
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Width 230 mm
Number of storage drives supported 5
Ethernet interface type Gigabit Ethernet
Battery type CR2032
HDMI ports quantity 1
Batteries included Yes
Number of M.2 (M) slots 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Depth 225 mm
Motherboard form factor micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 ports quantity 4
Processor manufacturer AMD
Warranty period 3 year(s)
Lithium weight per battery 0.07 g
Warranty 36 (G)
ECC сompatibility Non-ECC
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
PCI Express x1 (Gen 3.x) slots 1
Headphone outputs 1
PCI Express x16 (Gen 4.x) slots 1
Supported memory clock speed (max) 6400 MHz
Line-in Yes
Number of chassis fan connectors 2
Screws included Yes
Power source type ATX
LAN controller Realtek RTL8111H
Audio chip Realtek ALC897
Maximum internal memory 128 GB
1st M.2 highest PCI Express generation 4.0
Number of CPU fan connectors 1
Number of RGB LED pin headers 2
Number of EPS power connectors (8-pin) 1
1st M.2 largest key size 2580
Maximum internal memory per slot 64 GB
Cooling type Passive
Windows operating systems supported Windows 10 x64
Warnings Dispose of in accordance with local regulations for electronic waste.
Supported memory clock speeds 4400 MHz
Compatible processor series AMD Ryzen 8000 Series
PC health monitoring Voltage
RAID levels 10

Dimensions and weights

Package width
270 cm
Package height
55 cm
Package length
270 cm

Product codes

EAN
4719331856298
Manufacturer code
B650M S2H
