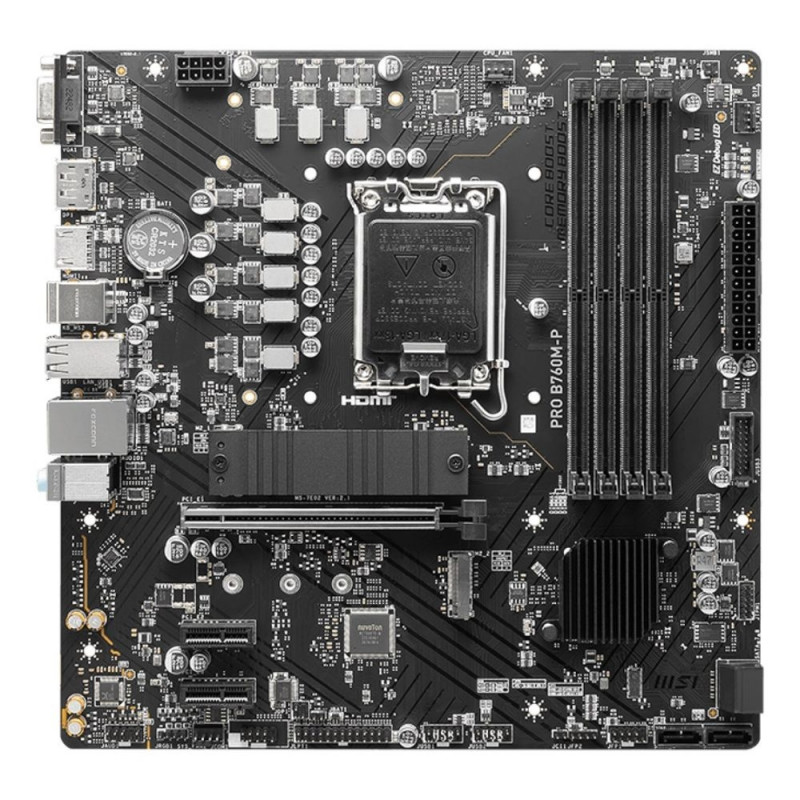

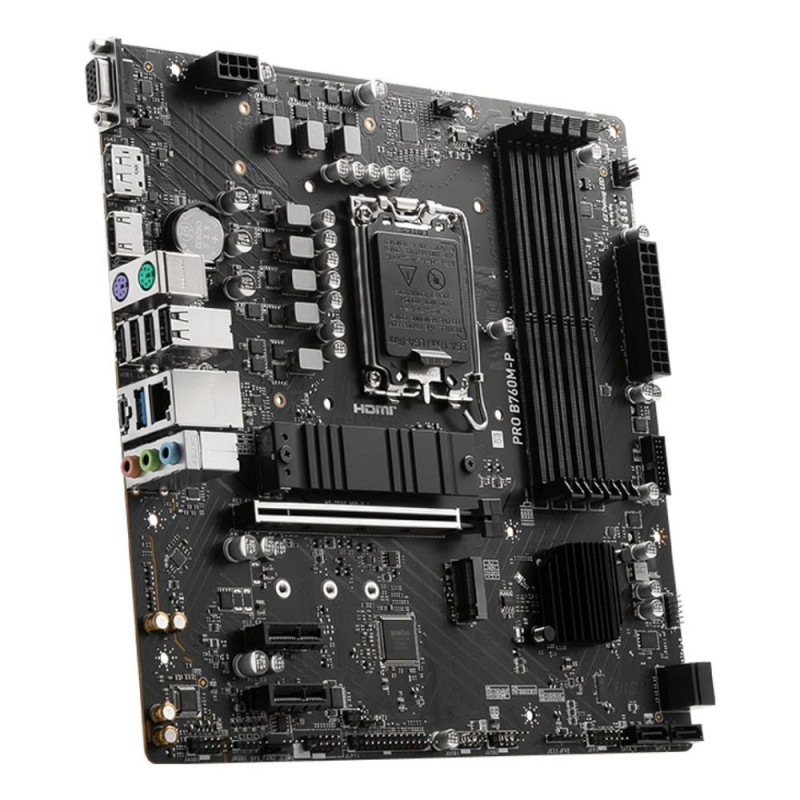

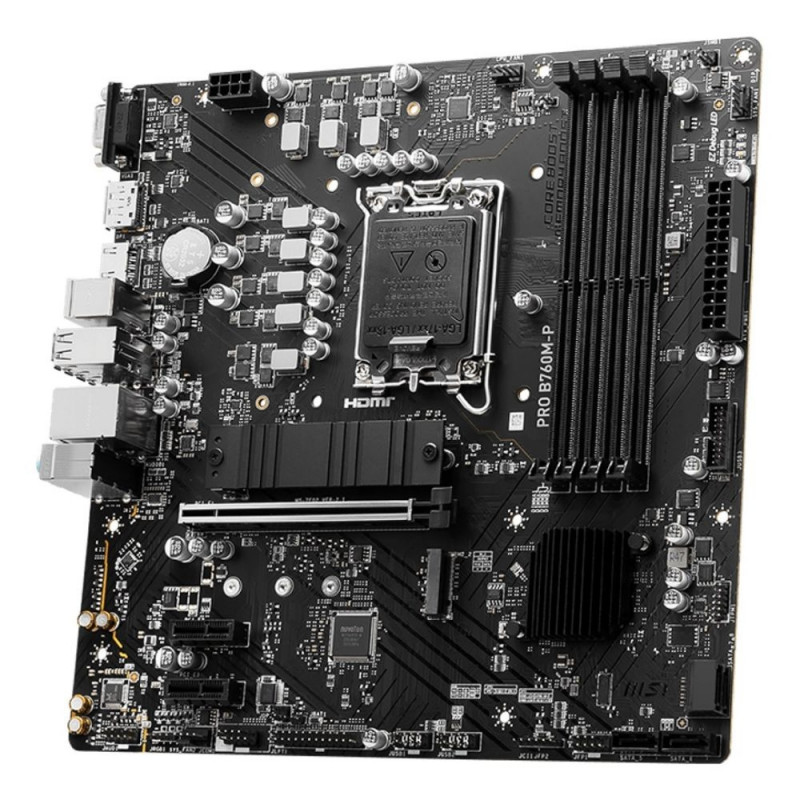

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

Main info

Product has been archived


Audio output channels 7.1 channels
Supported storage drive types HDD & SSD
DisplayPorts quantity 1
BIOS type UEFI AMI
Number of SATA III connectors 4
Motherboard chipset Intel B760
Unbuffered memory Yes
ATX Power connector (24-pin) Yes
RAID support Yes
Power source type ATX
LAN controller Realtek RTL8111H
Front panel audio connector Yes
Audio chip Realtek ALC897
TPM connector Yes
ECC сompatibility Non-ECC
Ethernet LAN (RJ-45) ports 1
Number of COM connectors 1
Supported processor sockets LGA 1700
Maximum internal memory 192 GB
Front panel connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Supported storage drive interfaces SATA III
Motherboard form factor micro ATX
Parallel connector Yes
Motherboard chipset family Intel
DisplayPort version 1.4
CPU fan connector Yes
Chassis intrusion connector Yes
USB 2.0 connectors 4
USB 2.0 ports quantity 4
Line-in Yes
Ethernet interface type Gigabit Ethernet
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Supported memory types DDR5-SDRAM
Wi-Fi No
Ethernet LAN Yes
RGB LED pin header Yes
Number of storage drives supported 6
Number of HDDs supported 4
VGA (D-Sub) ports quantity 1
Number of memory slots 4
Cables included SATA
PS/2 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Headphone outputs 1
HDMI version 1.4
PCI Express x16 (Gen 4.x) slots 1
Microphone in Yes
PCI Express x1 (Gen 4.x) slots 2
Clear CMOS jumper Yes
HDMI ports quantity 1
Width 243.8 mm
Processor manufacturer Intel
Processor socket LGA 1700
Depth 243.8 mm
Warranty 36 (G)
Windows operating systems supported Windows 10 x64
Supported memory clock speeds 6800
Compatible processor series Intel® Pentium® Gold
RAID levels 5
Warnings Before starting any maintenance or installation, disconnect the product from the power supply.

Dimensions and weights

Package width
55 cm
Package height
300 cm
Package length
270 cm

Product codes

EAN
4711377086578
Manufacturer code
7E02-009R
