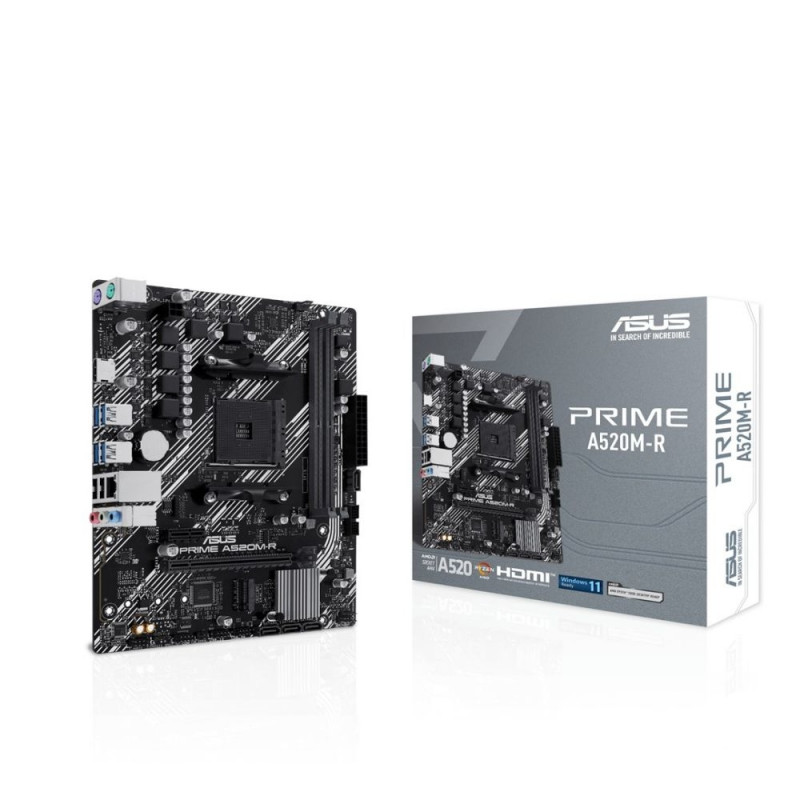

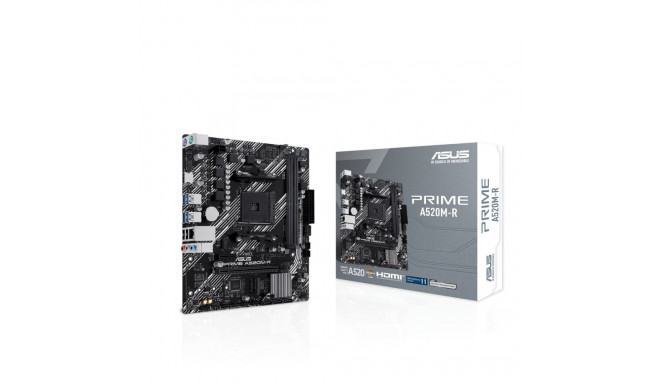

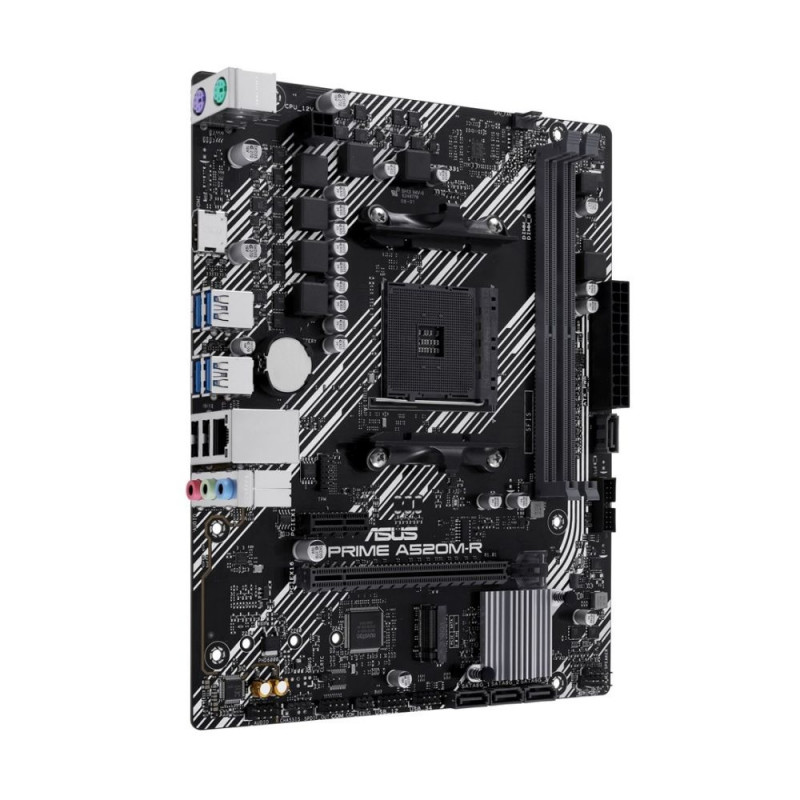

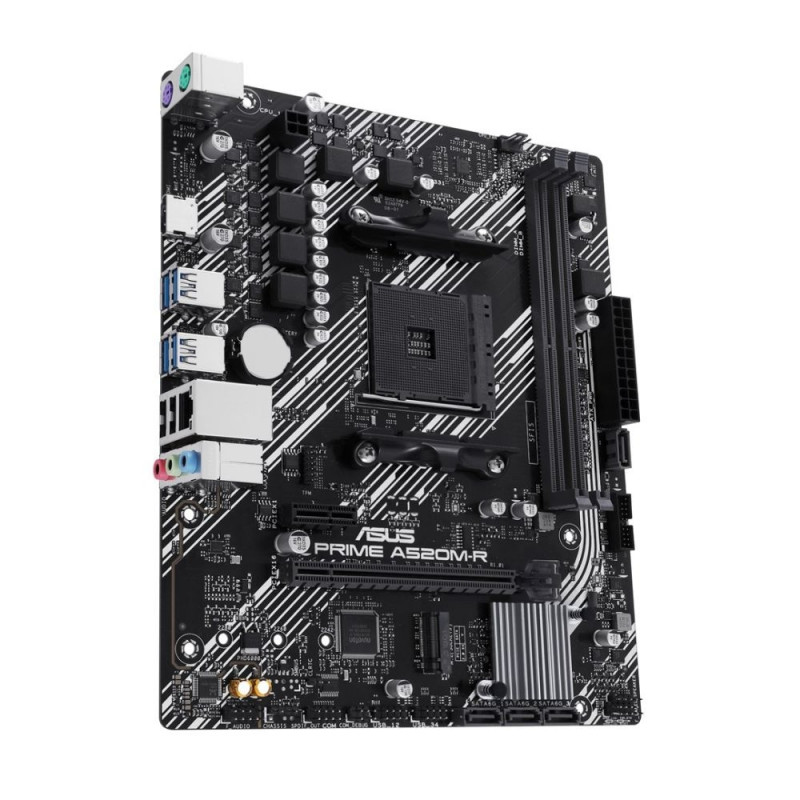

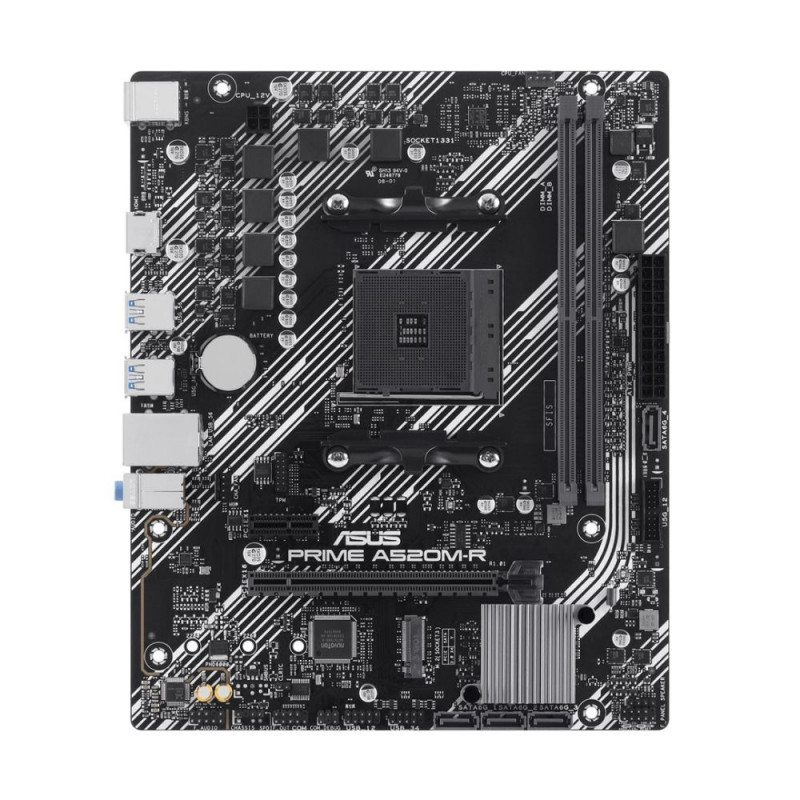

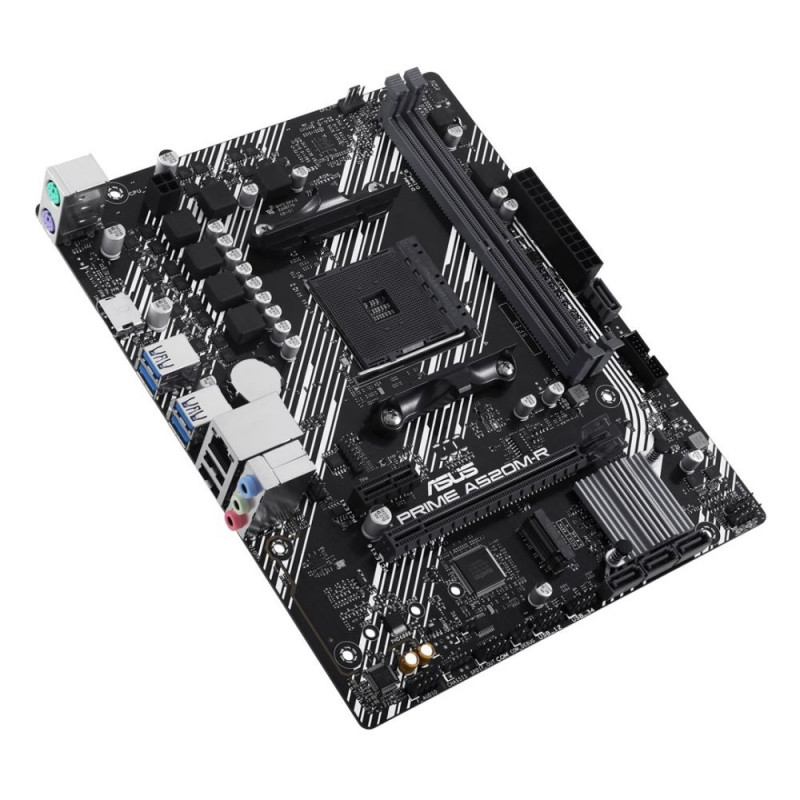

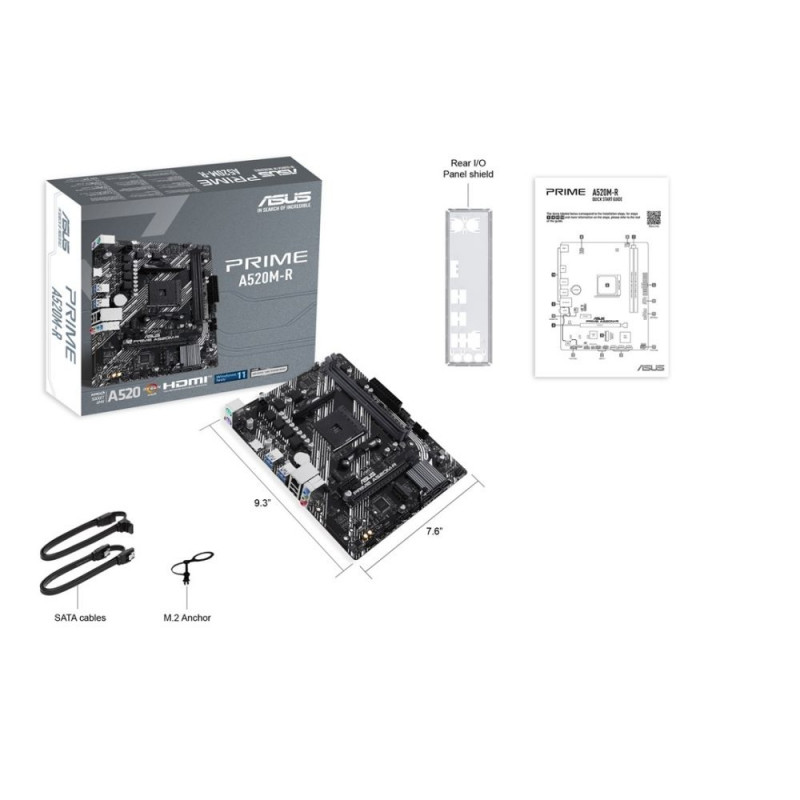

ASUS PRIME A520M-R AMD A520 Socket AM4 micro ATX

Main info

Product has been archived


Parallel processing technology support Not supported
Front panel audio connector Yes
Number of chassis fan connectors 1
Motherboard form factor micro ATX
Unbuffered memory Yes
Audio output channels 7.1 channels
Package weight 880 g
Motherboard chipset AMD A520
PCI Express x16 (Gen 3.x) slots 1
12V power connector Yes
Maximum internal memory 64 GB
Number of M.2 (M) slots 1
Cooling type Passive
Ethernet LAN (RJ-45) ports 1
Number of COM connectors 1
PCI Express x1 (Gen 3.x) slots 1
RAID support Yes
Peripheral (Molex) power connectors (4-pin) 1
Package width 270 mm
Number of SATA III connectors 4
Supported storage drive types HDD & SSD
USB 2.0 connectors 2
BIOS type UEFI AMI
Line-in Yes
Memory slots type DIMM
Supported processor sockets Socket AM4
Cables included SATA
Supported storage drive interfaces M.2, SATA III
Headphone outputs 1
Product colour Black
Supported memory clock speed (max) 5100 MHz
Motherboard chipset family AMD
Number of memory slots 2
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Power source type ATX
Number of HDDs supported 4
Ethernet interface type Gigabit Ethernet
Width 236 mm
HDMI ports quantity 1
Number of storage drives supported 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Memory channels Dual-channel
Package height 51.5 mm
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
Ethernet LAN Yes
HDMI version 2.1
Depth 193 mm
Package depth 263 mm
Microphone in Yes
PS/2 ports quantity 2
Processor socket Socket AM4
Wi-Fi No
Processor manufacturer AMD
Warranty 36 (G)
Supported memory types DDR4-SDRAM
RAID levels 0
Windows operating systems supported Windows 10
Compatible processor series 3rd Generation AMD Ryzen™ 9
Supported memory clock speeds 4266

Dimensions and weights

Package width
270 cm
Package height
50 cm
Package length
265 cm

Product codes

EAN
4711387466414
Manufacturer code
90MB1H60-M0EAY0
