Home page » Computers & IT»Computer components»PSU»Seasonic Prime TX-1600, 80 PLUS Titanium Power Supply, modular, ATX 3.0, PCIe 5.0 - 1600 Watt

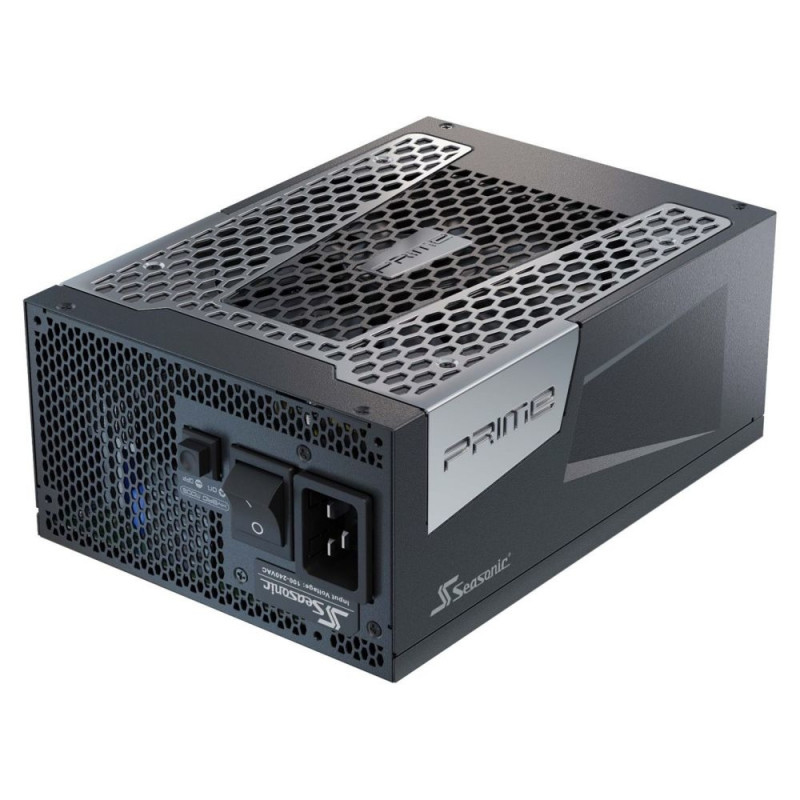

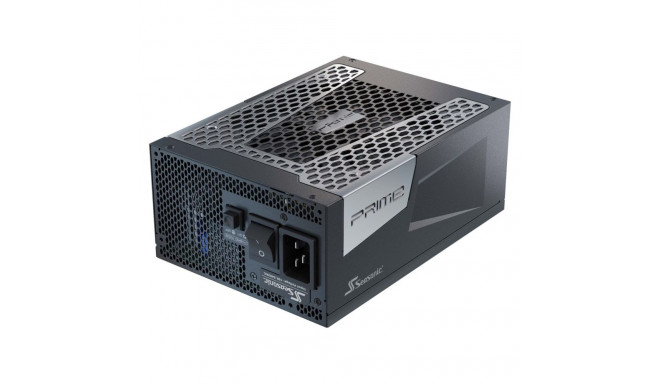

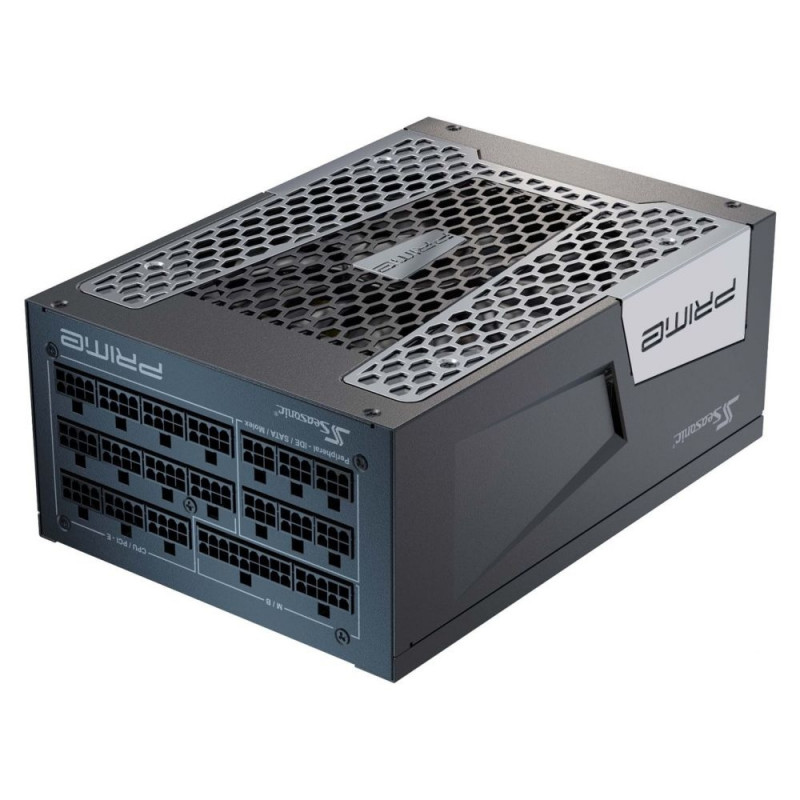

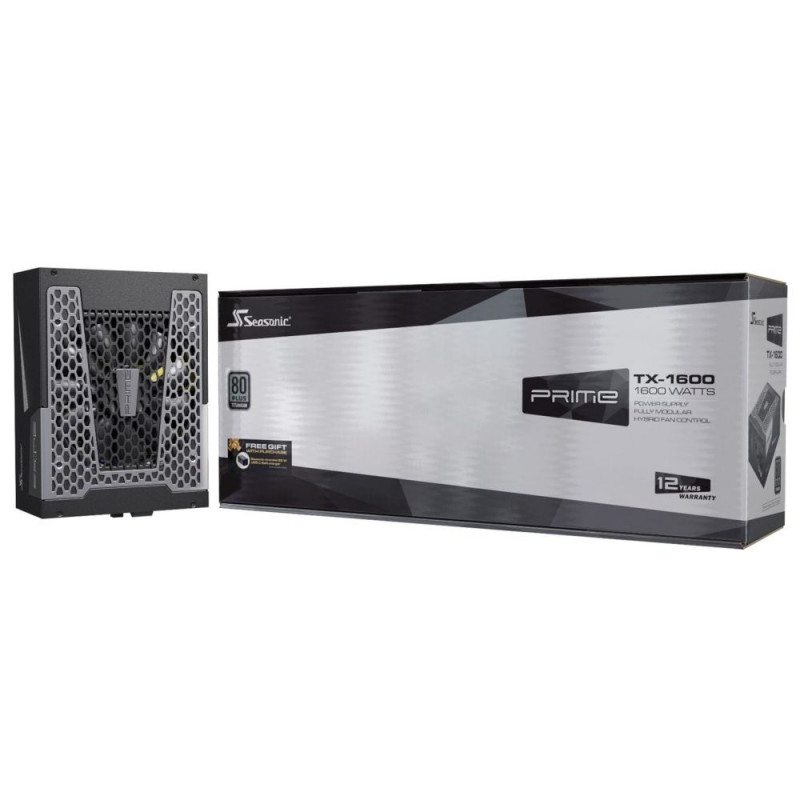

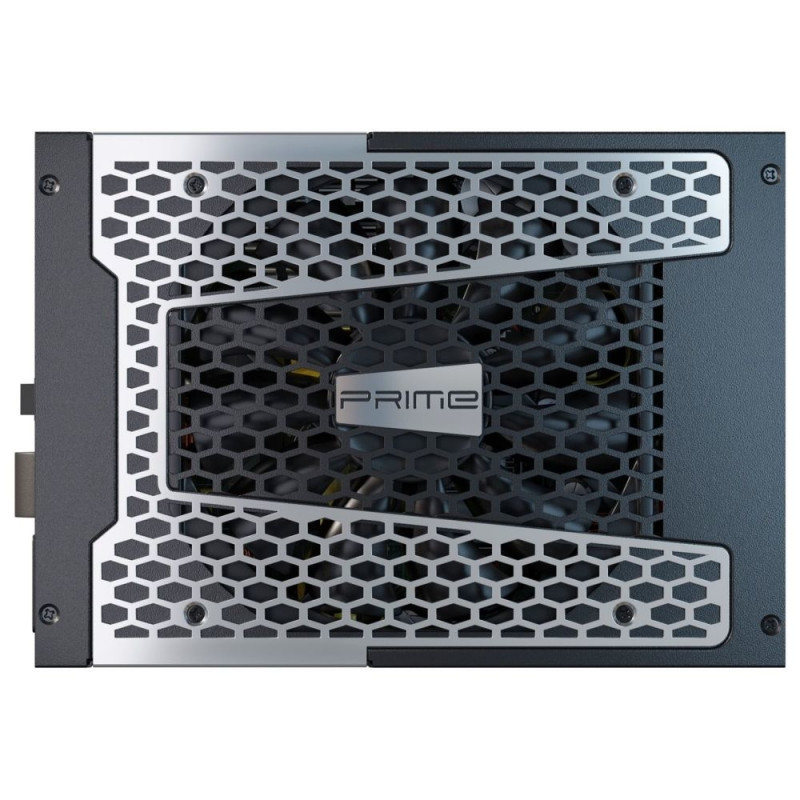

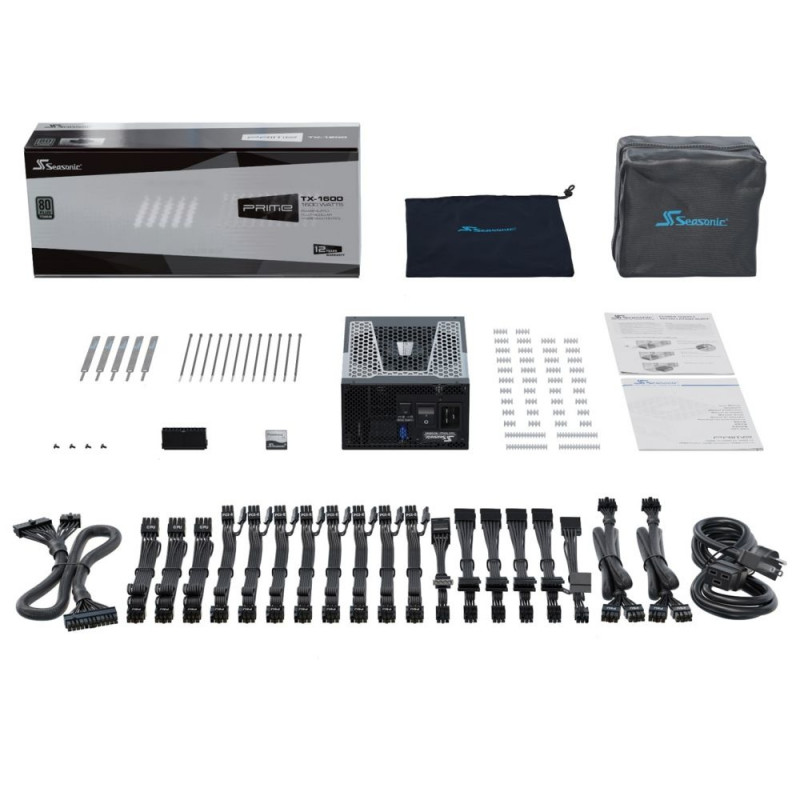

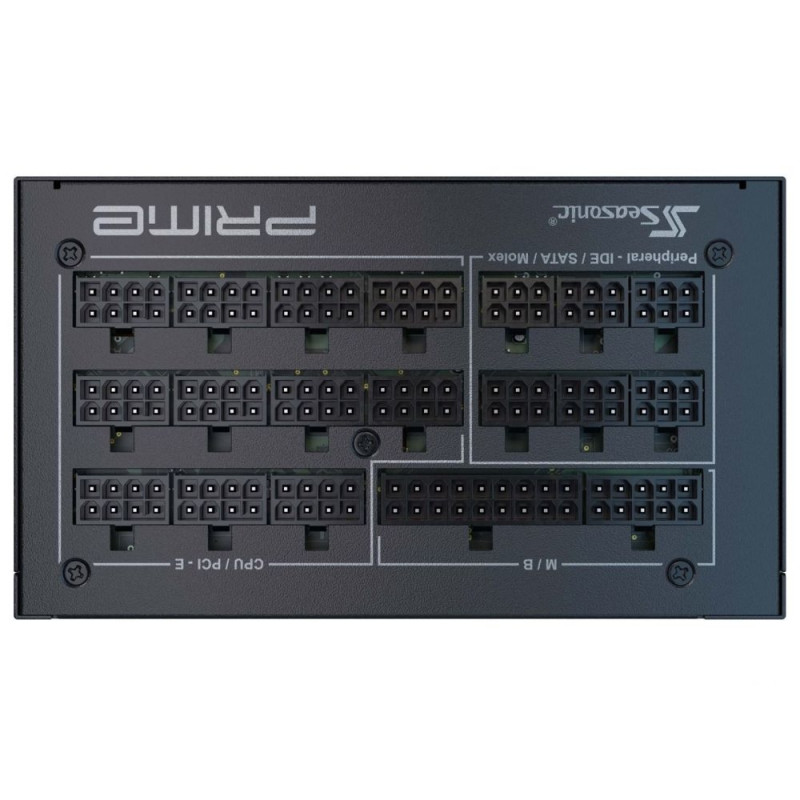

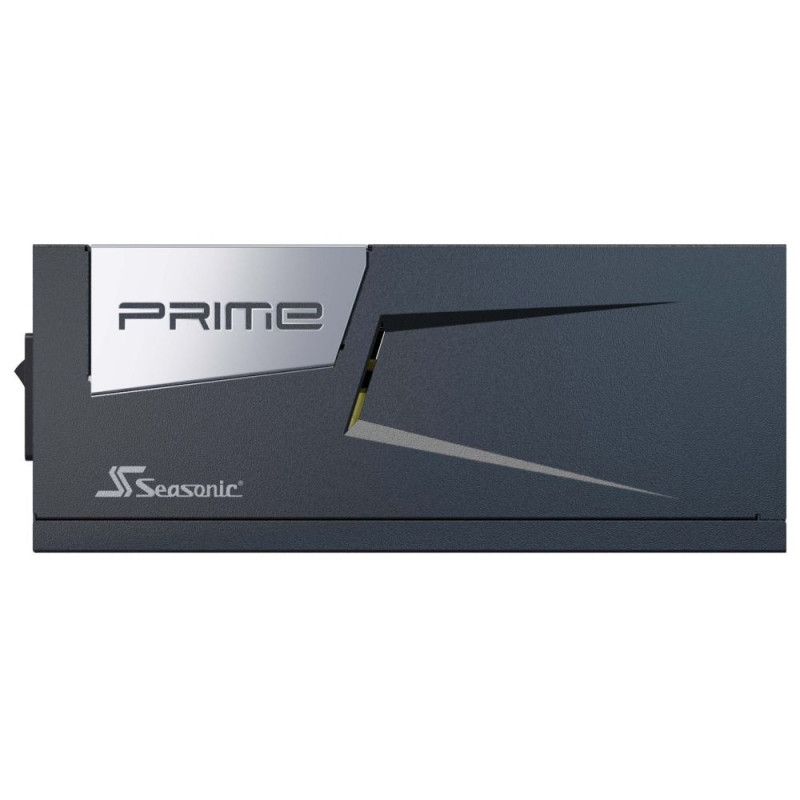

Seasonic Prime TX-1600, 80 PLUS Titanium Power Supply, modular, ATX 3.0, PCIe 5.0 - 1600 Watt

Main info

Product has been archived


Compatible products cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Product colour Black
Input current 15 - 10 A
Mean time between failures (MTBF) 150000 h
Max output current (+5V) 25 A
AC input voltage 100 - 240 V
80 PLUS certification 80 PLUS Titanium
Combined power (+5Vsb) 15 W
Combined power (+12V) 1600 W
Power supply unit (PSU) form factor ATX
Cabling type Fully-Modular
Total power 1600 W
Operating temperature (T-T) 0 - 50 °C
Bearing technology FDB
Purpose PC
Number of fans 1 fan(s)
Fan diameter 13.5 cm
Motherboard power connector 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin) 3
Max output current (+5Vsb) 3 A
AC input frequency 50 - 60 Hz
Number of SATA power connectors 10
On/off switch Yes
Height 86 mm
Cables included AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Combined power (+3.3V) 125 W
Max output current (+12V) 133.3 A
Cooling type Active
Width 150 mm
PCI Express connector Yes
Depth 210 mm
Combined power (+5V) 125 W
Max output current (+3.3V) 25 A
Package type Box
Motherboard power cable length 61 cm
Max output current (-12V) 0.5 A
Cable tie(s) included Yes
Combined power (-12V) 6 W
Warranty 24 (F)
Power protection features Over voltage
Warnings The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

Dimensions and weights

Package width
450 cm
Package height
200 cm
Package length
130 cm

Product codes

EAN
4711173878018
Manufacturer code
PRIME-TX-1600-ATX30
