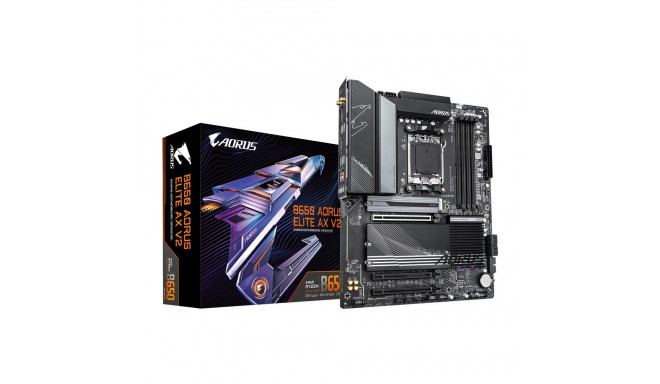

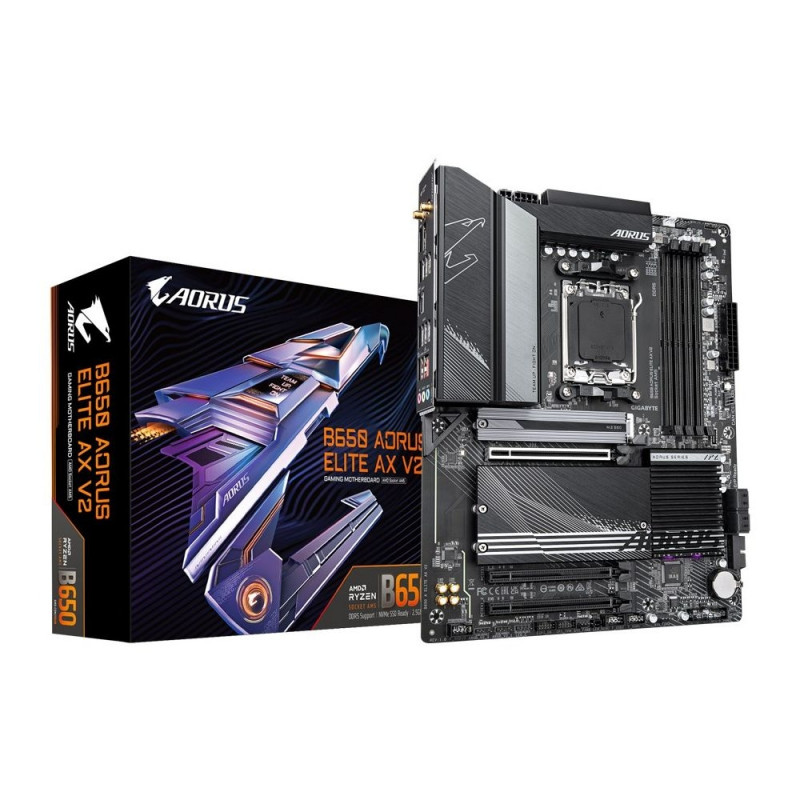

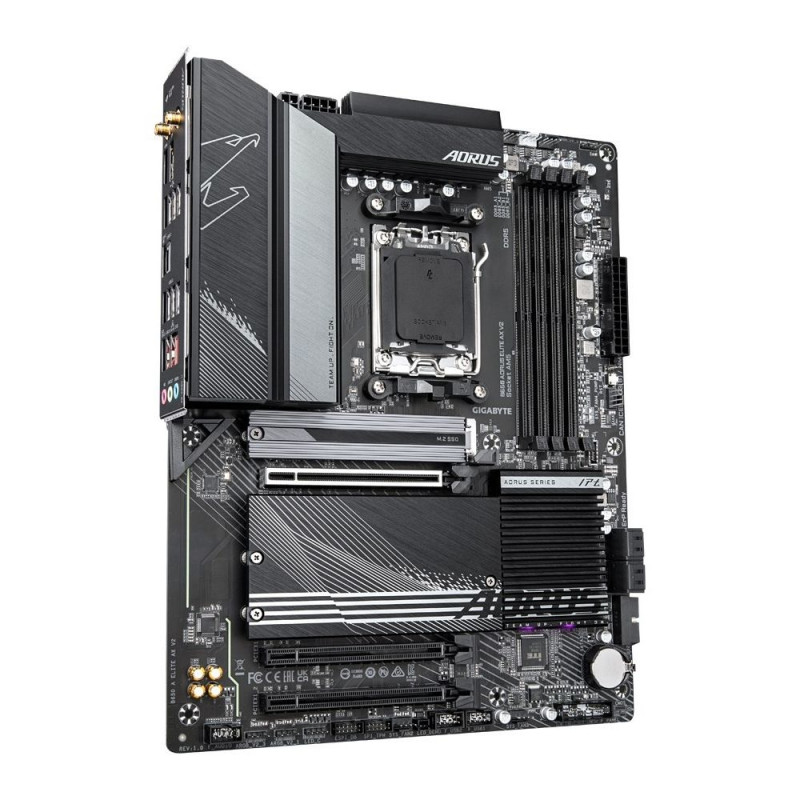

GIGABYTE B650 AORUS ELITE AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8

197,99 €

Monthly payment starting from 6,75 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Unbuffered memory Yes
Supported storage drive interfaces M.2, SATA III
Bluetooth Yes
RAID support Yes
Number of SATA III connectors 4
Audio chip Realtek ALC897
Motherboard chipset AMD B650
Motherboard chipset family AMD
Product colour Black
USB 2.0 connectors 2
Country of origin China
Parallel processing technology support Not supported
Supported storage drive types HDD & SSD
Motherboard form factor ATX
Audio output channels 7.1 channels
HDCP Yes
Front panel audio connector Yes
Ethernet LAN (RJ-45) ports 1
DirectX version 12.0
LAN controller Realtek RTL8125
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Lithium weight per battery 0.07 g
USB 3.2 Gen 2x2 connectors 1
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Height 35 mm
CPU fan connector Yes
HDMI ports quantity 1
Number of HDDs supported 4
Front panel connector Yes
Processor manufacturer AMD
ATX Power connector (24-pin) Yes
Package height 80 mm
Supported processor sockets Socket AM5
12V power connector Yes
Bluetooth version 5.3
Desktop Management Interface (DMI) version 2.7
Battery weight 3 g
Number of battery cells 1
Width 305 mm
Warranty period 3 year(s)
Number of storage drives supported 7
BIOS type UEFI AMI
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Microphone in Yes
Antenna included Yes
TPM connector Yes
Package depth 270 mm
Battery technology Lithium-Manganese Dioxide (LiMnO2)
PCI Express x16 (Gen 3.x) slots 2
Clear CMOS jumper Yes
Depth 244 mm
WiFi-AP antenna jack 2
WLAN controller model Realtek RTL8852CE
HDMI version 2.1
Processor socket Socket AM5
Package width 335 mm
Number of M.2 (M) slots 3
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Batteries included Yes
RGB LED pin header Yes
USB 2.0 ports quantity 4
Ethernet LAN Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Products per shipping (inner) case 1 pc(s)
PCI Express x16 (Gen 4.x) slots 1
Headphone outputs 1
Warranty 36 (G)
ECC сompatibility Non-ECC
Package weight 2.29 kg
DisplayPorts quantity 1
Maximum internal memory 256 GB
Maximum resolution 4096 x 2160 pixels
DisplayPort version 1.4
1st M.2 highest PCI Express generation 5.0
Number of water pump connectors 2
1st M.2 largest key size 25110
2nd M.2 largest key size 25110
Number of CPU fan connectors 2
3rd M.2 highest PCI Express generation 4.0
Maximum internal memory per slot 64 GB
3rd M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
Number of RGB LED pin headers 4
Supported memory clock speed (max) 8000 MHz
Number of chassis fan connectors 4
Line-in Yes
Screws included Yes
Compatible processor series AMD Ryzen 8000 Series
Warnings Avoid contact with liquids to prevent electronic damage.
PC health monitoring Voltage
Wi-Fi standards Wi-Fi 5 (802.11ac)
RAID levels 0
Windows operating systems supported Windows 10 x64
Supported memory clock speeds 6800

Dimensions and weights

Package width
275 cm
Package height
85 cm
Package length
340 cm

Product codes

EAN
4719331859381
Manufacturer code
B650 AORUS ELITE AX V2
