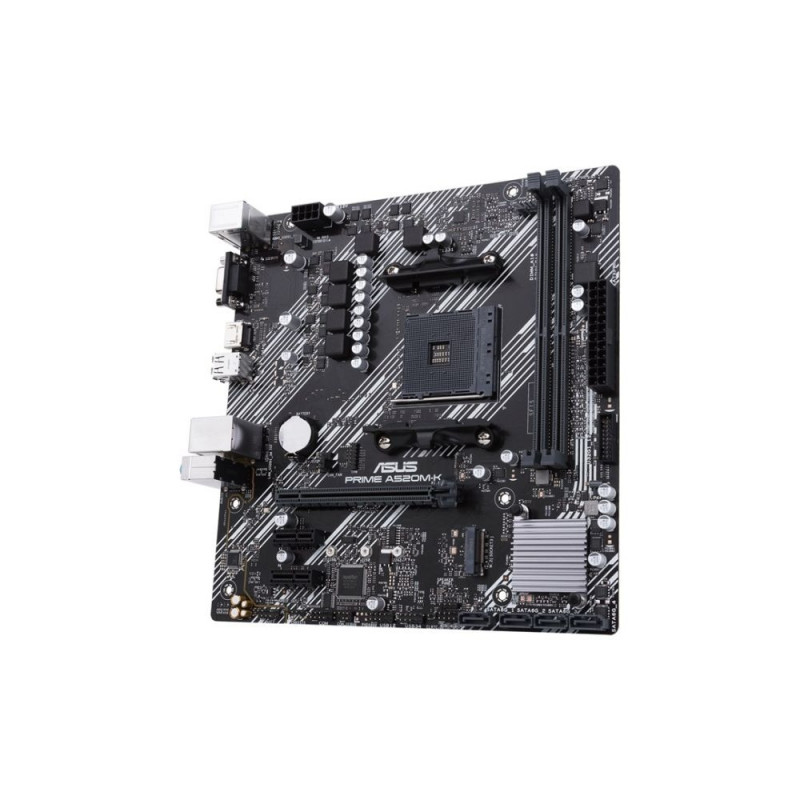

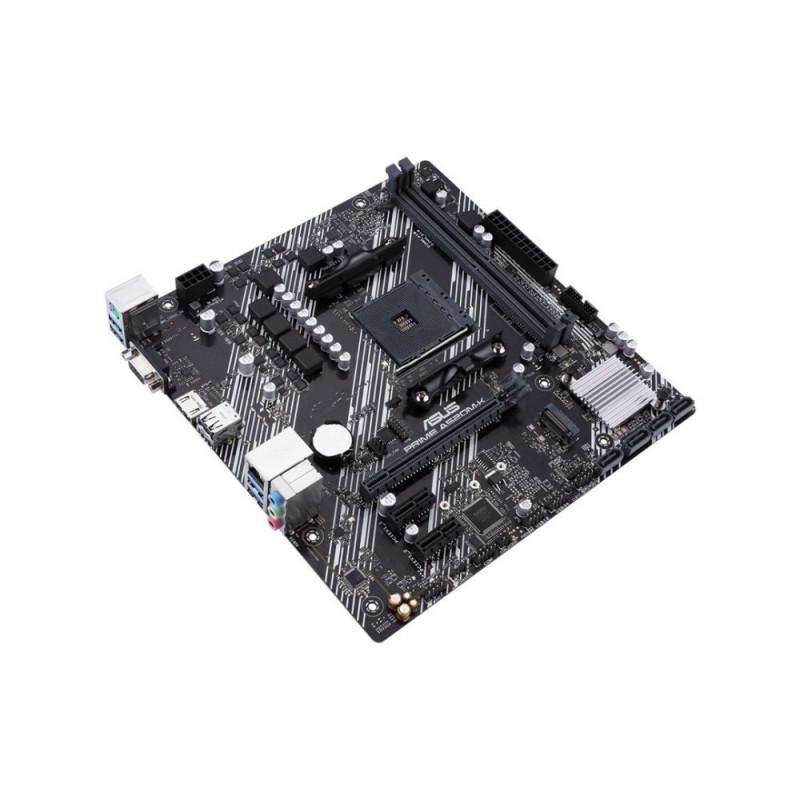

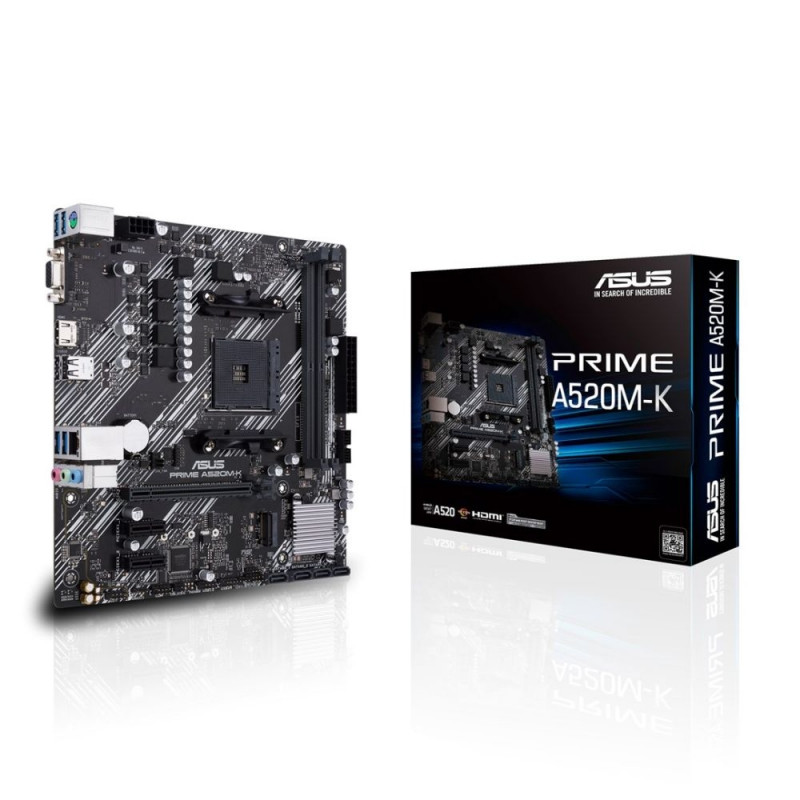

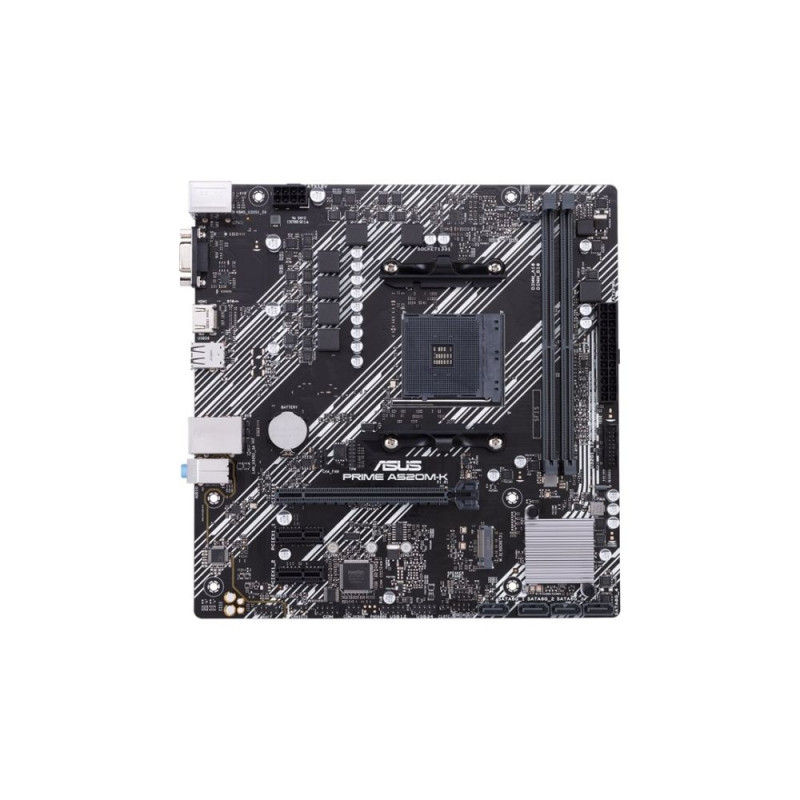

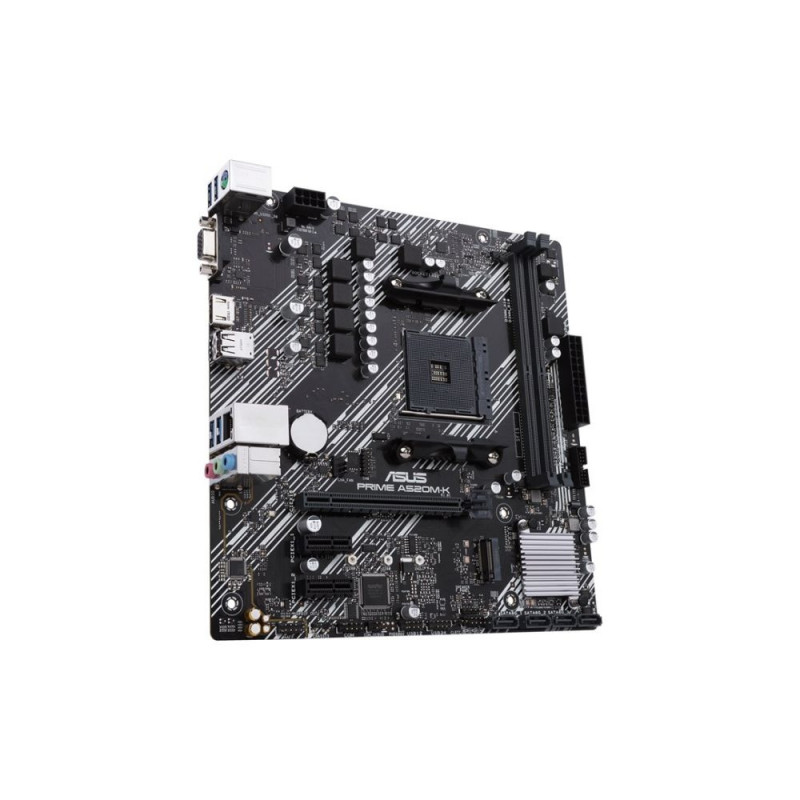

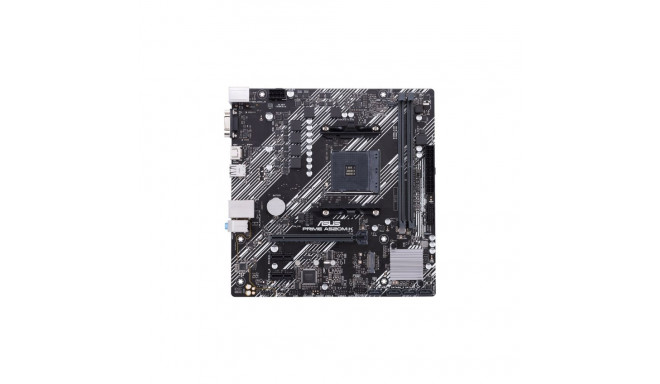

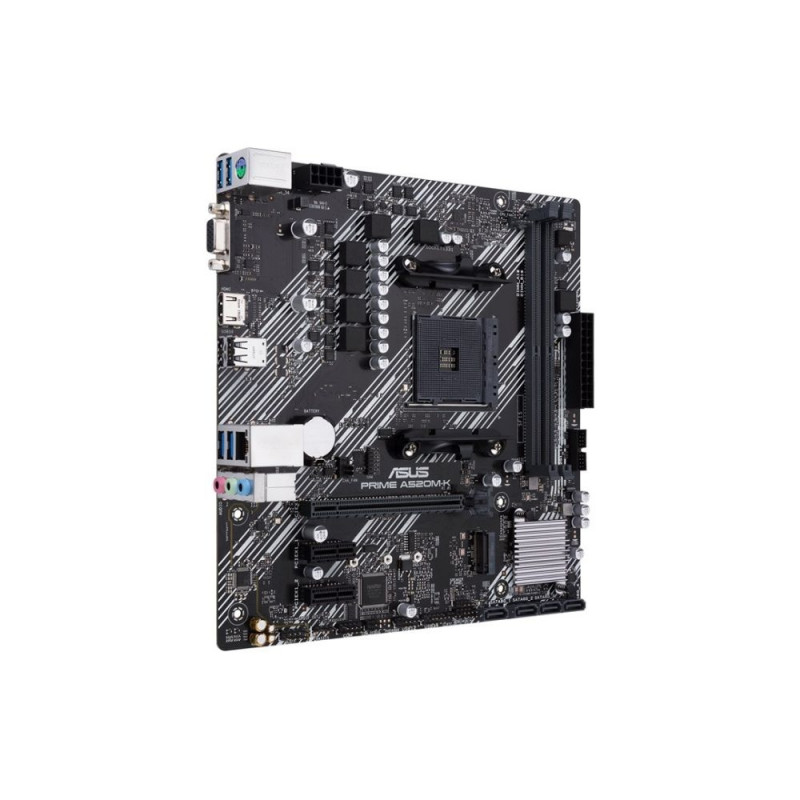

ASUS PRIME A520M-K AMD A520 Socket AM4 micro ATX

70,99 €

Monthly payment starting from 2,12 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online


Warranty 24 (G)
Ethernet LAN Yes
Depth 221 mm
Ethernet LAN (RJ-45) ports 1
BIOS type UEFI AMI
VGA (D-Sub) ports quantity 1
Supported memory types DDR4-SDRAM
Memory slots type DIMM
Motherboard form factor micro ATX
USB 2.0 ports quantity 2
PS/2 ports quantity 1
Maximum internal memory 64 GB
Processor manufacturer AMD
Motherboard chipset AMD A520
Number of memory slots 2
Width 226 mm
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
HDMI ports quantity 1
Wi-Fi No
LAN controller Realtek RTL8111H
Motherboard chipset family AMD
Front panel audio connector Yes
Microphone in Yes
Cables included SATA
Wake-on-LAN ready Yes
Supported storage drive types HDD & SSD
Number of EATX power connectors 2
Audio output channels 7.1 channels
PCI Express x16 (Gen 3.x) slots 1
HDMI version 2.1
Memory channels Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Clear CMOS jumper Yes
PCI Express x1 (Gen 3.x) slots 2
ATX Power connector (24-pin) Yes
Ethernet interface type Gigabit Ethernet
BIOS memory size 256 Mbit
RAID support Yes
Supported processor sockets Socket AM4
Number of storage drives supported 5
USB connector type USB Type-A
12V power connector Yes
Number of M.2 (M) slots 1
Headphone outputs 3
Number of COM connectors 1
TPM connector Yes
CPU fan connector Yes
S/PDIF out connector Yes
Number of SATA III connectors 4
Harmonized System (HS) code 84733020
USB 2.0 connectors 2
Audio chip Realtek ALC887 / Realtek ALC897
Number of chassis fan connectors 1
Supported storage drive interfaces M.2, SATA III
ECC сompatibility ECC
Unbuffered memory Yes
Processor socket Socket AM4
Component for PC
Parallel processing technology support Not supported
Windows operating systems supported Windows 10 x64
Compatible processor series AMD Ryzen™ 7
Supported memory clock speeds 4466
RAID levels 0

Dimensions and weights

Package width
275 cm
Package height
270 cm
Package length
55 cm

Product codes

EAN
4718017826921
Manufacturer code
PRIME A520M-K
