Home page » Computers & IT»Computer components»Mainboards»Asrock AM5 B650M-HDV/M.2 uATX

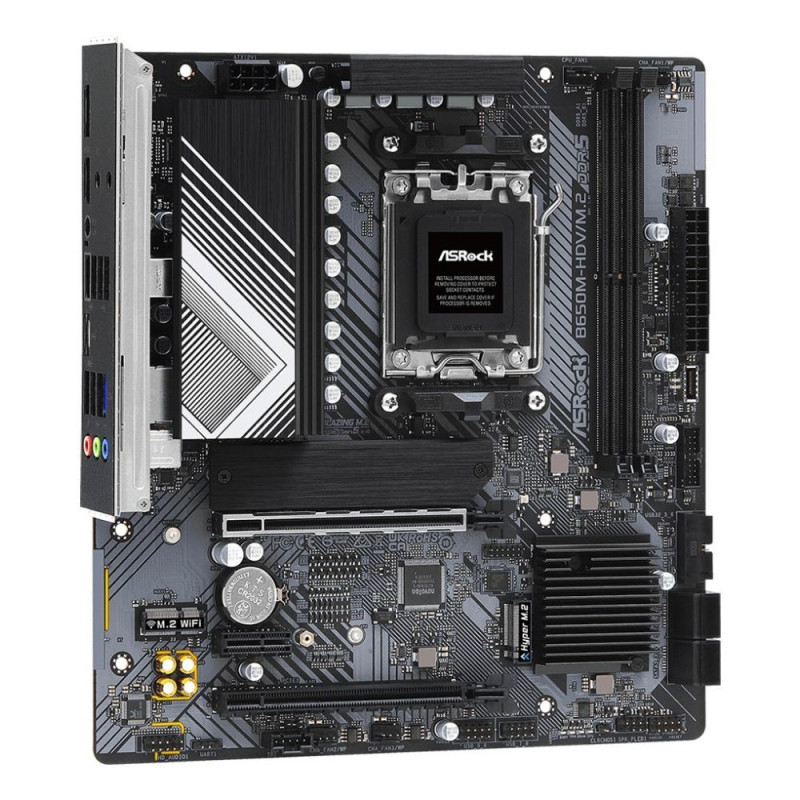

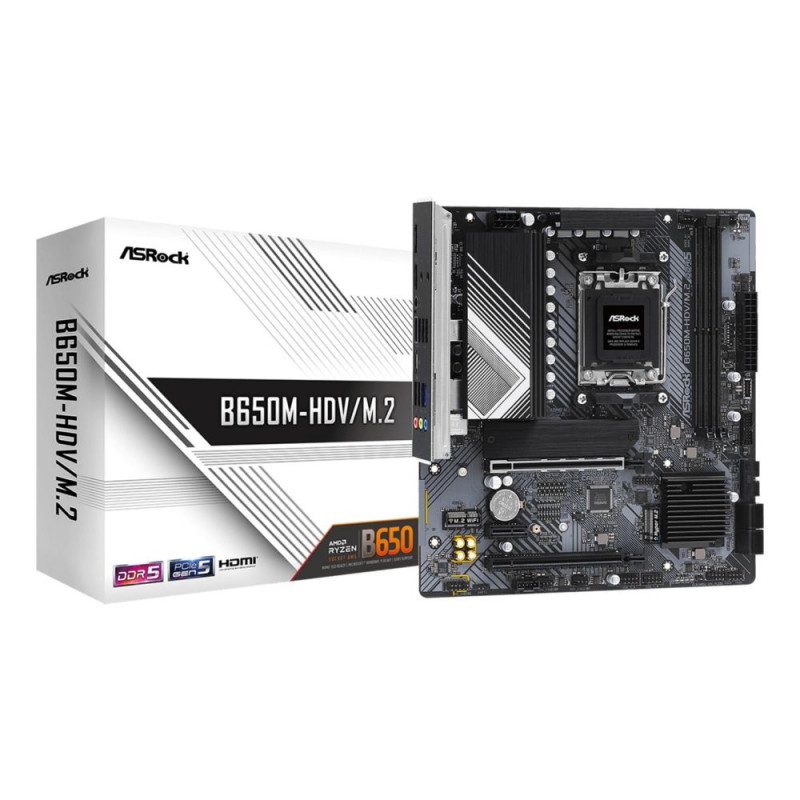

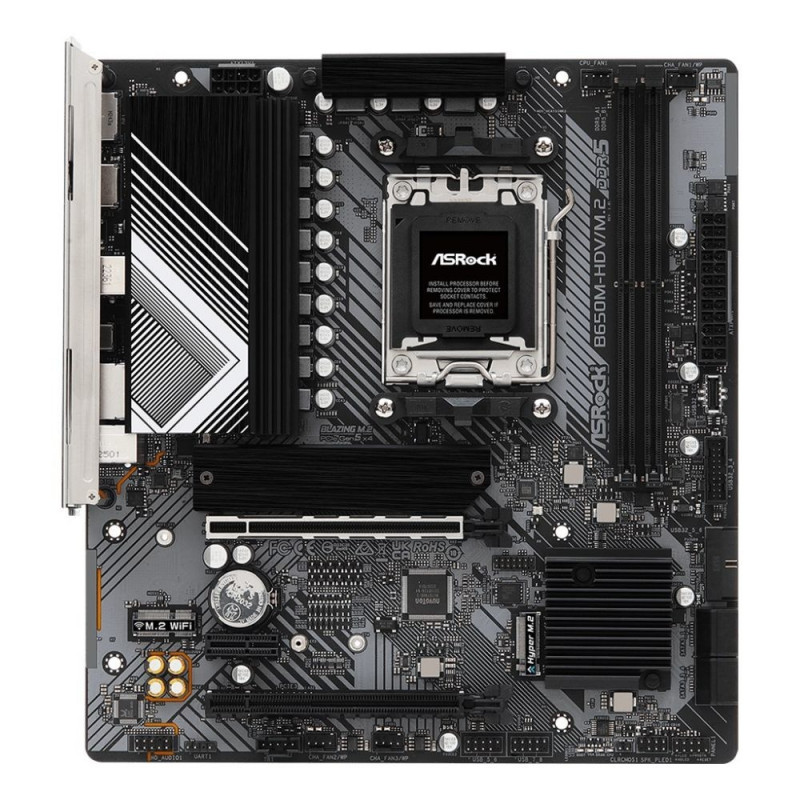

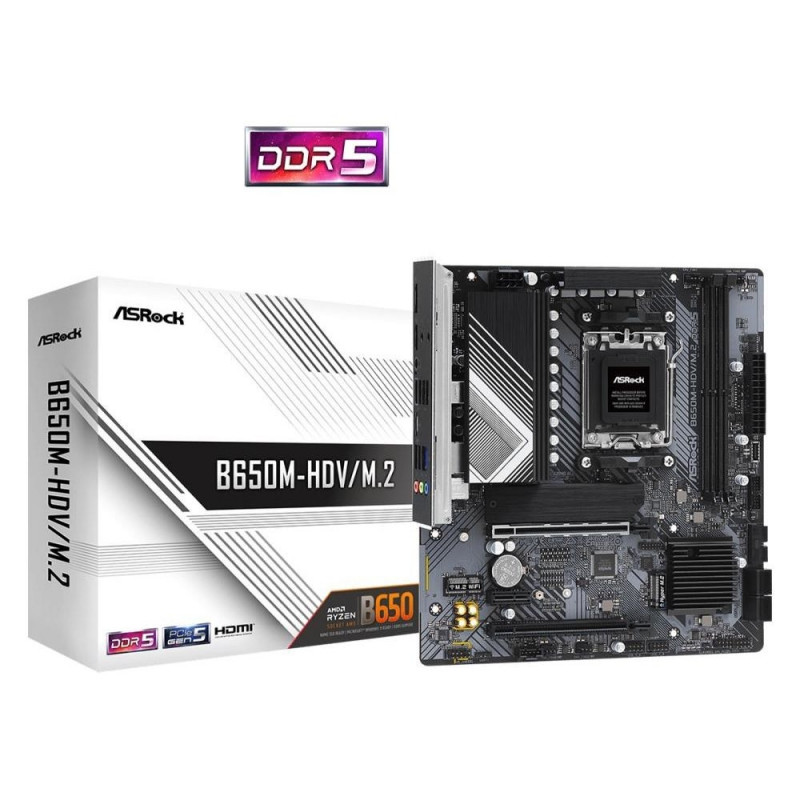

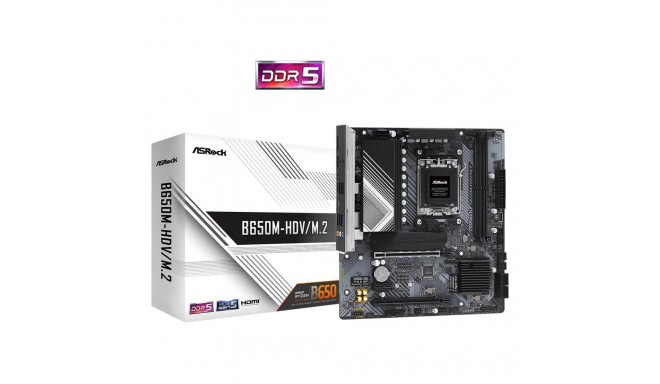

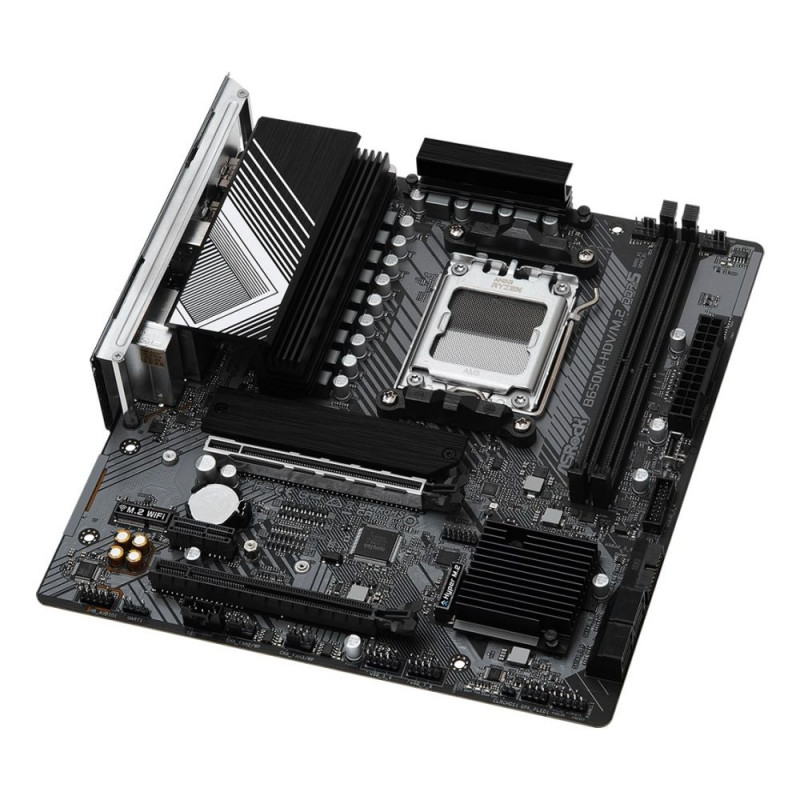

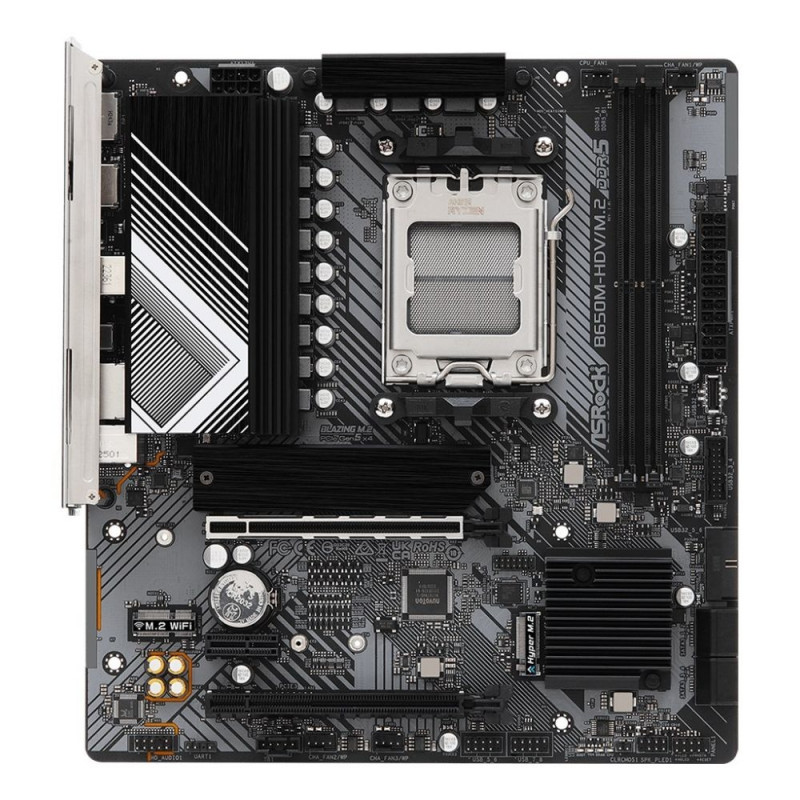

Asrock AM5 B650M-HDV/M.2 uATX

Main info

Warranty 24 (F) DisplayPort version 1.4

Product has been archived


Warranty 24 (F)
DisplayPort version 1.4
BIOS type EFI AMI
Motherboard chipset family AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Thunderbolt headers 1
USB 2.0 ports quantity 4
EPS power connector (8-pin) Yes
LAN controller Realtek RTL8125-BG
Motherboard chipset AMD B650
Number of SATA III connectors 4
Supported storage drive types HDD & SSD
Front panel audio connector Yes
Number of storage drives supported 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Wi-Fi No
USB 2.0 connectors 2
Width 244 mm
Unbuffered memory Yes
PCI Express x16 (Gen 4.x) slots 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Line-in Yes
Ethernet LAN (RJ-45) ports 1
Number of memory slots 2
Audio output channels 7.1 channels
Supported storage drive interfaces M.2, SATA III
Maximum internal memory 64 GB
Processor socket Socket AM5
ATX Power connector (24-pin) Yes
RAID support Yes
Processor manufacturer AMD
HDMI ports quantity 1
Ethernet interface type 2.5 Gigabit Ethernet
CPU fan connector Yes
Audio chip Realtek ALC897
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Microphone in Yes
Compatible processor series AMD Ryzen™ 7
Number of M.2 (M) slots 2
Ethernet LAN Yes
Depth 226 mm
Memory slots type DIMM
DisplayPorts quantity 1
Supported memory types DDR5-SDRAM
Motherboard form factor micro ATX
ECC сompatibility Non-ECC
PCI Express x1 (Gen 4.x) slots 1
RAID levels 1
Windows operating systems supported Windows 11 x64
Warnings Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

Dimensions and weights

Package width
260 cm
Package height
60 cm
Package length
275 cm

Product codes

EAN
4710483942693
Manufacturer code
90-MXBLA0-A0UAYZ
