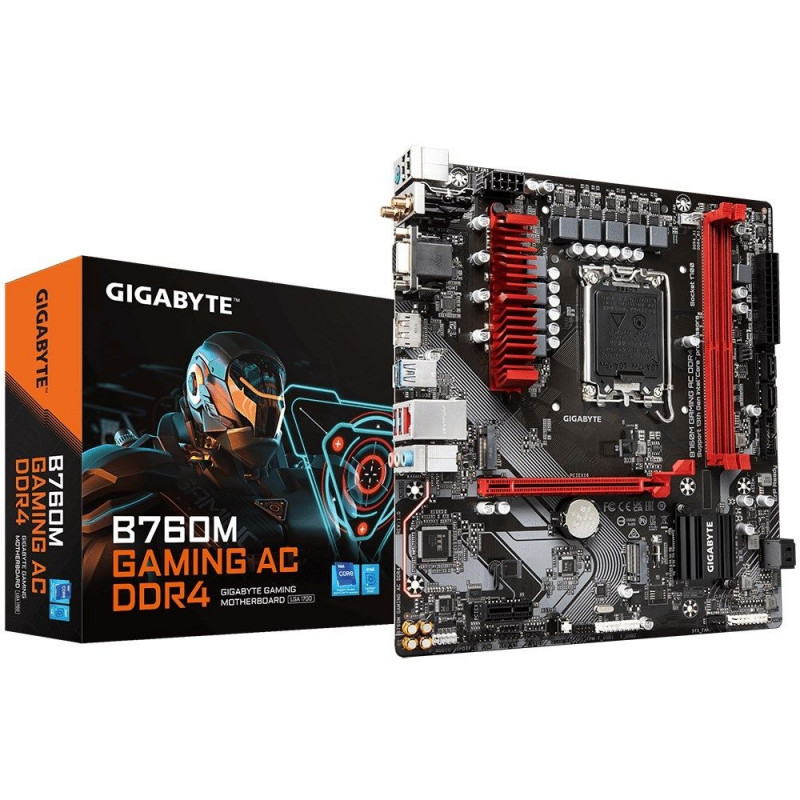

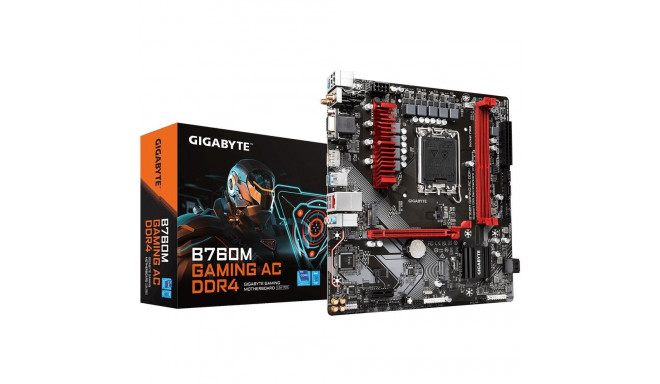

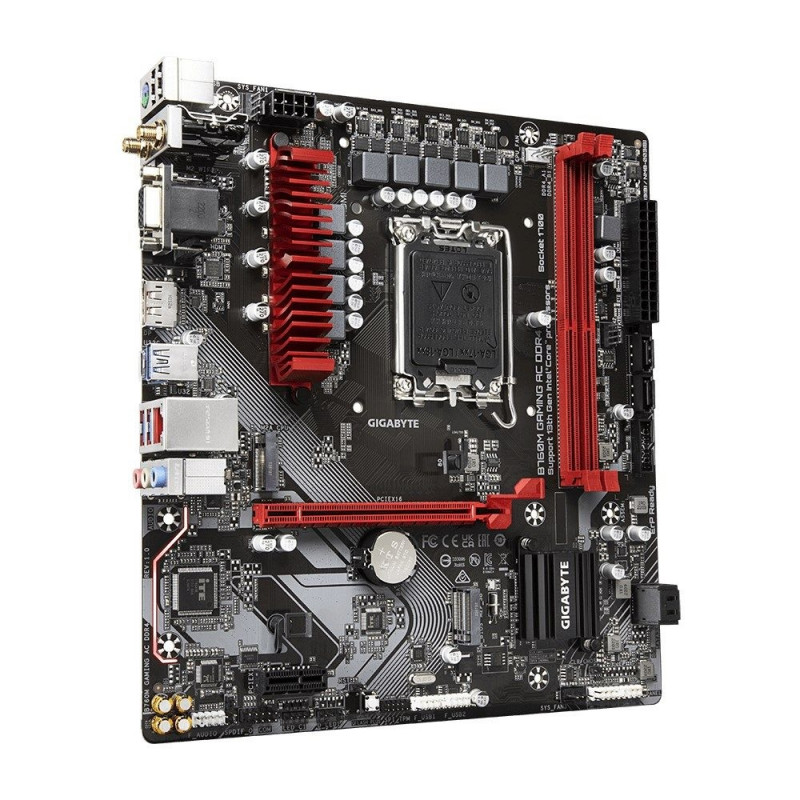

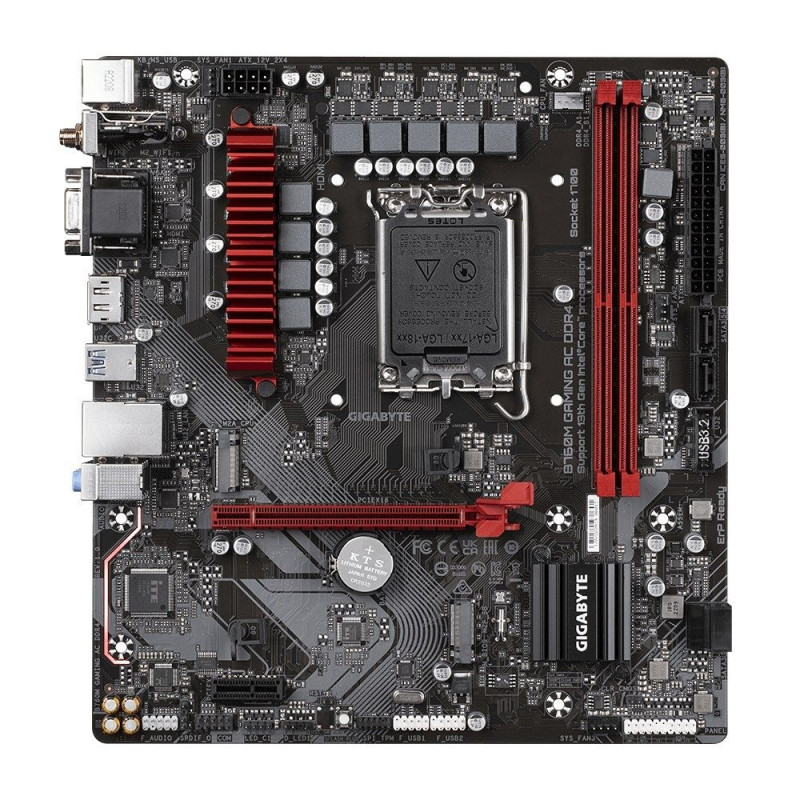

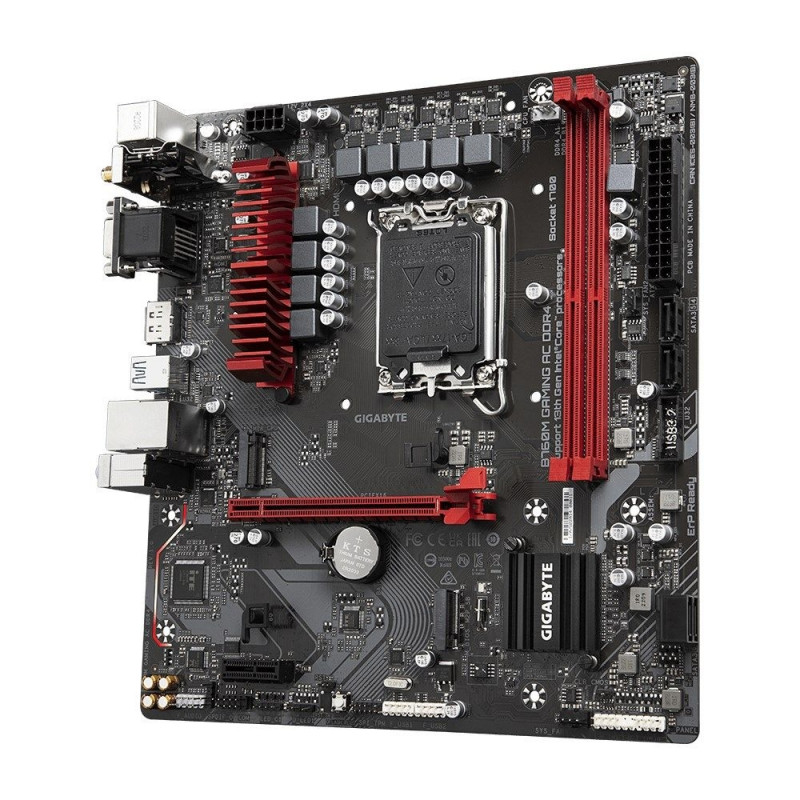

GIGABYTE B760M GAMING AC DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+2+1 Phases Digital VRM,

154,99 €

Monthly payment starting from 5,28 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Memory slots type DIMM
Depth 225 mm
Supported memory clock speed (max) 5333 MHz
Warranty period 3 year(s)
HDMI version 2.0
Ethernet LAN Yes
Processor socket LGA 1700
Clear CMOS jumper Yes
Supported memory types DDR4-SDRAM
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Processor manufacturer Intel
Package depth 268 mm
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Memory channels Dual-channel
Height 35 mm
Cables included SATA
Maximum number of SMP processors 1
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Batteries included Yes
TPM connector Yes
Drivers included Yes
Clear CMOS button Yes
Headphone outputs 1
Microphone in Yes
Line-in Yes
Battery technology Lithium-Manganese Dioxide (LiMnO2)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Width 244 mm
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
DisplayPorts quantity 1
HDCP Yes
USB 2.0 connectors 2
Wi-Fi Yes
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
Number of memory slots 4
Lithium weight per battery 0.07 g
Motherboard form factor micro ATX
Thunderbolt headers 2
Products per shipping (inner) case 1 pc(s)
Package height 68 mm
Desktop Management Interface (DMI) version 2.7
ECC сompatibility ECC & Non-ECC
Number of battery cells 1
Number of displays supported 3
PCI Express x16 (Gen 4.x) slots 1
RGB LED pin header Yes
Battery weight 3 g
PCI Express x16 (Gen 3.x) slots 1
BIOS type UEFI AMI
Cooling type Active
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Package width 270 mm
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
CPU fan connector Yes
RAID support Yes
Power source type ATX
Maximum resolution 4096 x 2304 pixels
Front panel connector Yes
USB 2.0 ports quantity 2
Serial port headers 1
Ethernet LAN (RJ-45) ports 1
Parallel processing technology support Not supported
Number of SATA III connectors 4
Motherboard chipset family Intel
ATX Power connector (24-pin) Yes
Supported processor sockets LGA 1700
Number of chassis fan connectors 3
Audio output channels 7.1 channels
Supported storage drive types HDD & SSD
Country of origin China
S/PDIF out connector Yes
Bluetooth Yes
Audio chip Realtek ALC897
Supported storage drive interfaces M.2, SATA III
Unbuffered memory Yes
Maximum internal memory 64 GB
Motherboard chipset Intel B760 Express
Product colour Bronze
DirectX version 12.0
Package weight 1.15 kg
2nd M.2 highest PCI Express generation 4.0
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
Number of M.2 (M) slots 2
2nd M.2 largest key size 2280
Number of storage drives supported 6
Total number of SATA connectors 4
Bluetooth version 5.0
Number of HDDs supported 4
Warranty 24 (F)
RAID levels 1
Compatible processor series Intel® Celeron®
Supported memory clock speeds 4933
PC health monitoring Voltage
Wi-Fi standards 802.11b
Windows operating systems supported Windows 11

Dimensions and weights

Package width
272 cm
Package height
72 cm
Package length
272 cm

Product codes

EAN
4719331851477
Manufacturer code
B760M GAMING AC DDR4
