ROG STRIX B650-A GAMING WIFI AM5 4DDR5 ATX

Main info

Product has been archived

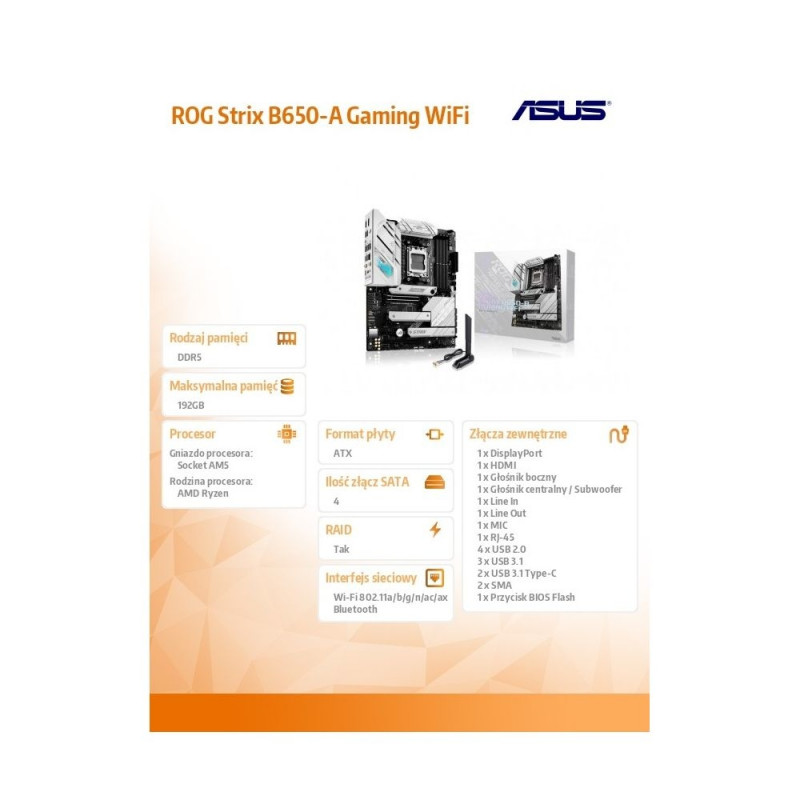

ROG Strix B650-A Gaming WiFi Motherboard

ROG Strix B650-A Gaming WiFi packs high-performance and thermal resistance into a fresh-looking chassis. A solid power supply designed to support AMDs latest Ryzen 7000-series processors is cooled by thick metal heatsinks that stand out against the black PCB. A PCIe 5.0 M.2 slot, support for fast DDR5 memory, and the latest Wi-Fi 6E complete the futuristic feature set.


CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 6800 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 5400 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 7600 MHz
Memory bus frequency 133 MHz
Max memory size 192
Expansion slots 1 x PCIe 4.0 x 16
Max. number of SATA devices 4
RAID Yes
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
USB ports at back panel 9
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 1
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 6
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 3 x USB 3.1
External connectors 1 x Central Speaker / Subwoofer
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 4 x USB 2.0
External connectors 1 x HDMI
External connectors 1 x Side Speaker
External connectors 1 x DisplayPort
External connectors 2 x USB 3.1 Type-C
External connectors 2 x SMA
External connectors 1 x Flash BIOS Button
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin wentylator OPT CPU
Onboard connectors 1 x 4pin 12V power
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 3 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x USB 3.1
Form factor ATX
Supported operating systems Windows 11
Model ROG Strix B650-A Gaming WiFi
Chipset type AMD B650
Graphics 1 x DisplayPort port * 1 x HDMI port ** * Supports up to 8K@60Hz as per DisplayPort 1.4 specification. ** Supports 4K@60Hz as per HDMI 2.1 specification.
Network interface 1 x Intel 2.5Gb Ethernet ASUS LANGuard
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Dimensions 30.5 x 24.4 cm
Designation
Detailed data on disk/drive interfaces Supports 3x M.2 slots and 4x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 (M-Key) socket, type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 (M-K
Sound card ROG SupremeFX 7.1 Surround Sound KODEK high-definition audio ALC4080 Impedance measurement for front and rear headphone outputs Supports: jack detection, multi-streaming, front panel jack reassignment High-quality stereo output with 120 dB SNR and 113 dB
Special functions Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-LED Q-DIMM Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED ProCool Pre-mounted I/O shield
Accessories included Cables   2 x SATA 6Gb/s cables   Additional cooling kit   1 x M.2 thermal pad   Other   1 x ASUS Wi-Fi movable antennas 1 x Cable tie pack 1 x M.2 Q-Latch pack 1 x ROG keychain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 rubber packs   Doc

Dimensions and weights

Gross weight
2.15 kg
Package width
34 cm
Package height
28 cm
Package length
7 cm

Product codes

EAN
4711081917762
Manufacturer code
KBASUAA8B650A03
