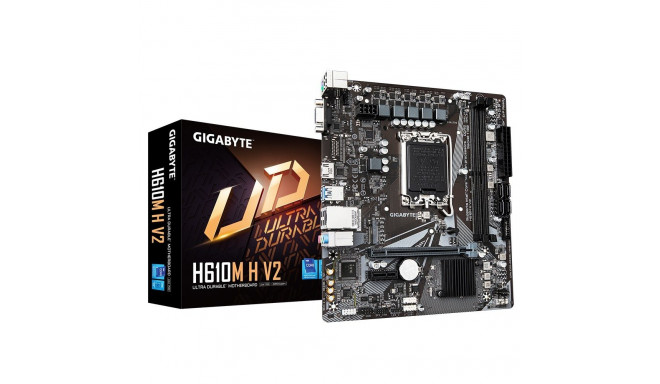

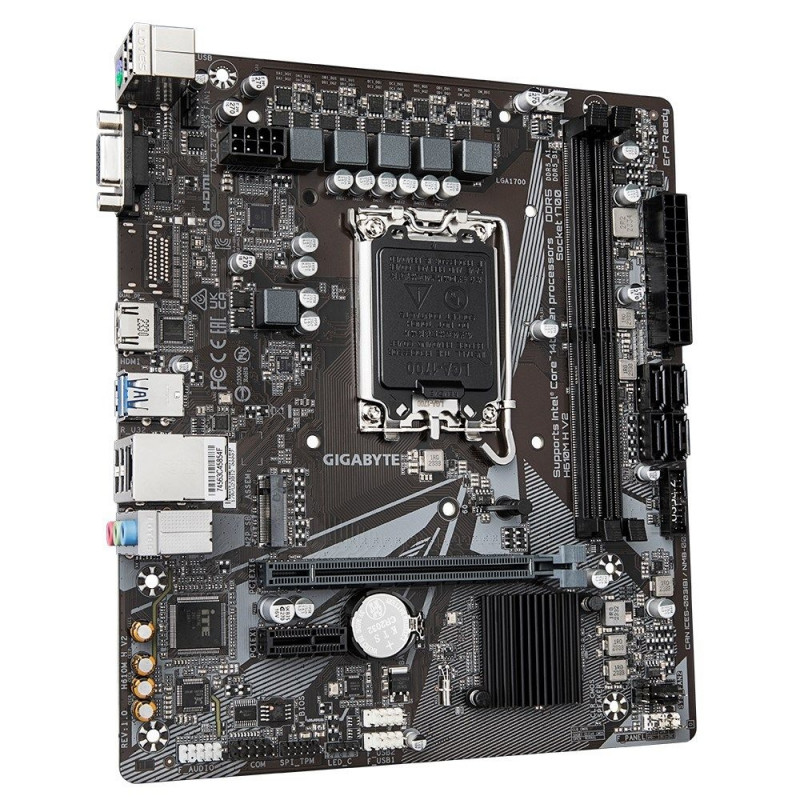

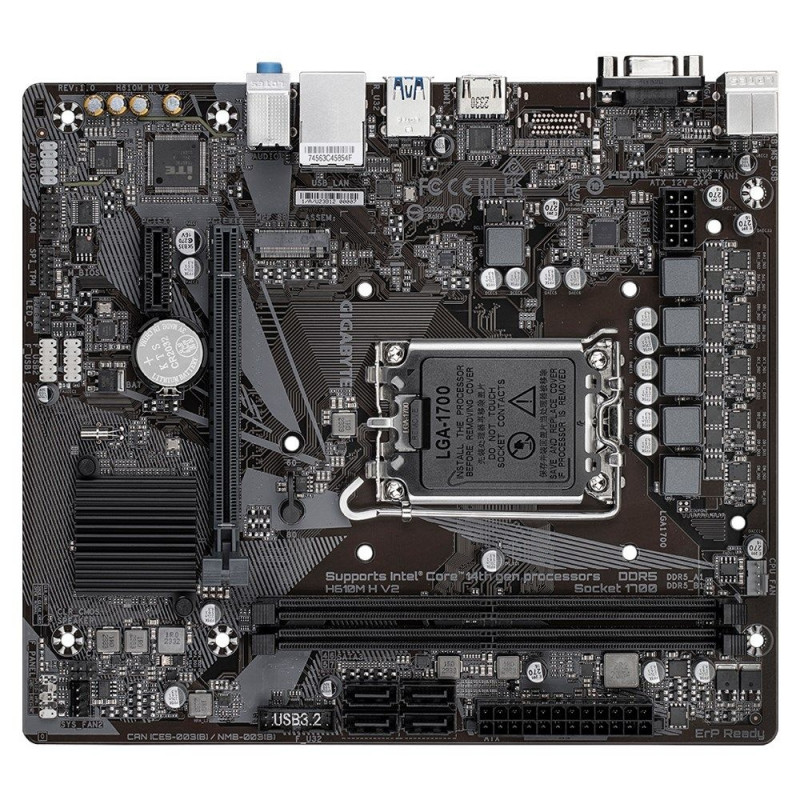

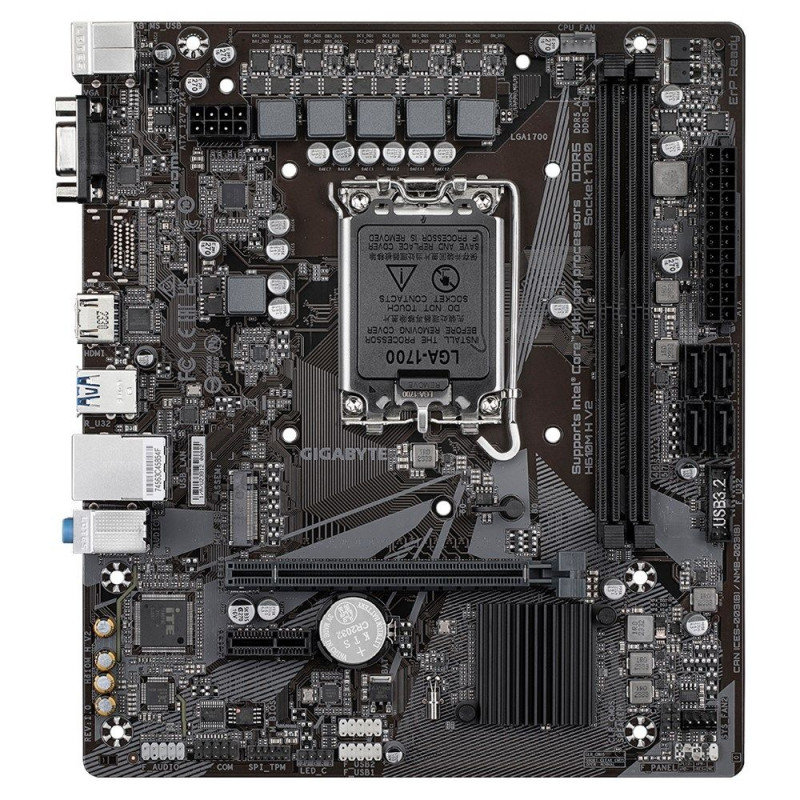

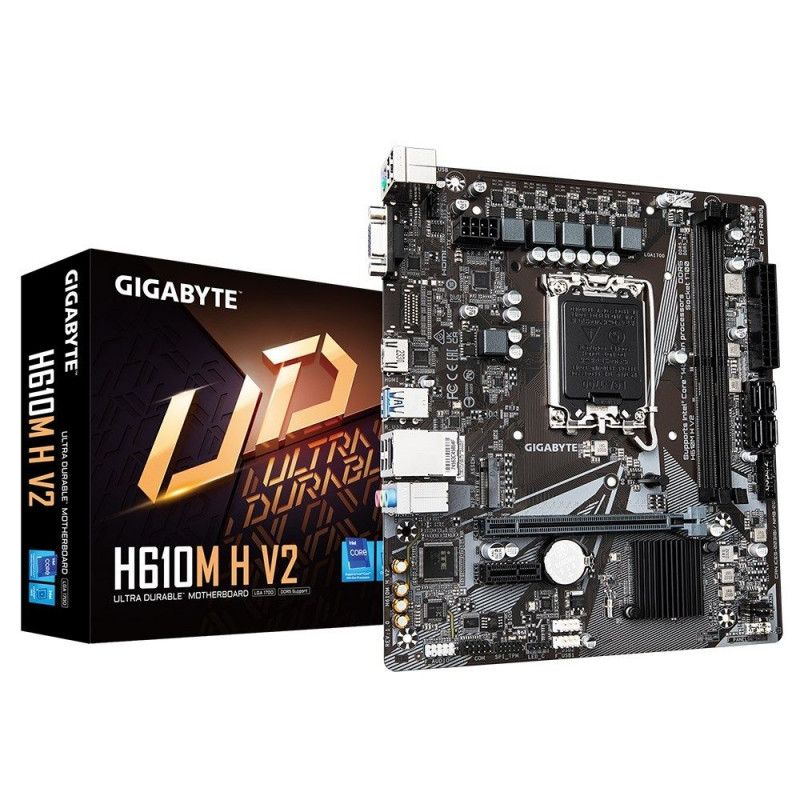

GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 560

Main info

Product has been archived


Warranty 24 (G)
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Headphone outputs 3
Products per shipping (inner) case 1 pc(s)
Desktop Management Interface (DMI) version 2.7
VGA (D-Sub) ports quantity 1
Number of memory slots 2
Wi-Fi No
Number of battery cells 1
Ethernet LAN Yes
Depth 196 mm
Battery weight 3 g
Height 35 mm
PCI Express x1 slots 1
Number of HDDs supported 1
Product colour Black
RGB LED pin header Yes
Maximum internal memory supported by processor 96 GB
CPU fan connector Yes
Ethernet interface type Gigabit Ethernet
Memory slots type DIMM
12V power connector Yes
DVI-D ports quantity 1
Number of SATA III connectors 4
Supported memory clock speed (max) 5600 MHz
Processor manufacturer Intel
System Management BIOS (SMBIOS) version 2.7
Number of M.2 (M) slots 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
EPS power connector (8-pin) Yes
Graphics card HD Graphics
Audio chip Realtek ALC897
Package depth 265 mm
TPM connector Yes
Package weight 694 g
Motherboard chipset family Intel
Country of origin China
Audio output channels 7.1 channels
Cooling type Active
Clear CMOS button Yes
Supported memory types DDR5-SDRAM
Ethernet LAN (RJ-45) ports 1
Maximum internal memory 96 GB
Supported processor sockets LGA 1700
Serial port headers 1
USB 2.0 ports quantity 4
Front panel audio connector Yes
PS/2 ports quantity 1
Package height 54 mm
PCI Express x16 slots 1
Graphics card family Intel
Maximum resolution 4096 x 2304 pixels
Package width 265 mm
Front panel connector Yes
ATX Power connector (24-pin) Yes
Supported storage drive types HDD & SSD
Microphone in Yes
HDCP Yes
Cables included SATA
BIOS type UEFI AMI
HDMI ports quantity 1
Motherboard chipset Intel H610 Express
Supported storage drive interfaces M.2, SATA III
Memory channels Dual-channel
USB connector type USB Type-A
Processor socket LGA 1700
Warranty period 3 year(s)
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Motherboard form factor micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Number of storage drives supported 5
Batteries included Yes
Width 230 mm
DisplayPorts quantity 2
BIOS memory size 128 Mbit
Battery type CR2032
Power source type ATX
Component for PC
USB 2.0 connectors 2
Parallel processing technology support Not supported
ACPI version 5.0
Clear CMOS jumper Yes
Unbuffered memory Yes
Lithium weight per battery 0.07 g
ECC сompatibility ECC & Non-ECC
Supported memory module capacities 48GB
Supported memory clock speeds 5600
Warnings Before starting any maintenance or installation, disconnect the product from the power supply.
Windows operating systems supported Windows 11 x64
PC health monitoring Temperature
Compatible processor series Intel® Celeron®

Dimensions and weights

Package width
242 cm
Package height
58 cm
Package length
272 cm

Product codes

EAN
4719331859985
Manufacturer code
H610M H V2
