Home page » Computers & IT»Computer components»CPUs»Intel Core i9-14900KS processor 36 MB Smart Cache Box

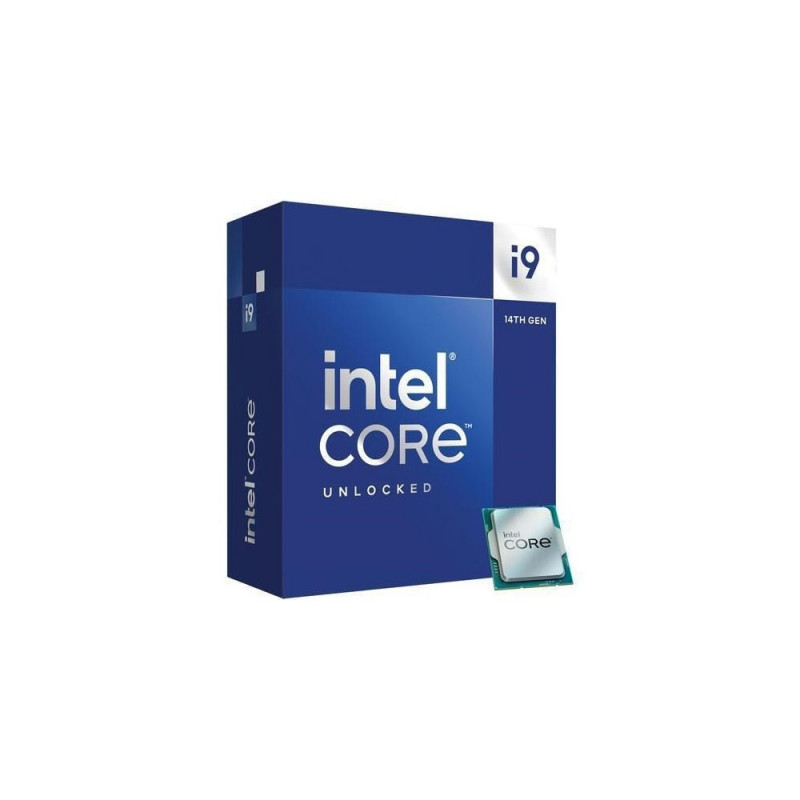

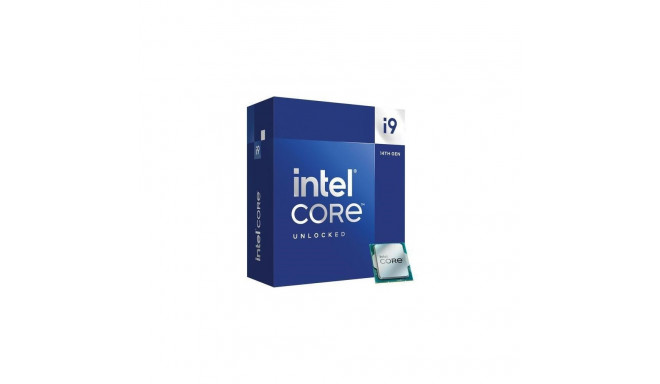

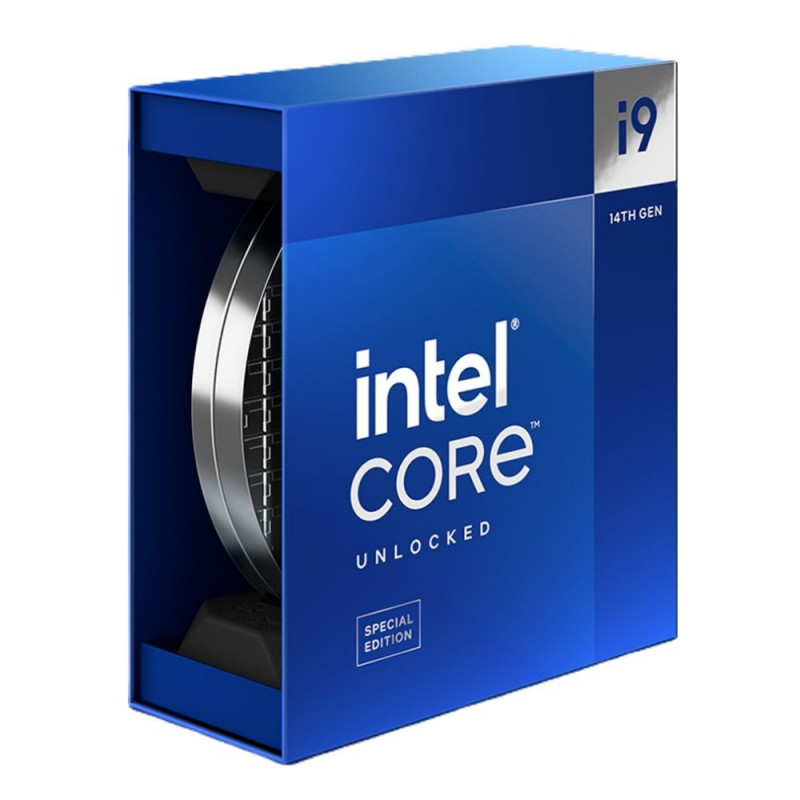

Intel Core i9-14900KS processor 36 MB Smart Cache Box

Main info

Product has been archived


Warranty 24 (G)
ECC Yes
Enhanced Intel SpeedStep Technology Yes
Processor threads 32
On-board graphics card model Intel UHD Graphics 770
Processor cores 24
Processor model i9-14900KS
Efficient-core boost frequency 4.5 GHz
Maximum internal memory 192 GB
Memory bandwidth (max) 89.6 GB/s
Export Control Classification Number (ECCN) 5A992C
CPU configuration (max) 1
Processor cache 36 MB
Processor codename Raptor Lake
Memory channels Dual-channel
Processor package size 45 x 37.5 mm
Processor family Intel® Core™ i9
Intel® Quick Sync Video Technology Yes
Intel Trusted Execution Technology Yes
Intel® Thread Director Yes
On-board graphics card Yes
Discrete graphics card model Not available
Stepping B0
Processor socket LGA 1700
Thermal Monitoring Technologies Yes
Multi-Format Codec Engines 2
Processor manufacturer Intel
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes
Number of execution units 32
Intel® Thermal Velocity Boost Frequency 6.2 GHz
Embedded options available No
Processor cache type Smart Cache
Intel VT-x with Extended Page Tables (EPT) Yes
Intel® Remote Platform Erase (RPE) Yes
Tjunction 100 °C
Maximum number of PCI Express lanes 20
Processor operating modes 64-bit
On-board graphics card DirectX version 12.0
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 Yes
Processor boost frequency 6.2 GHz
Intel® Secure Key Yes
Direct Media Interface (DMI) Revision 4.0
Processor generation Intel® Core™ i9 (14th gen)
Intel® Standard Manageability (ISM) Yes
Intel® Turbo Boost Technology 2.0
Efficient-core base frequency 2.4 GHz
Intel® Control-flow Enforcement Technology (CET) Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) Yes
Intel® Hardware Shield Eligibility Yes
Intel® One-Click Recovery Yes
Graphics output eDP 1.4b, DP 1.4a, HDMI 2.1
Maximum turbo power 253 W
L2 cache 32768 KB
Intel® Threat Detection Technology (TDT) Yes
Intel® Turbo Boost Max Technology 3.0 frequency 5.9 GHz
Maximum number of DMI lanes 8
Performance-core base frequency 3.2 GHz
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel® Total Memory Encryption - Multi Key Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Clear Video HD Technology (Intel® CVT HD) Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Performance cores 8
Use conditions PC/Client/Tablet
Mode-based Execute Control (MBE) Yes
Intel vPro® Enterprise Platform Eligibility Yes
Efficient cores 16
Intel Turbo Boost Max Technology 3.0 Yes
Commodity Classification Automated Tracking System (CCATS) 740.17B1
Cooler included No
Intel vPro® Essentials Platform Eligibility Yes
Intel® Thermal Velocity Boost Yes
Intel® Volume Management Device (VMD) Yes
Intel® Speed Shift Technology Yes
Performance-core boost frequency 5.7 GHz
Intel® Adaptive Boost Technology Yes
Processor base power 150 W
On-board graphics card dynamic frequency (max) 1650 MHz
Intel® Active Management Technology (Intel® AMT) Yes
On-board graphics card OpenGL version 4.5
Number of displays supported (on-board graphics) 4
Intel® Boot Guard Yes
On-board graphics card ID 0xA780
On-board graphics card maximum resolution (DisplayPort) 7680 x 4320 pixels
On-board graphics card maximum resolution (HDMI) 4096 x 2160 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel) 5120 x 3200 pixels
Maximum internal memory supported by processor 192 GB
On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz
Processor ARK ID 237504
Intel® OS Guard Yes
On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz
OpenCL version 3.0
Harmonized System (HS) code 8542310001
Launch date Q1'24
Intel 64 Yes
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 120 Hz
Memory bandwidth supported by processor (max) 89.6 GB/s
Idle States Yes
Status Launched
Scalability 1S
Discrete graphics card No
On-board graphics card base frequency 300 MHz
Execute Disable Bit Yes
Market segment Desktop
PCI Express configurations 2x8+1x4
Non-ECC Yes
Supported instruction sets AVX 2.0
Memory types supported by processor DDR4-SDRAM
PCI Express slots version 4.0
On-board graphics card outputs supported DisplayPort 1.4a
Warnings Avoid contact with liquid.

Dimensions and weights

Package width
120 cm
Package height
80 cm
Package length
110 cm

Product codes

EAN
5032037280310
Manufacturer code
BX8071514900KSSRN7R
