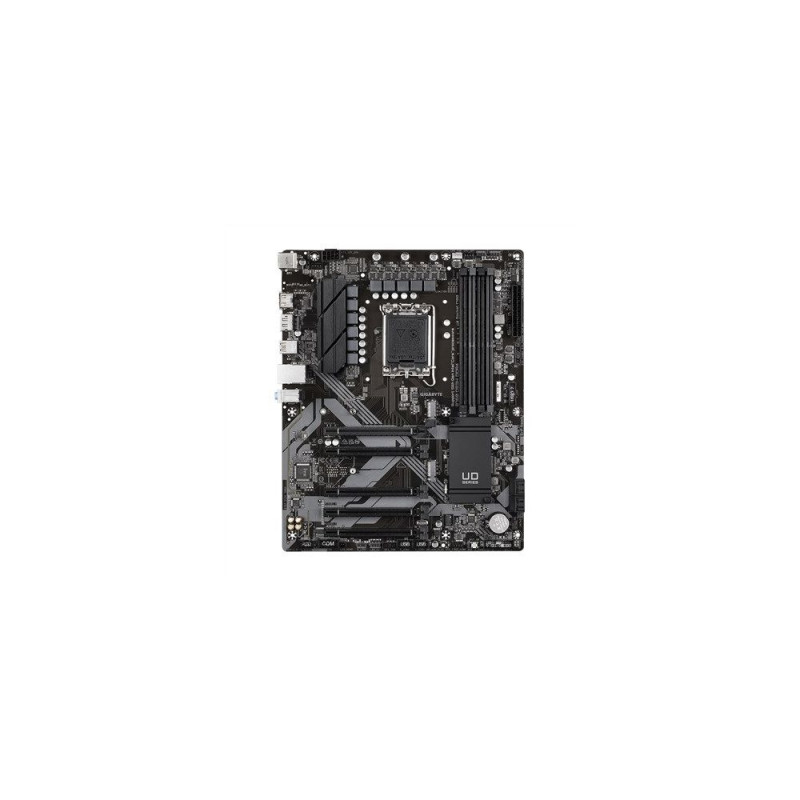

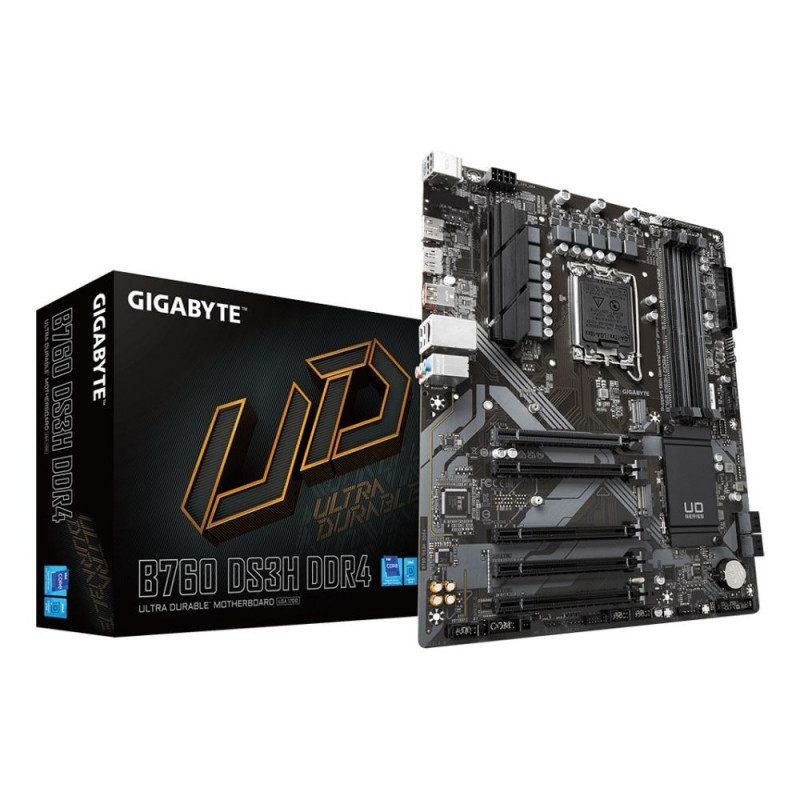

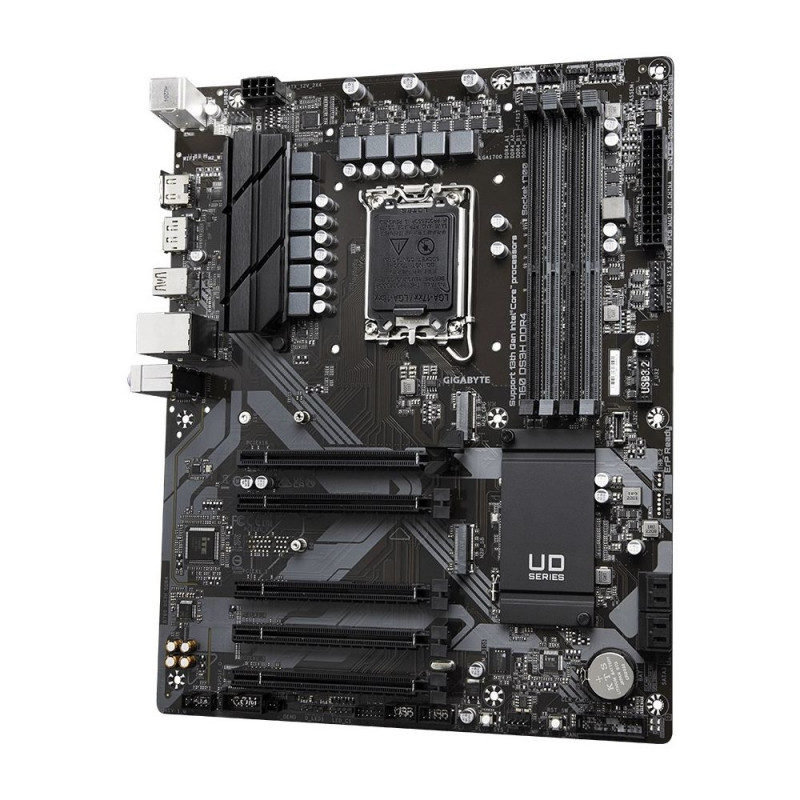

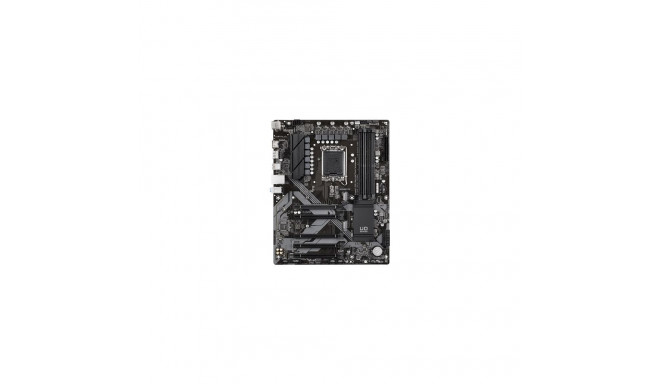

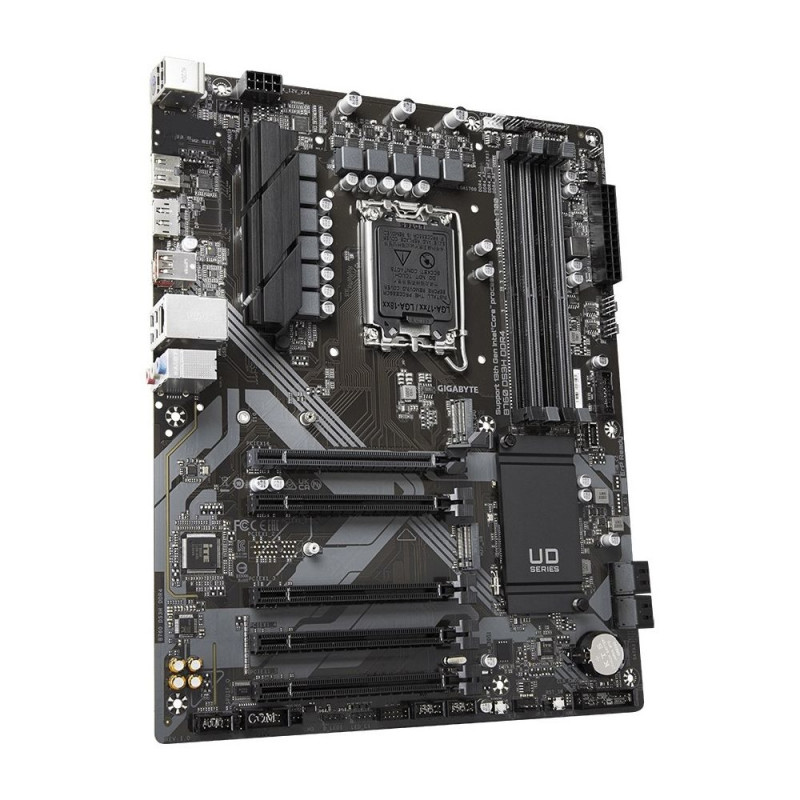

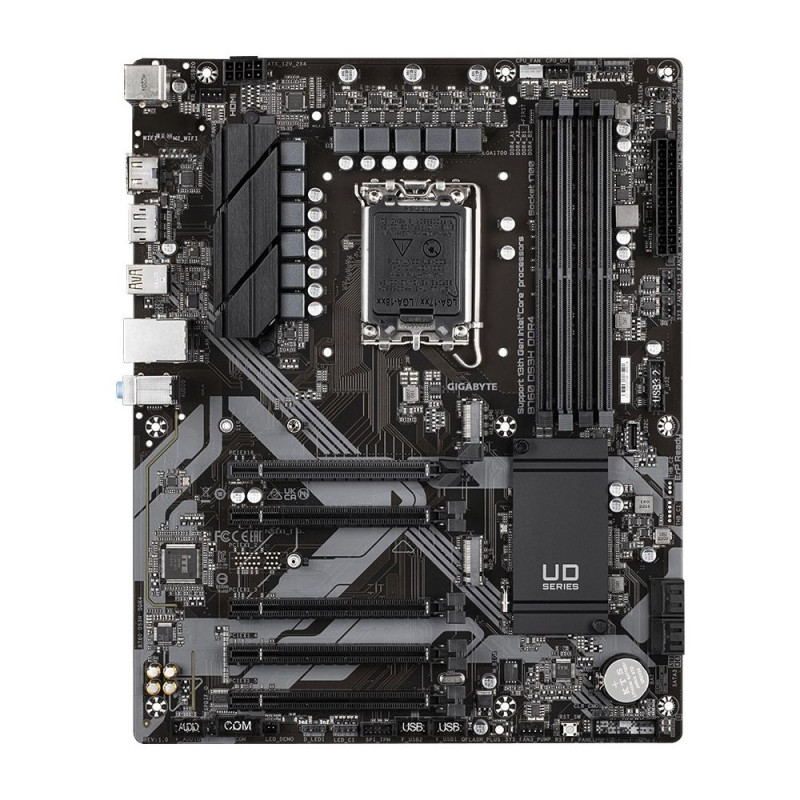

GIGABYTE B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up t

Main info

Product has been archived


Bundled software Norton Internet Security
Ethernet LAN (RJ-45) ports 1
Motherboard chipset Intel B760 Express
HDMI ports quantity 1
Motherboard form factor ATX
Wi-Fi No
CPU fan connector Yes
HDCP Yes
Package depth 270 mm
Package weight 1.31 kg
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
S/PDIF out connector Yes
Headphone outputs 3
Ethernet interface type Gigabit Ethernet
Total number of SATA connectors 4
Front panel audio connector Yes
Audio output channels 7.1 channels
BIOS type UEFI AMI
TPM connector Yes
HDMI version 2.0
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Motherboard chipset family Intel
Maximum resolution 4096 x 2304 pixels
Front panel connector Yes
Cables included SATA
Number of M.2 (M) slots 2
PS/2 ports quantity 1
Serial port headers 1
Clear CMOS jumper Yes
Supported storage drive types HDD & SSD
12V power connector Yes
Depth 244 mm
DisplayPort version 1.2
Ethernet LAN Yes
ATX Power connector (24-pin) Yes
Height 35 mm
DisplayPorts quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Number of SATA III connectors 4
Memory slots type DIMM
Unbuffered memory Yes
Products per shipping (inner) case 1 pc(s)
Width 305 mm
USB 2.0 connectors 2
Desktop Management Interface (DMI) version 2.7
Battery technology Lithium-Manganese Dioxide (LiMnO2)
RGB LED pin header Yes
Parallel processing technology support Not supported
USB 3.2 Gen 2x2 Type-C ports quantity 1
Package width 335 mm
Number of HDDs supported 4
Country of origin China
Maximum internal memory 128 GB
Number of memory slots 4
Number of battery cells 1
Processor socket LGA 1700
Battery weight 3 g
Supported processor sockets LGA 1700
Package height 80 mm
Number of storage drives supported 6
RAID support Yes
Battery type CR2032
Microphone in Yes
Maximum internal memory supported by processor 128 GB
Batteries included Yes
Supported memory types DDR4-SDRAM
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Processor manufacturer Intel
USB 2.0 ports quantity 4
DirectX version 12.0
Warranty period 3 year(s)
Supported memory clock speed (max) 5333 MHz
Lithium weight per battery 0.07 g
PCI Express x16 slots 5
Warranty 24 (G)
Compatible processor series Intel® Celeron®
Windows operating systems supported Windows 11 x64
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 4600
USB connector type USB Type-C
BIOS memory size 128 Mbit
PC health monitoring Fan
Supported memory module capacities 32GB
Component for PC
RAID levels 1
ACPI version 5.0
System Management BIOS (SMBIOS) version 2.7

Dimensions and weights

Package width
343 cm
Package height
85 cm
Package length
274 cm

Product codes

EAN
4719331850746
Manufacturer code
B760 DS3H DDR4
