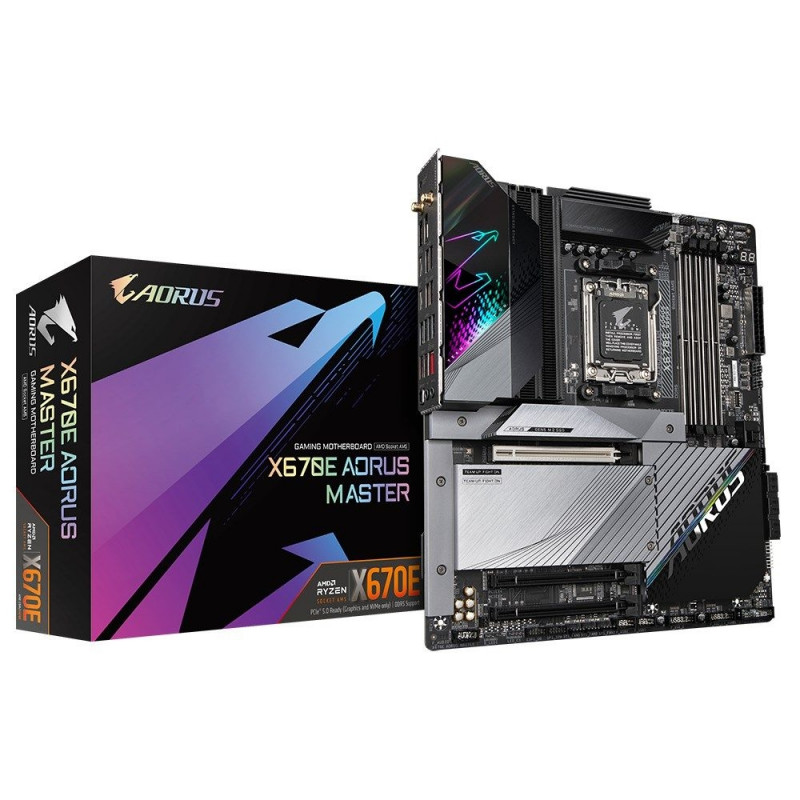

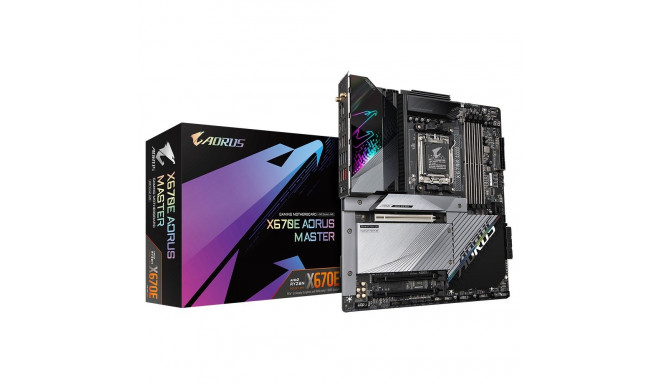

MOTHERBOARD GIGABYTE X670E AORUS MASTER

Main info

Product has been archived


Maximum internal memory supported by processor 192 GB
Package weight 3.33 kg
Supported storage drive types HDD & SSD
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
S/PDIF out port Yes
Product colour Black
DirectX version 12.0
Audio connector Yes
Motherboard chipset family AMD
Package depth 335 mm
Ethernet LAN Yes
Package height 430 mm
USB 3.2 Gen 2x2 connectors 1
Bluetooth Yes
PCI Express x1 (Gen 4.x) slots 1
USB 2.0 connectors 2
Country of origin Taiwan
Package width 400 mm
Ethernet LAN (RJ-45) ports 1
Drivers included Yes
Maximum number of SMP processors 1
Supported storage drive interfaces M.2, SATA II
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI version 2.0
WLAN controller model Intel Wi-Fi 6E AX210
Warranty period 3 year(s)
Height 35 mm
Maximum internal memory 192 GB
Supported processor sockets Socket AM5
Number of memory slots 4
HDCP Yes
Processor socket Socket AM5
Number of M.2 (M) slots 4
Batteries included Yes
Products per shipping (inner) case 1 pc(s)
Number of battery cells 1
Number of SATA III connectors 6
Wi-Fi Yes
USB 2.0 ports quantity 2
Audio output channels 7.1 channels
Parallel processing technology support Not supported
Number of HDDs supported 4
Number of storage drives supported 10
Bluetooth version 5.3
Total number of SATA connectors 6
Motherboard form factor ATX
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
PCI Express x4 (Gen 2.x) slots 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Cables included SATA
Front panel connector Yes
Supported memory clock speed (max) 8000 MHz
Depth 269 mm
Compatible processor series AMD Ryzen™ 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
BIOS type UEFI AMI
Battery weight 3 g
Memory slots type DIMM
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Lithium weight per battery 0.07 g
RGB LED pin header Yes
Desktop Management Interface (DMI) version 2.7
Width 305 mm
CPU fan connector Yes
Motherboard chipset AMD X670
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Processor manufacturer AMD
Clear CMOS jumper Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
ECC сompatibility Non-ECC
Chassis intrusion connector Yes
HDMI ports quantity 1
Warranty 24 (G)
RAID levels 0
Windows operating systems supported Windows 10 Home x64
Supported memory clock speeds 4800 MHz
Wi-Fi standards Wi-Fi 5 (802.11ac)

Dimensions and weights

Package width
301 cm
Package height
350 cm
Package length
88 cm

Product codes

EAN
4719331844363
Manufacturer code
X670E AORUS MASTER
