Thermaltake Power Supply TR2 S 700W

71,99 €

Monthly payment starting from 2,15 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

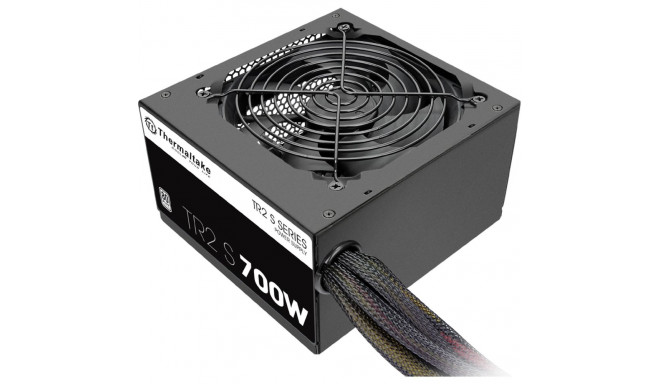

Thermaltake Netzteil TR2 S 700W

Incorporating various high-quality components, the new TR2 S Series - models are rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

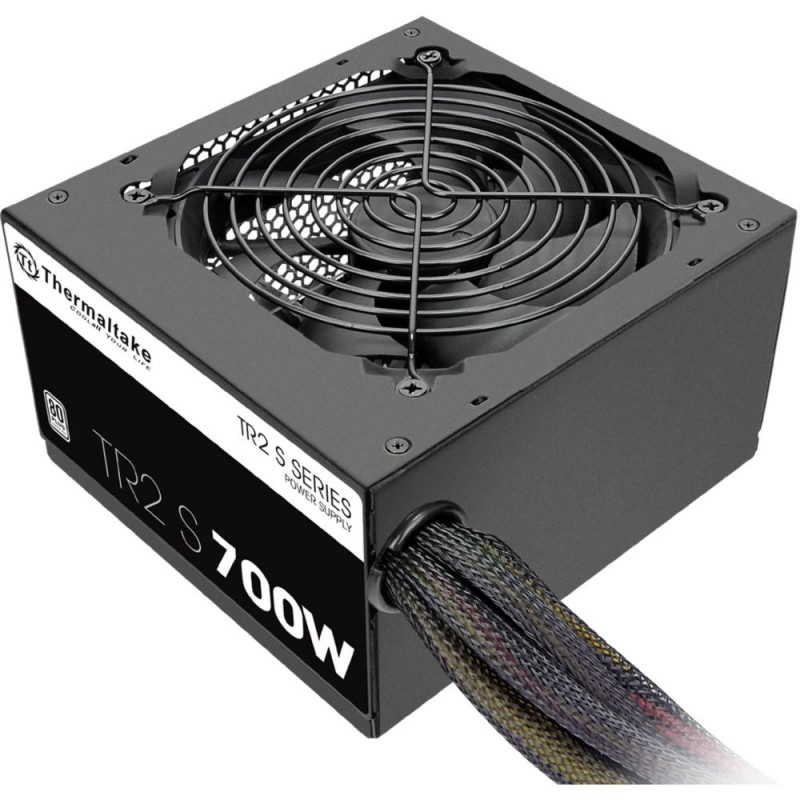

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 700W connector's specification as below.

80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS 230V Standard Certified.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Features:

  • Type: Intel ATX 12V 2.3
  • Max. Output Capacity: 700 W
  • Color: white
  • Dimension (H x W x D): 86 mm x 150 mm x 140 mm
  • PFC (Power Factor Correction): Active PFC
  • Power Good Signal: 100-500 msec
  • Hold Up Time: 16msec (minimum) within 60% load
  • Input current: 9A max
  • Input Frequency Range: 50 Hz - 60 Hz
  • Input Voltage: 230 Vac
  • Operating Temperature: 5°C to +40°C
  • Operating Humidity: 20% to 85%, non-condensing
  • Storage Temperature: -40 °C to +55 °C
  • Storage Humidity: 10% to 95%, non-condensing
  • Cooling System: 120mm Fan: 1800 R.P.M. ± 10%
  • Efficiency: 82-86% Efficiency @ 20-100% load
  • MTBF: 100,000 hrs minimum
  • PCI-E Connector: PCI-E 6+2pin x 2

Feature2 netzteil-nicht-modular
Power (Watt) 700
ATX Version 2.3
Certification 80PLUS
Efficiency at Full Load (%) 86
Cable Management Non Modular
Fan (Number) 1
Fan Speed +/- 10% (U/Min) 1800
ATX-Mainboard 1x 24pin
ATX12V 1x
PCIe 2x 6+2pin
PCIe 5.0 (12VHPWR) No
Peripheral P4 5x 4pin
S-ATA 6x 5pin
Input Frequency (Hz) 50 - 60
Input Voltage (V) 230
Amperage 9
Colour Black
Form Factor ATX
PFC Type (Power Factor Correction) Active PFC
Mean Time Between Failures (MTBF) (h) 100000
Fan Diameter (mm) 120

Dimensions and weights

Gross weight
2.18 kg
Package width
15 cm
Package height
8.6 cm
Package length
14 cm

Product codes

EAN
4717964401908
Manufacturer code
PS-TRS-0700NPCWEU-2
