Motherboard - Asrock X570d4u

Main info

The ASRock X570D4U supports AMD Ryzen CPUs with the AM4 socket and has up to 32GB of DDR4-SDRAM capacity at 3200 MHz. It also features 3x Gigabit Ethernet LAN ports, 1x HDMI port, and 1x PCIe x16 slot.

Product has been archived

Motherboard - Asrock X570d4u

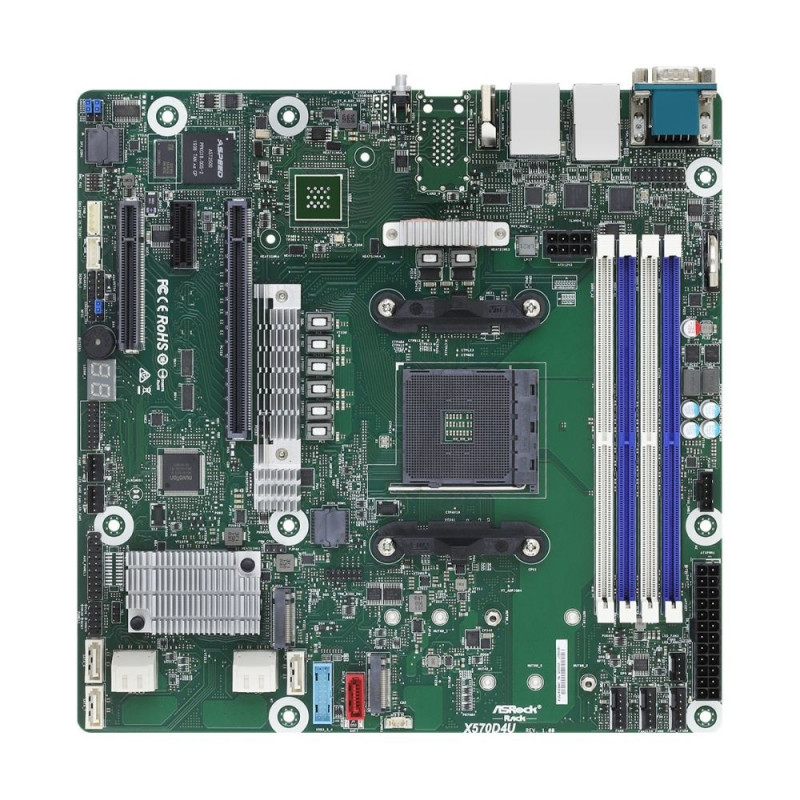

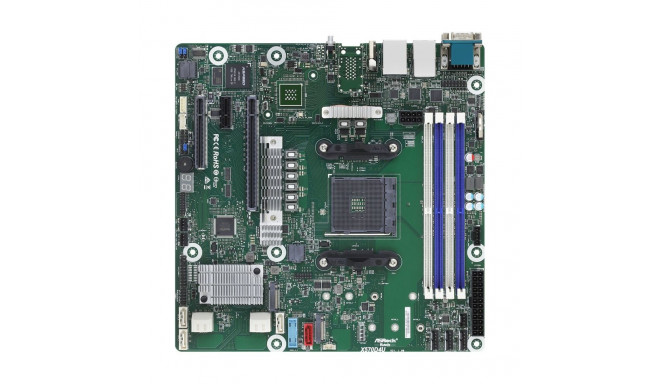

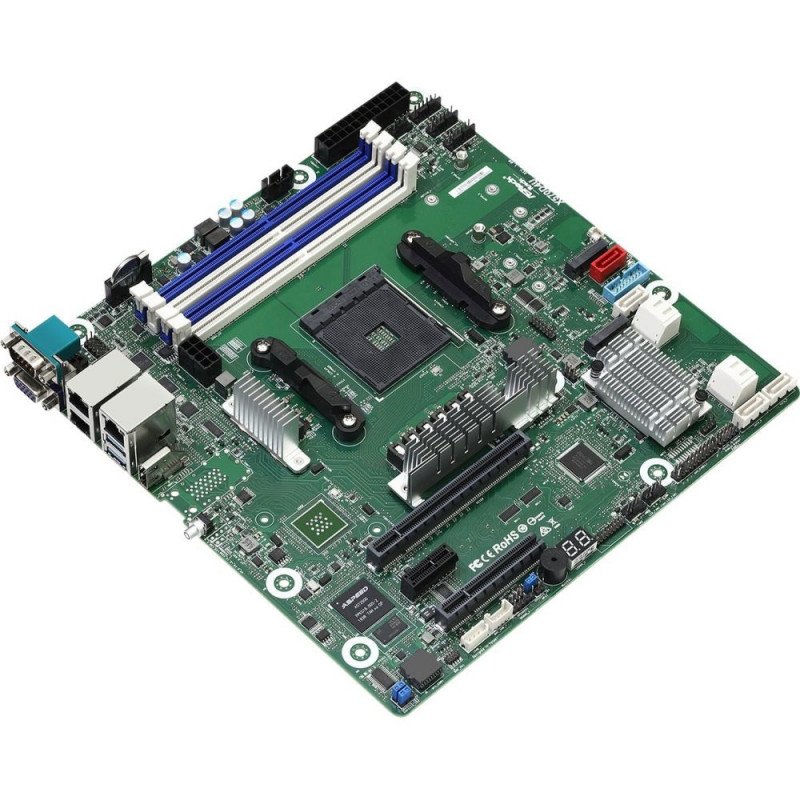

The ASRock X570D4U is a micro ATX motherboard designed for AMD Ryzen processors, featuring the AMD X570 chipset. It supports various storage configurations through its 12x SATA III connectors and 1x M.2 slot.

Key Features
  • Supports AMD Ryzen CPUs with AM4 socket
  • 4x DDR4-SDRAM slots with up to 32GB capacity and 3200 MHz memory speed
  • 12x SATA III connectors, 1x M.2 slot, and 3x Gigabit Ethernet LAN ports
  • 1x HDMI port and 1x VGA (D-Sub) port for video output

Processor
Processor socket Socket AM4
Supported processor sockets Socket AM4
Graphics
Graphics card family ASPEED
Graphics card AST2500
Features
Motherboard chipset AMD X570
Motherboard form factor micro ATX
Motherboard chipset family AMD
Memory
Supported memory clock speeds 3200 MHz, 2666
Non-ECC Yes
Maximum internal memory 32 GB
Number of memory slots 4
Memory slots type DIMM
Unbuffered memory Yes
Supported memory types DDR4-SDRAM
Memory voltage 1.2 V
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 10 - 35 °C
Weight & dimensions
Width 244 mm
Depth 244 mm
Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8211E, Intel I210
Internal I/O
TPM connector Yes
Chassis intrusion connector Yes
12V power connector Yes
Number of SATA III connectors 12
Number of SATA connectors 12
ATX Power connector (24-pin) Yes
BIOS
BIOS type UEFI AMI
ACPI version 2.0
Storage controllers
RAID levels 1, 0, 10
Supported storage drive interfaces M.2, SATA III
RAID support Yes

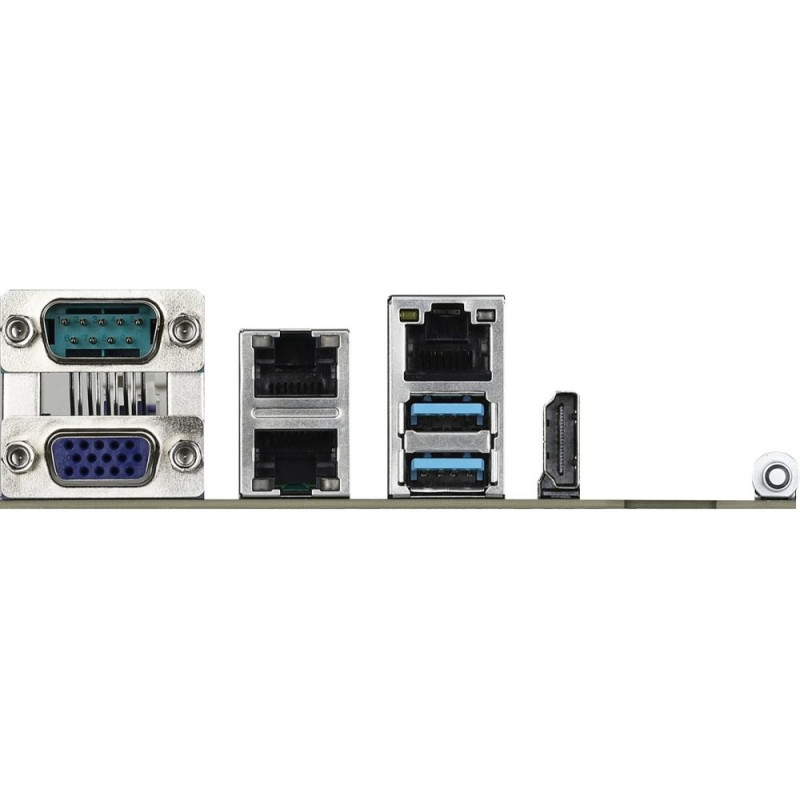

Rear panel I/O ports
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 3
Expansion slots
PCI Express x8 slots 1
PCI Express x1 slots 1
PCI Express x16 (Gen 4.x) slots 1


Width 244 mm
Height 30 mm
Length 244 mm
Product Weight 1000 g
Country TW

Dimensions and weights

Gross weight
1.05 kg
Package width
31 cm
Package height
7.2 cm
Package length
28.5 cm

Product codes

EAN
4710483932618
Manufacturer code
X570D4U
