Motherboard - GIGABYTE A520M DS3H V2 AMD Ryzen 5000 AM4, DDR4 4733MHz, PCIe 3.0, GbE LAN

124,99 €

Monthly payment starting from 3,74 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Supports AMD Ryzen 5000 Series AM4 CPUs with up to 128GB DDR4 memory at 4733MHz (OC). Features include PCIe 3.0 x16 slot, Gigabit Ethernet, USB 3.2 Gen 1 ports, and multiple display outputs including DisplayPort 2.0 and HDMI 2.1.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

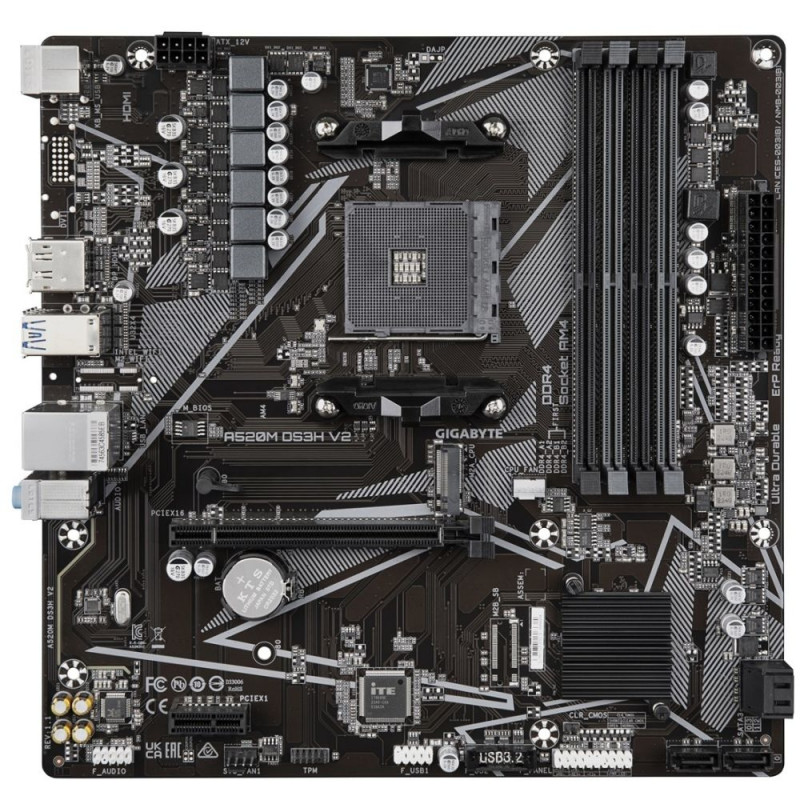

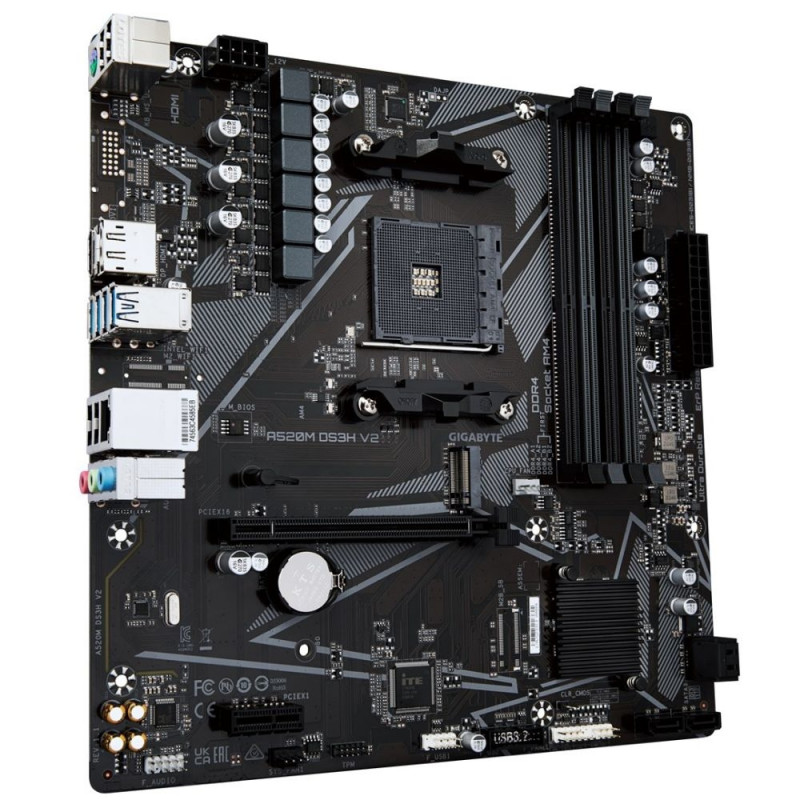

Gigabyte A520M DS3H V2 Motherboard

Supports AMD Ryzen 5000 Series AM4 CPUs with up to 128GB DDR4 memory at 4733MHz (OC). Features include PCIe 3.0 x16 slot, Gigabit Ethernet, USB 3.2 Gen 1 ports, and multiple display outputs including DisplayPort 2.0 and HDMI 2.1. Warranty period: 3 years.


  • Supports AMD Socket AM4 processors including 3rd Gen Ryzen series for powerful performance.
  • Features dual-channel DDR4 memory support up to 128 GB for smooth multitasking.
  • Equipped with multiple display outputs including HDMI 2.1 and DisplayPort 2.0 for high-resolution visuals.
  • Includes comprehensive connectivity options with Gigabit Ethernet, USB 3.2 Gen 1 ports, and RAID support for versatile storage solutions.

Processor
Maximum number of SMP processors 1
Compatible processor series AMD Ryzen 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, AMD Ryzen Threadripper 3000 Series, 3rd Gen Ryzen 3, 3rd Gen Ryzen 5, 3rd Gen Ryzen 7, 3rd Gen Ryzen 9, 3rd Gen Ryzen Threadripper
Processor manufacturer AMD
Maximum internal memory supported by processor 128 GB
Graphics
HDCP Support Yes
Maximum resolution 5120 x 2880 pixels
Number of displays supported 3
Memory
Unbuffered memory Yes
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Supported memory clock speeds (MHz) 2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4733
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Supported memory types DDR4-SDRAM
Features
PC health monitoring LED, Temperature, Power supply, Voltage, CPU
Product colour Black
Power source type ATX
Motherboard chipset family AMD
Audio output channels 7.1 channels
Audio chip Realtek ALC887
Motherboard form factor micro ATX
Cooling type Active
Windows operating systems supported Windows 10 x64
Weight & Dimensions
Height 35 mm
Width 244 mm
Depth 244 mm
Network
Wi-Fi No
Internal I/O
Number of SATA III connectors 4
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Serial port headers 1
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Number of EATX power connectors 1
12V power connector Yes
TPM connector Yes
Power fan connector Yes
CPU fan connector Yes
Front panel connector Yes
BIOS
Clear CMOS jumper Yes
Clear CMOS button Yes
Desktop Management Interface (DMI) version 2.7
BIOS type UEFI AMI
Storage Controllers
Supported storage drive interfaces M.2, SATA III
RAID support Yes (Levels 0, 1, 10)
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 5
Rear Panel I/O Ports
DisplayPorts quantity 1
DisplayPort version 2.0
HDMI ports quantity 1
HDMI version 2.1
DVI-D ports quantity 1
Ethernet LAN (RJ-45) ports 1
Microphone in Yes
PS/2 ports quantity 1
Digital audio optical out 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 2
USB connector type USB Type-A
Headphone outputs 1
Expansion Slots
Number of M.2 (M) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x1 (Gen 3.x) slots 2
Battery
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g

Width 244 mm
Height 35 mm
Length 244 mm
Product Weight 650 g
Country CN

Dimensions and weights

Gross weight
0.81 kg
Package width
26.5 cm
Package height
5.4 cm
Package length
26.5 cm

Product codes

EAN
4719331854690
Manufacturer code
A520M DS3H V2
