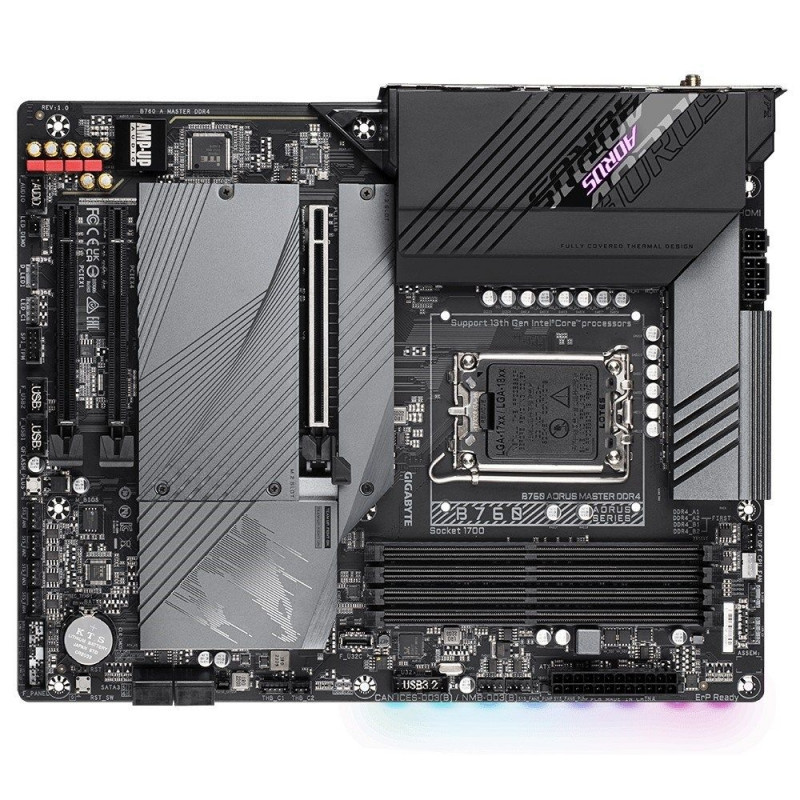

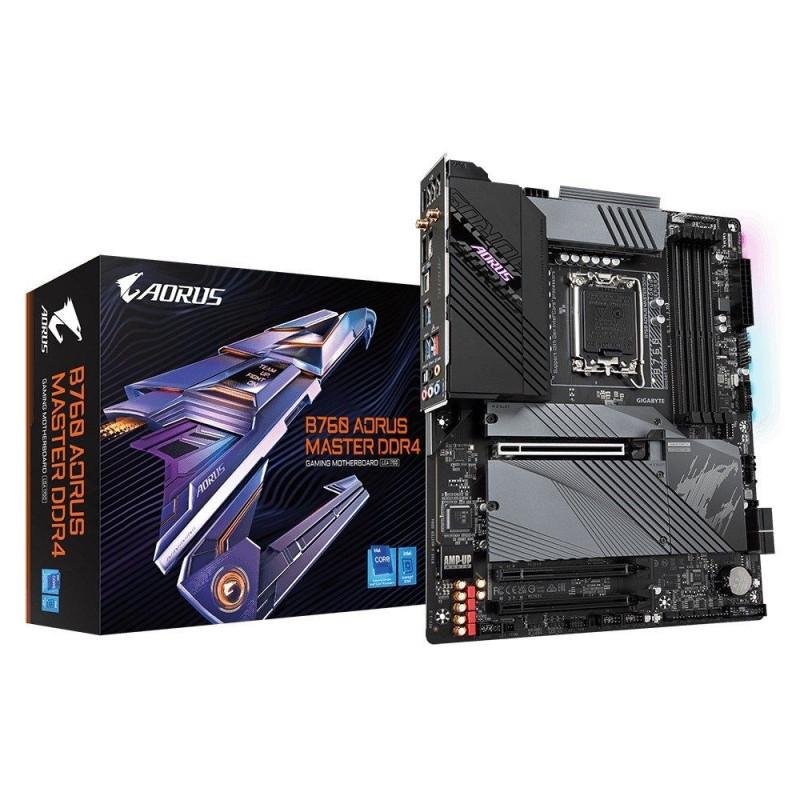

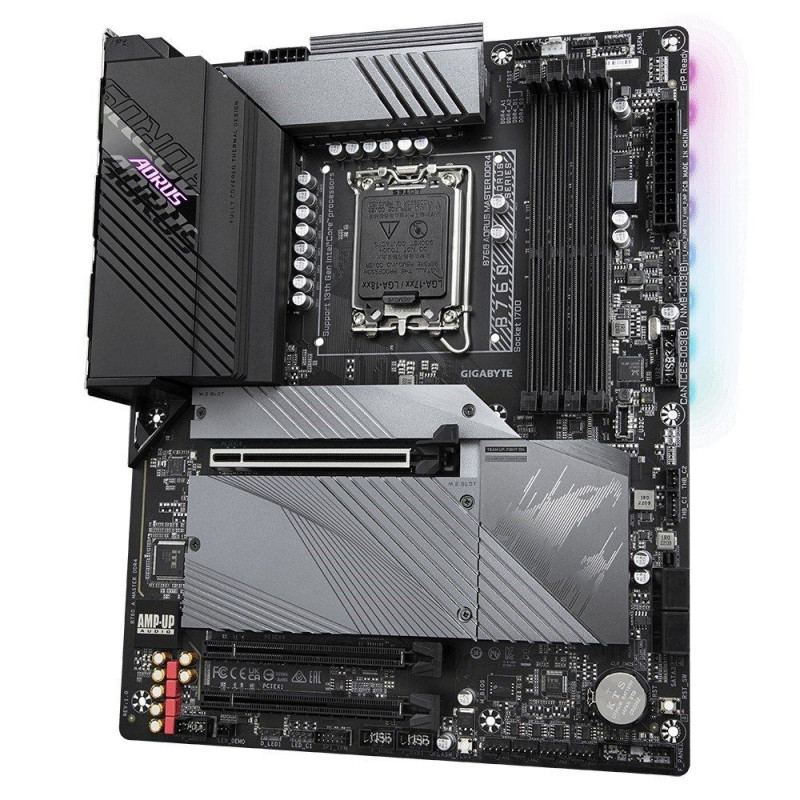

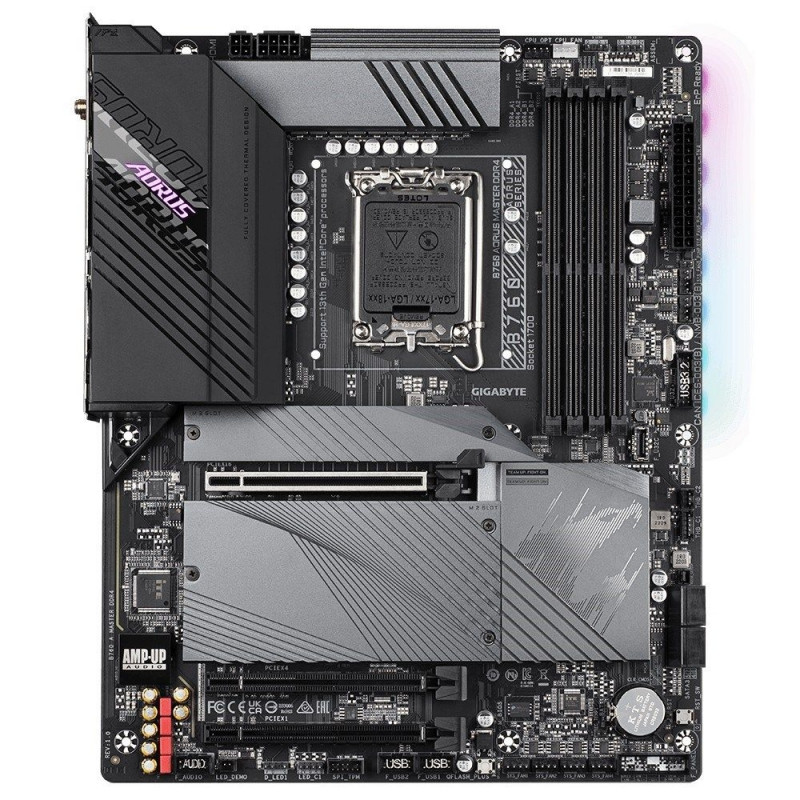

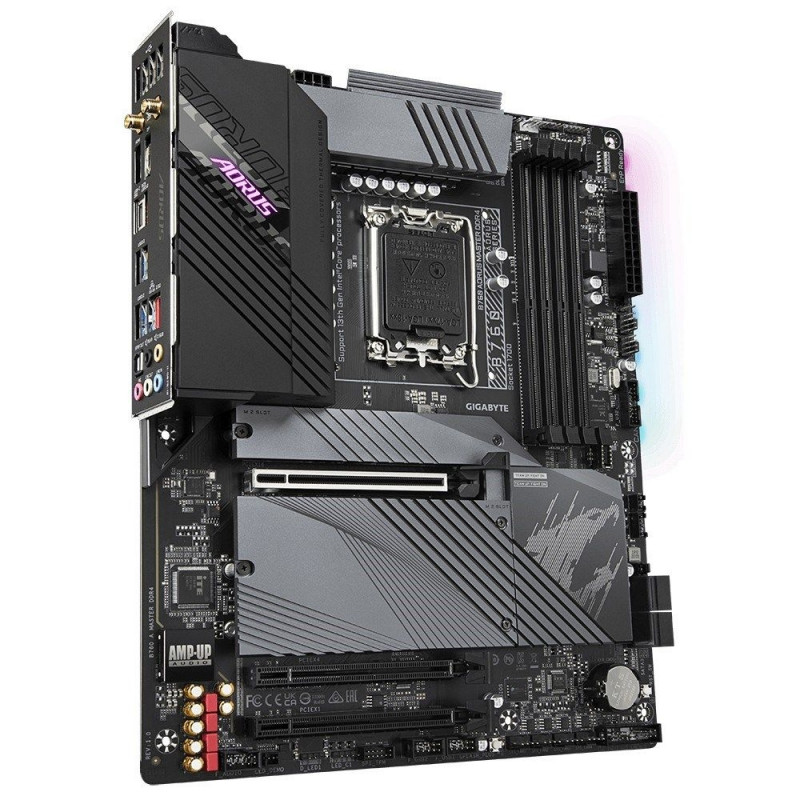

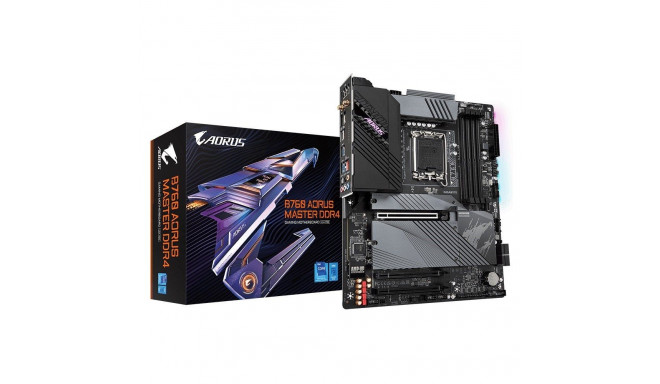

Gigabyte B760 AORUS MASTER DDR4 1.0 motherboard

Addional discount of 6%
will be applied in shopping cart
(min. 14€ purchase)
247,99 €

Monthly payment starting from 8,45 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Special features Support for Q-Flash Support for Q-Flash Plus
Audio output channels 7.1 channels
Unbuffered memory Yes
Number of SATA connectors 4
Audio chip Realtek ALC1220-VB
Motherboard chipset Intel B760 Express
Country of origin Taiwan
PCI Express x16 slots 1
Product colour Bronze
Supported storage drive types HDD & SSD
S/PDIF out port Yes
DirectX version 12.0
Maximum internal memory 128 GB
Bluetooth Yes
Graphics card HD Graphics
USB 2.0 connectors 2
Supported storage drive interfaces M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
DisplayPort version 1.2
Lithium weight per battery 0.07 g
Motherboard chipset family Intel
Maximum resolution 4096 x 2304 pixels
HDCP Yes
DisplayPorts quantity 1
Motherboard form factor ATX
Thunderbolt headers 2
ECC сompatibility ECC & Non-ECC
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
On-board graphics card Yes
Desktop Management Interface (DMI) version 2.7
Clear CMOS jumper Yes
BIOS type UEFI AMI
Battery type CR2032
Chassis intrusion connector Yes
HDMI ports quantity 1
Supported processor sockets LGA 1700
Package height 80 mm
Battery weight 3 g
Package weight 2.44 kg
CPU fan connector Yes
Ethernet interface type 2.5 Gigabit Ethernet
Cables included SATA
Number of memory slots 2
Front panel connector Yes
Bluetooth version 5.3
Front panel audio connector Yes
Package width 335 mm
Number of M.2 (M) slots 3
Clear CMOS button Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Ethernet LAN Yes
Package depth 270 mm
Audio connector Yes
ATX Power connector (24-pin) Yes
Number of HDDs supported 4
Number of SATA III connectors 4
System Management BIOS (SMBIOS) version 2.7
Supported memory clock speed (max) 5333 MHz
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Wi-Fi Yes
TPM connector Yes
USB 3.2 Gen 2x2 Type-C ports quantity 1
Height 35 mm
Total number of SATA connectors 4
Number of battery cells 1
HDMI version 2.0
Headphone outputs 2
Line-in Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
RGB LED pin header Yes
WiFi-AP antenna jack 2
Depth 244 mm
WLAN controller model Intel Wi-Fi 6E AX211
Number of storage drives supported 7
Power fan connector Yes
Products per shipping (inner) case 1 pc(s)
12V power connector Yes
Processor socket LGA 1700
Parallel processing technology support Not supported
ACPI version 5.0
Processor manufacturer Intel
Batteries included Yes
Memory slots type DIMM
BIOS memory size 256 Mbit
Maximum internal memory supported by processor 128 GB
Graphics card family Intel
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of chassis fan connectors 4
RAID support Yes
Width 305 mm
Component for PC
Supported memory types DDR4-SDRAM
Warranty period 3 year(s)
Compatible processor series Intel® Celeron®
Warranty 36 (G)
PC health monitoring Water cooling
Supported memory module capacities 8GB
Supported memory clock speeds 2133
Wi-Fi standards 802.11b
RAID levels 1
USB connector type USB Type-A
Windows operating systems supported Windows 10 x64

Dimensions and weights

Package width
278 cm
Package height
344 cm
Package length
92 cm

Product codes

EAN
4719331850890
Manufacturer code
B760 A MASTER DDR4 1.0
