Motherboard - Asrock B760m-hdv/m.2

FREE SHIPPING
WITHIN ESTONIA!

155,99 €

Monthly payment starting from 5,32 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The Asrock B760M-HDV/M.2 D4 motherboard supports up to 5333 MHz dual-channel DDR4 memory and features a single M.2 slot with PCIe Gen 4x interface. It also includes four SATA III ports and supports RAID levels 0, 1, 5, and 10 for storage expansion.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Motherboard - Asrock B760m-hdv/m.2

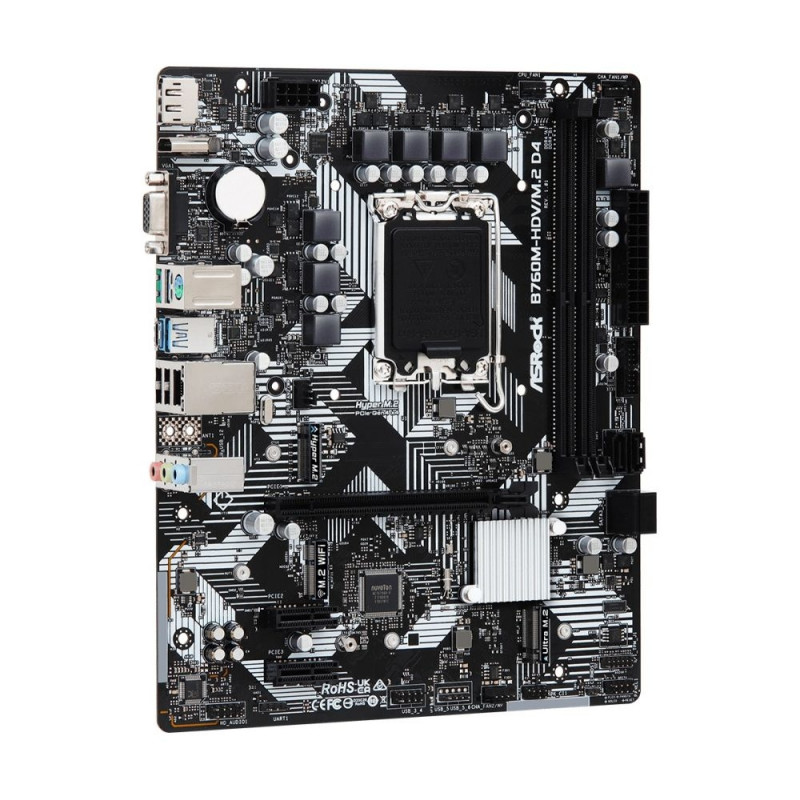

The Asrock B760M-HDV/M.2 D4 is a high-performance micro ATX motherboard designed for Intel Core series processors, offering exceptional power delivery and connectivity options.

Key Features
  • Supports Intel Core i7, i9, i3, and i5 processors
  • Dual-channel DDR4 memory support with speeds up to 5333 MHz
  • 1 x M.2 slot with PCIe Gen 4x and SATA interfaces
  • Supports RAID levels 0, 1, 5, and 10

Processor
Processor socket LGA 1700
Maximum number of SMP processors 1
Compatible processor series Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5
Processor manufacturer Intel
Graphics
HDCP Yes
Parallel processing technology support Not supported
Features
Audio output channels 7.1 channels
Motherboard chipset family Intel
Audio chip Realtek ALC897
Motherboard chipset Intel B760
Motherboard form factor micro ATX
Windows operating systems supported Windows 10 Education x64, Windows 11 x64
Memory
Supported memory clock speeds 3200, 4400, 5333 MHz
Maximum internal memory 64 GB
Unbuffered memory Yes
Number of memory slots 2
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Weight & dimensions
Depth 201 mm
Width 244 mm
Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8111H
Wi-Fi No
Internal I/O
Front panel connector Yes
ATX Power connector (24-pin) Yes
USB 2.0 connectors 3
Chassis intrusion connector Yes
Number of SATA III connectors 4
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
BIOS
BIOS type UEFI AMI
Packaging content
Cables included SATA
Storage controllers
RAID support Yes
RAID levels 1, 10, 0, 5
Supported storage drive interfaces M.2, SATA III

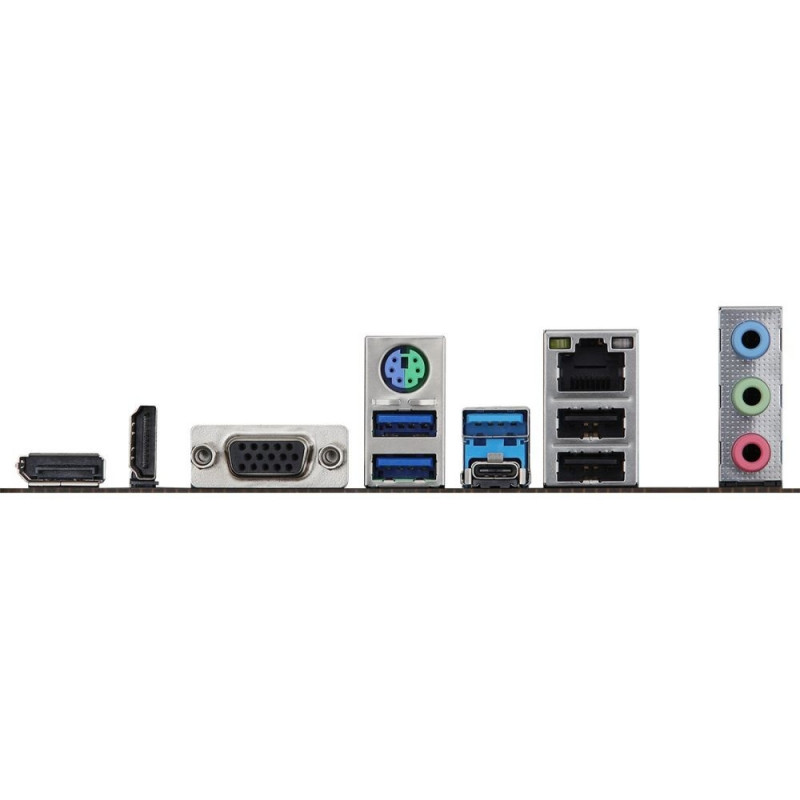

Rear panel I/O ports
DisplayPort version 1.4
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Microphone in Yes
Line-in Yes
VGA (D-Sub) ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
HDMI ports quantity 1
PS/2 ports quantity 1
DisplayPorts quantity 1
USB 2.0 ports quantity 2
Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1

Width 240 mm
Height 30 mm
Length 300 mm
Product Weight 800 g
Country TW

Dimensions and weights

Gross weight
1 kg
Package width
30 cm
Package height
10 cm
Package length
40 cm

Product codes

EAN
4710483942020
Manufacturer code
B760M-HDV/M.2 D4
