Home page » Computers & IT»Computer components»PSU»Power Supply Unit - DeepCool PK750D 750W ATX Black DeepCool PK750D 750W 20+4 Pin ATX Power Supply Un

Power Supply Unit - DeepCool PK750D 750W ATX Black DeepCool PK750D 750W 20+4 Pin ATX Power Supply Un

Main info

The DeepCool PK750D power supply unit provides 750 W of power with an 80 PLUS Bronze certification and features a 12 cm fan for cooling. It includes a 20+4 pin ATX motherboard connector, two SATA power connectors, and various protection features against overheating and short circuits.

Product has been archived

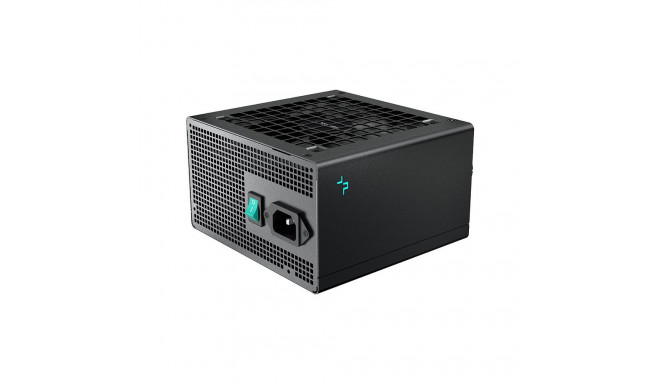

DeepCool PK750D 750W 20+4 Pin ATX Power Supply Unit Black

The DeepCool PK750D power supply unit provides 750 W of power with an 80 PLUS Bronze certification and features a 12 cm fan for cooling. It includes a 20+4 pin ATX motherboard connector, two SATA power connectors, and various protection features against overheating and short circuits.


  • Powerful 750 W output with 80 PLUS Bronze certification for efficient performance.
  • Features a 20+4 pin ATX motherboard power connector and 2 PCI Express power connectors (6+2 pin).
  • Comprehensive power protection features including overheating, short circuit, and over voltage protection.
  • Compact dimensions: 150 mm (W) x 140 mm (D) x 86 mm (H) with a single 12 cm fan for effective cooling.
  • Mean time between failures (MTBF) of 100,000 hours for reliable long-term usage.

Design
Product colour Black
Number of fans 1 fan(s)
Fan diameter 12 cm
On/off switch Yes
Power
Efficiency 85%
Power protection features Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current
AC input voltage 100 - 240 V
Max output current (+12V) 62.5 A
Max output current (+5V) 20 A
Hold time 16 ms
Combined power (-12V) 3.6 W
Combined power (+3.3V) 120 W
AC input frequency 50 - 60 Hz
Total power 750 W
Combined power (+12V) 750 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 86 mm
Depth 140 mm
Width 150 mm
Performance
Purpose PC
ATX version 2.4
80 PLUS certification 80 PLUS Bronze
Mean time between failures (MTBF) 100000 h
Bearing technology HDB
Packaging data
Package type Box
Packaging content
Cables included AC
Ports & interfaces
Number of SATA power connectors 2
Motherboard power connector 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin) 1
Peripheral (Molex) power cable length 700, 600, 400, 500 mm
PCI Express power connectors (6+2 pin) 2
Motherboard power cable length 50 cm
Cabling type Non-Modular
ATX power connector (20+4 pin) Yes
SATA power cable length 400, 700, 600, 500 mm
EPS power connector (4+4 pin) Yes
PCI Express power cable length 62 cm

Width 150 mm
Height 86 mm
Length 140 mm
Product Weight 1500 g
Country CN

Dimensions and weights

Gross weight
2.19 kg
Package width
11 cm
Package height
20 cm
Package length
27 cm

Product codes

EAN
6933412715375
