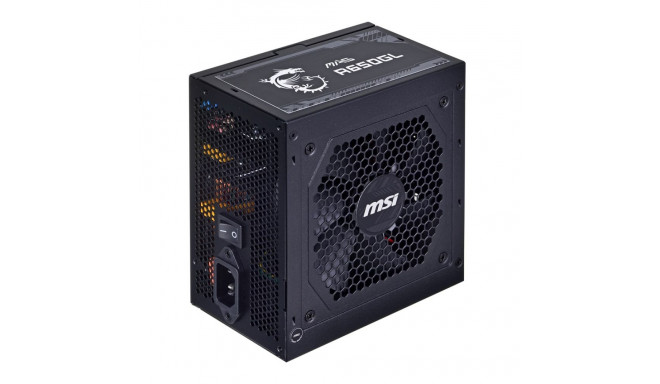

Power Supply - MSI Mag A650gl 650w, Gold

Main info

The MSI MAG A650GL has a 650W total power output and a 90% efficiency rating. It features an active cooling system with one 120mm fan, a modular cabling design, and 80 PLUS Gold certification.

Product has been archived

Power Supply - MSI Mag A650gl 650w, Gold

The MSI MAG A650GL is a 650W, 80 PLUS Gold certified power supply unit designed for PC use. It features an active cooling system with one 120mm fan and has a modular cabling design.

Key Features
  • 650W total power output
  • 90% efficiency rating
  • Modular cabling design
  • One 120mm fan for active cooling

Design
Product colour Black
Cooling type Active
Number of fans 1 fan(s)
Fan diameter 12 cm
On/off switch Yes
Power
Efficiency 90%
Maximum input current (@110V) 8 A
Power protection features Over current, Overheating, Over power, Short circuit, Over voltage
AC input voltage 100 - 240 V
Combined power (+5V) 100 W
Total power 650 W
Combined power (+5Vsb) 12.5 W
Max output current (+5Vsb) 2.5 A
Max output current (+12V) 54 A
Max output current (+3.3V) 20 A
Max output current (-12V) 0.3 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 100 W
Combined power (+12V) 648 W
AC input frequency 47 - 63 Hz
Max output current (+5V) 20 A
Combined power (-12V) 3.6 W
Maximum input current (@220V) 4 A
Weight & dimensions
Depth 140 mm
Height 86 mm
Width 150 mm
Performance
Power supply unit (PSU) form factor ATX
Purpose PC
80 PLUS certification 80 PLUS Gold
Power Factor Correction (PFC) type Active
Packaging data
Package type Box
Ports & interfaces
CPU power connector (4+4 pin) Yes
ATX Power connector (24-pin) No
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 6

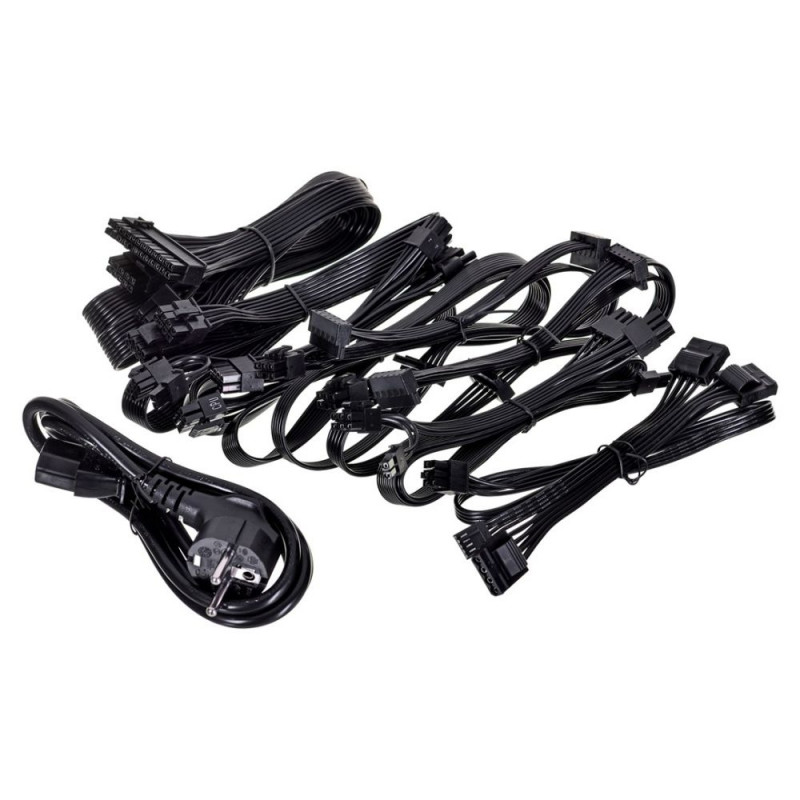

Cabling type Modular
PCI Express power connectors (6+2 pin) 4
EPS power connector (8-pin) No
Peripheral (Molex) power connectors (4-pin) 3
Motherboard power cable length 60 cm
ATX power connector (20+4 pin) Yes
EPS power connector (4+4 pin) Yes

Width 150 mm
Height 86 mm
Length 140 mm
Product Weight 1500 g
Country TW

Dimensions and weights

Gross weight
2.56 kg
Package width
12 cm
Package height
22 cm
Package length
30 cm

Product codes

EAN
4711377084277
