Motherboard - ASUS Tuf Gaming Z790-plus WiFi Intel Z790 Lga 1700 Atx

469 €

Monthly payment starting from 15,99 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The ASUS TUF GAMING Z790-PLUS WIFI motherboard has 4 M.2 slots and supports up to 128GB of DDR5-6400 RAM. It also features 4 SATA III ports, 1 USB 3.2 Gen 2x2 Type-C port, and 5 fan connectors for cooling and data transfer options.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

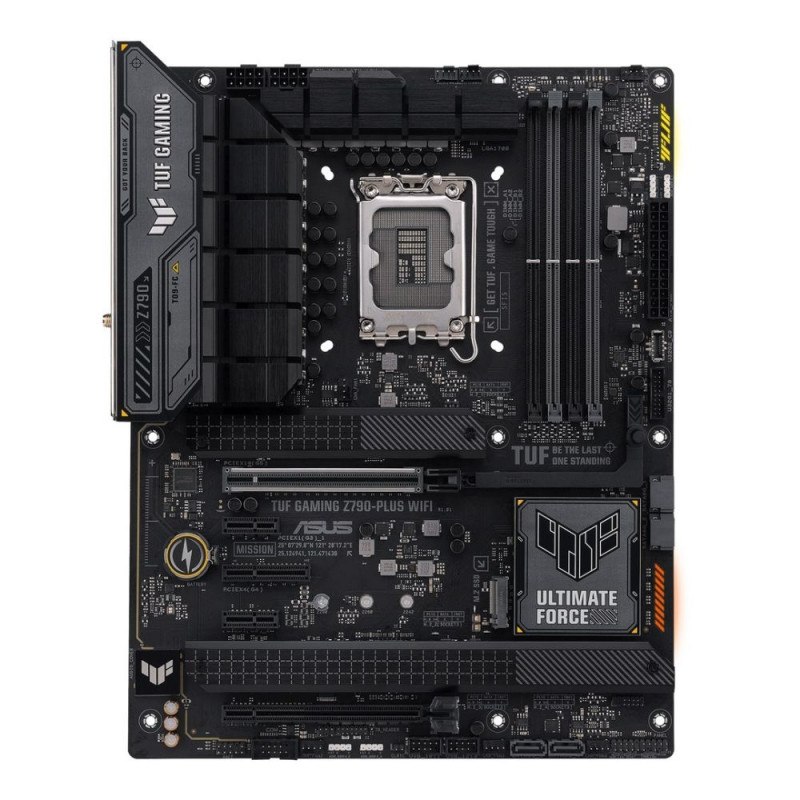

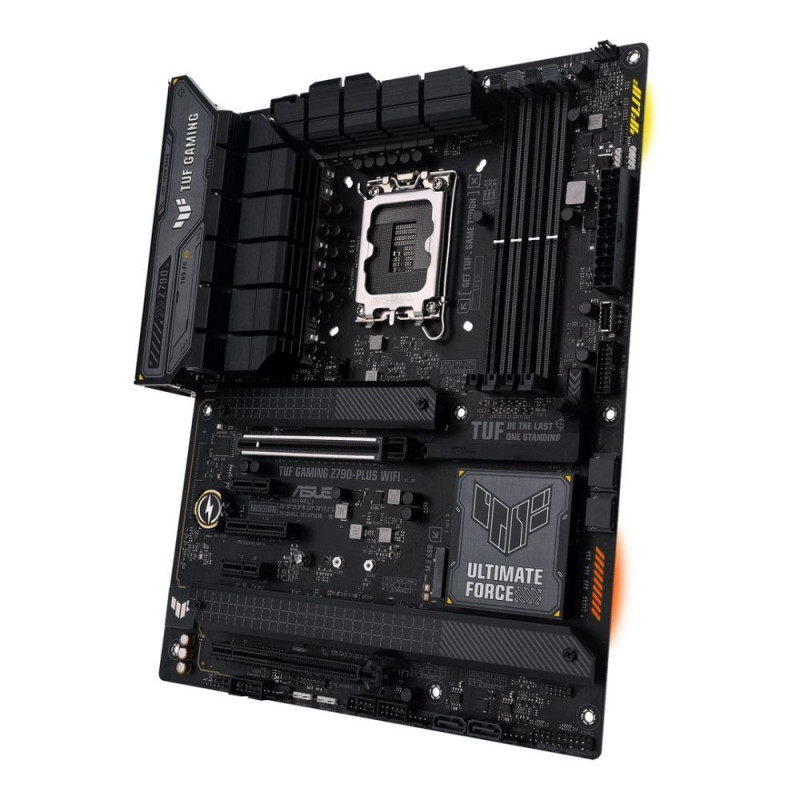

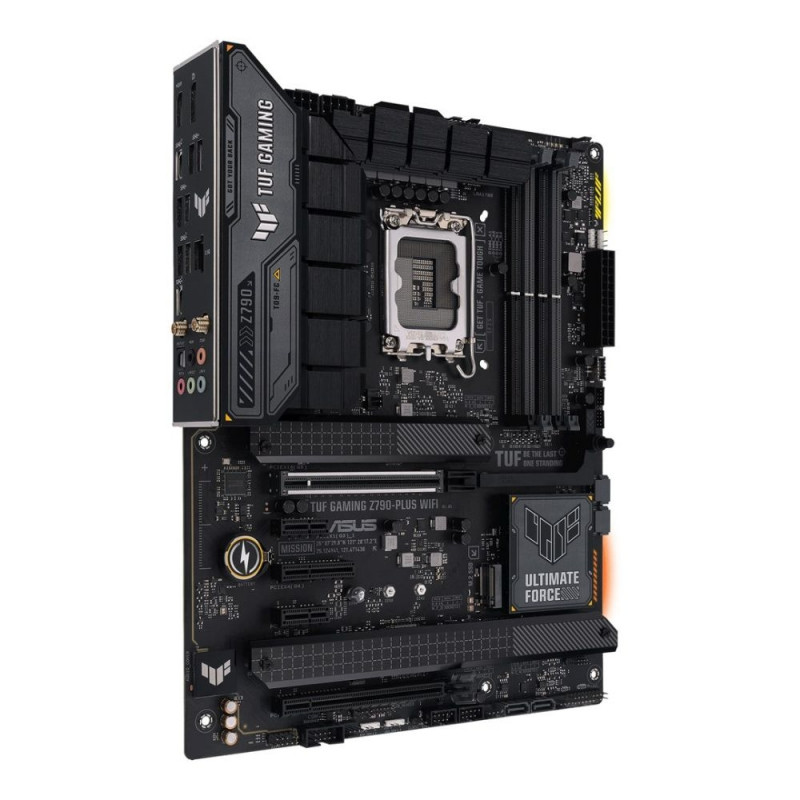

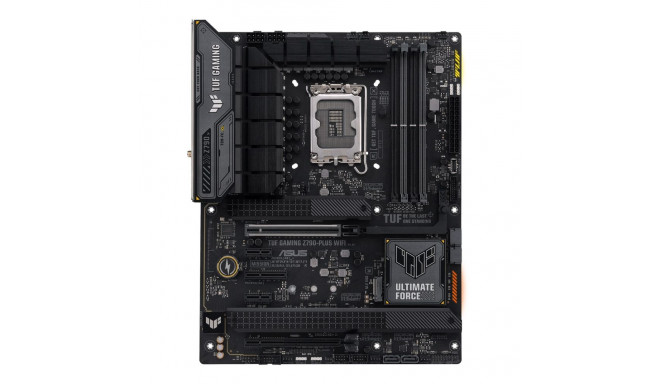

ASUS TUF Gaming Z790-PLUS WiFi LGA 1700 ATX

This Intel Z790 motherboard features a 4 M.2 slot configuration, including an M.2 (E) slot, and supports up to 128GB of DDR5-6400 RAM. It has 4 SATA III ports for storage devices and includes high-speed USB ports.

Key Features
  • 4 M.2 slots with one being an M.2 (E) slot
  • Supports up to 128GB of DDR5-6400 RAM
  • 1 USB 3.2 Gen 2x2 Type-C port and 2 USB 3.2 Gen 2 Type-A ports
  • 5 fan connectors, including 4 chassis fan headers and 1 AIO fan header

Processor
Supported processor sockets LGA 1700
Compatible processor series Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor manufacturer Intel
Processor socket LGA 1700
Graphics
On-board graphics card No
Parallel processing technology support Not supported
Features
Windows operating systems supported Windows 11, Windows 10
Motherboard chipset family Intel
Audio chip Realtek S1220A
Audio output channels 7.1 channels
Motherboard form factor ATX
Power source type ATX
Motherboard chipset Intel Z790
Memory
Supported memory clock speeds 5800, 5400, 6600, 5200, 4800, 6000, 5600, 7200 MHz, 6200, 6800, 6400, 5000, 7000
Unbuffered memory Yes
Memory channels Dual-channel
Maximum internal memory 128 GB
Supported memory types DDR5-SDRAM
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 7200 MHz
Weight & dimensions
Width 305 mm
Depth 244 mm
Network
Bluetooth Yes
Wi-Fi standards 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac)
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Bluetooth version 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Ethernet LAN Yes
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
CPU fan connector Yes
USB 2.0 connectors 2
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
EPS power connector (8-pin) Yes
Thunderbolt headers 1
Number of COM connectors 1
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of chassis fan connectors 4
RGB LED pin header Yes
12V power connector Yes
BIOS
BIOS type UEFI AMI
Packaging content
Cables included SATA
User guide Yes
Storage controllers
Supported storage drive types HDD & SSD
RAID levels 10, 0, 1, 5
RAID support Yes
Supported storage drive interfaces M.2, SATA III
Rear panel I/O ports
DisplayPorts quantity 1
HDMI version 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI ports quantity 1
Microphone in Yes
DisplayPort version 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
S/PDIF out port Yes
Line-in Yes
WiFi-AP antenna jack 2
USB 3.2 Gen 2x2 Type-C ports quantity 1
Headphone outputs 1
Expansion slots
Number of M.2 (M) slots 4
PCI Express x1 (Gen 3.x) slots 2
PCI Express x4 (Gen 4.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1

Width 305 mm
Height 30 mm
Length 244 mm
Product Weight 1500 g
Country TW

Dimensions and weights

Gross weight
1.99 kg
Package width
27 cm
Package height
7 cm
Package length
36 cm

Product codes

EAN
4711387014509

Manufacturer

Manufacturer
ASUSTeK Computer Inc., Li-De Rd., 15, Taipei, 112, TW, investor@asus.com
Responsible person in the EU
Asus Europe B.V., Paasheuvelweg 25, Amsterdam, 1101, NL, advance.rma.eu@asus.com
