Micro Motherboard - ASUS Prime B660m-k D4 Intel B660 Lga 1700 Micro At

Addional discount of 12%
will be applied in shopping cart
(min. 10€ purchase)
155,99 €

Monthly payment starting from 5,32 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Micro ATX motherboard with Intel B660 chipset and 24-pin ATX power connector. Supports up to 6 storage drives via M.2, PCI Express 4.0, and SATA III interfaces, and features USB 3.2 Gen 1 ports, HDMI port, and Ethernet LAN (RJ-45) port.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

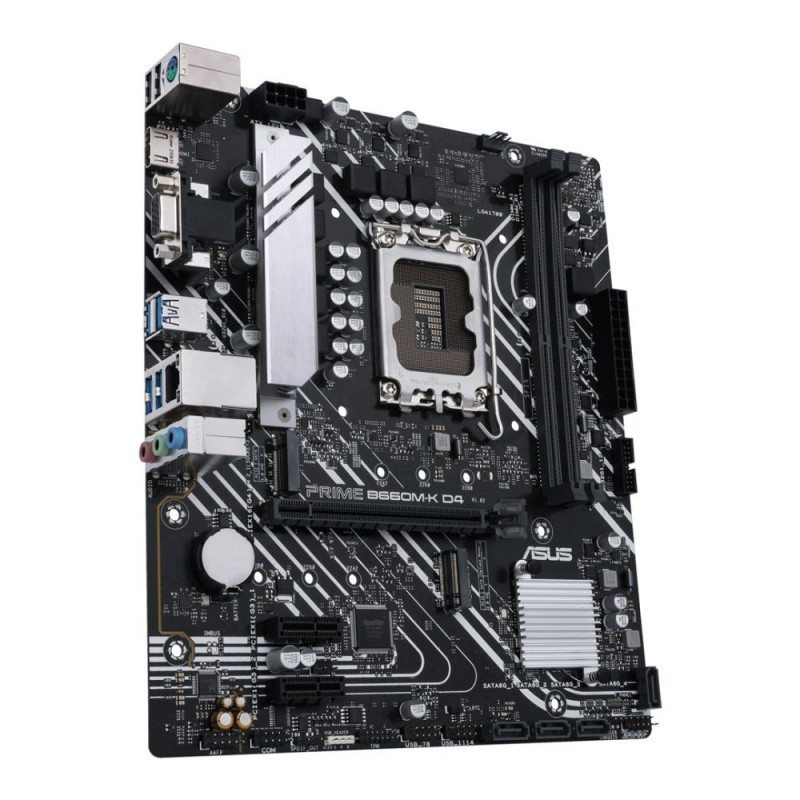

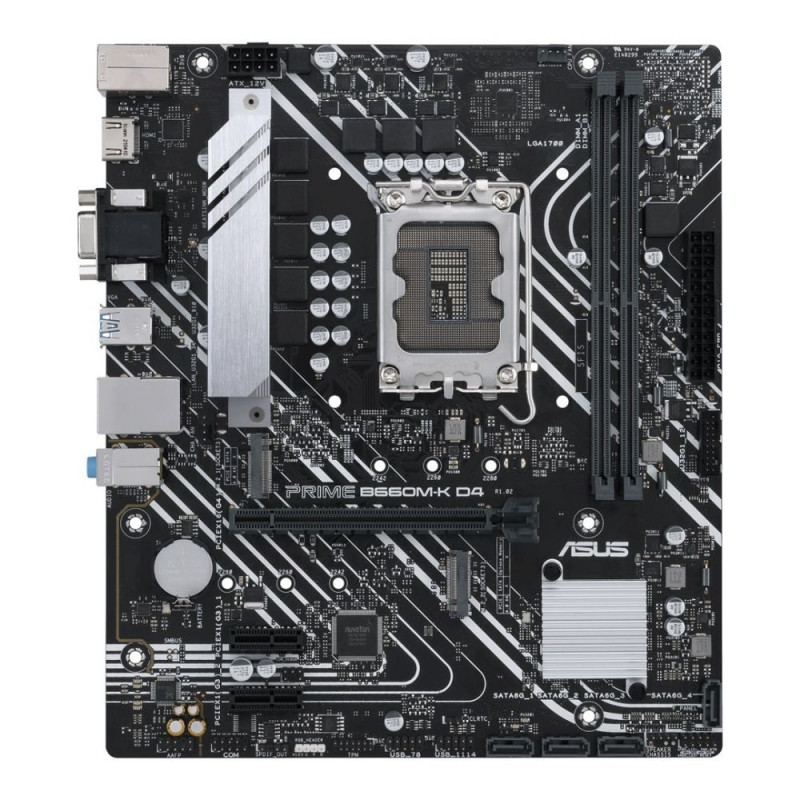

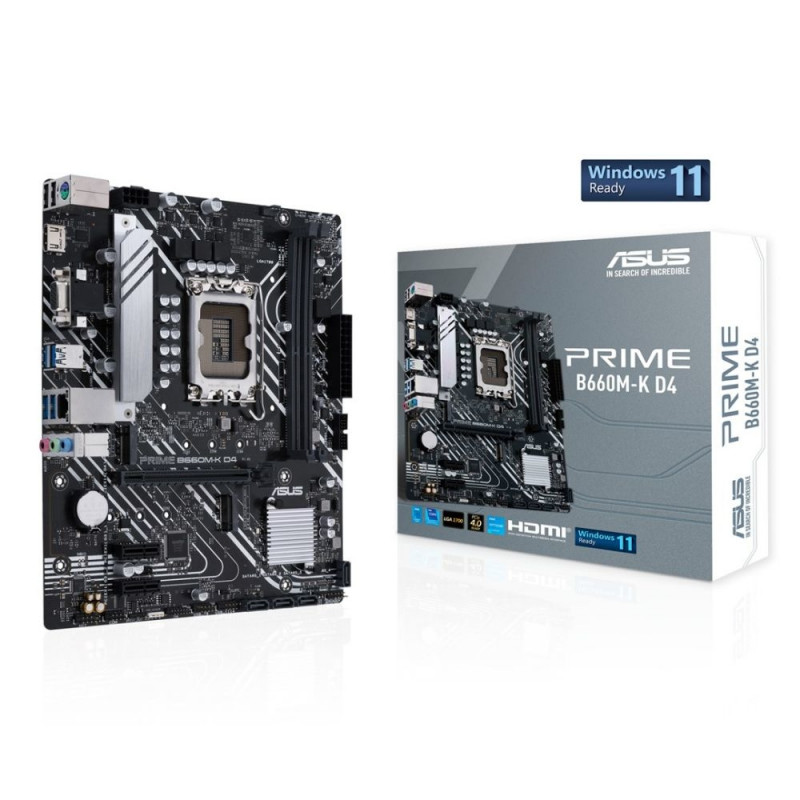

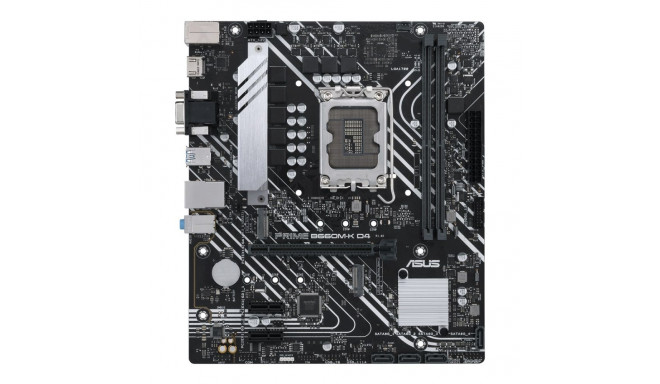

ASUS Prime B660M-K D4

This micro ATX motherboard supports the Intel B660 chipset and features a 24-pin ATX power connector, TPM connector, and RGB LED pin header. It also includes various connectors for storage devices, CPU fans, and front panel headers.


Key Features
  • Supports up to 6 storage drives with RAID levels 1, 10, 0, 5
  • 1 x PCI Express x16 slot (Gen 4.x), 2 x PCI Express x1 slots (Gen 3.x)
  • 7+1 power phases and high-quality audio capacitors for enhanced system stability and audio quality
  • USB 3.2 Gen 1 ports, HDMI port, and Ethernet LAN (RJ-45) port
  • Compatible with Intel® Core™ i5, i7, i9, i3, and Pentium® Gold processors

Processor
Compatible processor series Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1700
Processor manufacturer Intel
Supported processor sockets LGA 1700
Features
Audio output channels 7.1 channels
Windows operating systems supported Windows 11 x64, Windows 10 x64
Motherboard chipset Intel B660
Motherboard form factor micro ATX
Memory
Unbuffered memory Yes
Supported memory clock speeds 3466, 2933, 3600, 4600, 3400, 2133, 3000, 5333 MHz, 4000 MHz, 4800, 2400, 2800, 3333, 3200 MHz, 2666, 4266, 3733, 4400, 5000
Memory channels Dual-channel
Maximum internal memory 64 GB
Memory slots type DIMM
Number of memory slots 2
Supported memory types DDR4-SDRAM
Weight & dimensions
Depth 211 mm
Width 244 mm
Height 60 mm
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Internal I/O
Number of SATA III connectors 4
ATX Power connector (24-pin) Yes
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
CPU fan connector Yes
Number of chassis fan connectors 1
Front panel audio connector Yes
Front panel connector Yes
EPS power connector (8-pin) Yes
USB 2.0 connectors 2
S/PDIF out connector Yes
Number of COM connectors 1
RGB LED pin header Yes
Audio connector Yes
BIOS
BIOS type UEFI AMI
Clear CMOS jumper Yes
Packaging content
Cables included SATA
Storage controllers
RAID levels 10, 1, 5, 0
Number of storage drives supported 6
RAID support Yes
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Number of HDDs supported 4

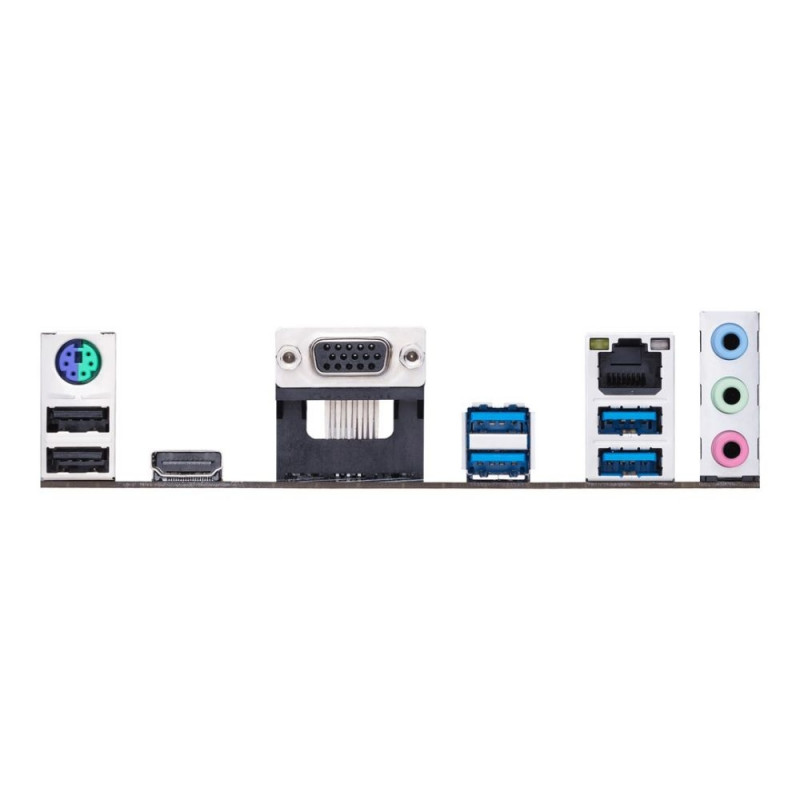

Rear panel I/O ports
HDMI ports quantity 1
PS/2 ports quantity 1
USB 2.0 ports quantity 2
HDMI version 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
Headphone outputs 3
VGA (D-Sub) ports quantity 1
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Other features
Weight 819 g
Logistics data
Harmonized System (HS) code 84733020

Width 244 mm
Height 60 mm
Length 211 mm
Product Weight 819 g
Country TW

Dimensions and weights

Gross weight
1.05 kg
Package width
5.5 cm
Package height
27 cm
Package length
26.5 cm

Product codes

EAN
4711081511830
