Motherboard - Asrock H670m Pro Rs Lga 1700 Micro Atx

203,99 €

Monthly payment starting from 6,95 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The Asrock H670M Pro RS supports up to 128 GB of DDR4-SDRAM memory in four dual-channel memory slots. It features two M.2 (M) slots, two PCI Express x16 slots, and four SATA III connectors.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

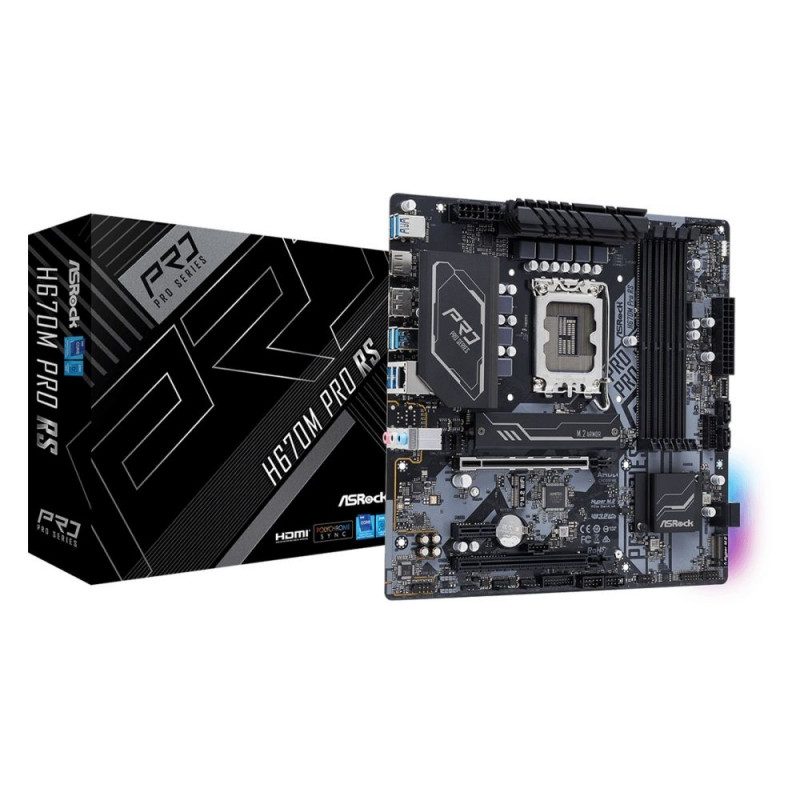

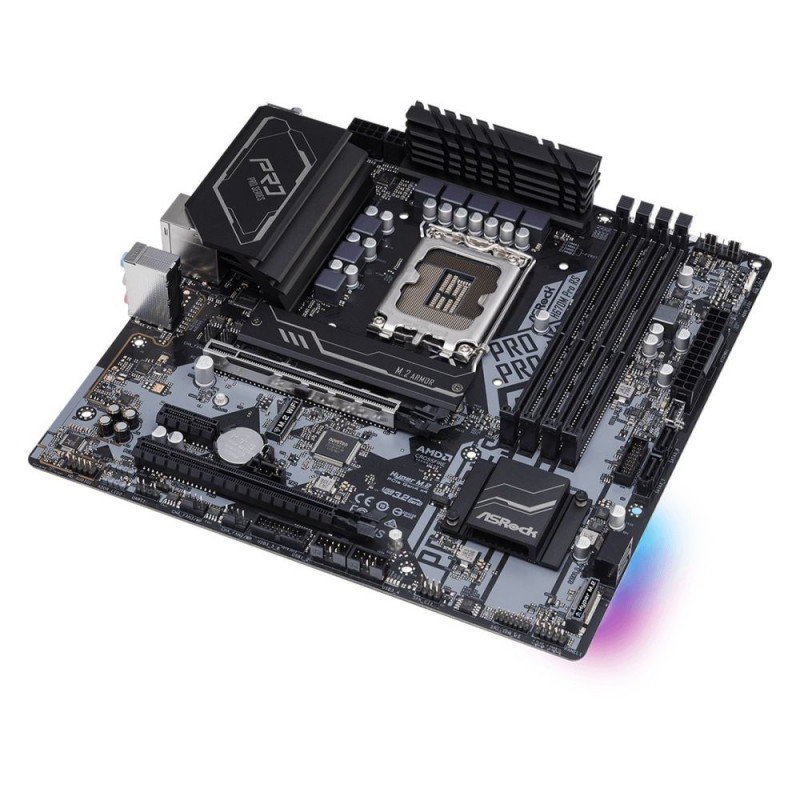

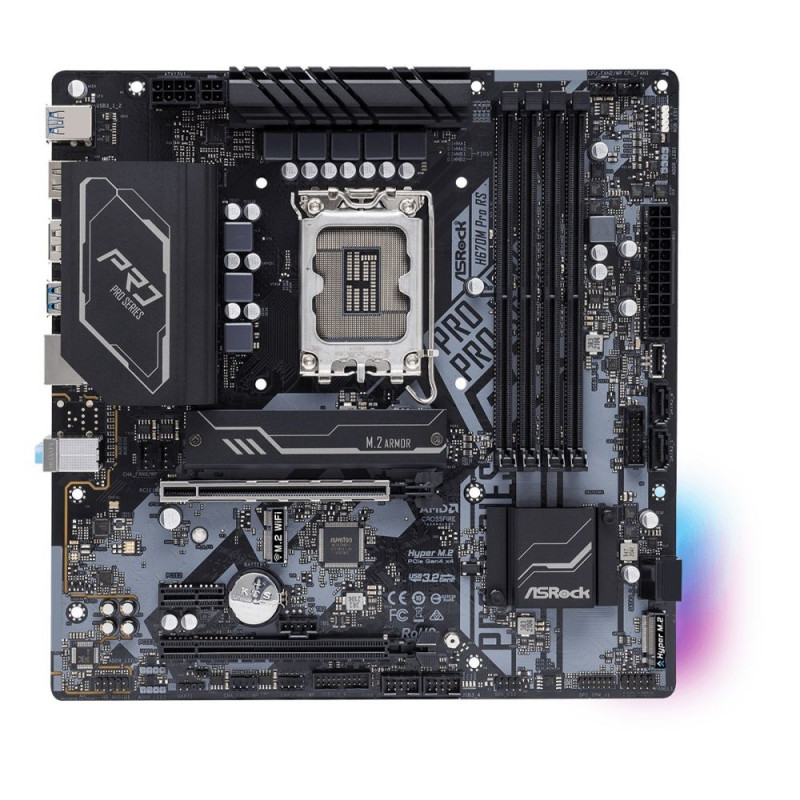

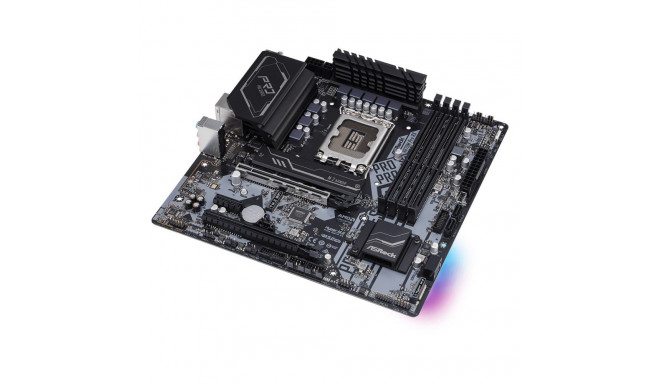

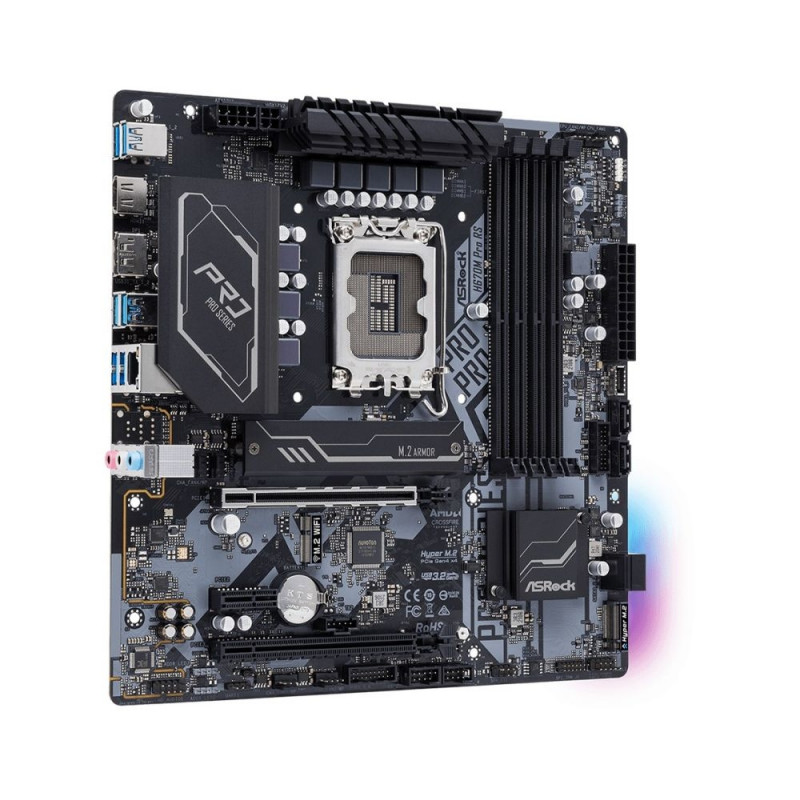

Asrock H670M Pro RS LGA 1700 Micro ATX

The Asrock H670M Pro RS motherboard is a micro ATX board based on the Intel H670 chipset, designed for LGA 1700 processors. It features dual-channel DDR4 memory support and a maximum internal memory of 128 GB.

Key Features:
  • Dual-channel DDR4-SDRAM memory support
  • Maximum resolution: 7680 x 4320 pixels
  • 2x PCI Express x16 slots and 2x M.2 (M) slots

Processor
Compatible processor series Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer Intel
Maximum number of SMP processors 1
Processor socket LGA 1700
Graphics
Maximum resolution 7680 x 4320 pixels
HDCP Yes
Features
PC health monitoring Voltage, Fan, CPU, Temperature
Audio output channels 7.1 channels
Motherboard chipset Intel H670
Motherboard chipset family Intel
Motherboard form factor micro ATX
Audio chip Realtek ALC897


Memory
Maximum internal memory 128 GB
Supported memory clock speeds 4800
Memory channels Dual-channel
Unbuffered memory Yes
Number of memory slots 4
Supported memory types DDR4-SDRAM
Memory slots type DIMM
Weight & dimensions
Width 244 mm
Depth 244 mm
Network
Wake-on-LAN ready Yes
LAN controller Intel® I219-V
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Internal I/O
Chassis intrusion connector Yes
USB 2.0 connectors 2
CPU fan connector Yes
Number of chassis fan connectors 3
Thunderbolt headers 1
Front panel audio connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
ATX Power connector (24-pin) Yes
Number of SATA III connectors 4
TPM connector Yes
12V power connector Yes
RGB LED pin header Yes
BIOS
BIOS type UEFI AMI
Packaging content
Cables included SATA
Drivers included Yes
Storage controllers
Supported storage drive types HDD & SSD
RAID support Yes
RAID levels 10, 1, 0, 5
Supported storage drive interfaces M.2, SATA III

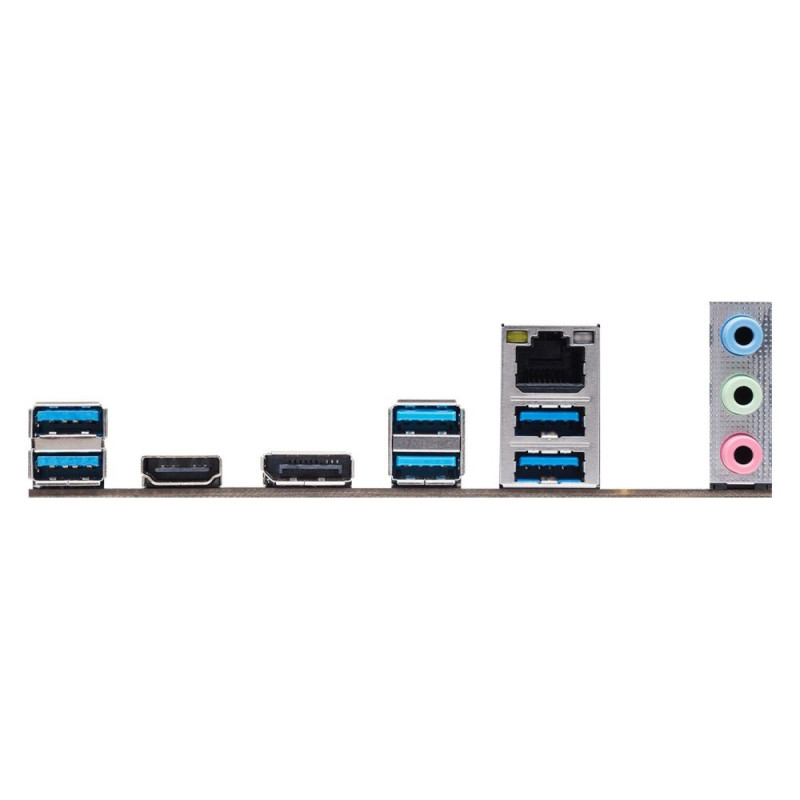

Rear panel I/O ports
HDMI ports quantity 1
DisplayPort version 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
DisplayPorts quantity 1
HDMI version 2.1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Expansion slots
PCI Express x16 slots 2
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 1

Width 244 mm
Height 30 mm
Length 244 mm
Product Weight 800 g
Country TW

Dimensions and weights

Gross weight
1.21 kg
Package width
6 cm
Package height
26 cm
Package length
27.5 cm

Product codes

EAN
4710483936555
