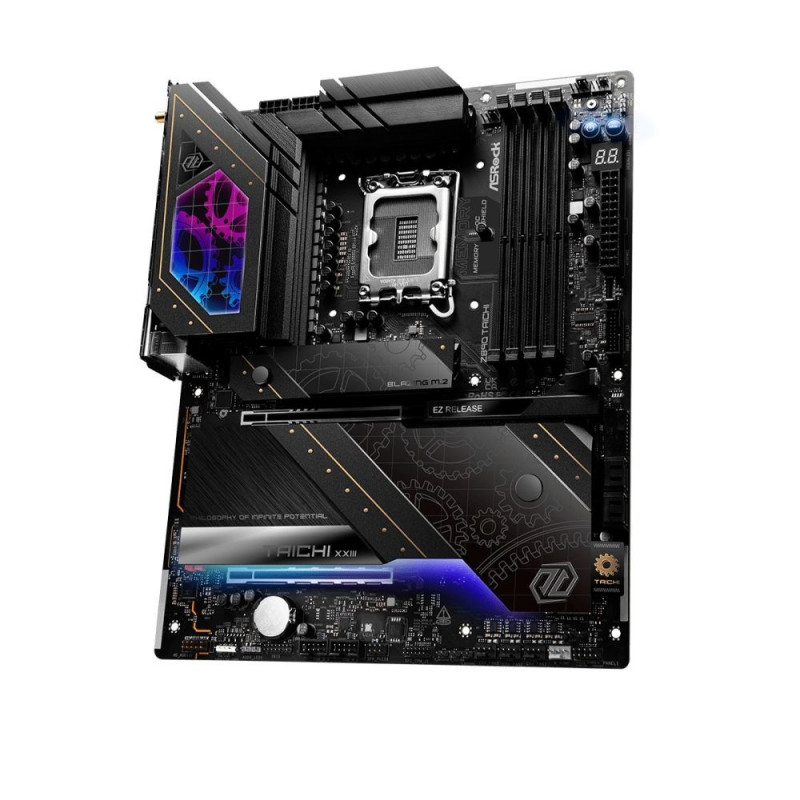

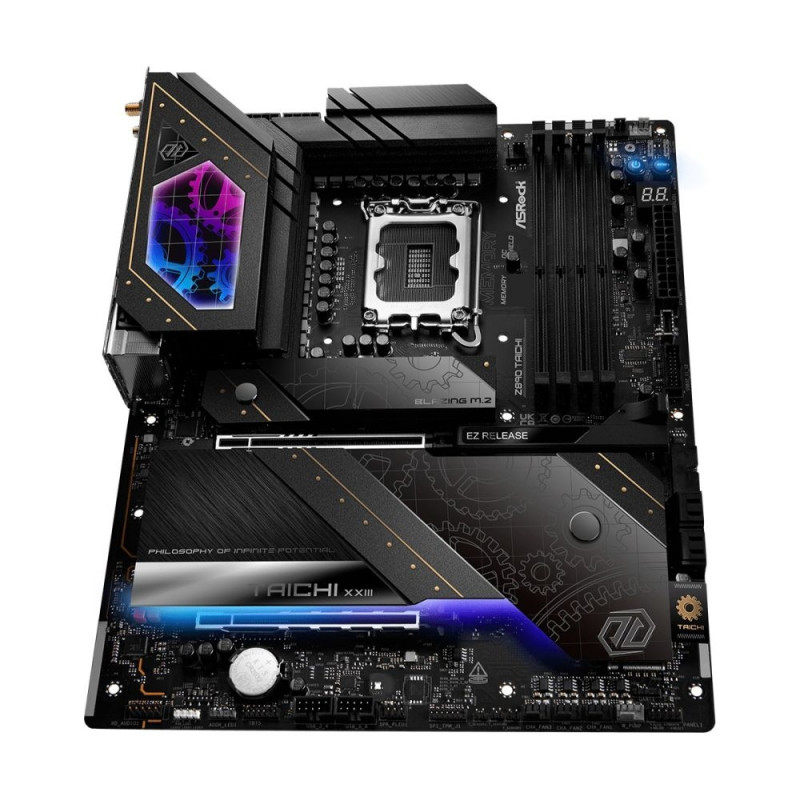

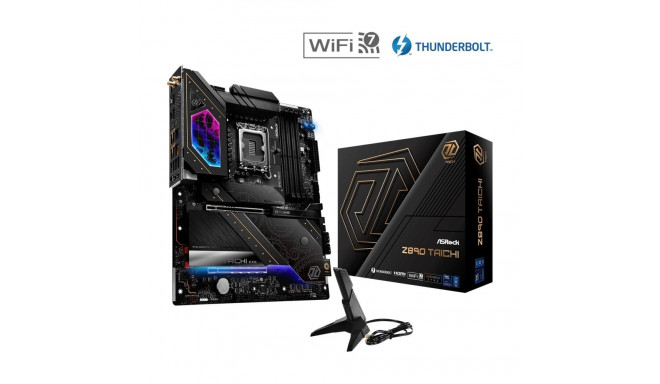

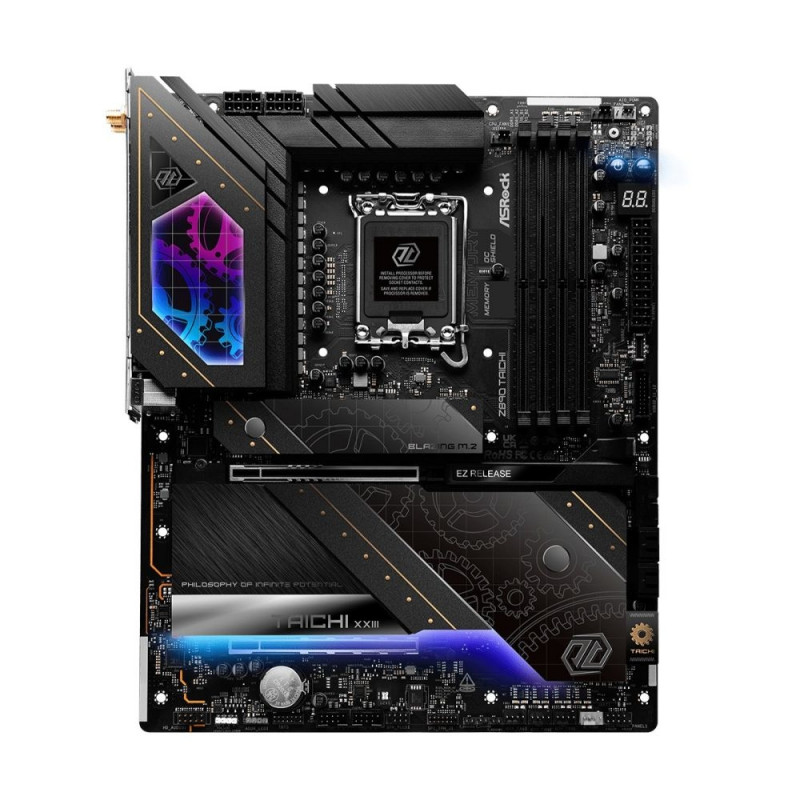

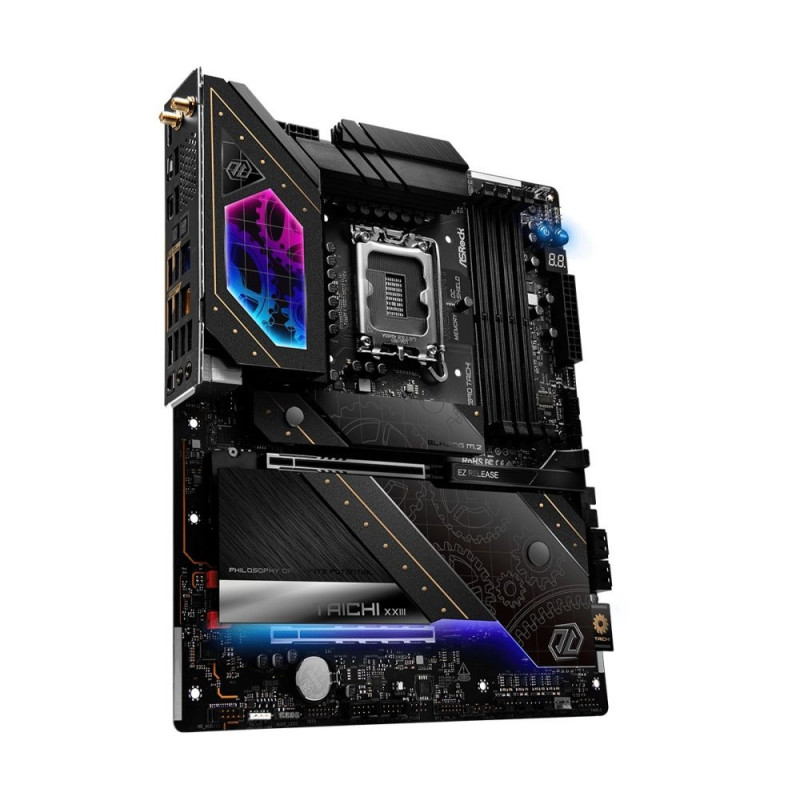

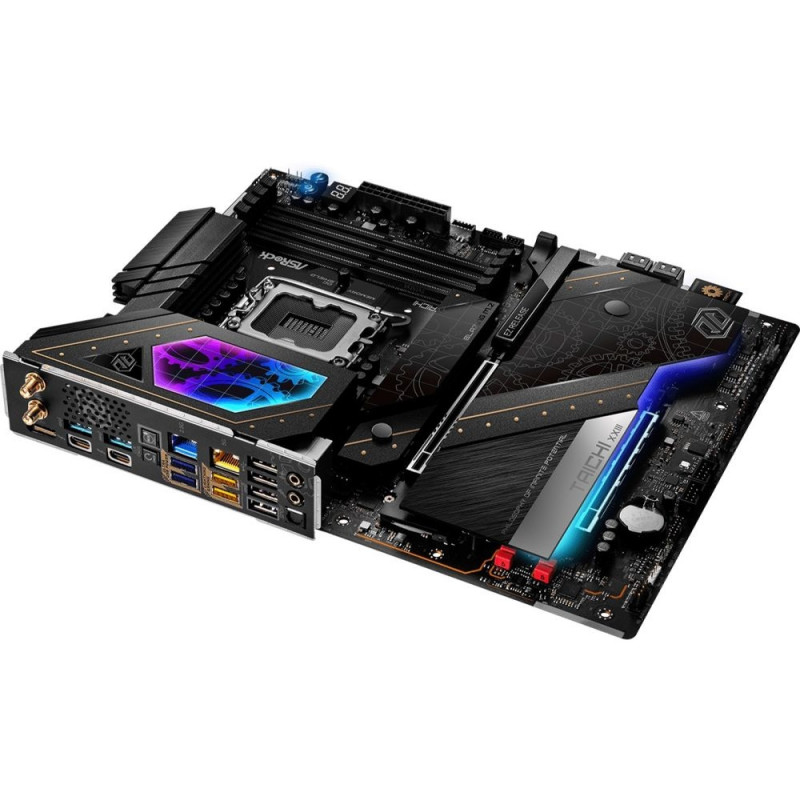

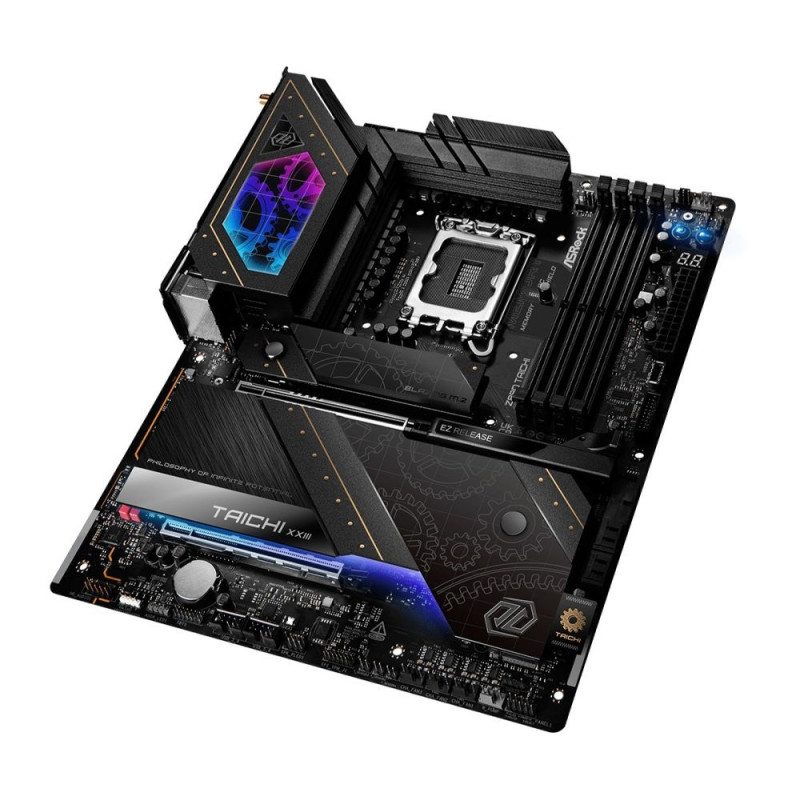

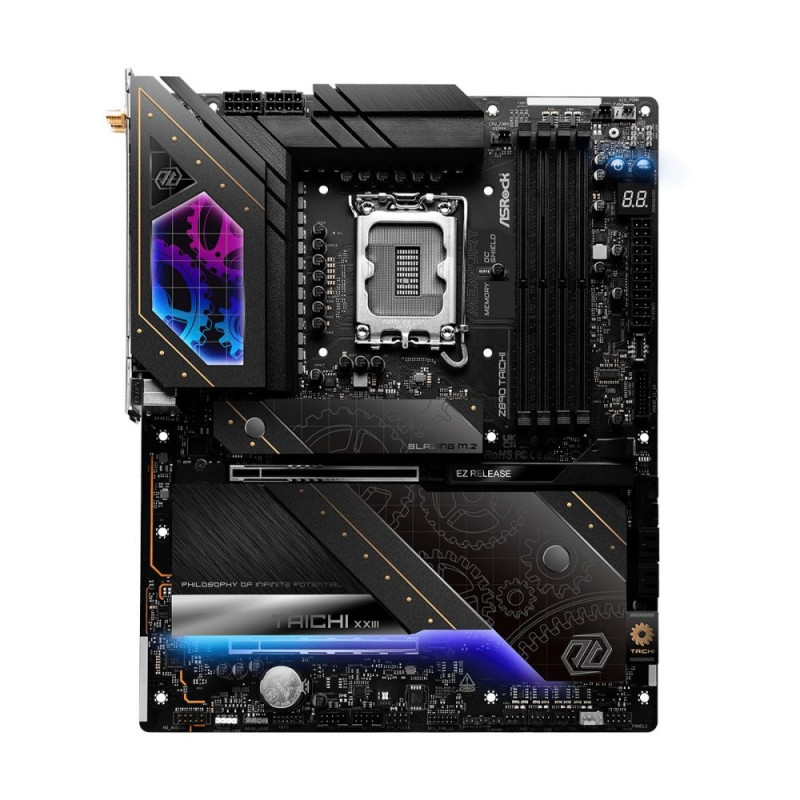

Motherboard Z890 TAICHI ATX

Addional discount of 4%
will be applied in shopping cart
(min. 10€ purchase)
479 €

Monthly payment starting from 16,33 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Z890 Taichi Taichi series flagship motherboard features top-of-the-line hardware specifications, robust power design, Thunderbolt 4 Type-C and DIY-friendly functionality. It is built for high-end gamers, offering luxurious aesthetics and high perform
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Z890 Taichi

Taichi series flagship motherboard features top-of-the-line hardware specifications, robust power design, Thunderbolt 4 Type-C and DIY-friendly functionality. It is built for high-end gamers, offering luxurious aesthetics and high performance.


Model Z890 TAICHI
CPU socket LGA1851
Processor family Intel Core Ultra
Integrated CPU No
Chipset manufacturer Intel
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 6800 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 9200 MHz
Max memory size 256
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x PCIe 5.0 x 16
Max. number of SATA devices 4
RAID Yes
Network interface Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface 1 x 10/100/1000/2500/5000 Mbit/s
Network interface Bluetooth
USB ports at back panel 12
USB ports on motherboard 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 7
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No

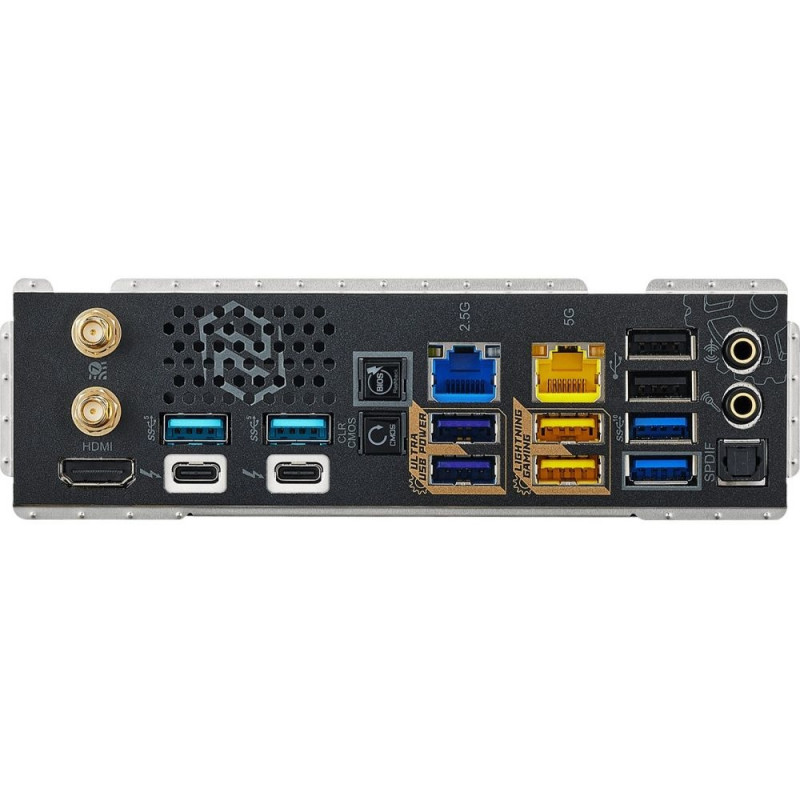

External connectors 2 x SMA
External connectors 1 x Przycisk Clear CMOS
External connectors 1 x Flash BIOS Button
External connectors 2 x Thunderbolt 4
External connectors 1 x HDMI
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 2 x RJ-45
External connectors 1 x S/PDIF
External connectors 2 x USB 2.0
External connectors 4 x USB 3.0
External connectors 4 x USB 3.1
Onboard connectors 2 x 8pin 12V
Onboard connectors 1 x Power button
Onboard connectors 1 x Power led header
Onboard connectors 2 x 4pin wentylator CPU
Onboard connectors 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors 4 x 4pin Chassis fan
Onboard connectors 3 x Addressable LED
Onboard connectors 1 x RGB LED strip header
Onboard connectors 1 x Reset button
Onboard connectors 3 x Thermistor Cable Header
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 2 x USB 3.0 header
Onboard connectors 1 x USB C
Onboard connectors 1 x TPM header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Debug card header
Onboard connectors 1 x 4-pin water-pump-fan
Form factor ATX
Supported operating systems Windows 11

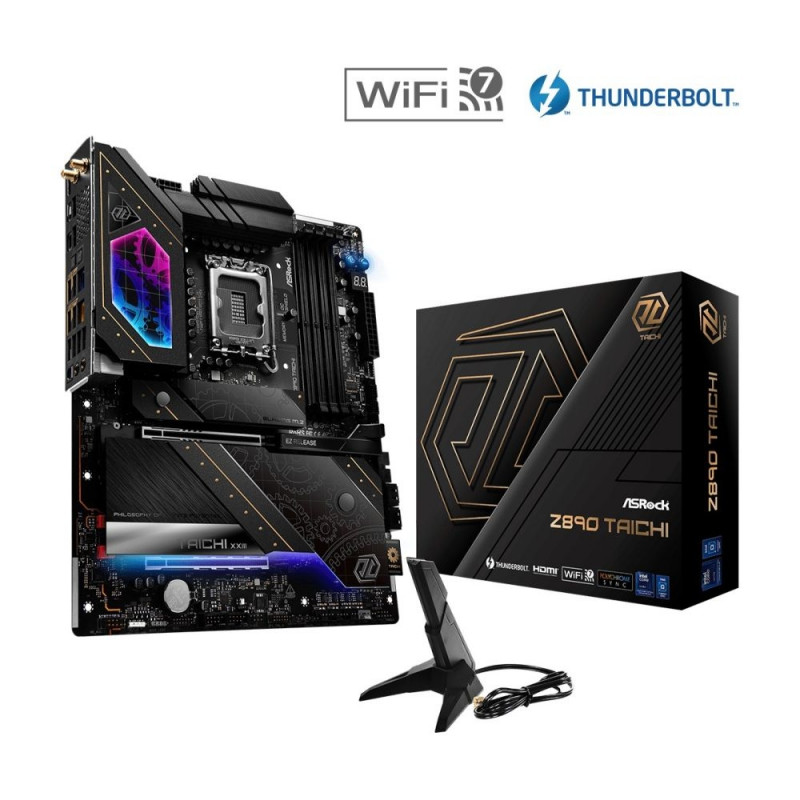

Accessories included 4 x SATA Data Cable M.2 Expansion Card ASRock WiFi 2.4/5/6 GHz Antenna ARGB Splitter Cable 3 x Thermistor Cable M.2 Screw M.2 Spacer
Other information Certifications FCC, CE ErP/EuP Ready (ErP/EuP ready power supply required) CEC Tier II Ready
Chipset type INTEL Z890
Graphics Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Dimensions 30.5 cm x 24.4 cm
Software Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock Dragon 2.5G LAN Software*\ UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Expansion slots 1 x M.2
Detailed data on disk/drive interfaces CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/
Sound card 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (
Network interface LAN 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics O

Dimensions and weights

Gross weight
2.96 kg
Package width
28 cm
Package height
35 cm
Package length
9 cm

Product codes

EAN
4710483949685
Manufacturer code
KBASRIIFZ890A02
