Motherboard - Asrock B650 Pro RS AMD AM5 ATX DDR5 128GB

279,99 €

Monthly payment starting from 9,54 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

AM5 socket for AMD processors. Supports up to 128GB DDR5 RAM.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

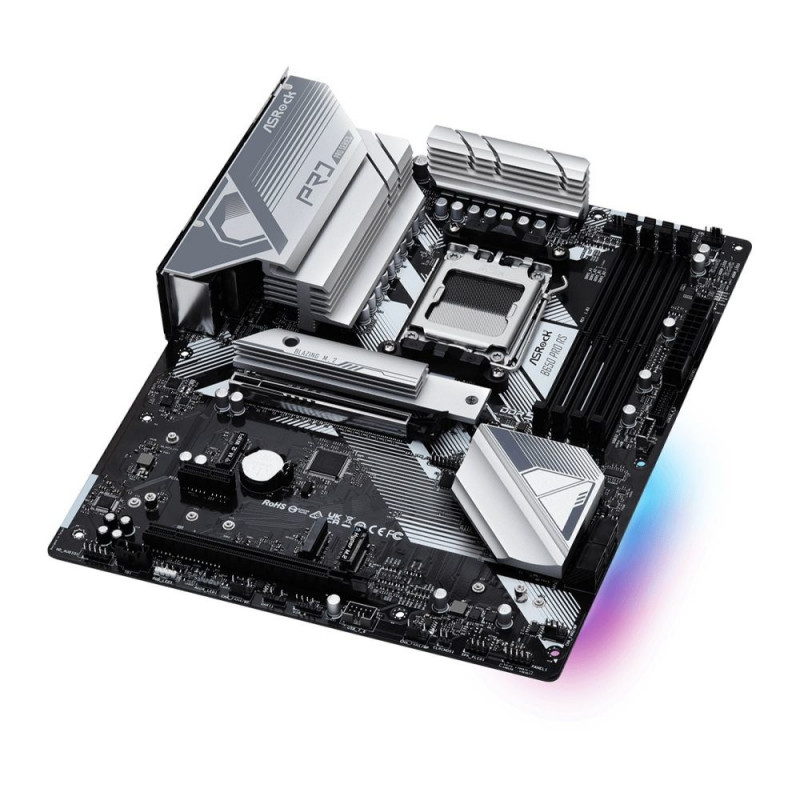

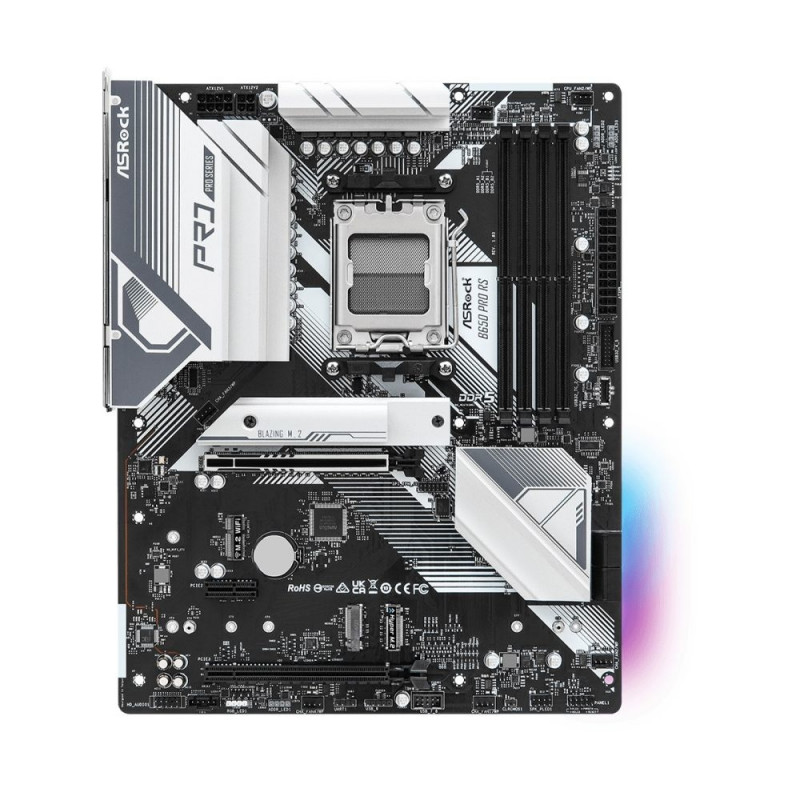

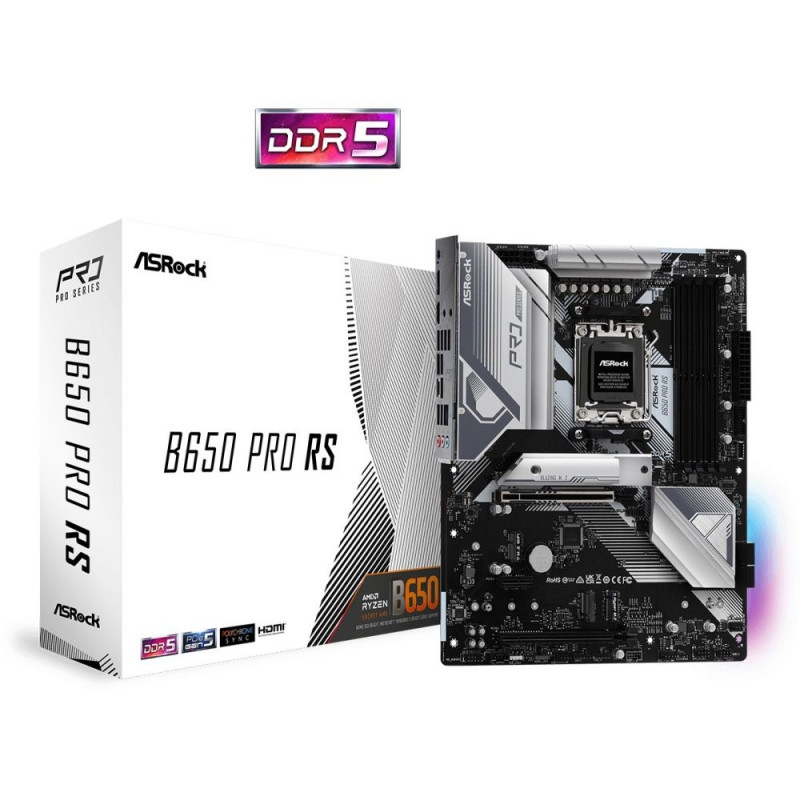

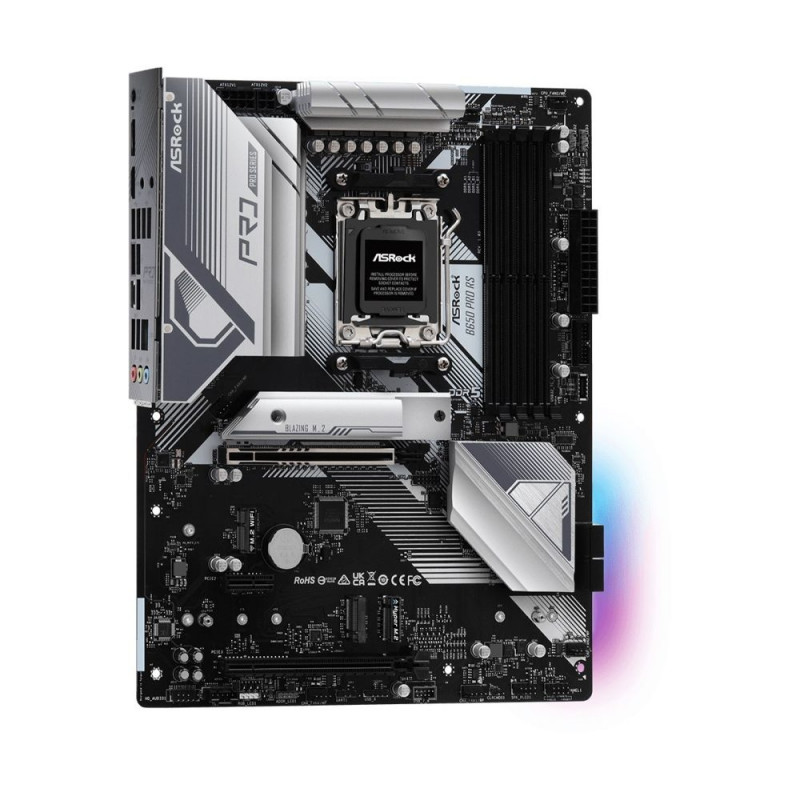

Asrock B650 Pro RS

AM5 socket for AMD processors. Supports up to 128GB DDR5 RAM.


  • Processor socket: Socket AM5
  • Maximum internal memory: 128 GB DDR5
  • Audio output: 7.1 channels with Realtek ALC897
  • Ethernet interface: 2.5 Gigabit Ethernet
  • Form factor: ATX

Processor
Maximum number of SMP processors 1
Processor manufacturer AMD
Compatible processor series AMD Ryzen 7000 Series
Processor socket Socket AM5
Features
Motherboard chipset family AMD
Audio output channels 7.1 channels
Supported Windows operating systems Windows 10 Pro x64, Windows 11 x64
Audio chip Realtek ALC897
Motherboard chipset AMD B650
Motherboard form factor ATX
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Maximum internal memory 128 GB
Memory channels Dual-channel
Unbuffered memory Yes
ECC compatibility ECC & Non-ECC
Supported memory clock speeds 7200
Weight & Dimensions
Depth 244 mm
Width 305 mm
Network
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi No
LAN controller Dragon RTL8125BG
Internal I/O
RGB LED pin header Yes
Front panel audio connector Yes
Number of SATA III connectors 2
Thunderbolt headers 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
ATX Power connector (24-pin) Yes
TPM connector Yes
CPU fan connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2
BIOS
BIOS type UEFI AMI
Storage Controllers
Supported storage drive types HDD & SSD
RAID levels 10, 0, 1
RAID support Yes
Supported storage drive interfaces M.2, SATA III

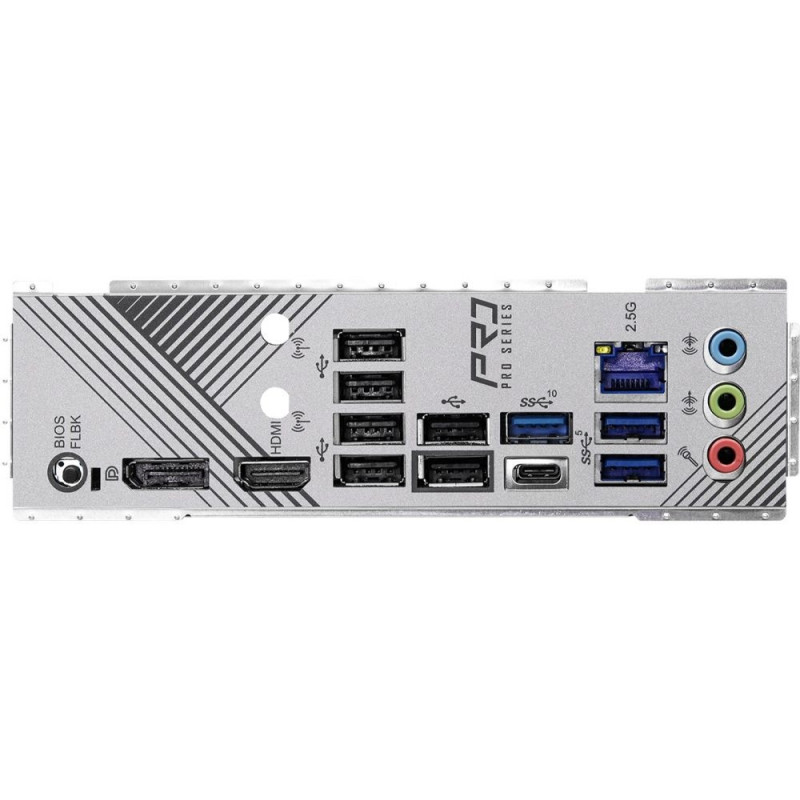

Rear panel I/O ports
DisplayPorts quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
DisplayPort version 1.4
USB 2.0 ports quantity 6
Headphone outputs 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Expansion slots
Number of M.2 (M) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x1 (Gen 4.x) slots 1
Safety warning
Warnings Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.

Width 305 mm
Height 30 mm
Length 244 mm
Product Weight 1200 g
Country TW

Dimensions and weights

Gross weight
2.04 kg
Package width
32 cm
Package height
9.5 cm
Package length
38.5 cm

Product codes

EAN
4710483940750
