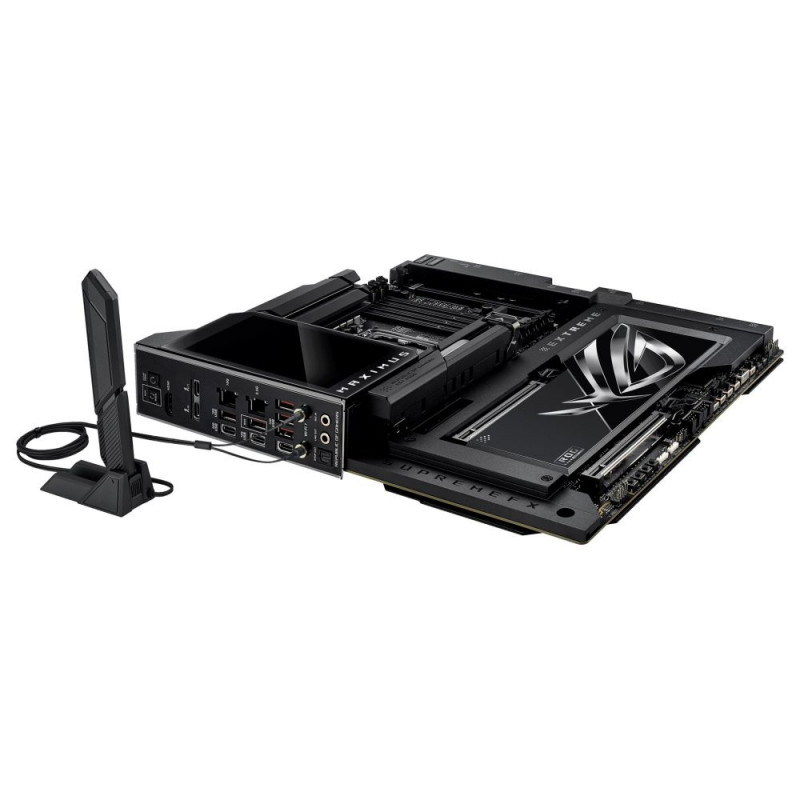

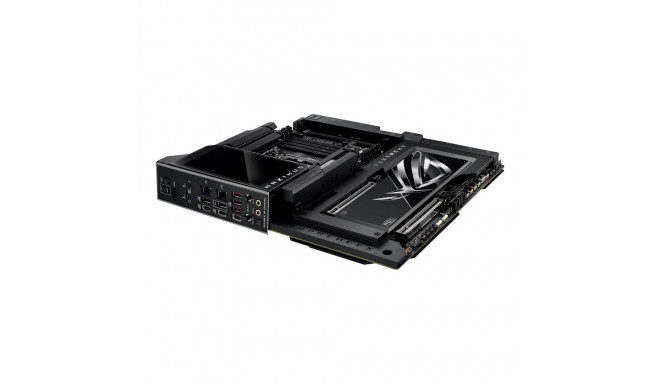

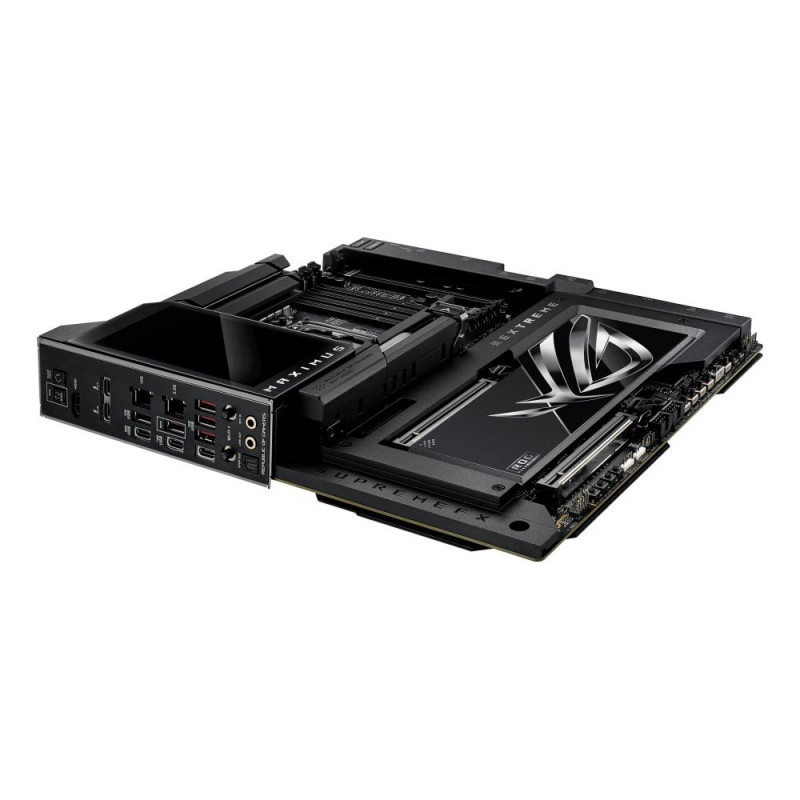

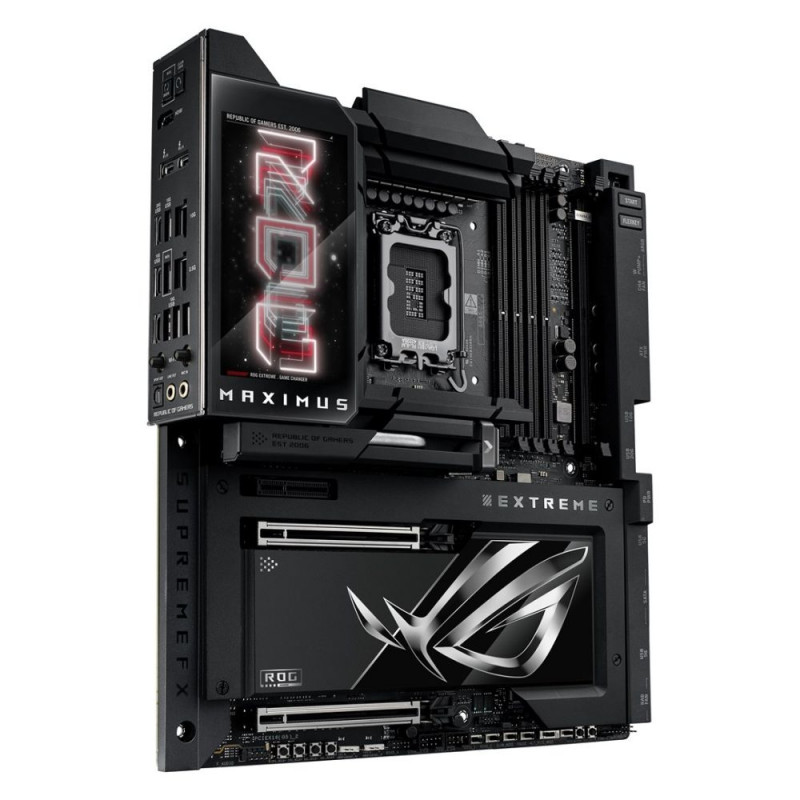

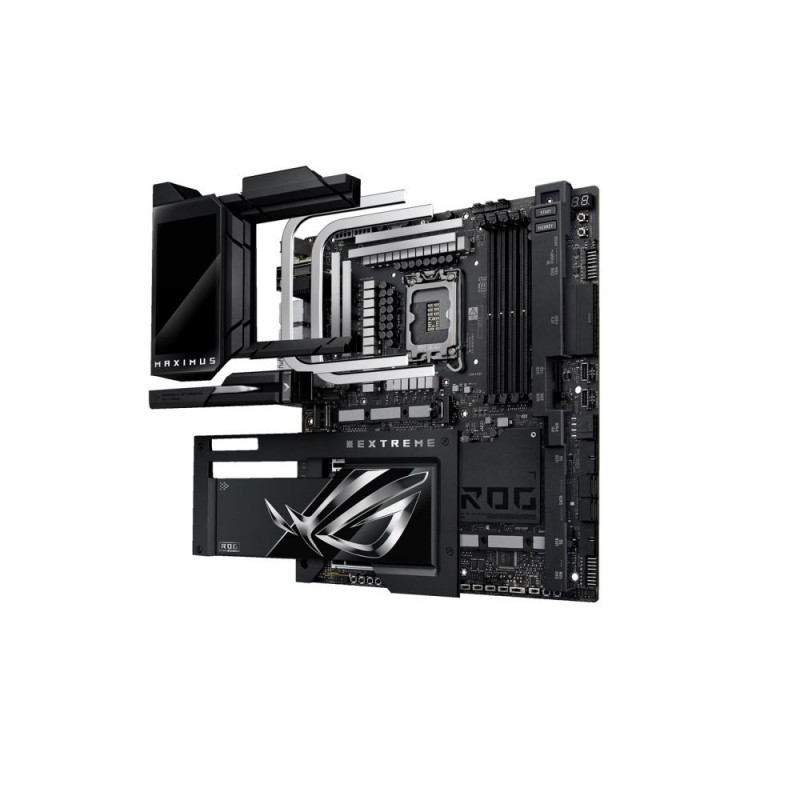

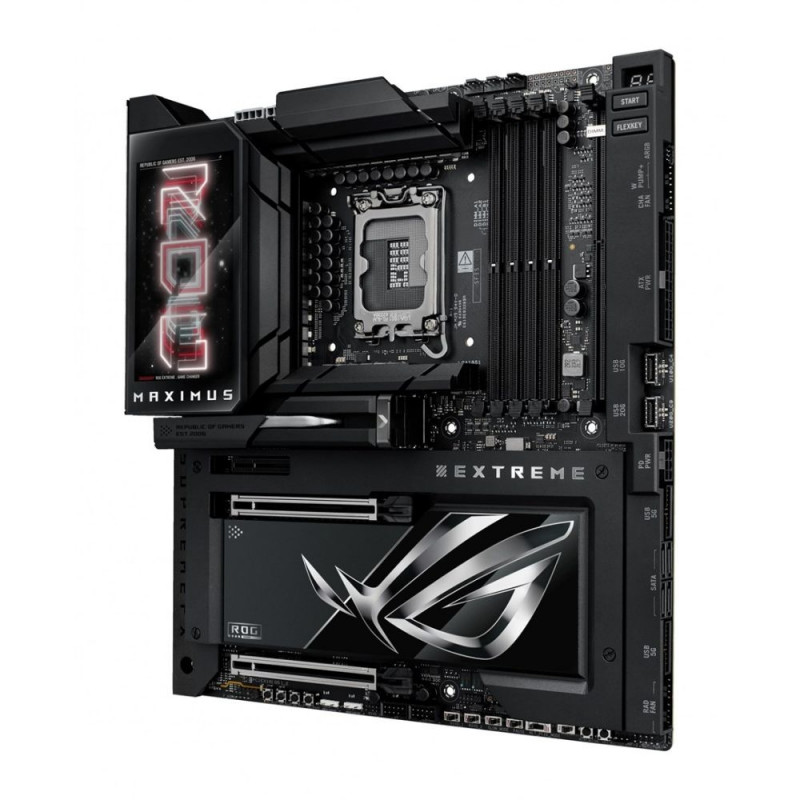

Motherboard - ASUS ROG Maximus Z890 Extreme Intel LGA 1851 Extended ATX Black

Addional discount of 8%
will be applied in shopping cart
(min. 15€ purchase)
2 309 €

Monthly payment starting from 78,70 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

LGA 1851 socket for Intel processors. Supports PCIe 5.0 and DDR5 memory.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

ASUS ROG Maximus Z890 Extreme

LGA 1851 socket for Intel processors. Supports PCIe 5.0 and DDR5 memory.


  • Extended ATX form factor
  • Maximum internal memory of 192 GB with 4 DIMM slots
  • Supports Wi-Fi 7 and Bluetooth 5.4
  • Intel Z890 chipset with 7.1 channel audio
  • 10 Gigabit Ethernet and 2.5 Gigabit Ethernet support

Processor
Processor manufacturer Intel
Compatible processor series Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Features
Audio chip Realtek ALC4082
Motherboard form factor Extended ATX
Audio output channels 7.1 channels
Product colour Black
Motherboard chipset Intel Z890
Component for PC
Windows operating systems supported Windows 11
Memory
Maximum internal memory 192 GB
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Yes
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Supported memory clock speed (max) 8800 MHz
Weight & dimensions
Depth 277 mm
Width 305 mm
Network
Ethernet interface type 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Wi-Fi Yes
Bluetooth Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Ethernet LAN Yes
Bluetooth version 5.4
Internal I/O
Number of SATA III connectors 4
ATX Power connector (24-pin) Yes
Number of chassis fan connectors 2
Front panel audio connector Yes
12V power connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
EPS power connector (8-pin) Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
CPU fan connector Yes
RGB LED pin header Yes
USB 3.2 Gen 2x2 connectors 1
BIOS
BIOS type UEFI AMI
Clear CMOS button Yes
Packaging data
Package weight 5.73 kg
Package width 380 mm
Package height 125 mm
Package depth 320 mm
Storage controllers
RAID levels 1, 0, 5
RAID support Yes
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 10
Number of HDDs supported 4
Rear panel I/O ports
Ethernet LAN (RJ-45) ports 2
S/PDIF out port Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
HDMI ports quantity 1
Microphone in Yes
USB 3.2 Gen 2x2 Type-C ports quantity 1
Thunderbolt ports quantity 2
Expansion slots
Number of M.2 (M) slots 6
PCI Express x16 (Gen 5.x) slots 2
PCI Express x4 (Gen 4.x) slots 1

Width 305 mm
Height 40 mm
Length 262 mm
Product Weight 2000 g
Country TW

Dimensions and weights

Gross weight
5.44 kg
Package width
32.5 cm
Package height
12.5 cm
Package length
38 cm

Product codes

EAN
4711387754153
Manufacturer code
90MB1IA0-M0EAY0

Manufacturer

Manufacturer
ASUSTeK Computer Inc., Li-De Rd., 15, Taipei, 112, TW, investor@asus.com
Responsible person in the EU
Asus Europe B.V., Paasheuvelweg 25, Amsterdam, 1101, NL, advance.rma.eu@asus.com
