Home page » Computers & IT»Computer components»Mainboards»Motherboard ROG STRIX B850-I GAMING WIFI

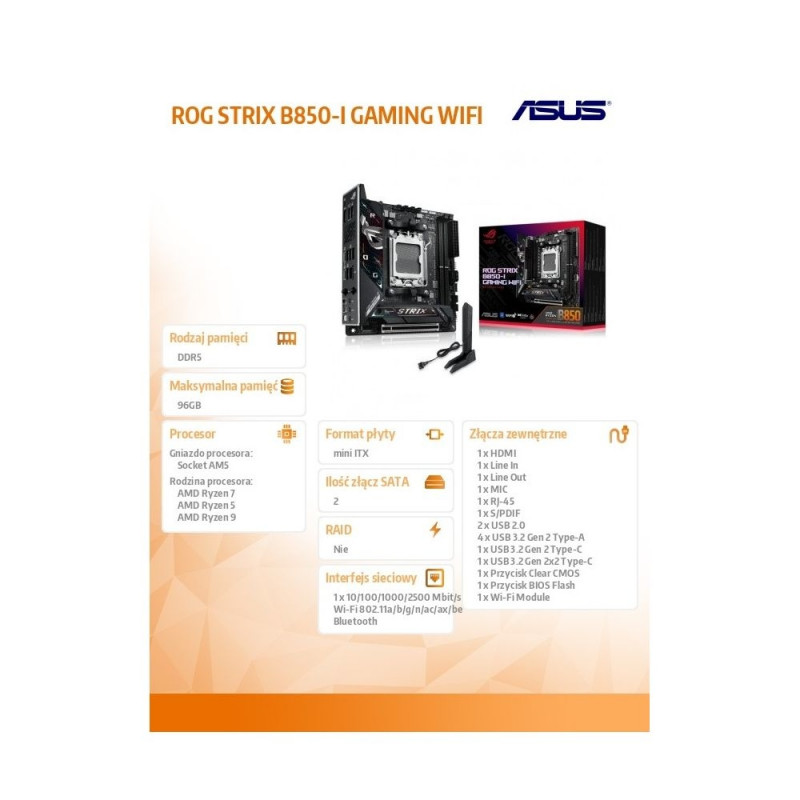

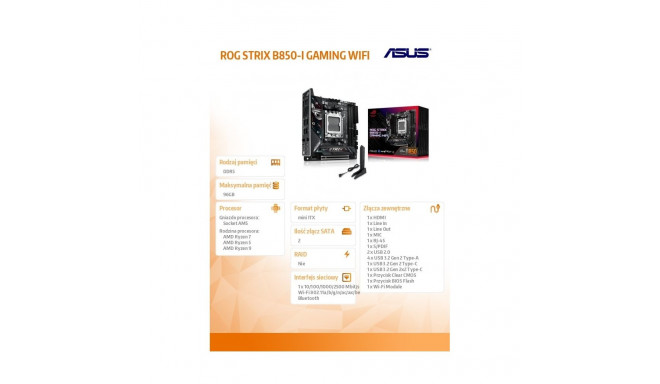

Motherboard ROG STRIX B850-I GAMING WIFI

Main info

ROG STRIX B850-I Gaming WiFi The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots, and a robust power supply for high-end

Product has been archived

ROG STRIX B850-I Gaming WiFi

The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots, and a robust power supply for high-end gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.


Model ROG STRIX B850-I GAMING WIFI
CPU socket Socket AM5
Processor family AMD Ryzen 7
Processor family AMD Ryzen 9
Processor family AMD Ryzen 5
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD B850 Chipset
Memory type DDR5
Number of DDR5 slots 2
Memory bus frequency 8400 MHz
Max memory size 96
Expansion slots 2 x M.2
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 1 x PCIe 4.0 x 16
Max. number of SATA devices 2
RAID No
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Bluetooth
Network interface Wi-Fi 802.11a/b/g/n/ac/ax/be
USB ports at back panel 8
USB ports on motherboard 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 1
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 7
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 2 x USB 2.0
External connectors 4 x USB 3.2 Gen 2 Type-A
External connectors 1 x USB 3.2 Gen 2 Type-C
External connectors 1 x USB 3.2 Gen 2x2 Type-C
External connectors 1 x Przycisk Clear CMOS
External connectors 1 x Flash BIOS Button
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x HDMI
External connectors 1 x Wi-Fi Module
External connectors 1 x MIC
Onboard connectors 1 x USB 3.2 Gen 2 Type-C
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x System panel header
Onboard connectors 1 x 4pin Chassis fan
Onboard connectors 1 x Thermal sensor connector
Onboard connectors 1x CPU/DRAM overvoltage jumper
Onboard connectors 1 x Front panel audio header
Onboard connectors 2 x M.2
Onboard connectors 2 x Addressable LED
Onboard connectors 2 x SATA III 6Gb/s
Onboard connectors 1 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.2 Gen 1 Type-A
Onboard connectors 1 x 4-pin Extra Flow Fan header
Onboard connectors 1 x 4-pin water-pump-fan
Onboard connectors 1 x 8pin 12V power
Form factor mini ITX
Supported operating systems Windows 11
Network interface Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Dimensions 17 cm x 17 cm
Accessories included 2 SATA 6Gb/s Cables ASUS WiFi Q-Antenna Cable Tie Pack Q-Latch M.2 Backplate Pack Q-Slide M.2 Backplate Pack ROG Keychain ROG Strix Stickers M.2 Rubber Backplate Pack Quick Start Guide
Other information WOL management via PME, PXE
Detailed data on disk/drive interfaces AMD Ryzen 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (suppo
Graphics 1 x HDMI port*** 1 x 10 Gbps USB port supports USB Type-C display output**** *** Supports 4K@60Hz as per HDMI 2.1 specification. **** Supports up to 4K@60Hz as per DisplayPort 1.4a specification.***** VGA resolution support depends on the resolution of th
Sound card ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB S
Special functions Extreme Engine Digi+ 5K Black metallic concentrates ASUS Q-Design M.2 Q-Latch M.2 Q-Slide PCIe Slot Q-Release Slim (z PCIe SafeSlot) Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green]) Q-Slot ASUS Thermal
Software ROG-exclusive software ROG CPU-Z Dolby Atmos ASUS-exclusive software Armoury Crate - AIDA64 Extreme (60-day free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Clou

Dimensions and weights

Gross weight
1.23 kg
Package width
23 cm
Package height
9.5 cm
Package length
19 cm

Product codes

EAN
4711387823620
Manufacturer code
KBASUAA8B850M00

Manufacturer

Manufacturer
ASUSTeK Computer Inc., Li-De Rd., 15, Taipei, 112, TW, investor@asus.com
Responsible person in the EU
Asus Europe B.V., Paasheuvelweg 25, Amsterdam, 1101, NL, advance.rma.eu@asus.com
