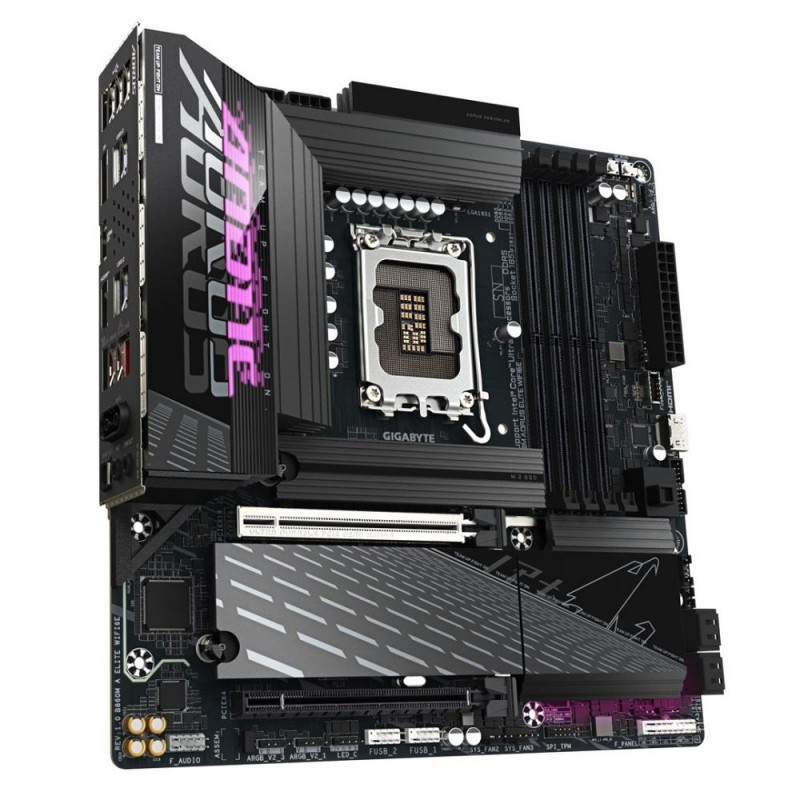

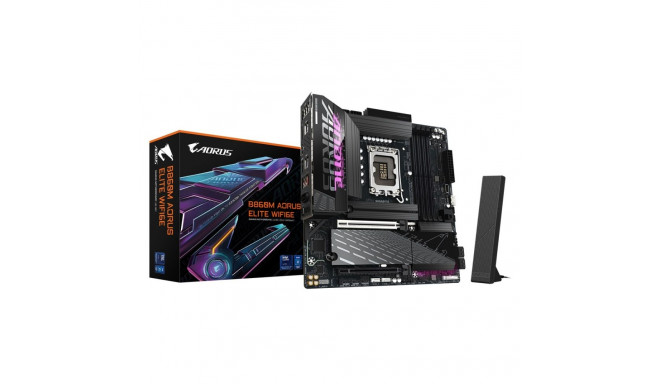

GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, u

Main info

Product has been archived


Warranty 36 (G)
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Depth 244 mm
WLAN controller model Intel Wi-Fi 6E AX211
Width 244 mm
Number of HDDs supported 4
Ethernet LAN Yes
Number of memory slots 4
Battery weight 3 g
Height 35 mm
Desktop Management Interface (DMI) version 2.7
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Number of M.2 (M) slots 3
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Batteries included Yes
Antenna included Yes
Bluetooth version 5.3
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Wi-Fi Yes
Number of battery cells 1
RGB LED pin header Yes
Number of EPS power connectors (8-pin) 2
WiFi-AP antenna jack 2
CPU fan connector Yes
Motherboard chipset family Intel
USB4 Gen 2x2 ports quantity 1
ATX Power connector (24-pin) Yes
Screws included Yes
Front panel connector Yes
DisplayPort version 2.1
Processor socket LGA 1851 (Socket V1)
Package depth 268 mm
Supported memory clock speed (max) 9200 MHz
TPM connector Yes
Number of water pump connectors 2
USB 2.0 connectors 2
USB 2.0 ports quantity 4
Number of RGB LED pin headers 4
Ethernet interface type 2.5 Gigabit Ethernet
Battery type CR2032
Number of CPU fan connectors 2
Clear CMOS jumper Yes
Line-in Yes
Power source type ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Parallel processing technology support Not supported
Number of storage drives supported 7
Processor manufacturer Intel
DisplayPorts quantity 1
Number of chassis fan connectors 4
Supported processor sockets LGA 1851
Package height 68 mm
Motherboard form factor micro ATX
Package weight 1.89 kg
Front panel audio connector Yes
HDCP Yes
Thunderbolt headers 2
Lithium weight per battery 0.07 g
EPS power connector (8-pin) Yes
Memory channels Dual-channel
HDMI version 2.1
Windows operating systems supported Windows 11 x64
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
HDMI ports quantity 1
PCI Express x16 (Gen 5.x) slots 1
Ethernet LAN (RJ-45) ports 1
Digital audio optical out 1
Package width 270 mm
Products per shipping (inner) case 1 pc(s)
ECC сompatibility ECC & Non-ECC
1st M.2 largest key size 2280
Number of SATA III connectors 4
Headphone outputs 1
RAID support Yes
2nd M.2 largest key size 2580
Maximum resolution 4096 x 2160 pixels
3rd M.2 largest key size 25110
Maximum internal memory per slot 64 GB
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
1st M.2 highest PCI Express generation 5.0
PCI Express x16 (Gen 4.x) slots 1
2nd M.2 highest PCI Express generation 4.0
Weight 1.69 kg
3rd M.2 highest PCI Express generation 4.0
BIOS type UEFI AMI
Supported storage drive types HDD & SSD
Bluetooth Yes
Audio output channels 7.1 channels
Supported storage drive interfaces M.2, SATA III
Audio chip Realtek ALC897
Motherboard chipset Intel B860
DirectX version 12.0
Warranty period 3 year(s)
Country of origin China
Maximum internal memory 256 GB
S/PDIF out port Yes
Product colour Black
LAN controller Realtek RTL8125
Unbuffered memory Yes
Cooling type Passive
On-board graphics card No
Compatible processor series Intel® Core™ Ultra (Series 1)
Supported memory clock speeds 6400
Warnings When disposing of the product, follow local regulations for the recycling of electronics.
Wi-Fi standards Wi-Fi 4 (802.11n)
RAID levels 1
PC health monitoring Fan

Dimensions and weights

Package width
274 cm
Package height
277 cm
Package length
75 cm

Product codes

EAN
4719331866877
Manufacturer code
B860M A ELITE WIFI6E
