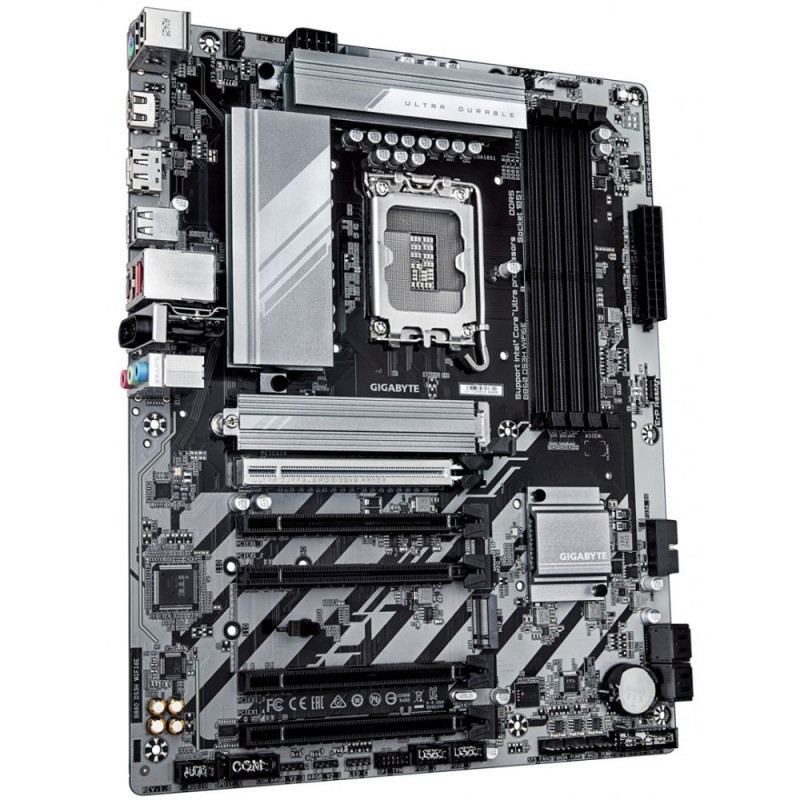

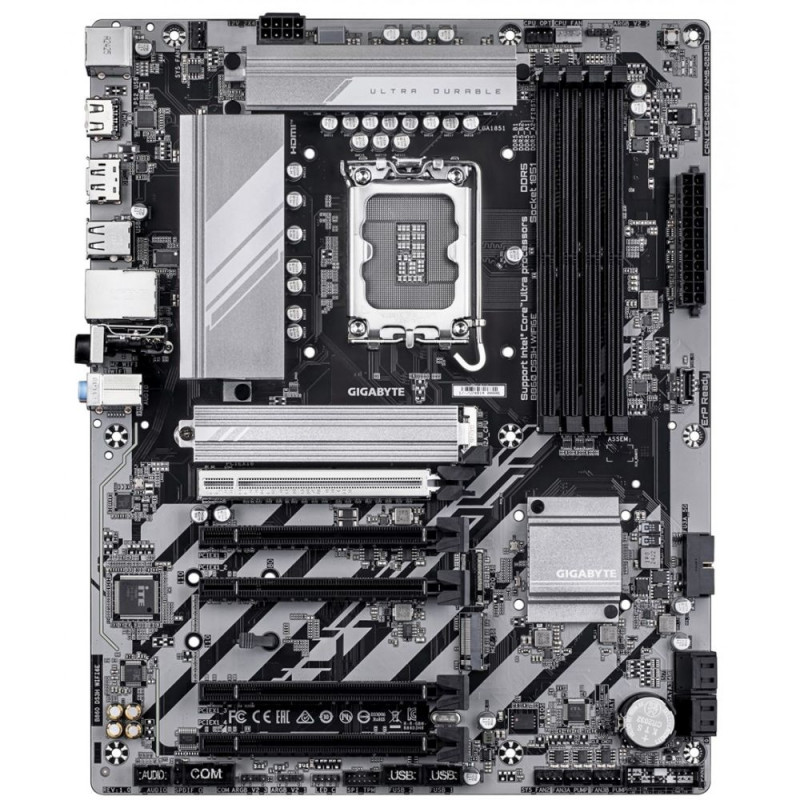

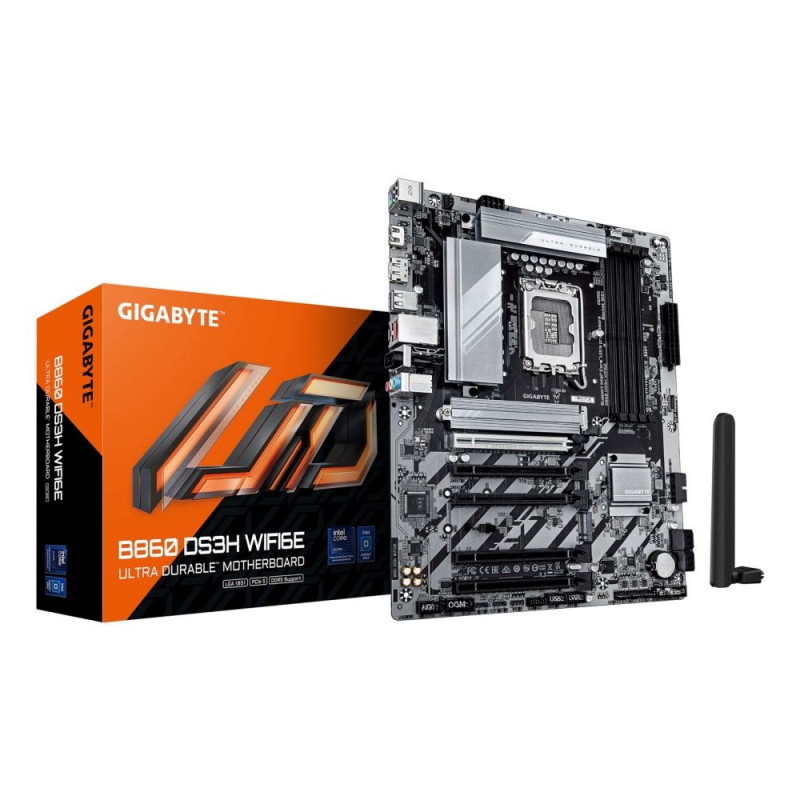

GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066

Main info

Product has been archived


Warranty 36 (G)
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Lithium weight per battery 0.07 g
Number of CPU fan connectors 2
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 25110
Number of water pump connectors 3
Number of RGB LED pin headers 4
Front panel audio connector Yes
Motherboard chipset family Intel
ECC сompatibility ECC & Non-ECC
CPU fan connector Yes
Number of chassis fan connectors 4
Front panel connector Yes
Supported processor sockets LGA 1851
Audio output channels 7.1 channels
2nd M.2 highest PCI Express generation 4.0
Number of EPS power connectors (8-pin) 1
Supported storage drive interfaces M.2, SATA III
USB 2.0 ports quantity 4
Serial port headers 1
EPS power connector (8-pin) Yes
Parallel processing technology support Not supported
Package width 335 mm
Maximum resolution 4096 x 2160 pixels
HDCP Yes
USB 2.0 connectors 2
Number of M.2 (M) slots 2
Motherboard form factor ATX
Ethernet LAN (RJ-45) ports 1
Power source type ATX
DisplayPorts quantity 1
Weight 2 kg
1st M.2 largest key size 25110
Number of SATA III connectors 4
ATX Power connector (24-pin) Yes
RAID support Yes
Maximum internal memory per slot 64 GB
DisplayPort version 2.1
BIOS type UEFI AMI
LAN controller Realtek RTL8125
DirectX version 12.0
Maximum internal memory 256 GB
Country of origin China
Bluetooth Yes
Motherboard chipset Intel B860
Supported storage drive types HDD & SSD
Audio chip Realtek ALC897
S/PDIF out connector Yes
Unbuffered memory Yes
PS/2 ports quantity 1
Bluetooth version 5.3
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Clear CMOS jumper Yes
Antenna included Yes
PCI Express x16 (Gen 4.x) slots 4
Headphone outputs 1
Processor manufacturer Intel
Line-in Yes
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Products per shipping (inner) case 1 pc(s)
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN Yes
HDMI version 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Desktop Management Interface (DMI) version 2.7
Width 305 mm
Depth 244 mm
WLAN controller model Intel Wi-Fi 6E AX211
Number of storage drives supported 6
Memory slots type DIMM
Microphone in Yes
Number of memory slots 4
Batteries included Yes
Package height 80 mm
Battery weight 3 g
Supported memory clock speed (max) 9066 Mhz
TPM connector Yes
Package depth 270 mm
Height 35 mm
Screws included Yes
Number of HDDs supported 4
HDMI ports quantity 1
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
RGB LED pin header Yes
Processor socket LGA 1851 (Socket V1)
WiFi-AP antenna jack 2
Warranty period 3 year(s)
Wi-Fi Yes
PCI Express x16 (Gen 5.x) slots 1
Compatible processor series Intel Core Ultra (Series 2)
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Product colour Dark brown
Cooling type Passive
Supported memory clock speeds 9066
Warnings In case of installation problems, contact a qualified service technician.
Wi-Fi standards 802.11b
Windows operating systems supported Windows 10 x64
PC health monitoring Temperature
RAID levels 10

Dimensions and weights

Package width
278 cm
Package height
343 cm
Package length
88 cm

Product codes

EAN
4719331867515
Manufacturer code
B860 DS3H WIFI6E
