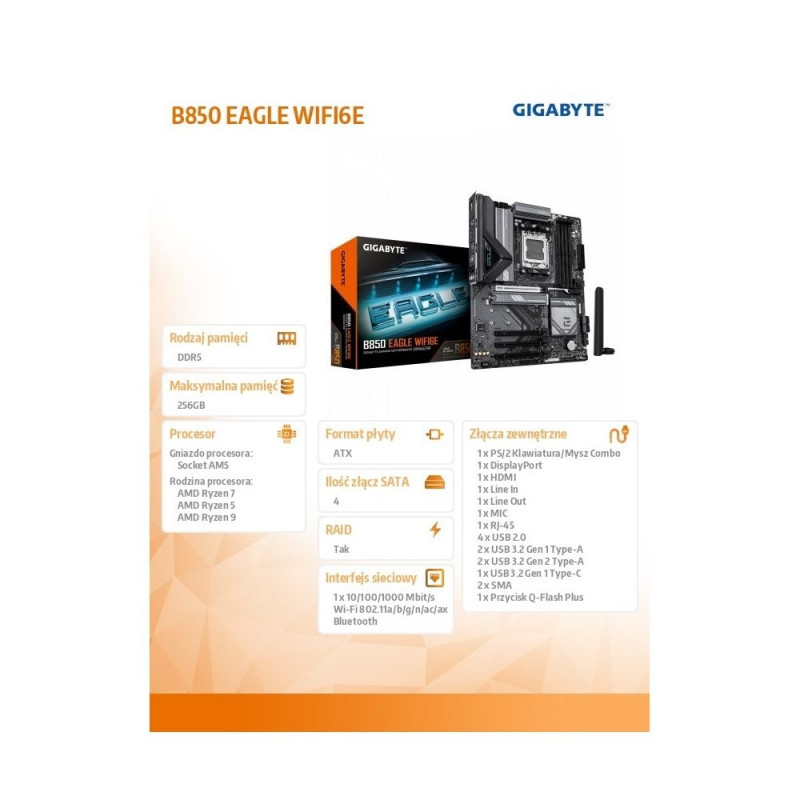

Motherboard B850 EAGLE WIFI6E

191,99 €

Monthly payment starting from 6,54 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

3D Turbo Mode
Unleash next-generation gaming performance with one-click activation.

X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 X3D processors to boost gaming performance, and Ryzen 9000 processors without X3D to achieve similar levels of gaming performance as their Ryzen X3D counterparts. Enjoy smoother gameplay, higher frame rates, and reduced lag with GIGABYTE's BIOS innovation, X3D Turbo Mode.

  • X3D Turbo Mode: Unleash next-generation gaming performance
  • DDR5 OC up to 8200MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000/8000/7000 series processors
  • 8+2+2 phases VRM Digital Twin
  • Dual Channel DDR5: 4 DIMMs with AMD EXPO memory module support
  • WIFI EZ-Plug: Quick and easy Wi-Fi antenna installation
  • EZ-Latch Plus: Quick-release PCIe and M.2 slots with a screwless design
  • EZ-Latch Click: M.2 heatsinks with a screwless design
  • User-friendly interface: Multi-Theme, AIO fan control, and automatic Q-Flash scanning in BIOS and software. Ultra-fast storage: 3 M.2 slots, including PCIe 5.0 x4
  • Efficient cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard
  • High-speed networking: GbE LAN and Wi-Fi 6E with a directional ultra-high-gain antenna
  • Expanded connectivity: HDMI, DisplayPort
  • PCIe UD slot: PCIe 5.0 x16 slots with 10x greater graphics card durability and improved heat dissipation

Model B850 EAGLE WIFI6E
CPU socket Socket AM5
Processor family AMD Ryzen 5
Processor family AMD Ryzen 7
Processor family AMD Ryzen 9
Integrated CPU No
Chipset manufacturer AMD
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 7400 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 7800 MHz
Memory bus frequency 7600 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 7950 MHz
Memory bus frequency 7900 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 8000 MHz
Memory bus frequency 8200 MHz
Memory bus frequency 4400 MHz
Max memory size 256
Expansion slots 1 x PCIe 4.0 x 8
Expansion slots 3 x M.2
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 3 x PCIe 3.0 x 1
Max. number of SATA devices 4
RAID Yes
Network interface 1 x 10/100/1000 Mbit/s
Network interface Bluetooth
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
USB ports at back panel 9
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x Line In
External connectors 2 x SMA
External connectors 2 x USB 3.2 Gen 1 Type-A
External connectors 1 x HDMI
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x DisplayPort
External connectors 1 x Q-Flash Plus button
External connectors 1 x USB 3.2 Gen 1 Type-C
External connectors 2 x USB 3.2 Gen 2 Type-A
External connectors 1 x RJ-45
External connectors 4 x USB 2.0
Onboard connectors 1 x RGB LED strip header
Onboard connectors 1 x Reset jumper
Onboard connectors 1 x Reset button
Onboard connectors 3 x 4pin Chassis fan
Onboard connectors 1 x 4-pin water-pump-fan
Onboard connectors 1 x 4pin 12V power
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 3 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.2 Gen 1 Type-A
Onboard connectors 1 x USB 3.2 Gen 1 Type-C
Onboard connectors 1 x TPM header
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 3 x Addressable LED
Form factor ATX
Supported operating systems Windows 11
Supported operating systems Windows 10
Designation
Chipset type AMD B850
Sound card Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Software     Norton Internet Security (OEM version)     LAN bandwidth management software
Memory bus frequency 6000 MHz
Memory bus frequency 4800 MHz
Detailed data on disk/drive interfaces Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support P
Graphics Integrated graphics processor with AMD Radeon graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort version 1.4 and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Suppor
Network interface LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless communication module Intel Wi-Fi 6E AX210 (PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard Real

Dimensions and weights

Gross weight
1.685 kg
Package width
27.5 cm
Package height
33.5 cm
Package length
8 cm

Product codes

EAN
4719331866587
Manufacturer code
KBGBAAA8B850A03
