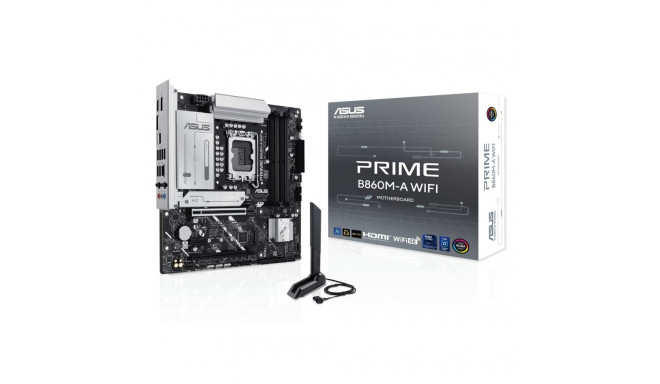

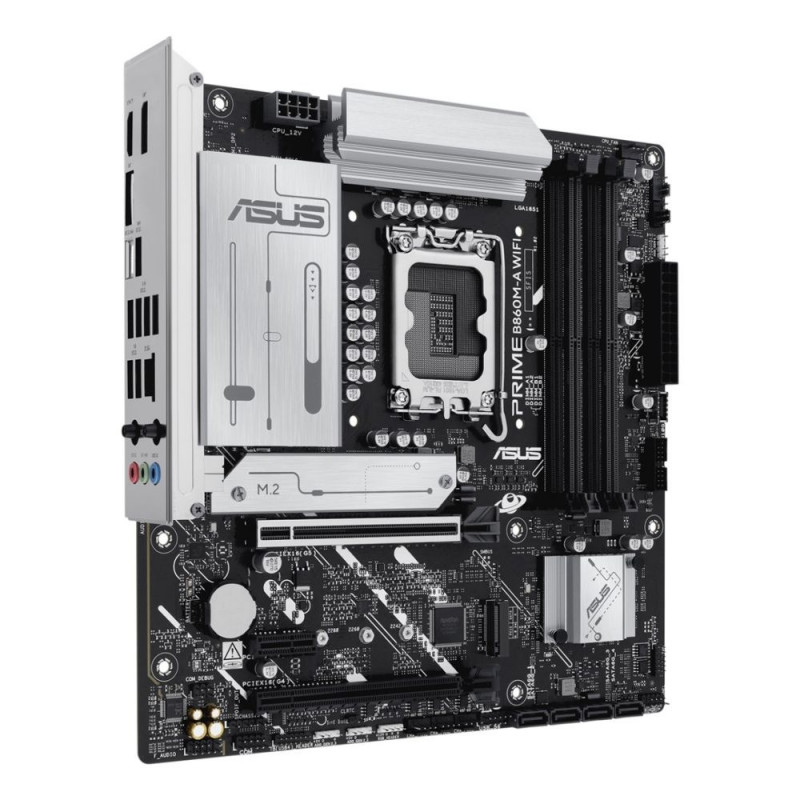

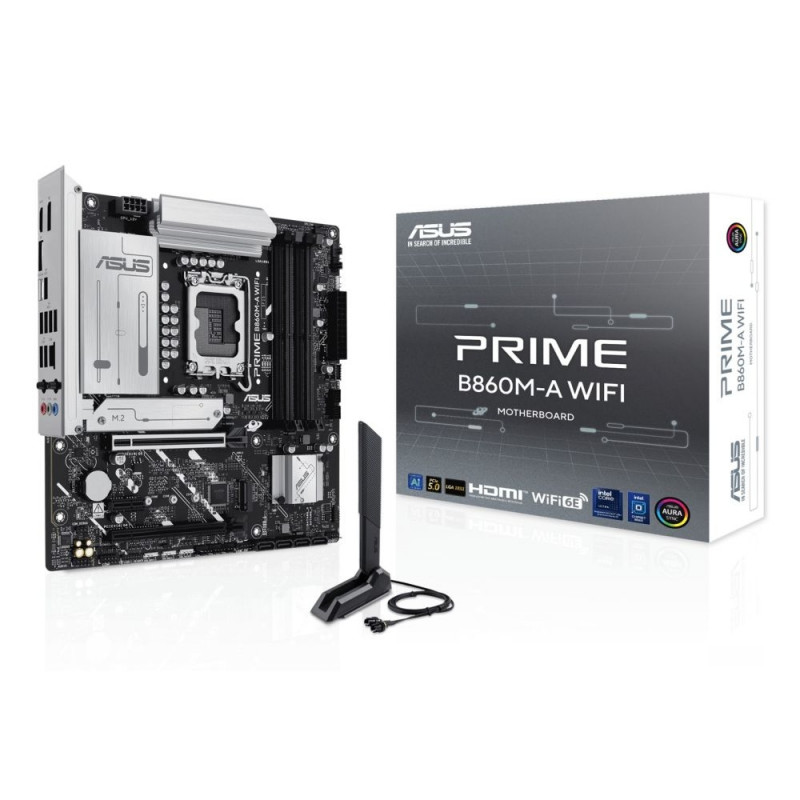

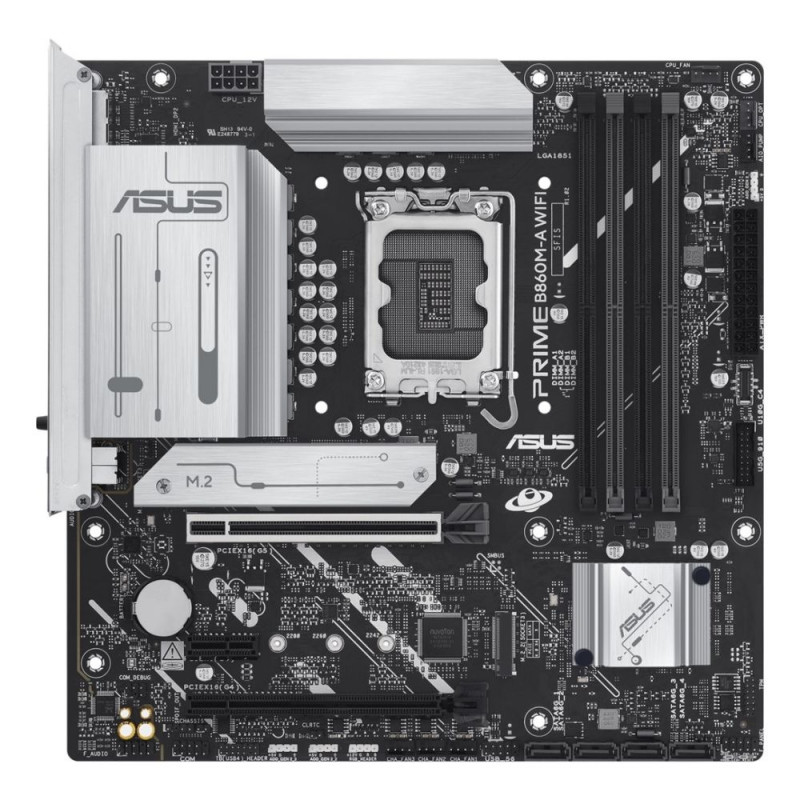

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Addional discount of 7%
will be applied in shopping cart
(min. 10€ purchase)
209,99 €

Monthly payment starting from 7,16 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Chassis intrusion connector Yes
Cables included SATA
BIOS type UEFI AMI
Front panel audio connector Yes
Supported processor sockets LGA 1851
Number of chassis fan connectors 3
Parallel processing technology support Not supported
Package weight 1.44 kg
Number of SATA III connectors 4
USB 2.0 ports quantity 4
Ethernet LAN (RJ-45) ports 1
Number of COM connectors 1
Ethernet interface type 2.5 Gigabit Ethernet
HDMI ports quantity 1
Screws included Yes
ATX Power connector (24-pin) Yes
Ethernet LAN Yes
Wi-Fi Yes
Supported storage drive types HDD & SSD
CPU fan connector Yes
TPM connector Yes
RAID support Yes
Motherboard chipset family Intel
Depth 244 mm
Audio output channels 7.1 channels
Width 244 mm
Motherboard form factor micro ATX
Processor manufacturer Intel
Package depth 275 mm
USB 2.0 connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of memory slots 4
Compatible processor series Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Number of storage drives supported 6
Package width 275 mm
Motherboard chipset Intel B860
Front panel connector Yes
Memory slots type DIMM
S/PDIF out connector Yes
Unbuffered memory Yes
Number of M.2 (M) slots 2
Package height 67.5 mm
Thunderbolt headers 1
PCI Express x1 (Gen 4.x) slots 1
Maximum internal memory 256 GB
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Memory channels Dual-channel
Wi-Fi standards Wi-Fi 6E (802.11ax)
Supported storage drive interfaces M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
PCI Express x16 (Gen 5.x) slots 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Supported memory types DDR5-SDRAM
DisplayPorts quantity 2
Bluetooth Yes
2nd M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
ECC сompatibility Non-ECC
2nd M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
WiFi-AP antenna jack 1
PCI Express x16 (Gen 4.x) slots 1
Antenna included Yes
Bluetooth version 5.3
RGB LED pin header Yes
Number of HDDs supported 4
12V power connector Yes
Warranty 36 (G)
Windows operating systems supported Windows 11
RAID levels 10
Warnings When disposing of the product, follow local regulations for the recycling of electronics.

Dimensions and weights

Package width
280 cm
Package height
275 cm
Package length
70 cm

Product codes

EAN
4711387806289
Manufacturer code
90MB1JY0-M0EAY0
