Home page » Computers & IT»Computer components»Mainboards»MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

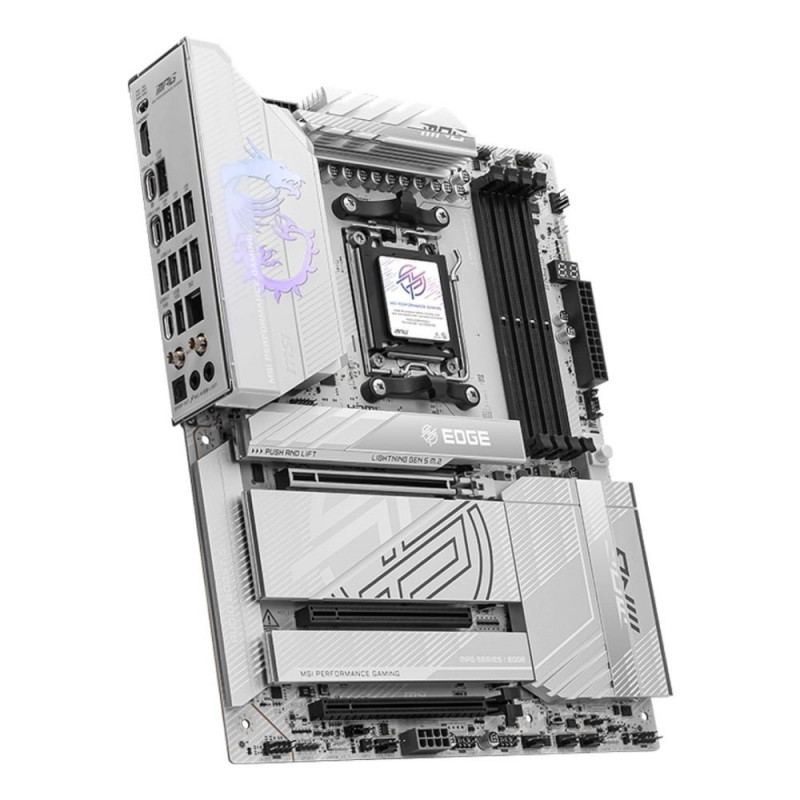

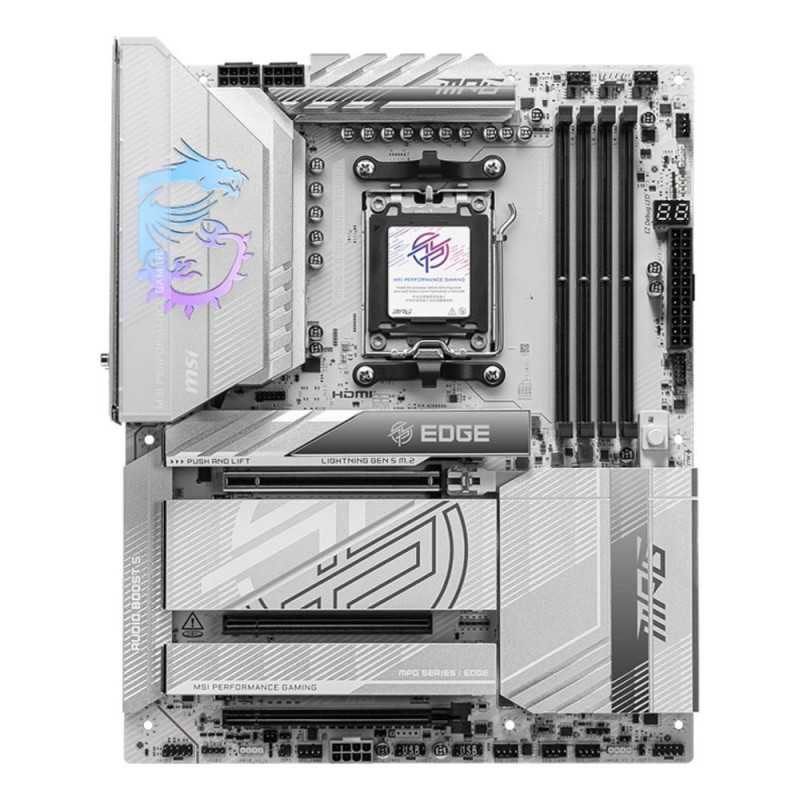

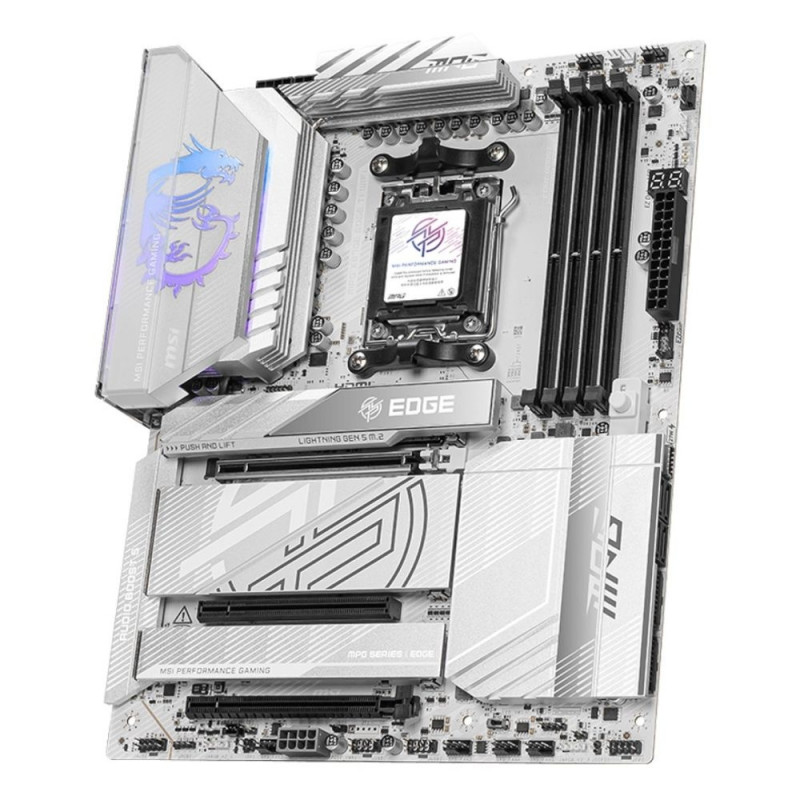

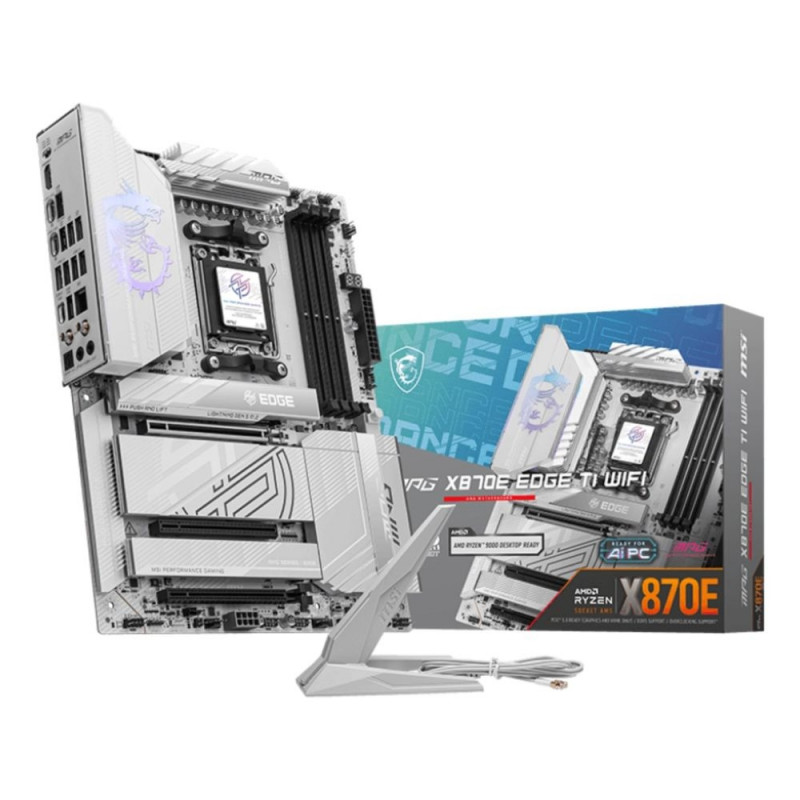

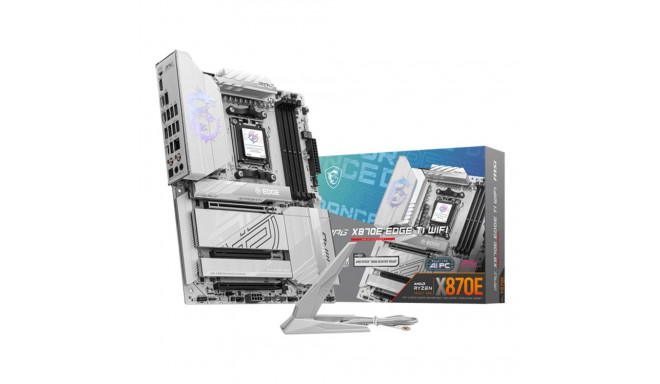

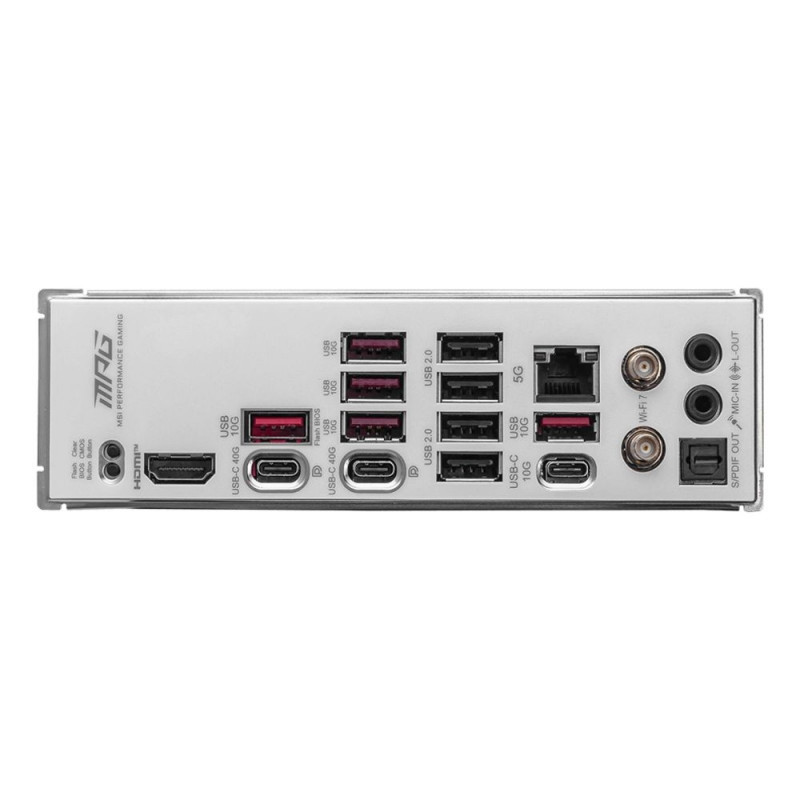

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

Main info

Product has been archived


Number of storage drives supported 8
LAN controller Realtek RTL8126
Audio output channels 7.1 channels
Ethernet LAN (RJ-45) ports 1
Supported processor sockets Socket AM5
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Microphone in Yes
Number of SATA III connectors 4
Product colour White
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
Supported storage drive types HDD & SSD
On-board graphics card No
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
Processor manufacturer AMD
Motherboard chipset family AMD
Bluetooth Yes
CPU fan connector Yes
Supported storage drive interfaces M.2, SATA III
Top Wi-Fi standard Wi-Fi 7 (802.11be)
DisplayPort version 1.4
USB 2.0 ports quantity 4
Number of M.2 (M) slots 4
Total number of SATA connectors 4
Ethernet interface type 5 Gigabit Ethernet
USB 2.0 connectors 4
Processor socket Socket AM5
DisplayPorts quantity 2
Motherboard form factor ATX
Ethernet LAN Yes
ATX Power connector (24-pin) Yes
Maximum internal memory 256 GB
S/PDIF out port Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
RAID support Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI ports quantity 1
Width 243.8 mm
Motherboard chipset AMD X870E
PCI Express x16 (Gen 3.x) slots 1
HDMI version 2.1
Depth 304.8 mm
Wi-Fi Yes
Maximum internal memory supported by processor 256 GB
Number of HDDs supported 4
Memory slots type DIMM
Supported memory types DDR5-SDRAM
4th M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
3rd M.2 highest PCI Express generation 4.0
Number of memory slots 4
3rd M.2 largest key size 2280
Bluetooth version 5.4
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Supported memory clock speed (max) 8400 MHz
USB4 Gen 2x2 ports quantity 1
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 22110
ECC сompatibility Non-ECC
2nd M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
Warranty 36 (G)
RAID levels 5
PC health monitoring Temperature
Wi-Fi standards Wi-Fi 6E (802.11ax)
Supported memory clock speeds 8400
Compatible processor series AMD Ryzen 8000 Series
Warnings Dispose of in accordance with local regulations for electronic waste.

Dimensions and weights

Package width
345 cm
Package height
275 cm
Package length
75 cm

Product codes

EAN
4711377290630
Manufacturer code
MPG X870E EDGE TI WIFI
