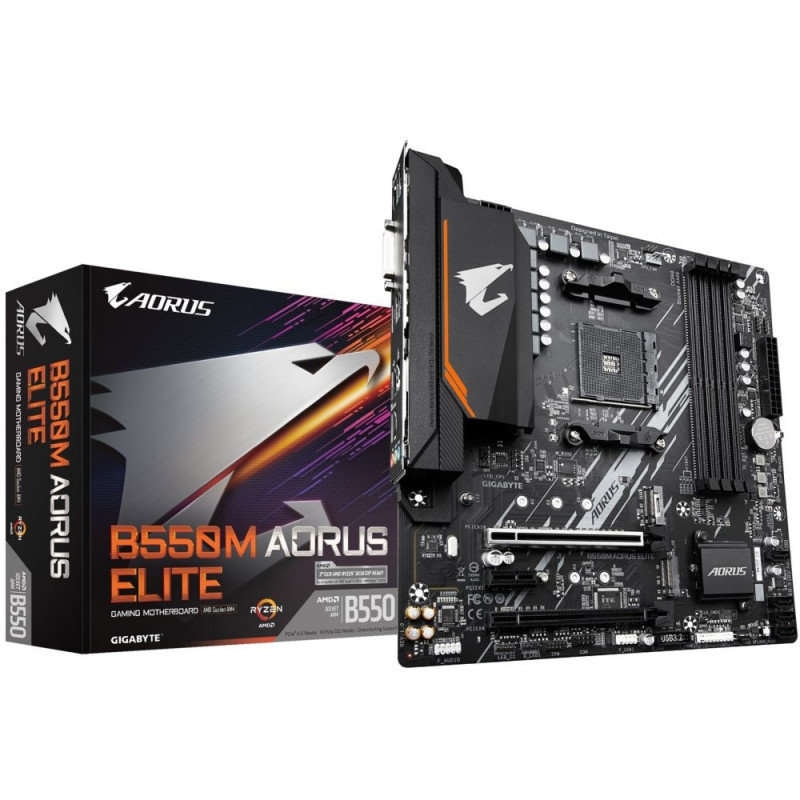

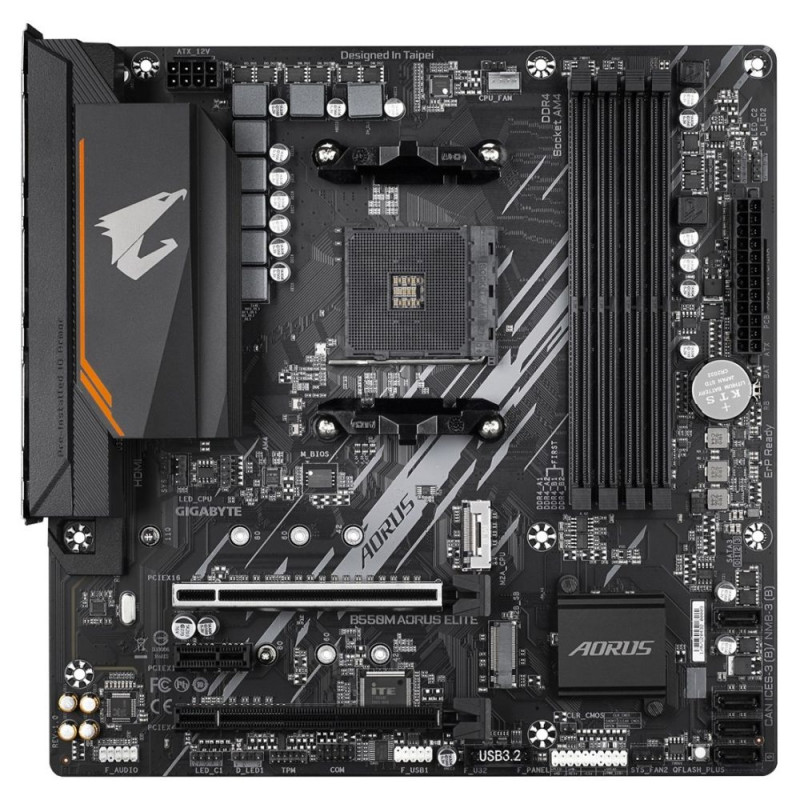

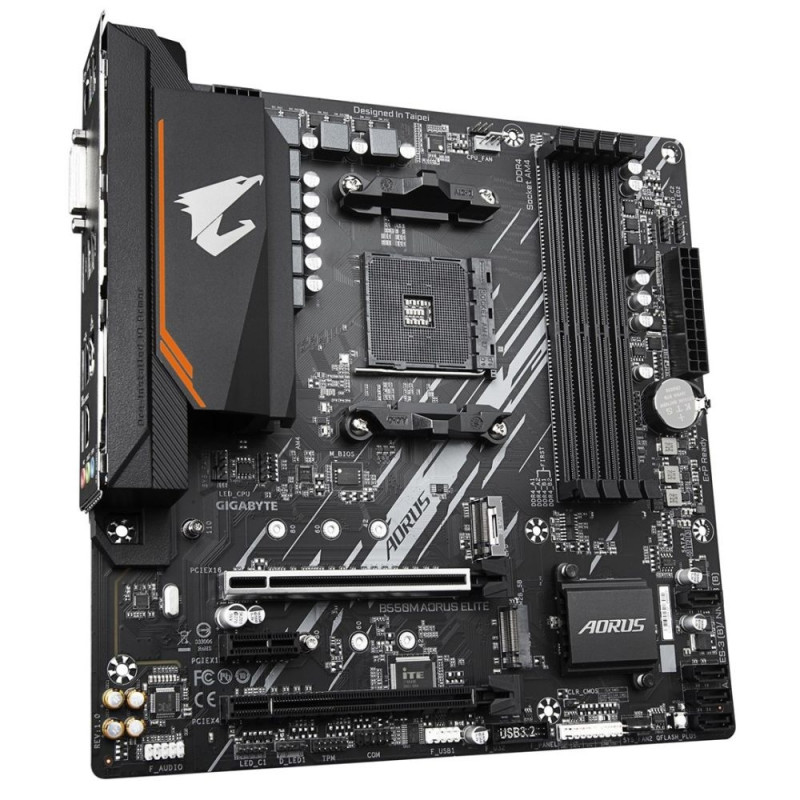

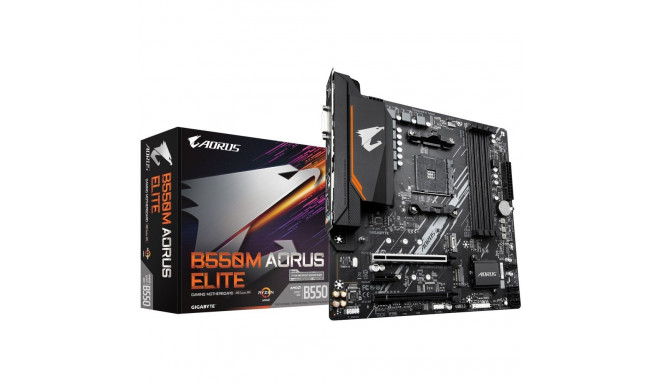

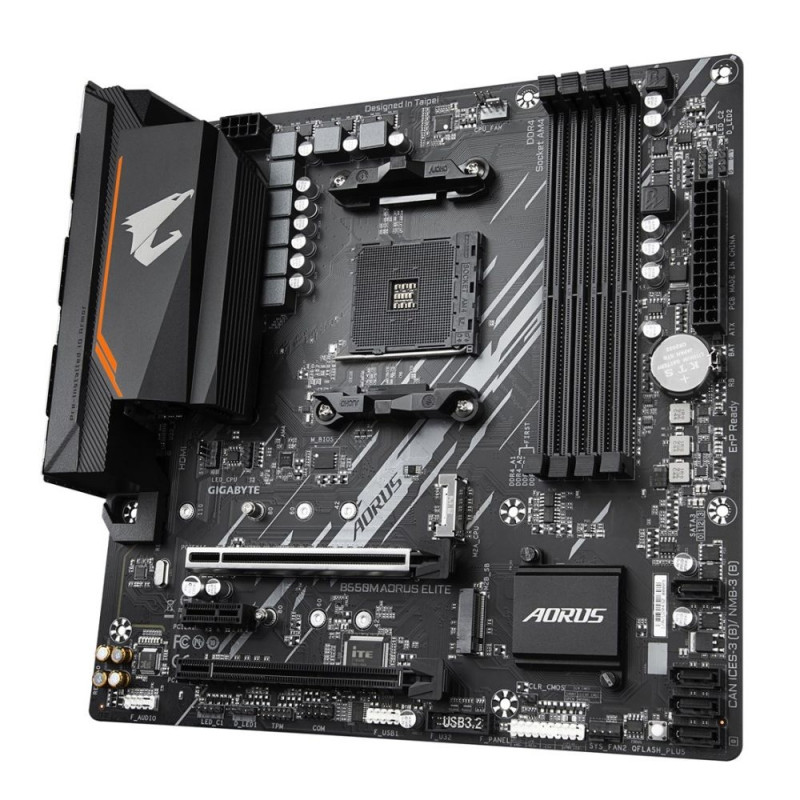

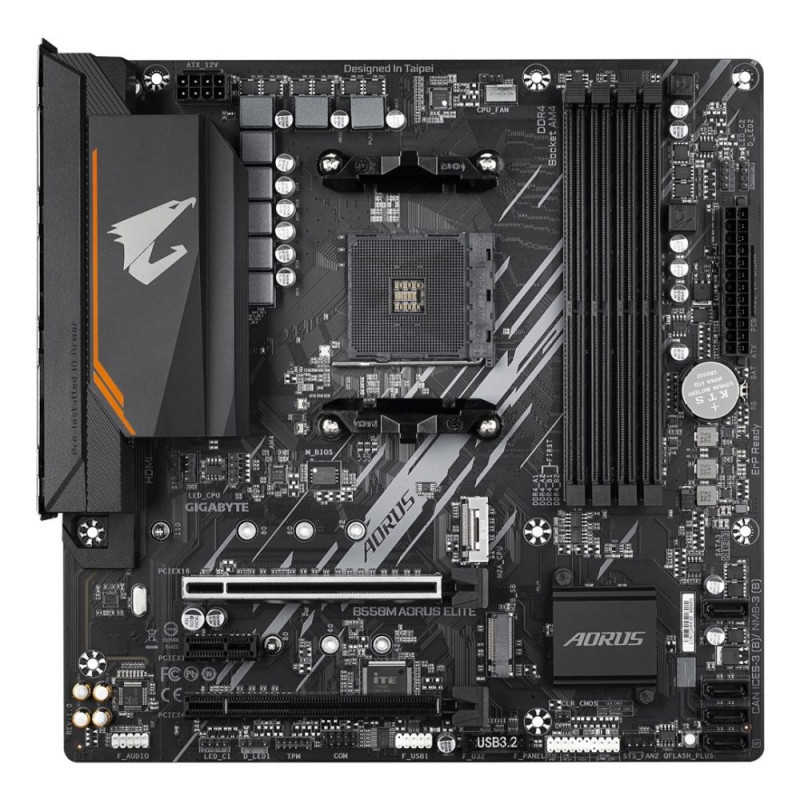

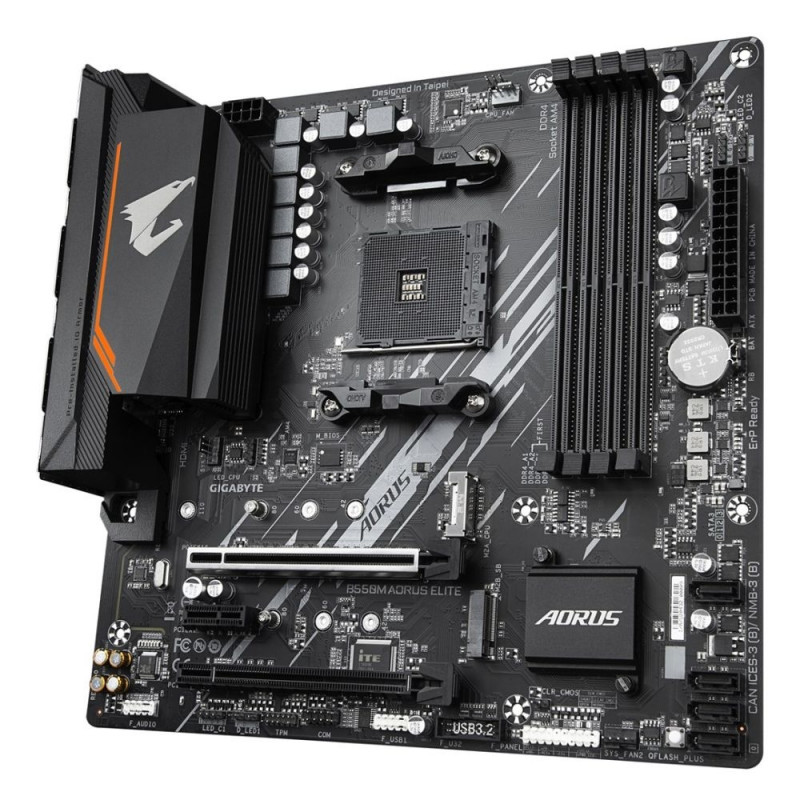

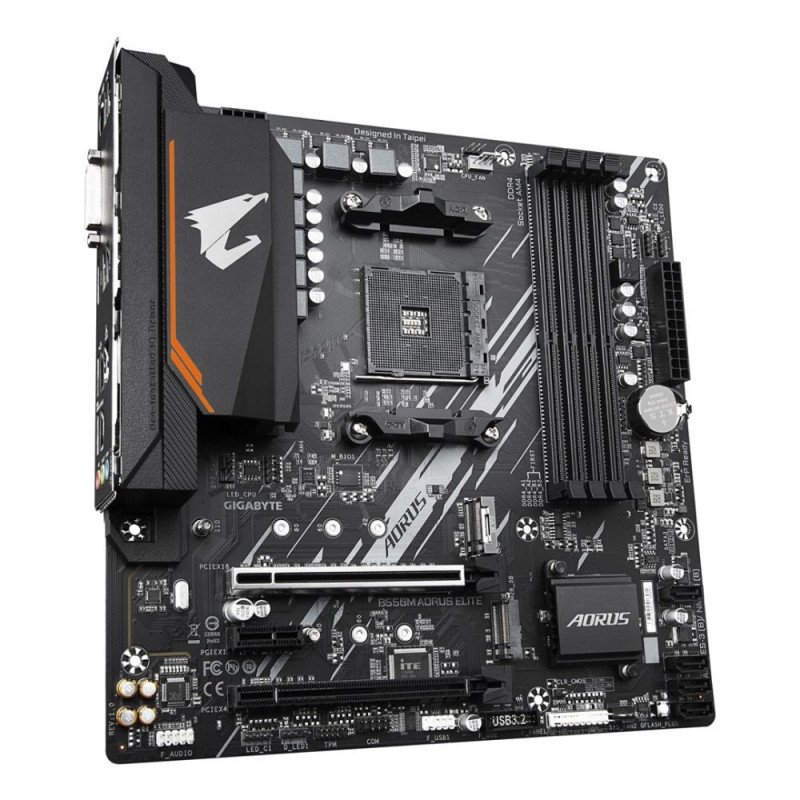

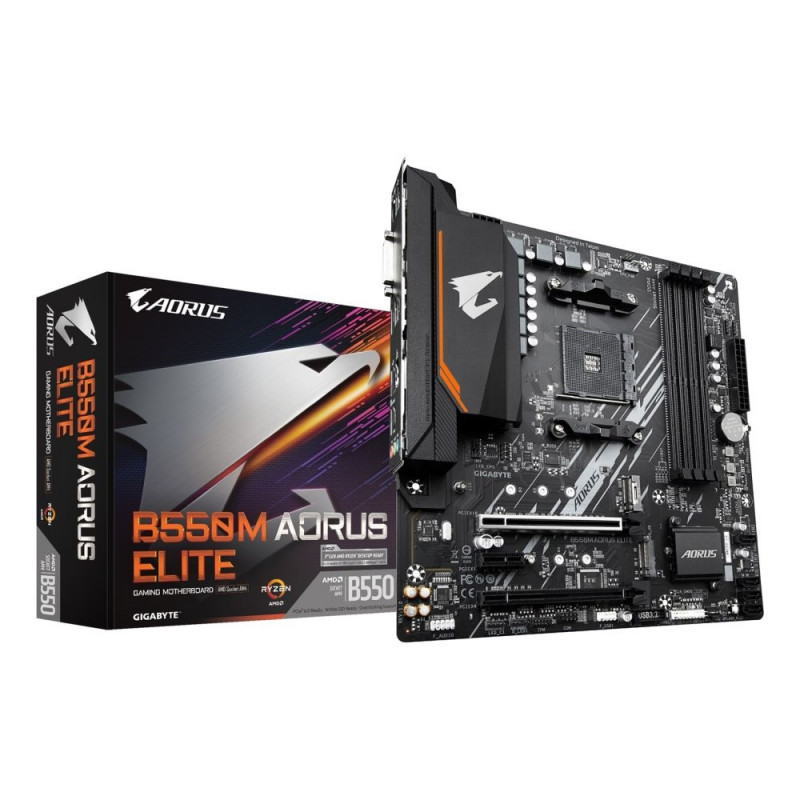

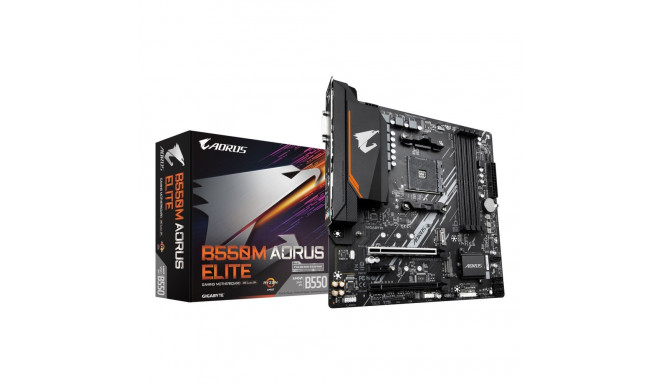

Gigabyte B550M AORUS ELITE Socket AM4 micro ATX AMD B550

128,99 €

Monthly payment starting from 4,40 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warranty 36 (G) Bundled software Norton® Internet Security (OEM version) LAN bandwidth man
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 36 (G)
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Headphone outputs 1
Number of SATA III connectors 4
USB 2.0 connectors 1
Unbuffered memory Yes
Processor socket Socket AM4
DVI-D ports quantity 1
Package width 265 mm
Parallel processing technology support Not supported
ACPI version 5.0
Country of origin China
Supported storage drive interfaces M.2, SATA III
Number of CPU fan connectors 1
PCI Express x1 (Gen 3.x) slots 1
Supported processor sockets Socket AM4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
PCI Express x16 (Gen 3.x) slots 1
HDMI version 2.1
Audio output channels 7.1 channels
Supported storage drive types HDD & SSD
Power source type ATX
Ethernet LAN Yes
Motherboard form factor micro ATX
2nd M.2 largest key size 2280
BIOS type UEFI AMI
Number of EPS power connectors (8-pin) 1
1st M.2 largest key size 22110
EPS power connector (8-pin) Yes
Memory channels Dual-channel
2nd M.2 highest PCI Express generation 3.0
Number of storage drives supported 6
Number of chassis fan connectors 2
BIOS memory size 128 Mbit
Ethernet interface type Gigabit Ethernet
Package weight 1.27 kg
Height 35 mm
Batteries included Yes
Serial port headers 1
Clear CMOS jumper Yes
Depth 244 mm
Processor manufacturer AMD
Microphone in Yes
1st M.2 highest PCI Express generation 4.0
Lithium weight per battery 0.07 g
Number of RGB LED pin headers 5
Maximum number of SMP processors 1
Battery type CR2032
ATX Power connector (24-pin) Yes
Number of water pump connectors 2
Maximum internal memory per slot 32 GB
Ethernet LAN (RJ-45) ports 1
HDCP Yes
Cooling type Passive
Wi-Fi No
Number of M.2 (M) slots 2
Motherboard chipset AMD B550
Component for PC
Audio chip Realtek ALC897
Maximum resolution 4096 x 2160 pixels
Motherboard chipset family AMD
Package depth 265 mm
TPM connector Yes
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
PS/2 ports quantity 1
Package height 65 mm
CPU fan connector Yes
USB 2.0 ports quantity 4
Front panel connector Yes
HDMI ports quantity 1
Maximum internal memory 128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Width 244 mm
PCI Express x16 (Gen 4.x) slots 1
Products per shipping (inner) case 1 pc(s)
12V power connector Yes
Battery weight 3 g
Warranty period 3 year(s)
Number of memory slots 4
LAN controller Realtek RTL8111H
Number of battery cells 1
DirectX version 12.0
Supported memory types DDR4-SDRAM
Desktop Management Interface (DMI) version 2.7
Line-in Yes
Product colour Bronze
Memory slots type DIMM
Harmonized System (HS) code 84733020
Supported memory clock speed (max) 4733 MHz
Screws included Yes
System Management BIOS (SMBIOS) version 2.7
RGB LED pin header Yes
Number of HDDs supported 4
Supported memory clock speeds 4733
Warnings Dispose of according to local electro-waste regulations.
Windows operating systems supported Windows 11 x64
Compatible processor series AMD Ryzen 5000 Series
RAID levels 10
PC health monitoring Temperature

Dimensions and weights

Package width
275 cm
Package height
70 cm
Package length
269 cm

Product codes

EAN
4719331809546
Manufacturer code
B550M AORUS ELITE
