Motherboard - MSI Pro B760m-p, Blue

Main info

The product supports a maximum of 128 GB memory and one processor, with compatibility for Intel Core i7 processors among others. It features six SATA ports, two RAID levels (0, 1), and a range of expansion slots including one Gen 4.x PCIe x16 slot.

Product has been archived

Motherboard - MSI Pro B760m-p, Blue

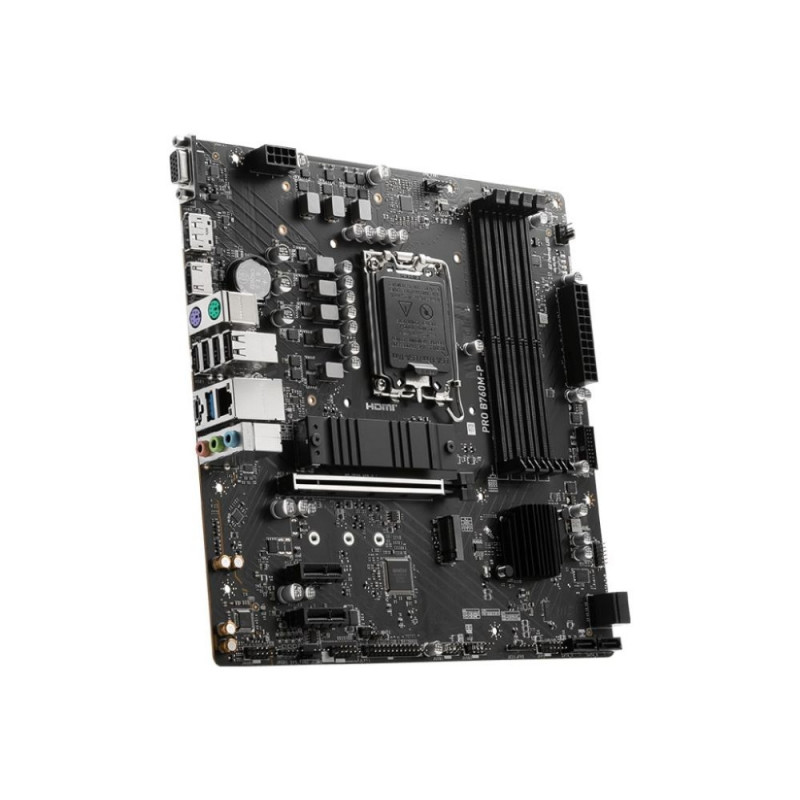

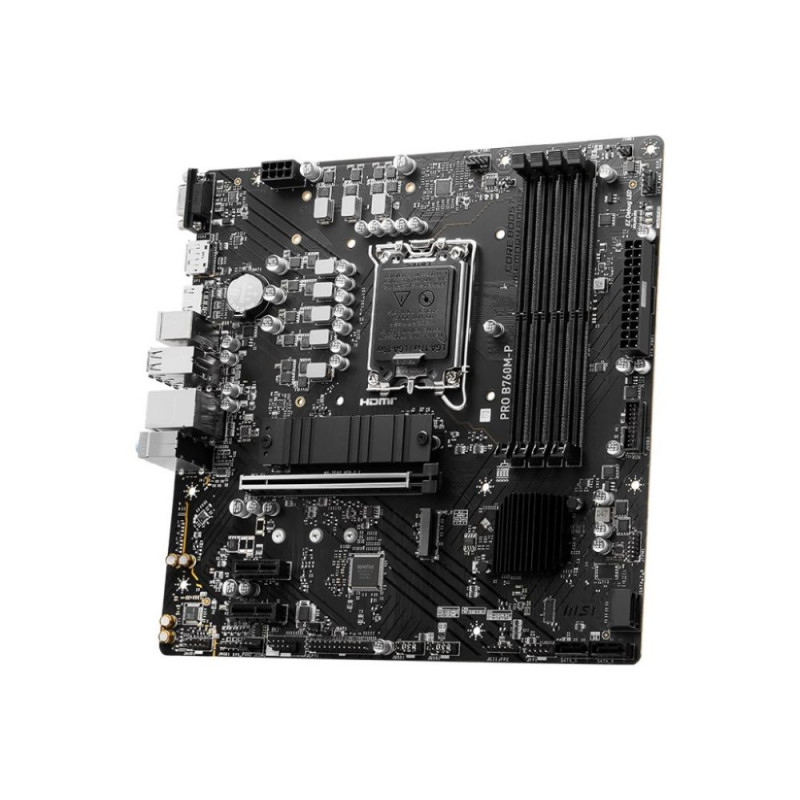

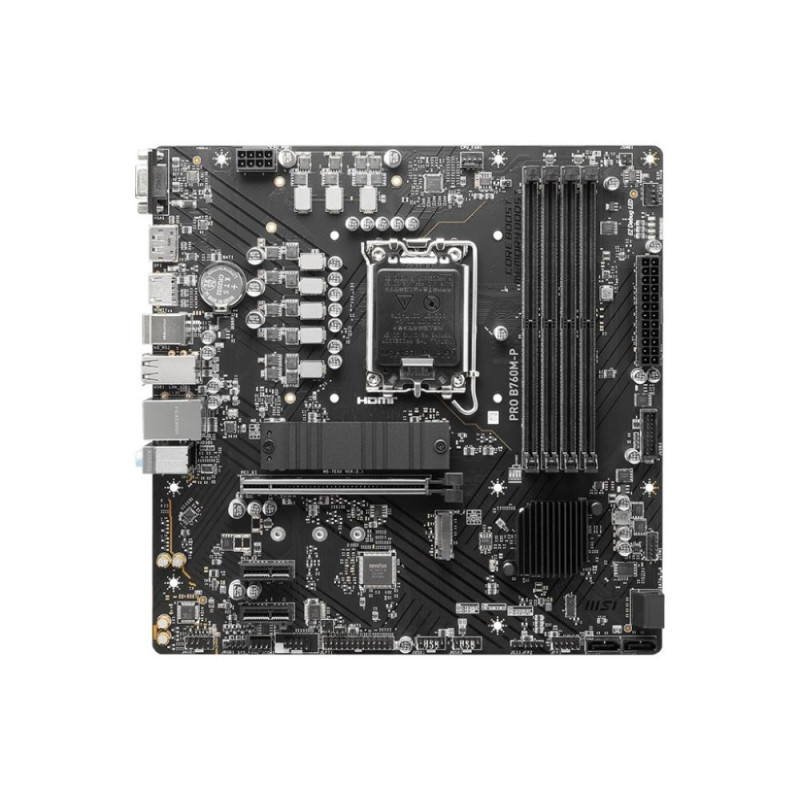

The MSI Pro B760m-p is a micro-ATX motherboard designed for Intel LGA 1700 processors. It supports up to 192 GB of dual channel DDR5 memory and features one PCI Express x16 slot (Gen 4.x) and two PCI Express x1 slots (Gen 4.x).

Key Features
  • SATA ports: 6
  • DisplayPort version: 1.4, HDMI version: 1.4
  • 5 audio outputs, including 3 analog and 2 digital

Processor
Supported processor sockets LGA 1700
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Processor manufacturer Intel
Features
Motherboard chipset Intel B760
Audio output channels 7.1 channels
Windows operating systems supported Windows 11 x64, Windows 10 x64
Power source type ATX
Motherboard form factor micro ATX
Audio chip Realtek ALC897
Motherboard chipset family Intel
Memory
Unbuffered memory Yes
Supported memory clock speeds 6000, 6800, 5800, 5400, 5200, 6400, 6600, 6200, 4800, 5000, 5600
Maximum internal memory 192 GB
Supported memory types DDR5-SDRAM
Number of memory slots 4
Weight & dimensions
Depth 243.8 mm
Width 243.8 mm
Network
LAN controller Realtek RTL8111H
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Internal I/O
Parallel connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Chassis intrusion connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
USB 2.0 connectors 4
Number of SATA III connectors 4
Number of COM connectors 1
Front panel connector Yes
CPU fan connector Yes
TPM connector Yes
RGB LED pin header Yes
BIOS
Clear CMOS jumper Yes
BIOS type UEFI AMI
Packaging content
Cables included SATA
Storage controllers
RAID levels 1, 0, 5, 10
Supported storage drive types HDD & SSD
RAID support Yes
Supported storage drive interfaces SATA III
Number of HDDs supported 4
Number of storage drives supported 6

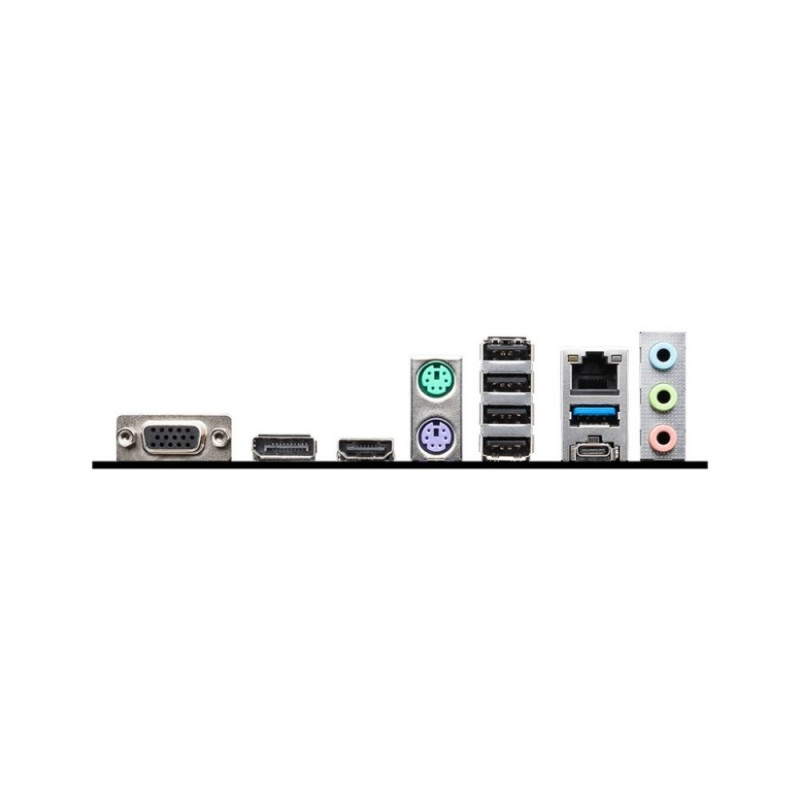

Rear panel I/O ports
HDMI ports quantity 1
PS/2 ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
DisplayPort version 1.4
HDMI version 1.4
USB 2.0 ports quantity 4
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
Microphone in Yes
Line-in Yes
VGA (D-Sub) ports quantity 1
Headphone outputs 1
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 (Gen 4.x) slots 2

Width 243.8 mm
Height 30 mm
Length 243.8 mm
Product Weight 800 g
Country TW

Dimensions and weights

Gross weight
0.9 kg
Package width
27.5 cm
Package height
30 cm
Package length
5.5 cm

Product codes

EAN
4711377086578
Manufacturer code
7E02-009R
