Home page » Computers & IT»Computer components»Mainboards»Motherboard ROG STRIX B860-A GAMING WIFI s1851 4DDR5 USB ATX

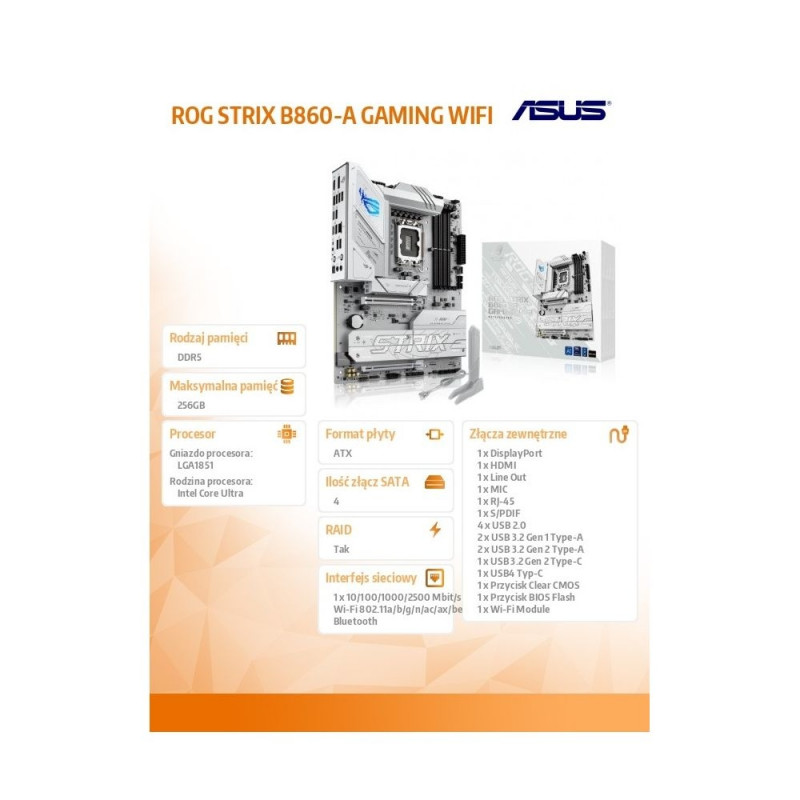

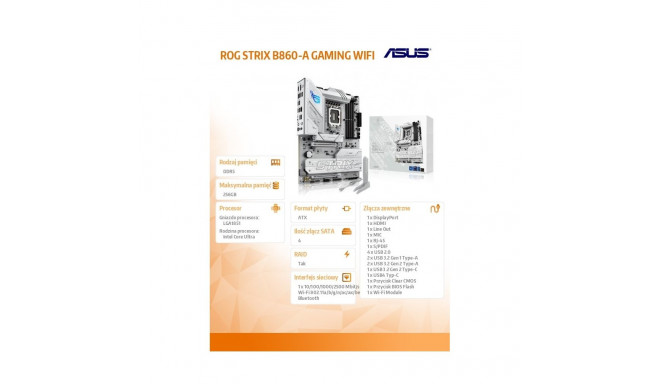

Motherboard ROG STRIX B860-A GAMING WIFI s1851 4DDR5 USB ATX

295,99 €

Monthly payment starting from 10,09 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

ROG STRIX B860-A GAMING WIFI

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

NPU BOOST
The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%

Asynchronous Clock
For next-level frequency flexibility, the ROG Strix B860-A features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.

DDR5 DOMINATION
Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-A.

AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

UNDENIABLY ROG STRIX
The ROG Strix B860-A features a clean white design that complements any build. Its matching metallic heatsinks enhance the sleek look, while Aura Sync RGB lighting adds customizable effects for a subtle or bold style.

OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.


Model ROG STRIX B860-A GAMING WIFI
CPU socket LGA1851
Processor family Intel Core Ultra
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel B860 Chipset
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 8600 MHz
Max memory size 256
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x PCIe 5.0 x 16
Max. number of SATA devices 4
RAID Yes
Graphics 1 x DisplayPort 1 x HDMI  1 x USB4 (20Gbps)
Network interface Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Bluetooth
Network interface Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
USB ports at back panel 10
USB ports on motherboard 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 4
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x Flash BIOS Button
External connectors 1 x USB4 Type-C
External connectors 1 x Przycisk Clear CMOS
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 4 x USB 2.0
External connectors 2 x USB 3.2 Gen 1 Type-A
External connectors 2 x USB 3.2 Gen 2 Type-A
External connectors 1 x USB 3.2 Gen 2 Type-C
External connectors 1 x HDMI
External connectors 1 x DisplayPort
External connectors 1 x Wi-Fi Module
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Thermal sensor connector
Onboard connectors 3 x Addressable LED
Onboard connectors 2 x USB 3.2 Gen 1 Type-A
Onboard connectors 1 x Thunderbolt header
Onboard connectors 1 x USB 3.2 Gen 2 Type-C
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin wentylator OPT CPU
Onboard connectors 4 x 4pin Chassis fan
Onboard connectors 1 x 4-pin water-pump-fan
Onboard connectors 2 x 8pin 12V
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 4 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form factor ATX
Dimensions 30.5 x 24.4 cm
Accessories included 2 x SATA 6Gb/s cable ASUS WiFi Q-Antenna Cable ties package M.2 Q-Latch M.2 Q-Slide ROG key chain ROG Strix stickers 4 x M.2 rubbers Quick start guide
Supported operating systems Windows 11
Software WOL by PME, UEFI PXE
Designation
Detailed data on disk/drive interfaces Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key
Sound card Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*: Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Fron
Special functions Extreme Engine Digi+ - 5K Black metallic capacitors    ASUS Q-Design  M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]

Dimensions and weights

Gross weight
2.19 kg
Package width
27.5 cm
Package height
35.5 cm
Package length
7 cm

Product codes

EAN
4711387788424
Manufacturer code
KBASUIIFB860A01
