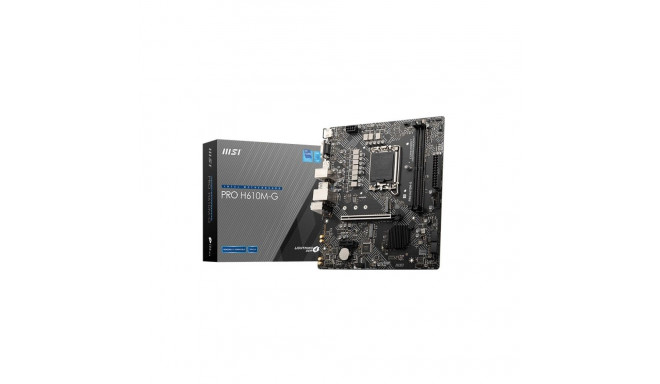

Motherboard PRO H610M-G

Addional discount of 5%
will be applied in shopping cart
(min. 5€ purchase)
76,99 €

Monthly payment starting from 2,30 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

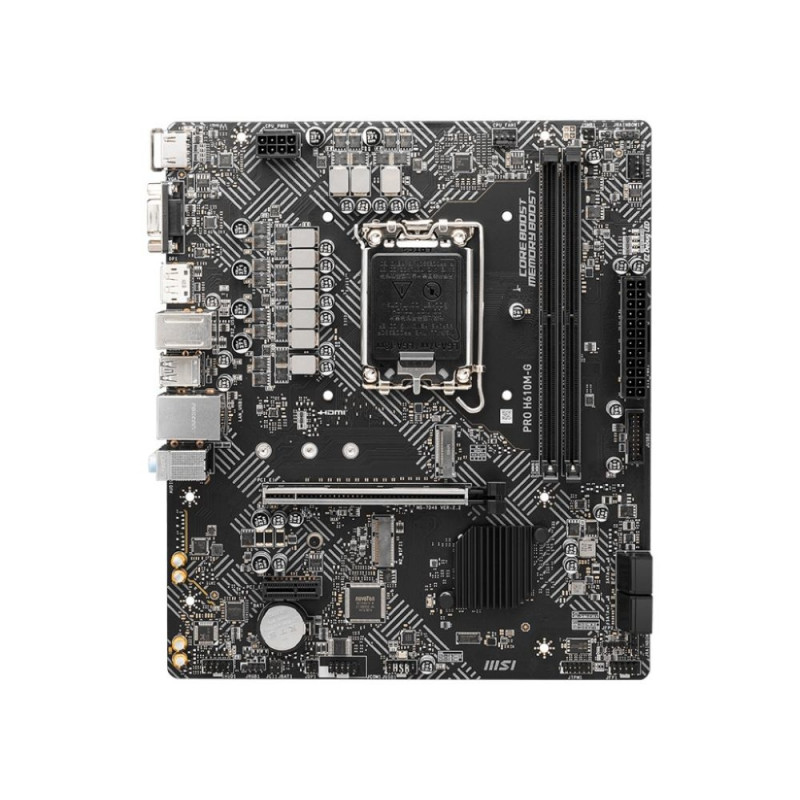

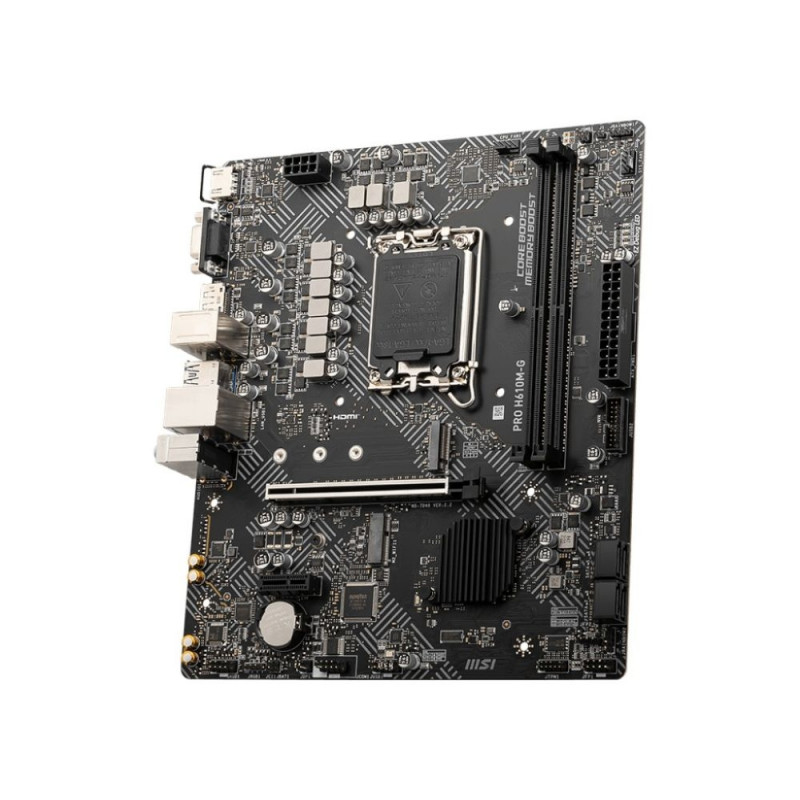

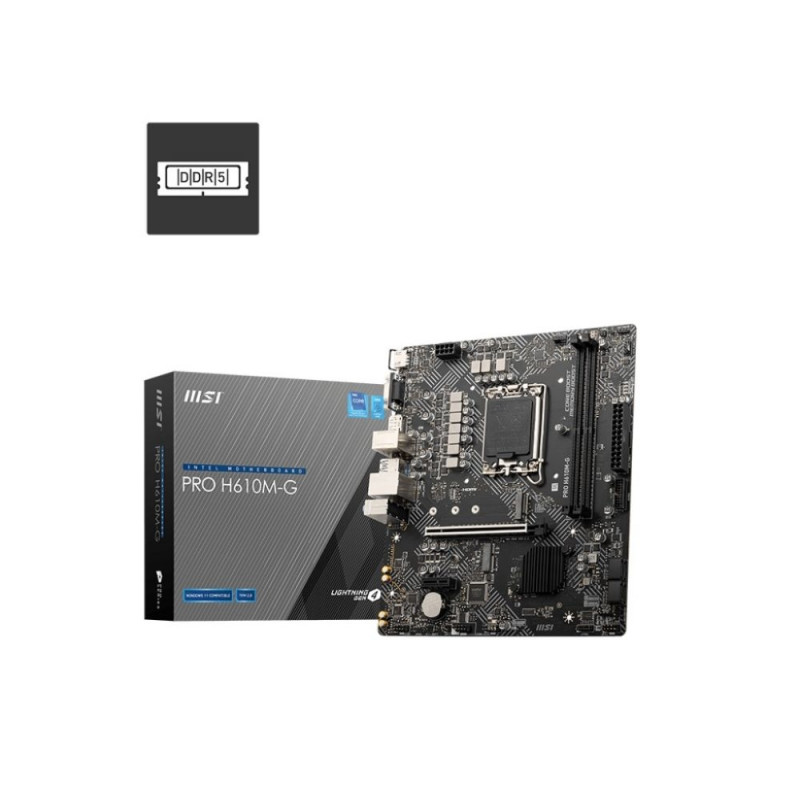

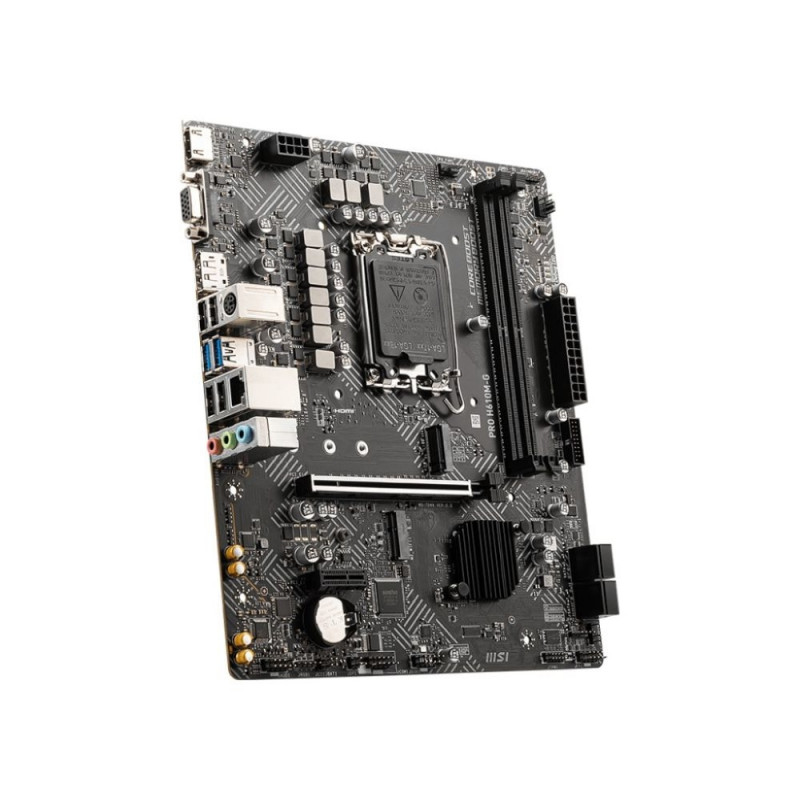

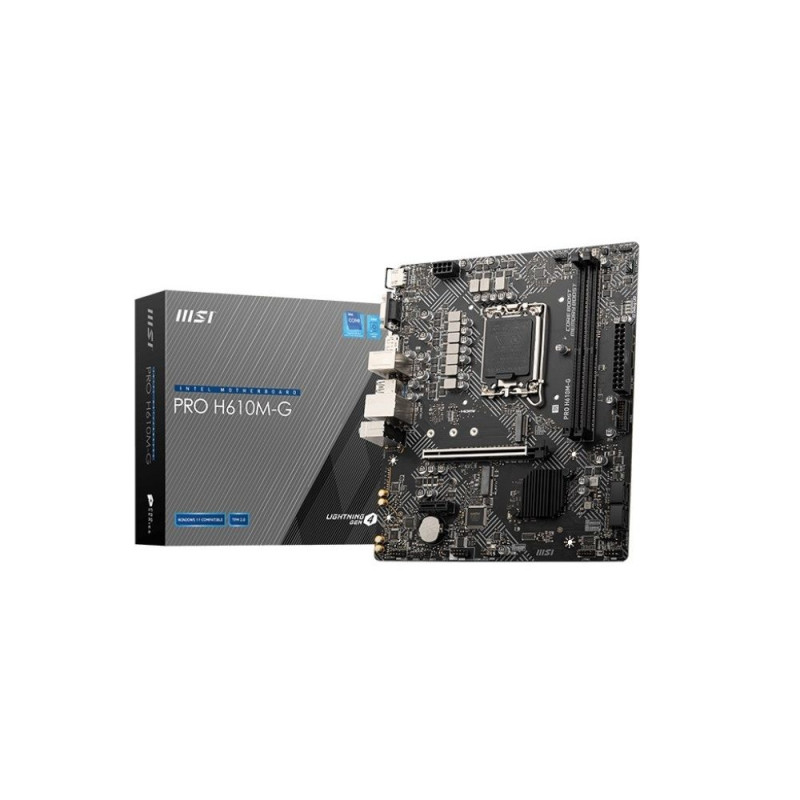

PRO H610M-G

  • Supports 14th/13th/12th Gen Intel Core processors, as well as Intel Pentium Gold and Celeron processors compatible with the LGA 1700 socket.
  • DDR5 memory support up to 5600+ MHz (max).
  • Core Boost Technology: Thanks to a superior PCB layout and optimized power delivery, this motherboard can better support more processor cores and achieve higher performance.
  • Memory Boost Technology: Advanced technology ensures uninterrupted data transfer for the best performance, stability, and compatibility.
  • Exceptional Speed: PCIe 4.0 Connectors.
  • Audio Boost Sound System: Produces studio-quality sound.
  • Steel Armor System: Protects the graphics card against bending and electromagnetic interference (EMI), increasing the board's stability and resistance to mechanical damage.


The PRO Series helps users work smarter, directly translating into higher efficiency and productivity. Thanks to their extensive functionality and high-quality build quality, PRO series motherboards are not only optimized for professional tasks but also minimize the number of issues that may arise over the long term, thus offering a significantly longer lifespan.

FROZR AI COOLING SYSTEM
The cooling system monitors the operating temperatures of the CPU and GPU and automatically adjusts the system fan speed to the appropriate value using artificial intelligence algorithms implemented in MSI AI ENGINE technology.

FULL CONTROL VIA BIOS AND SOFTWARE
MSI motherboards allow you to manage the operating speed and associated temperature of all system fans, including all fans responsible for cooling the CPU. Total Fan Control allows you to monitor basic system parameters using a simplified graphical interface. You can also set up to four temperature values for the CPU and motherboard, which will be maintained within a preset range by automatically adjusting the fan speed.

LOW LATENCY WITH INTEL GAMING LAN
Enjoy reliable communication with Intel LAN, optimized for stable internet transmission. This solution is ideal for online gaming, meeting the bandwidth requirements of equipment used in championship online tournaments.

LIGHTNING GEN 4 PCI-E COMPATIBILITY
The MSI Lightning Gen 4 PCI-E standard is the latest and fastest data transfer solution for the PCI-E bus, achieving data transfer speeds of up to 64 GB/s. This doubles the transfer speed compared to the previous generation of PCI-E. Importantly, PCI-E 4.0 maintains both backward and forward compatibility with older specifications and those currently under development. The PCI-E slots on the board have been optimized thanks to Steel Armor shielding and mechanical reinforcement, as well as a server-grade PCB. This allows you to use the latest generation of devices without any compromises.

Latest DDR5 Memory
A huge step towards increased DDR memory performance has been taken thanks to the latest DDR5 memory and MSI Memory Boost technology.

CORE BOOST TECHNOLOGY
Core Boost technology combines MSI's optimized component placement with a unique power design. This ensures reliable, distortion-free power delivery to the processor with the highest precision. This technology not only supports the most advanced multi-core processors but also creates the perfect conditions for CPU overclocking.

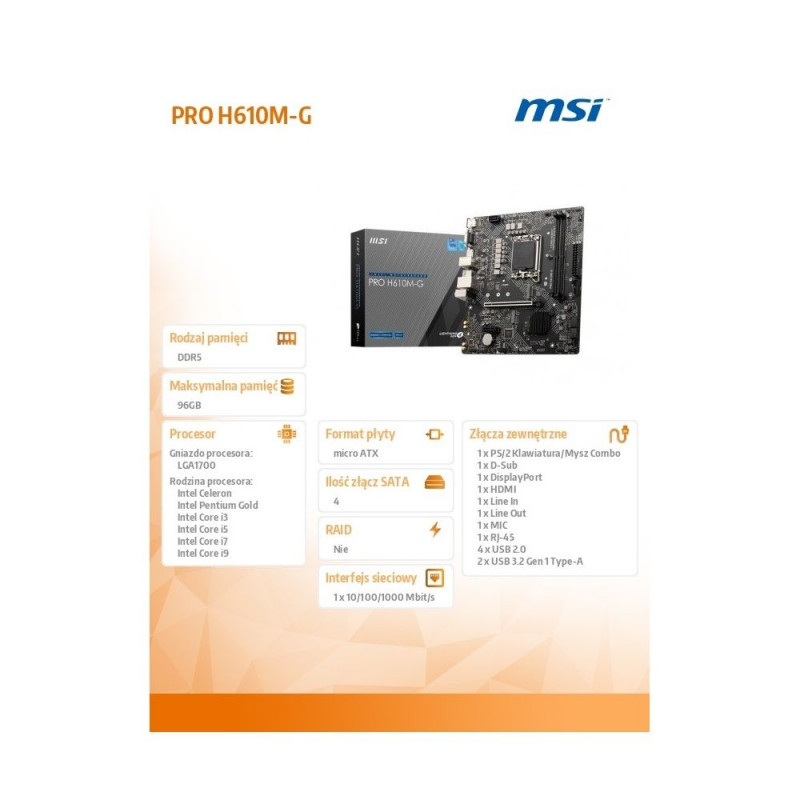

Model PRO H610M-G
CPU socket LGA1700
Processor family Intel Core i7
Processor family Intel Core i9
Processor family Intel Core i3
Processor family Intel Core i5
Processor family Intel Celeron
Processor family Intel Pentium Gold
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel H610
Memory type DDR5
Number of DDR5 slots 2
Memory bus frequency 5600 MHz
Max memory size 96
Expansion slots 1 x PCIe x 16
Expansion slots 1 x PCIe x 1
Max. number of SATA devices 4
RAID No
Detailed data on disk/drive interfaces 1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Sound card Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface 1 x 10/100/1000 Mbit/s
Network interface Intel I219V 1Gbps LAN controller
USB ports at back panel 6
USB ports on motherboard 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
FireWire (IEEE 1394) No
COM connector / port Yes
LPT connector / port No

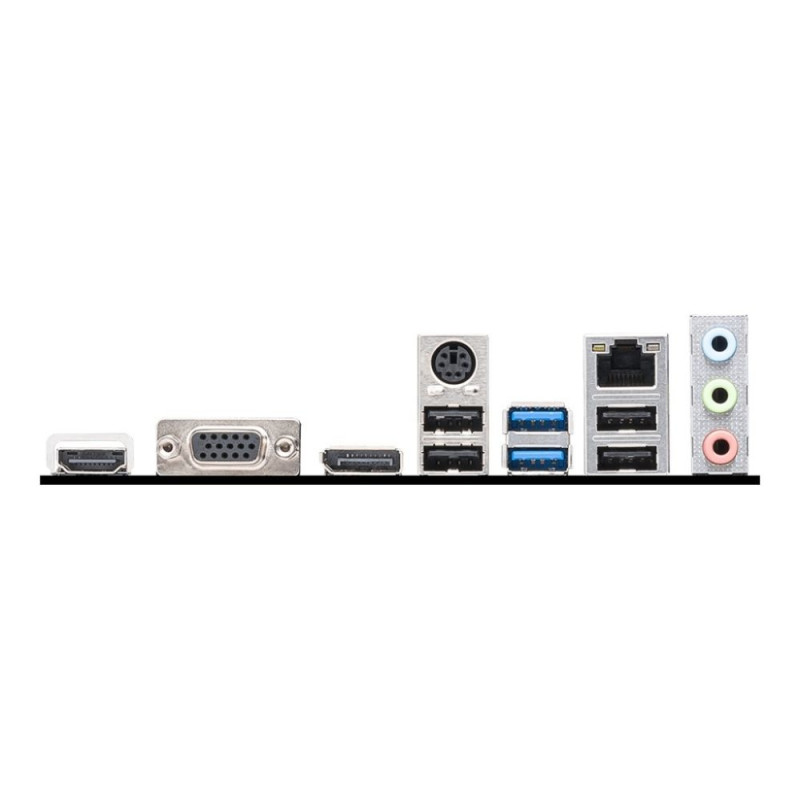

External connectors 1 x RJ-45
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x D-Sub
External connectors 1 x DisplayPort
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 4 x USB 2.0
External connectors 2 x USB 3.2 Gen 1 Type-A
Onboard connectors 2 x Addressable LED
Onboard connectors 1 x RGB LED strip header
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 2 x USB 3.2 Gen 1 Type-A
Onboard connectors 1 x Serial port header
Onboard connectors 1 x TPM header
Onboard connectors 2 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 4 x EZ Debug LED
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin Chassis fan
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 1 x Chassis intrusion header
Onboard connectors 1 x M.2
BIOS 1 x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4
Form factor micro ATX
Dimensions 211 x 243.84 mm
Supported operating systems Windows 10
Supported operating systems Windows 11
Designation
Expansion slots 1 x M.2
Graphics 1 x HDMI - Support HDMI 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort - Support DP 1.4, maximum resolution of 4K 60Hz* 1 x D-Sub - Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featur

Dimensions and weights

Gross weight
0.752 kg
Package width
26 cm
Package height
26 cm
Package length
6 cm

Product codes

EAN
4719072942663
Manufacturer code
KBMSIIIEH610U04
