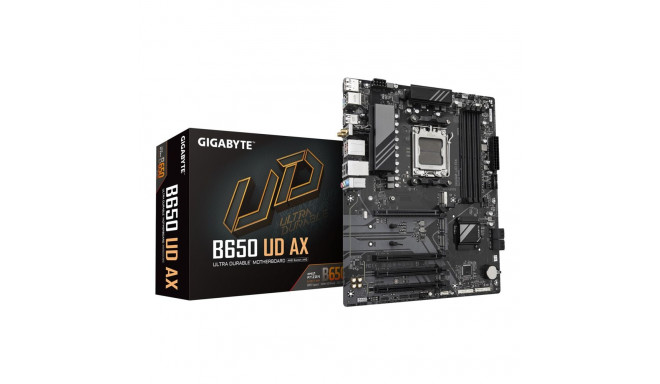

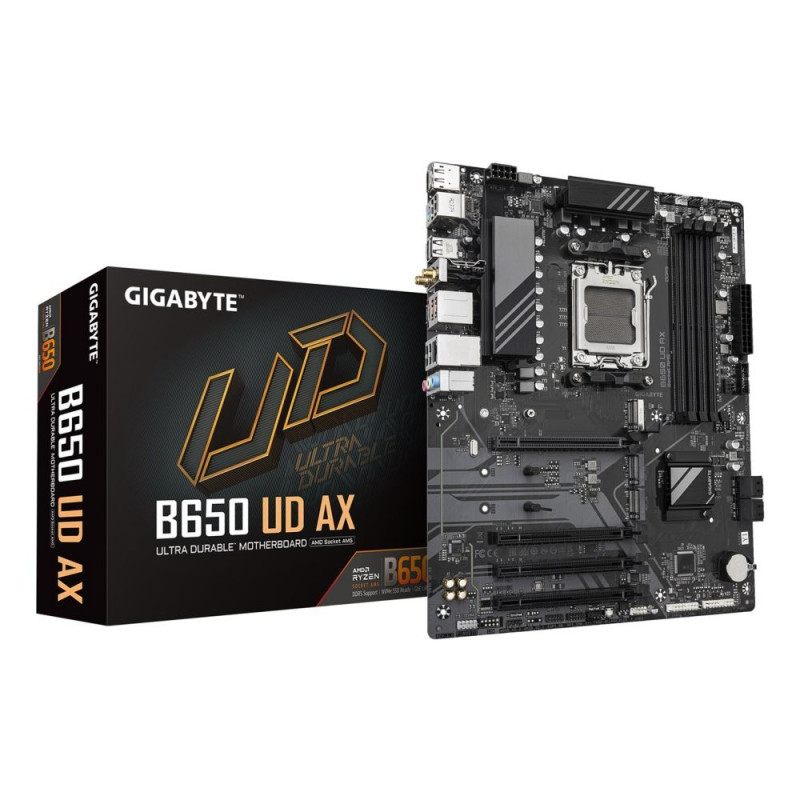

GIGABYTE B650 UD AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+2 Phases VRM, up to 7600MHz DDR5 (

Main info

Product has been archived


Warranty 36 (G)
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Number of battery cells 1
WLAN controller model Realtek RTL8851BE
WiFi-AP antenna jack 2
Number of memory slots 4
Height 35 mm
Battery weight 3 g
12V power connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Desktop Management Interface (DMI) version 2.7
Number of HDDs supported 4
Products per shipping (inner) case 1 pc(s)
PCI Express x16 (Gen 4.x) slots 1
Headphone outputs 1
Screws included Yes
Ethernet interface type Gigabit Ethernet
RGB LED pin header Yes
Antenna included Yes
Memory slots type DIMM
Supported memory types DDR5-SDRAM
2nd M.2 highest PCI Express generation 4.0
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
2nd M.2 largest key size 22110
Processor manufacturer AMD
Number of M.2 (M) slots 3
Package weight 2.2 kg
Serial port headers 1
DisplayPort version 1.4
Clear CMOS button Yes
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Motherboard form factor ATX
Microphone in Yes
ATX Power connector (24-pin) Yes
TPM connector Yes
Warranty period 3 year(s)
Front panel audio connector Yes
Package width 335 mm
DisplayPorts quantity 1
ECC сompatibility Non-ECC
Maximum internal memory per slot 64 GB
Battery type CR2032
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Weight 1.95 kg
Parallel processing technology support Not supported
Front panel connector Yes
BIOS type UEFI AMI
Wi-Fi Yes
Maximum resolution 4096 x 2160 pixels
Number of EPS power connectors (8-pin) 1
Number of water pump connectors 2
USB 2.0 connectors 3
Batteries included Yes
1st M.2 highest PCI Express generation 5.0
Motherboard chipset family AMD
Ethernet LAN (RJ-45) ports 1
Number of storage drives supported 7
Power source type ATX
HDMI ports quantity 1
PCI Express x16 (Gen 3.x) slots 2
Clear CMOS jumper Yes
CPU fan connector Yes
HDMI version 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Processor socket Socket AM5
Depth 244 mm
Number of SATA III connectors 4
Supported memory clock speed (max) 7600 MHz
Package height 80 mm
Width 305 mm
USB 2.0 ports quantity 6
Package depth 270 mm
1st M.2 largest key size 25110
Supported processor sockets Socket AM5
Number of chassis fan connectors 3
RAID support Yes
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of CPU fan connectors 2
HDCP Yes
Lithium weight per battery 0.07 g
Ethernet LAN Yes
Number of RGB LED pin headers 4
LAN controller Realtek RTL8111H
Supported storage drive types HDD & SSD
DirectX version 12.0
Country of origin China
Motherboard chipset AMD B650
Audio chip Realtek ALC897
Supported storage drive interfaces M.2, SATA III
Product colour Bronze
Maximum internal memory 256 GB
Audio output channels 7.1 channels
Unbuffered memory Yes
Compatible processor series AMD Ryzen 8000 Series
PC health monitoring Temperature
RAID levels 1
Wi-Fi standards Wi-Fi 6 (802.11ax)
Windows operating systems supported Windows 11 x64
Warnings Dispose of in accordance with local regulations for electronic waste.
Supported memory clock speeds 6800

Dimensions and weights

Package width
270 cm
Package height
80 cm
Package length
340 cm

Product codes

EAN
4719331863944
Manufacturer code
B650 UD AX
