Power Supply - Be Quiet! Pure Power 12 M 1200w 20+4 Pin Atx Black

329 €

Monthly payment starting from 11,21 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

1200W power supply unit with Gold 80 PLUS certification and ATX form factor. Includes fully-modular cabling and supports EPS 2.92 and ATX 3.0 interfaces.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

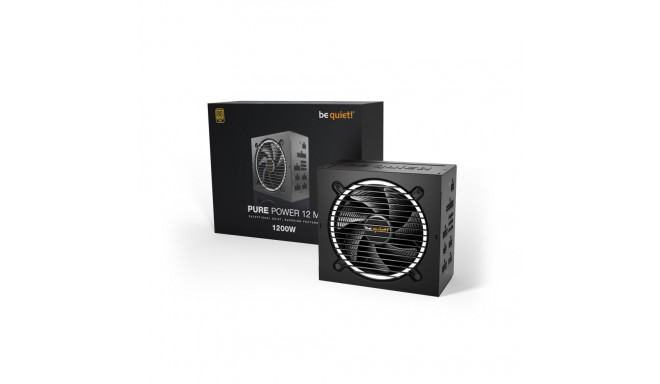

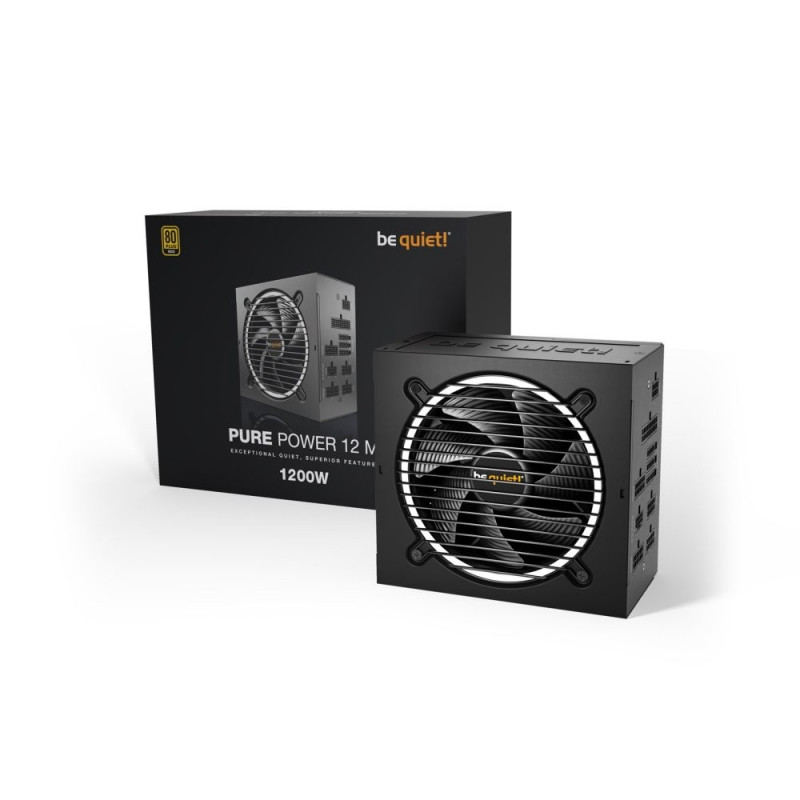

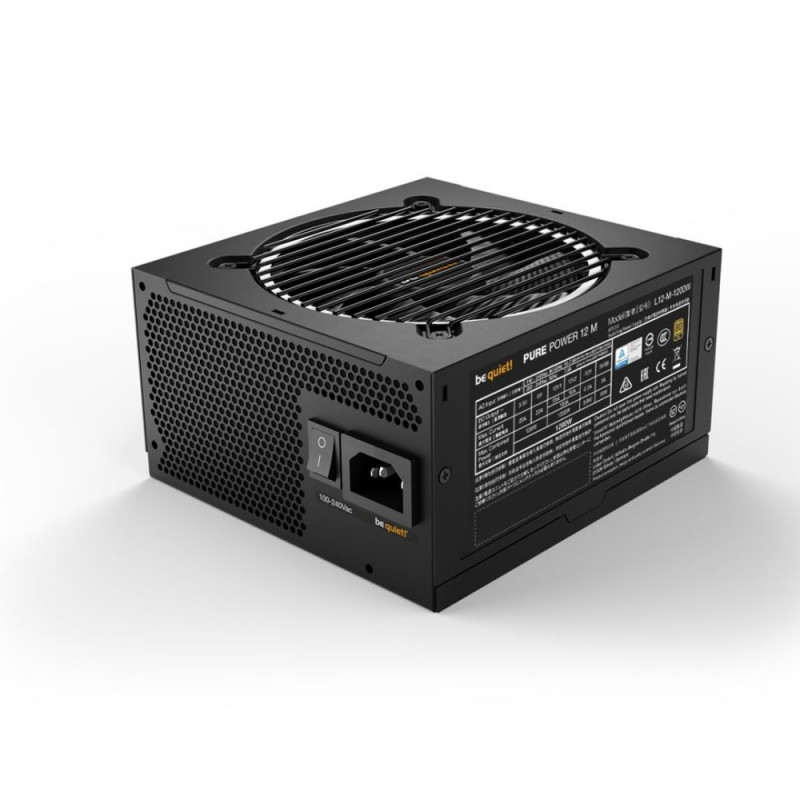

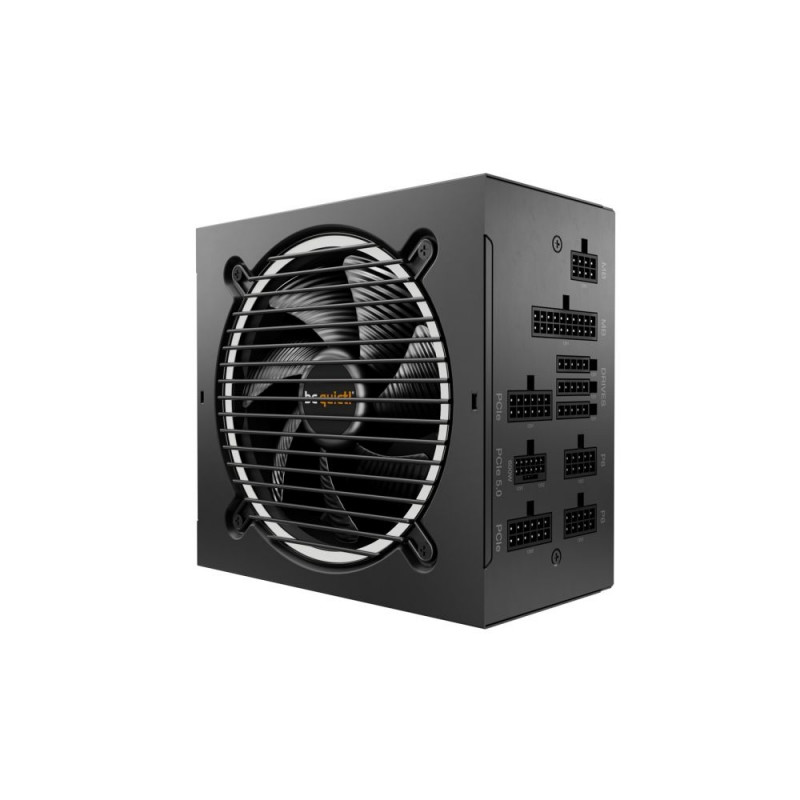

Be Quiet! Pure Power 12 M 1200W 20+4 ATX Black

This Be Quiet! power supply unit features a maximum capacity of 1200 watts and meets ATX requirements with a 20+4 pin connector. It has earned an 80 PLUS Gold certification for efficiency.

Key Features
  • Maximum Capacity: 1200W
  • Efficiency Certification: 80 PLUS Gold
  • ATX Connector Type: 20+4 pin
  • Fully-Modular Cabling

Technical details
Compliance certificates CCC, BSMI, cTUVus, WEEE, CB, Federal Communications Commission (FCC), UKCA, RoHS, CE
Sustainability certificates Triman, ENERGY STAR, ErP
Sustainability compliance Yes
Design
On/off switch Yes
Product colour Black
Number of fans 1 fan(s)
Cooling type Active
Fan diameter 12 cm
Fan speed 0 - 2700 RPM
Power
Power protection features Under power, Over power, Overheating, Short circuit, Over voltage, Under voltage, Over current
AC input voltage 100 - 240 V
Input current 15 - 7.5 A
Efficiency 91.5%
AC input frequency 50/60 Hz
Power factor 0.98
Total power 1200 W
Max output current (+5V) 22 A
Max output current (+12V2) 50 A
Max output current (+12V1) 55 A
Max output current (-12V) 0.3 A
Combined power (+5V) 120 W
Max output current (+3.3V) 22 A
Peak power 1250 W
Hold time 19 ms
Combined power (+12V) 1200 W
Combined power (+3.3V) 120 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 86 mm
Depth 160 mm
Width 150 mm
Weight 1.92 kg
Performance
Purpose PC
Noise level 34.3 dB
80 PLUS certification 80 PLUS Gold
EPS version 2.92
Power supply unit (PSU) form factor ATX
ATX version 3.0
Supported motherboard form factors ATX
Mean time between failures (MTBF) 100000 h
Bearing technology Rifle
Silent mode Yes
Packaging data
Package weight 3.19 kg
Package depth 284 mm
Package width 220 mm
Package type Box
Package height 100 mm
Packaging content
Cables included AC, CPU, PATA, PCIe, SATA
Cable tie(s) included Yes
Ports & interfaces
EPS power connector (8-pin) Yes
PCI Express power connectors (6+2 pin) 4
Cabling type Fully-Modular
Number of PATA power connectors 2
SATA power cable length 650, 950 mm, 800, 500
Motherboard power cable length 55 cm
Peripheral (Molex) power cable length 800, 950 mm
CPU power connector (4+4 pin) Yes
ATX power connector (20+4 pin) Yes
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 6
PCI Express power cable length 60 cm
PCI Express connector Yes
CPU power cable length 60 cm


Width 150 mm
Height 86 mm
Length 160 mm
Product Weight 1920 g
Country DE

Dimensions and weights

Gross weight
3.3 kg
Package width
10.5 cm
Package height
29 cm
Package length
22 cm

Product codes

EAN
4260052190166
Manufacturer code
BN346
