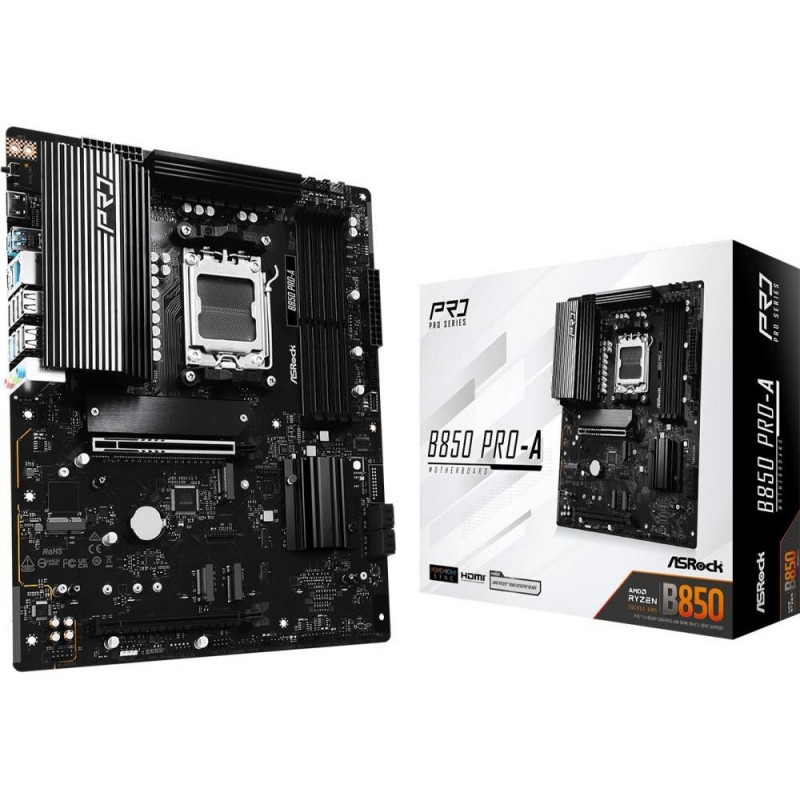

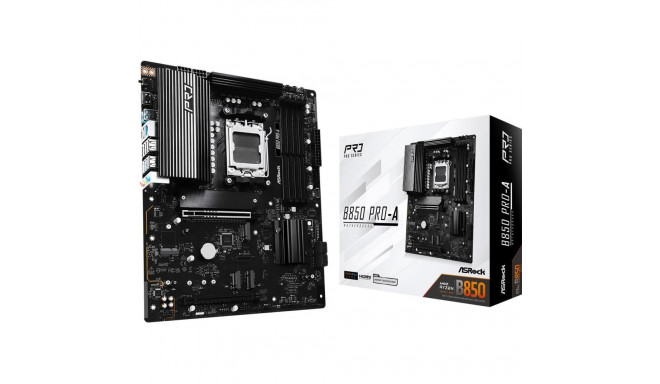

Asrock B850 Pro-A AMD B850 Socket AM5 ATX

Main info

Certification FCC, CE, ErP/EuP Cables included SATA

Product has been archived


Certification FCC, CE, ErP/EuP
Cables included SATA
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Number of SATA III connectors 4
Headphone outputs 3
Number of M.2 (M) slots 4
Wi-Fi No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Audio output channels 7.1 channels
Maximum resolution 3840 x 2160 pixels
Front panel audio connector Yes
Motherboard form factor ATX
Supported memory types DDR5-SDRAM
Supported storage drive interfaces PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III
RGB LED pin header Yes
Width 305 mm
Ethernet interface type 2.5 Gigabit Ethernet
BIOS memory size 256 Mbit
Screws included Yes
Depth 244 mm
Ethernet LAN Yes
HDCP Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
RAID support Yes
HDMI ports quantity 1
PCI Express x16 (Gen 4.x) slots 1
Number of chassis fan connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Processor manufacturer AMD
Number of storage drives supported 8
HDMI version 2.1
Supported processor sockets Socket AM5
12V power connector Yes
Number of memory slots 4
Ethernet LAN (RJ-45) ports 1
Component for PC
Memory slots type DIMM
Processor socket Socket AM5
Line-in Yes
Microphone in Yes
PCI Express x16 (Gen 5.x) slots 1
USB 2.0 ports quantity 6
Parallel processing technology support Not supported
USB 2.0 connectors 2
CPU fan connector Yes
Motherboard chipset family AMD
TPM connector Yes
ATX Power connector (24-pin) Yes
BIOS type UEFI AMI
Supported storage drive types HDD & SSD
Audio chip Realtek ALC897
Motherboard chipset AMD B850
Maximum internal memory 256 GB
Product colour Black
Unbuffered memory Yes
LAN controller Dragon RTL8125BG
4th M.2 highest PCI Express generation 3.0
3rd M.2 highest PCI Express generation 4.0
4th M.2 largest key size 2280
3rd M.2 largest key size 2280
2nd M.2 largest key size 2280
ECC сompatibility ECC & Non-ECC
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
Number of EPS power connectors (8-pin) 2
Number of water pump connectors 1
USB 3.2 Gen 2x2 connectors 1
Number of CPU fan connectors 2
Number of RGB LED pin headers 4
2nd M.2 highest PCI Express generation 4.0
Warranty 24 (G)
Windows operating systems supported Windows 10 x64
USB connector type USB Type-A
Compatible processor series AMD Ryzen 7000 Series
RAID levels 10

Dimensions and weights

Package width
346 cm
Package height
281 cm
Package length
75 cm

Product codes

EAN
4711581490185
Manufacturer code
B850 Pro-A
