Home page » Computers & IT»Computer components»Mainboards»GIGABYTE B850 AORUS ELITE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+1 Phases Digital

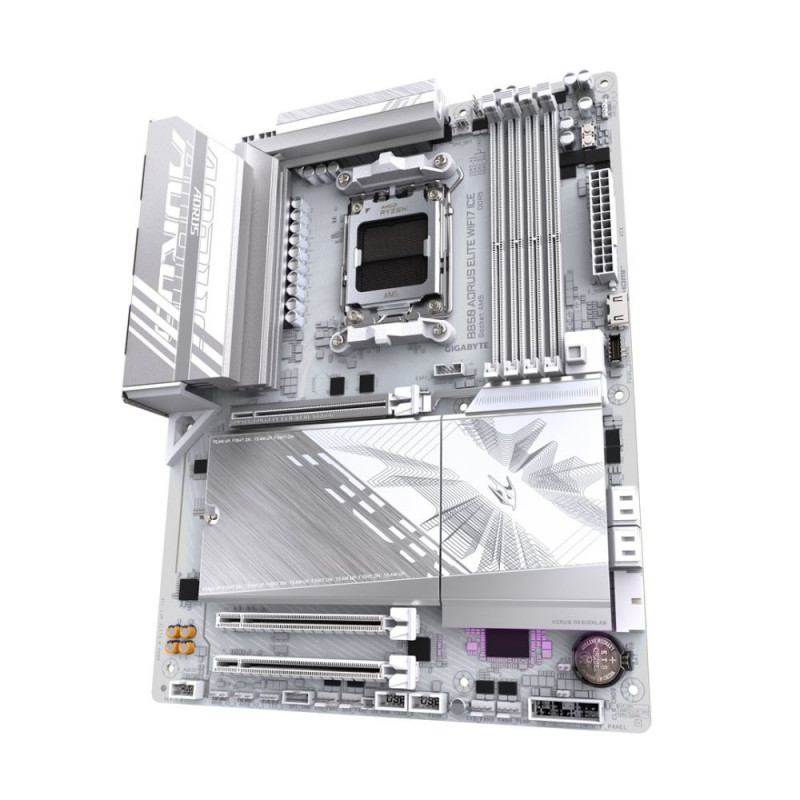

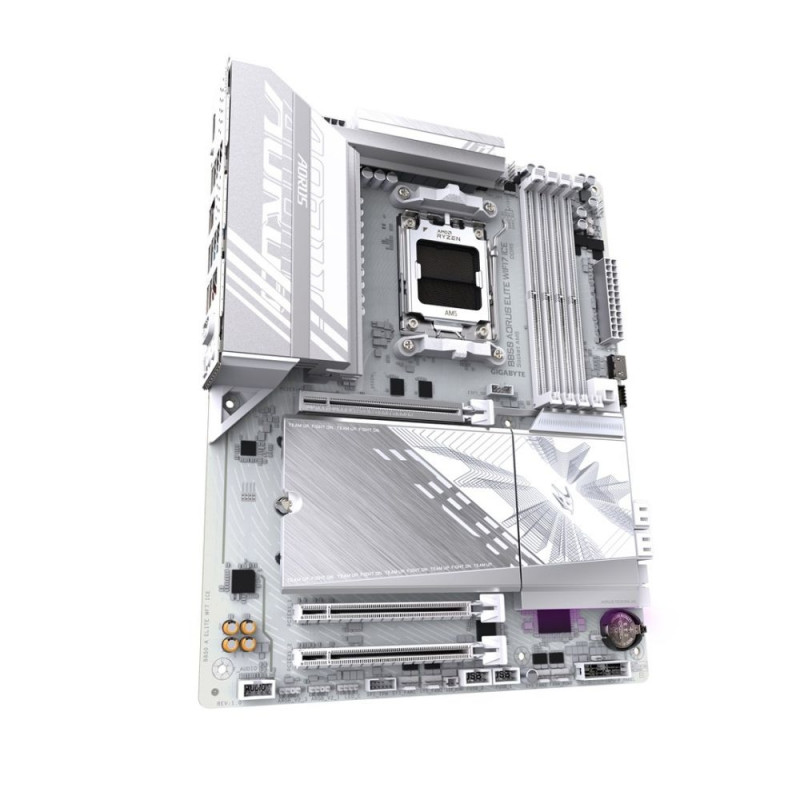

GIGABYTE B850 AORUS ELITE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+1 Phases Digital

Main info

Product has been archived


Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
RAID support Yes
Country of origin China
Maximum resolution 4096 x 2160 pixels
Desktop Management Interface (DMI) version 2.7
Audio output channels 7.1 channels
Bluetooth Yes
Height 35 mm
DirectX version 12.0
Headphone outputs 1
Supported storage drive types HDD & SSD
Number of SATA III connectors 4
Supported storage drive interfaces M.2, SATA III
Products per shipping (inner) case 1 pc(s)
Package weight 2.46 kg
Number of M.2 (M) slots 3
Bluetooth version 5.4
Number of battery cells 1
Motherboard chipset family AMD
Battery weight 3 g
PCI Express x16 (Gen 4.x) slots 2
Audio chip Realtek ALC897
WiFi-AP antenna jack 2
WLAN controller model Realtek RTL8922AE
Number of HDDs supported 4
RGB LED pin header Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of memory slots 4
Maximum internal memory 256 GB
Front panel audio connector Yes
Serial port headers 1
ATX Power connector (24-pin) Yes
Motherboard chipset AMD B850
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports 1
12V power connector Yes
Memory slots type DIMM
Weight 2.16 kg
Antenna included Yes
DisplayPorts quantity 1
HDCP Yes
USB 2.0 ports quantity 4
Motherboard form factor ATX
Supported memory types DDR5-SDRAM
USB 2.0 connectors 2
Screws included Yes
Parallel processing technology support Not supported
Unbuffered memory Yes
Power source type ATX
HDMI ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Number of chassis fan connectors 3
EPS power connector (8-pin) Yes
Memory channels Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
Processor manufacturer AMD
BIOS type UEFI AMI
TPM connector Yes
CPU fan connector Yes
Package width 335 mm
Wi-Fi Yes
Package height 80 mm
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Number of storage drives supported 7
Width 305 mm
Peripheral (Molex) power connectors (4-pin) 1
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Clear CMOS button Yes
Clear CMOS jumper Yes
Depth 244 mm
Ethernet LAN Yes
Microphone in Yes
Front panel connector Yes
Batteries included Yes
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Package depth 270 mm
Supported processor sockets Socket AM5
Processor socket Socket AM5
1st M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
Maximum internal memory per slot 64 GB
Number of EPS power connectors (8-pin) 1
1st M.2 highest PCI Express generation 5.0
Number of water pump connectors 2
3rd M.2 largest key size 22110
Number of RGB LED pin headers 4
ECC сompatibility Non-ECC
3rd M.2 highest PCI Express generation 4.0
Number of CPU fan connectors 2
Lithium weight per battery 0.07 g
USB 3.2 Gen 2x2 connectors 1
2nd M.2 largest key size 22110
Warranty period 3 year(s)
Supported memory clock speed (max) 8200 MHz
Warranty 24 (G)
DisplayPort version 1.4
ACPI version 5.0
BIOS memory size 256 Mbit
Component for PC
On-board graphics card No
Total number of SATA connectors 4
System Management BIOS (SMBIOS) version 2.7
HDMI version 1.4
Supported memory clock speeds 8200 MHz
Product colour Bronze
PC health monitoring Water cooling
RAID levels 10
Windows operating systems supported Windows 11 x64
Wi-Fi standards Wi-Fi 7 (802.11be)
Compatible processor series AMD Ryzen 9000 Series

Dimensions and weights

Package width
277 cm
Package height
341 cm
Package length
88 cm

Product codes

EAN
4719331866099
Manufacturer code
B850 A ELITE WF7 ICE
