Home page » Computers & IT»Computer components»Mainboards»Asrock Phantom Gaming B850 Riptide WiFi AMD B850 Socket AM5 ATX

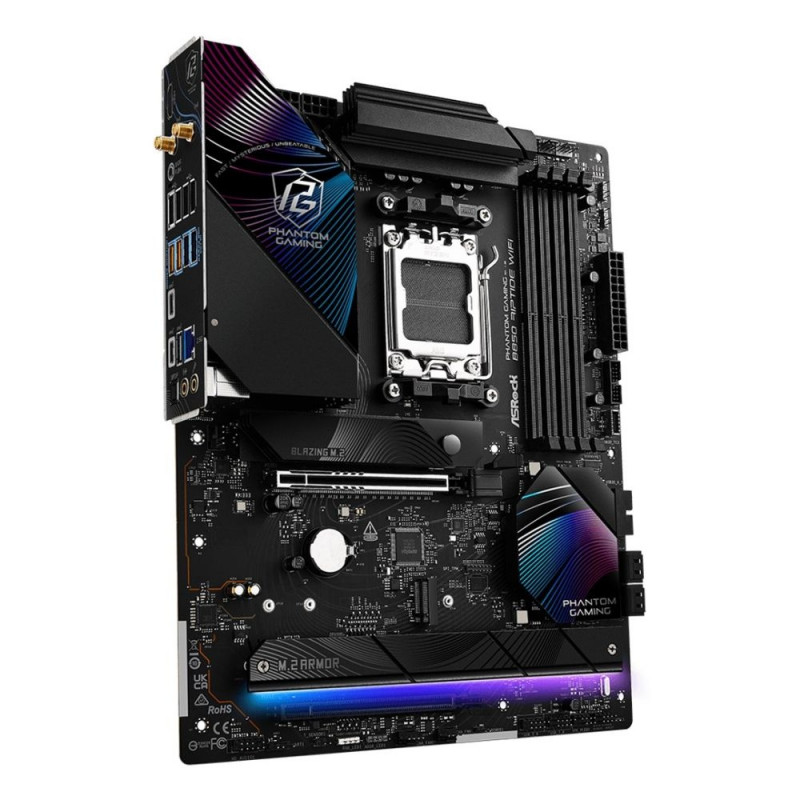

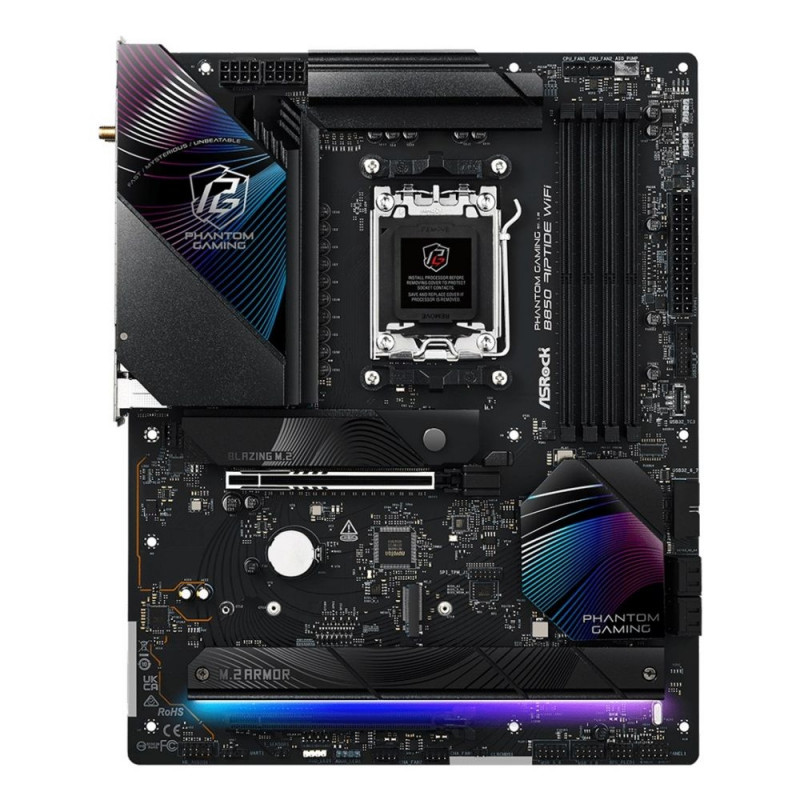

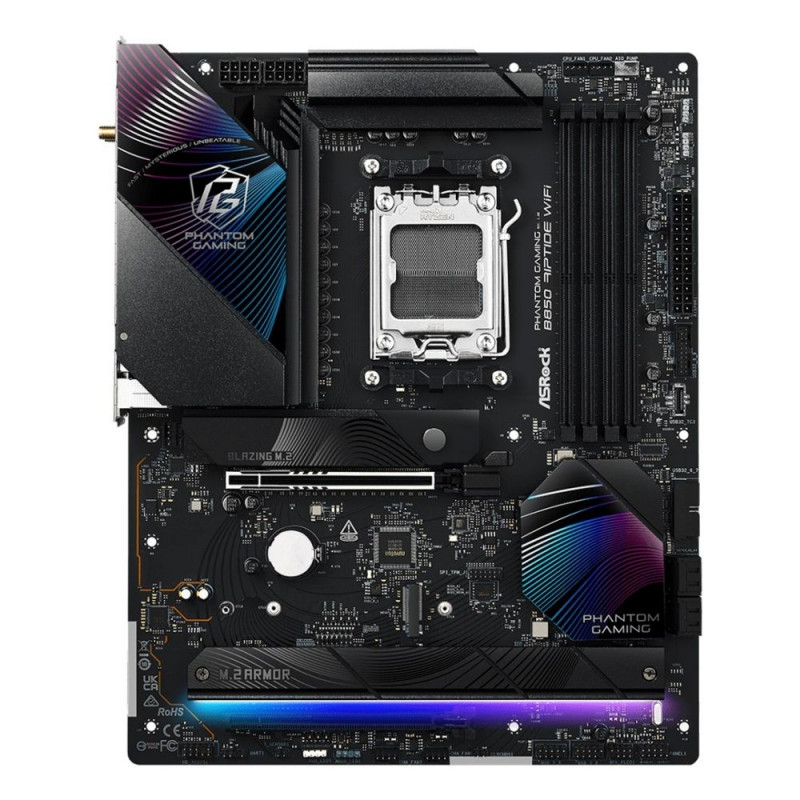

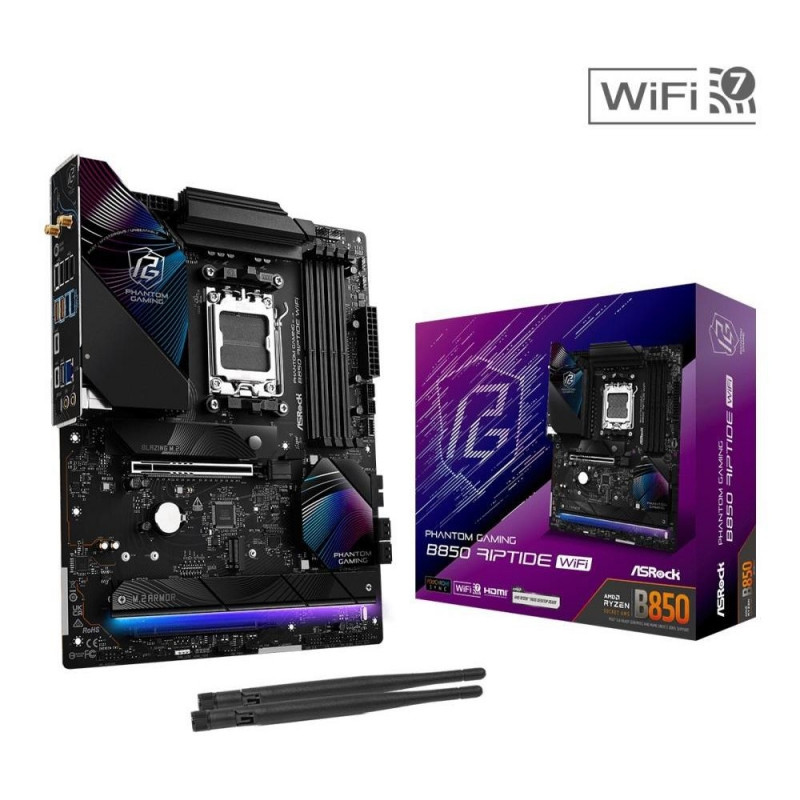

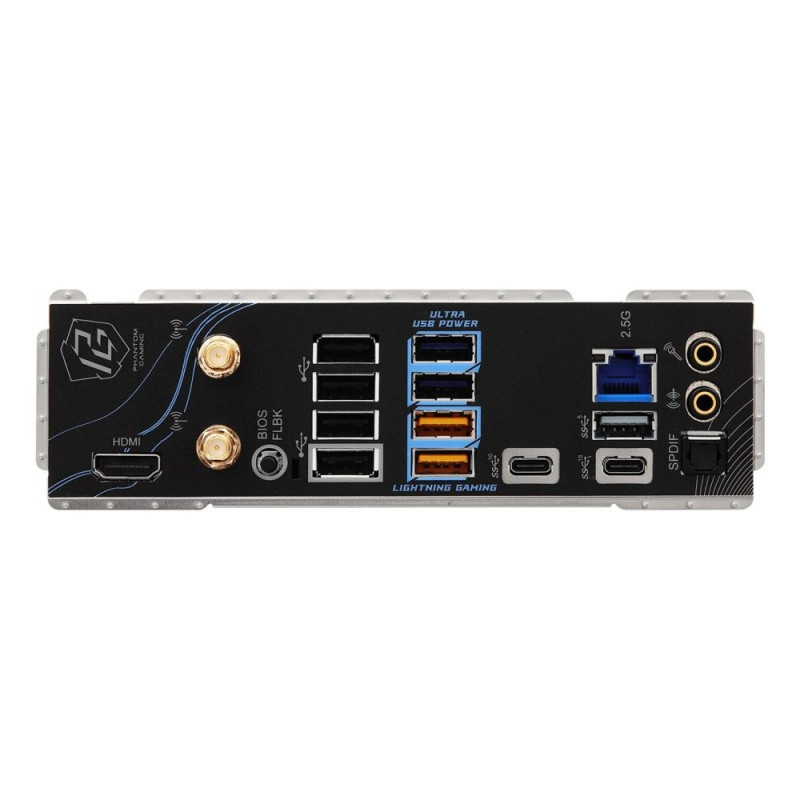

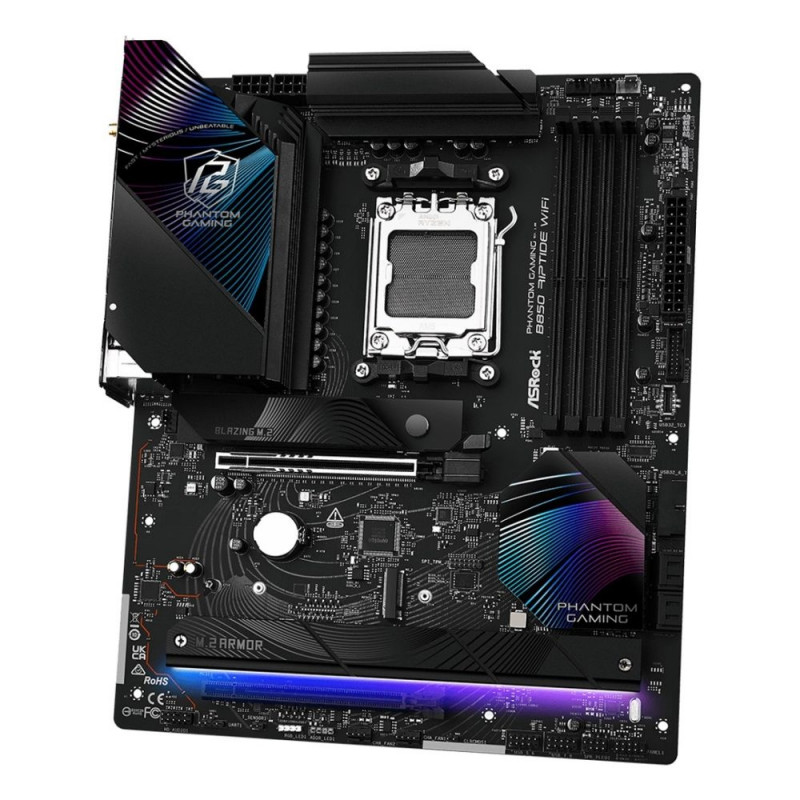

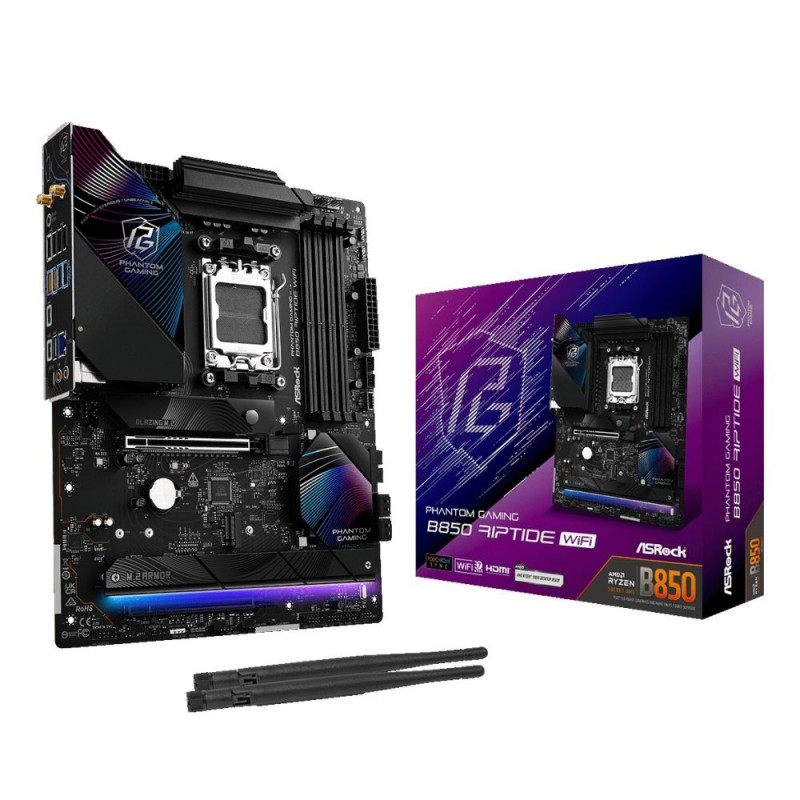

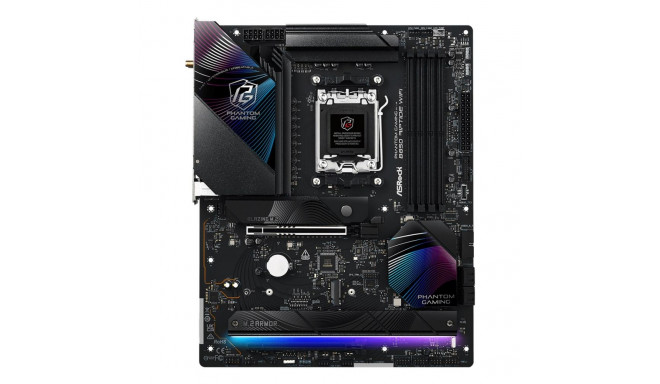

Asrock Phantom Gaming B850 Riptide WiFi AMD B850 Socket AM5 ATX

Main info

Certification FCC, CE, ErP/EuP Supported storage drive types HDD & SSD

Product has been archived


Certification FCC, CE, ErP/EuP
Supported storage drive types HDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Wi-Fi Yes
Parallel processing technology support Not supported
Cables included SATA
BIOS type UEFI AMI
Microphone in Yes
Audio output channels 7.1 channels
Product colour Black
Unbuffered memory Yes
Processor socket Socket AM5
Number of storage drives supported 8
Audio chip Realtek ALC4082
LAN controller Killer E3100G
Bluetooth Yes
Number of SATA III connectors 4
Maximum resolution 3840 x 2160 pixels
Motherboard chipset family AMD
Headphone outputs 2
EPS power connector (8-pin) Yes
Memory channels Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
RAID support Yes
Ethernet LAN Yes
Number of M.2 (M) slots 4
USB 2.0 ports quantity 4
Supported storage drive interfaces PCI Express 4.0, PCI Express 5.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
TPM connector Yes
ATX Power connector (24-pin) Yes
Motherboard chipset AMD B850
Ethernet interface type 2.5 Gigabit Ethernet
Front panel audio connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 2.0 connectors 2
HDMI version 2.1
Width 305 mm
Processor manufacturer AMD
HDMI ports quantity 1
CPU fan connector Yes
Ethernet LAN (RJ-45) ports 1
Depth 244 mm
HDCP Yes
Motherboard form factor ATX
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Number of chassis fan connectors 3
Supported processor sockets Socket AM5
Maximum internal memory 256 GB
S/PDIF out port Yes
WiFi-AP antenna jack 2
Bluetooth version 5.4
Supported memory types DDR5-SDRAM
Line-in Yes
PCI Express x16 (Gen 5.x) slots 1
Memory slots type DIMM
Antenna included Yes
PCI Express x16 (Gen 4.x) slots 1
Number of EPS power connectors (8-pin) 2
ECC сompatibility ECC & Non-ECC
12V power connector Yes
Number of memory slots 4
USB 3.2 Gen 2x2 connectors 1
RGB LED pin header Yes
Number of CPU fan connectors 2
2nd M.2 highest PCI Express generation 4.0
Number of RGB LED pin headers 1
3rd M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
3rd M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
Number of water pump connectors 1
1st M.2 highest PCI Express generation 5.0
4th M.2 largest key size 2280
Warranty 24 (G)
RAID levels 10
Windows operating systems supported Windows 10 x64
USB connector type USB Type-C
Wi-Fi standards Wi-Fi 7 (802.11be)
Compatible processor series AMD Ryzen 9000 Series

Dimensions and weights

Package width
353 cm
Package height
288 cm
Package length
82 cm

Product codes

EAN
4711581490079
Manufacturer code
B850 RIPTIDE WIFI
