Home page » Computers & IT»Computer components»Mainboards»Gigabyte B550 EAGLE WIFI6 Motherboard

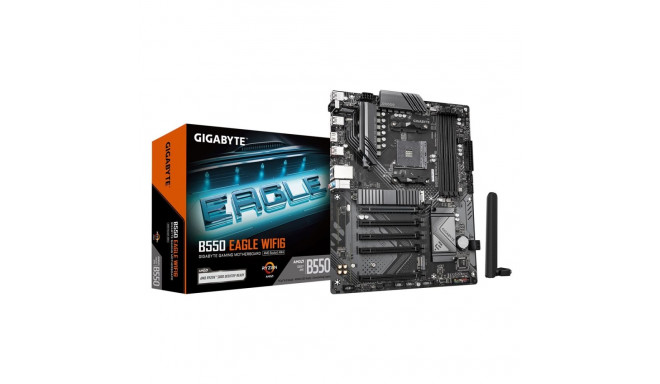

Gigabyte B550 EAGLE WIFI6 Motherboard

153,99 €

0,05 € / M

Monthly payment starting from 5,25 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Maximum internal memory 128 GB
Number of CPU fan connectors 2
Audio output channels 7.1 channels
2nd M.2 highest PCI Express generation 3.0
Number of EPS power connectors (8-pin) 1
ECC сompatibility ECC & Non-ECC
Lithium weight per battery 0.07 g
Bluetooth Yes
Supported storage drive types HDD & SSD
Number of SATA III connectors 4
1st M.2 largest key size 22110
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
DirectX version 12.0
LAN controller Realtek RTL8111H
Maximum internal memory per slot 32 GB
Unbuffered memory Yes
USB 2.0 connectors 2
Product colour Dark brown
Maximum resolution 4096 x 2160 pixels
Audio chip Realtek ALC897
HDCP Yes
2nd M.2 largest key size 22110
Motherboard chipset AMD B550
Motherboard form factor ATX
Number of RGB LED pin headers 5
Number of water pump connectors 1
1st M.2 highest PCI Express generation 4.0
Motherboard chipset family AMD
Warranty period 3 year(s)
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Desktop Management Interface (DMI) version 2.7
PCI Express x16 (Gen 4.x) slots 1
Products per shipping (inner) case 1 pc(s)
Line-in Yes
Supported memory clock speed (max) 3200 MHz
System Management BIOS (SMBIOS) version 2.7
WLAN controller model Realtek RTL8851BE
WiFi-AP antenna jack 2
RGB LED pin header Yes
Number of battery cells 1
Battery weight 3 g
Screws included Yes
Number of HDDs supported 4
Antenna included Yes
Bluetooth version 5.3
Headphone outputs 1
Depth 244 mm
Supported processor sockets Socket AM4
Package width 335 mm
Package weight 1.48 kg
TPM connector Yes
PCI Express x1 (Gen 3.x) slots 4
Front panel connector Yes
Number of memory slots 4
Height 35 mm
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
CPU fan connector Yes
HDMI ports quantity 1
Power source type ATX
Clear CMOS jumper Yes
HDMI version 2.1
Processor socket Socket AM4
Weight 1.25 kg
Parallel processing technology support Not supported
ACPI version 5.0
Memory slots type DIMM
Number of storage drives supported 6
Microphone in Yes
Ethernet LAN Yes
Number of chassis fan connectors 3
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Battery type CR2032
ATX Power connector (24-pin) Yes
Package height 80 mm
BIOS memory size 128 Mbit
Ethernet interface type Gigabit Ethernet
Component for PC
Supported memory types DDR4-SDRAM
Batteries included Yes
Width 305 mm
Front panel audio connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Wi-Fi Yes
Ethernet LAN (RJ-45) ports 1
RAID support Yes
Package depth 270 mm
Number of M.2 (M) slots 2
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Cooling type Passive
BIOS type UEFI AMI
Processor manufacturer AMD
USB 2.0 ports quantity 4
Warranty 36 (G)
PC health monitoring Water cooling
Supported memory clock speeds 2667
Compatible processor series AMD Ryzen 3000 Series
Wi-Fi standards Wi-Fi 6 (802.11ax)
Windows operating systems supported Windows 11 x64
RAID levels 10

Dimensions and weights

Package width
340 cm
Package height
80 cm
Package length
271 cm

Product codes

EAN
4719331868406
Manufacturer code
B550 EAGLE WIFI6
