Home page » Computers & IT»Computer components»Mainboards»GIGABYTE B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR

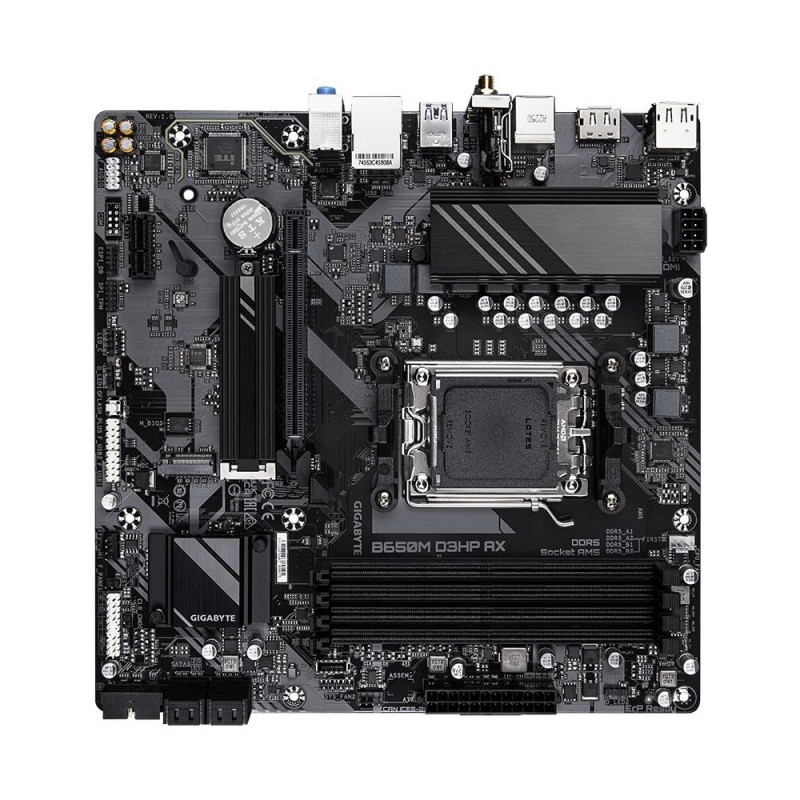

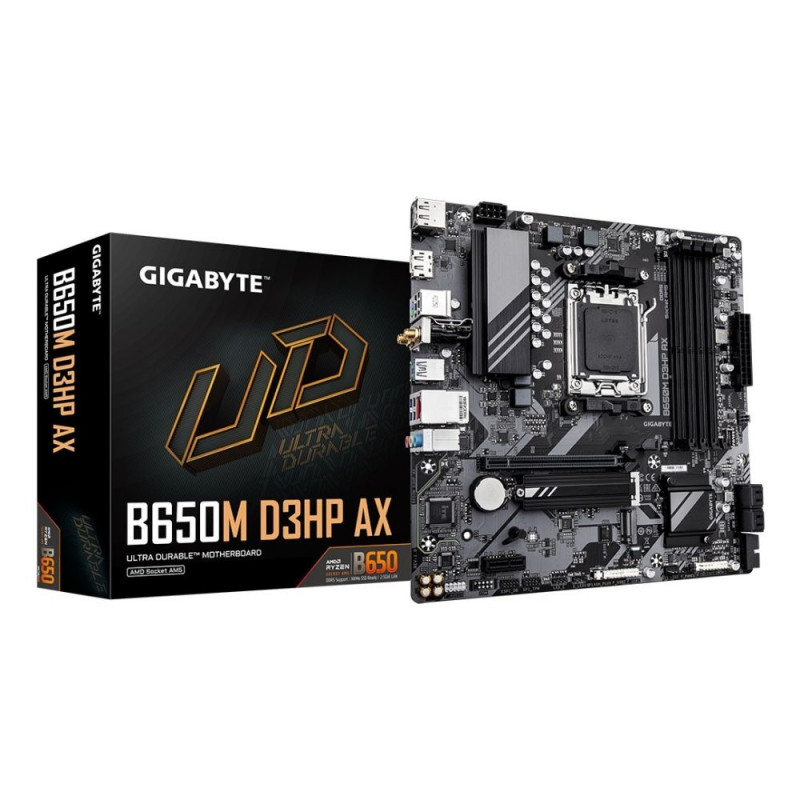

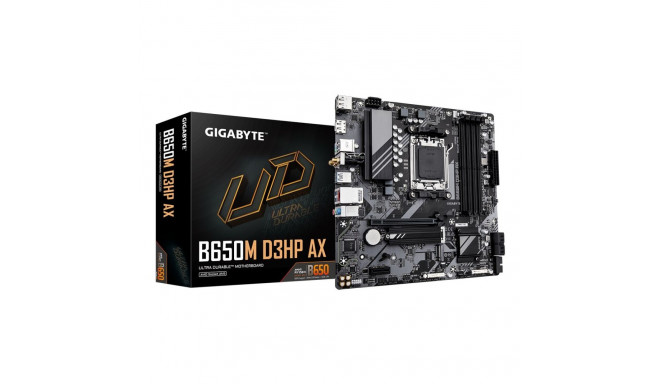

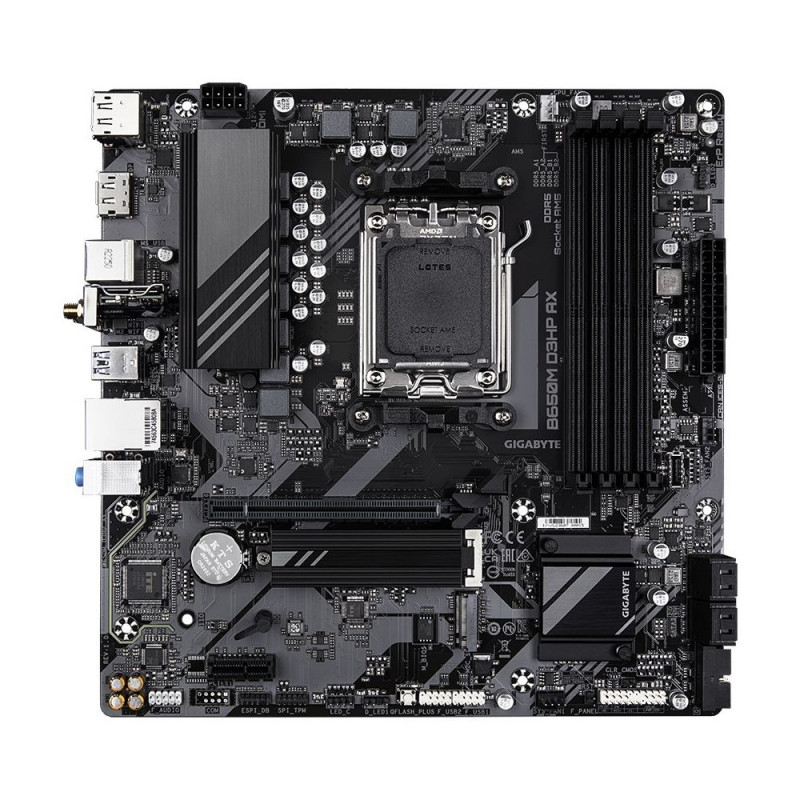

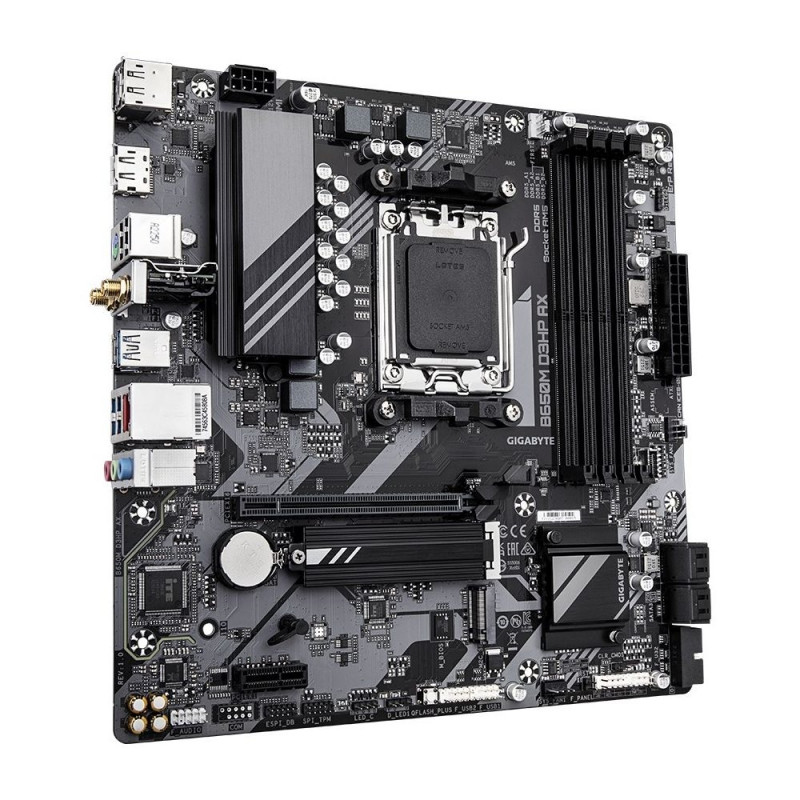

GIGABYTE B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR

Addional discount of 5%
will be applied in shopping cart
(min. 10€ purchase)
150,99 €

Monthly payment starting from 5,15 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 24 (G)
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Battery type CR2032
TPM connector Yes
Package height 68 mm
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Memory channels Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Number of memory slots 4
Number of battery cells 1
12V power connector Yes
Processor manufacturer AMD
Desktop Management Interface (DMI) version 2.7
Battery weight 3 g
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Microphone in Yes
Ethernet LAN Yes
PCI Express x16 (Gen 4.x) slots 1
RGB LED pin header Yes
Width 244 mm
Number of HDDs supported 4
Memory slots type DIMM
HDMI version 2.1
Depth 244 mm
WLAN controller model Realtek RTL8852CE
Batteries included Yes
Ethernet interface type 2.5 Gigabit Ethernet
Headphone outputs 1
Products per shipping (inner) case 1 pc(s)
Bluetooth version 5.3
Wi-Fi Yes
Number of storage drives supported 6
Height 35 mm
PS/2 ports quantity 1
Line-in Yes
Antenna included Yes
Supported memory types DDR5-SDRAM
RAID support Yes
Bluetooth Yes
Screws included Yes
LAN controller Realtek RTL8125
Processor socket Socket AM5
Supported memory clock speed (max) 8000 MHz
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 2
Package depth 268 mm
Supported storage drive interfaces M.2, SATA III
BIOS type UEFI AMI
Supported processor sockets Socket AM5
Supported storage drive types HDD & SSD
Number of SATA III connectors 4
Motherboard chipset AMD B650
HDCP Yes
Number of RGB LED pin headers 3
Audio chip Realtek ALC897
Front panel connector Yes
CPU fan connector Yes
Motherboard chipset family AMD
Number of M.2 (M) slots 2
Country of origin China
Maximum resolution 4096 x 2160 pixels
DisplayPorts quantity 2
Package width 270 mm
Warranty period 3 year(s)
Motherboard form factor micro ATX
PCI Express x1 (Gen 3.x) slots 1
Cooling type Passive
DisplayPort version 1.4
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
EPS power connector (8-pin) Yes
Audio output channels 7.1 channels
Package weight 1.2 kg
Maximum internal memory 256 GB
Number of chassis fan connectors 2
Product colour Bronze
DirectX version 12.0
Number of EPS power connectors (8-pin) 1
USB 2.0 connectors 2
Parallel processing technology support Not supported
Power source type ATX
Unbuffered memory Yes
Lithium weight per battery 0.07 g
1st M.2 largest key size 2580
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4.0
1st M.2 highest PCI Express generation 4.0
ECC сompatibility Non-ECC
Number of CPU fan connectors 1
Maximum internal memory per slot 64 GB
PC health monitoring Temperature
Windows operating systems supported Windows 11 x64
RAID levels 1
Wi-Fi standards Wi-Fi 5 (802.11ac)
Compatible processor series AMD Ryzen 8000 Series
Supported memory clock speeds 5200

Dimensions and weights

Package width
270 cm
Package height
75 cm
Package length
275 cm

Product codes

EAN
4719331859510
Manufacturer code
B650M D3HP AX
