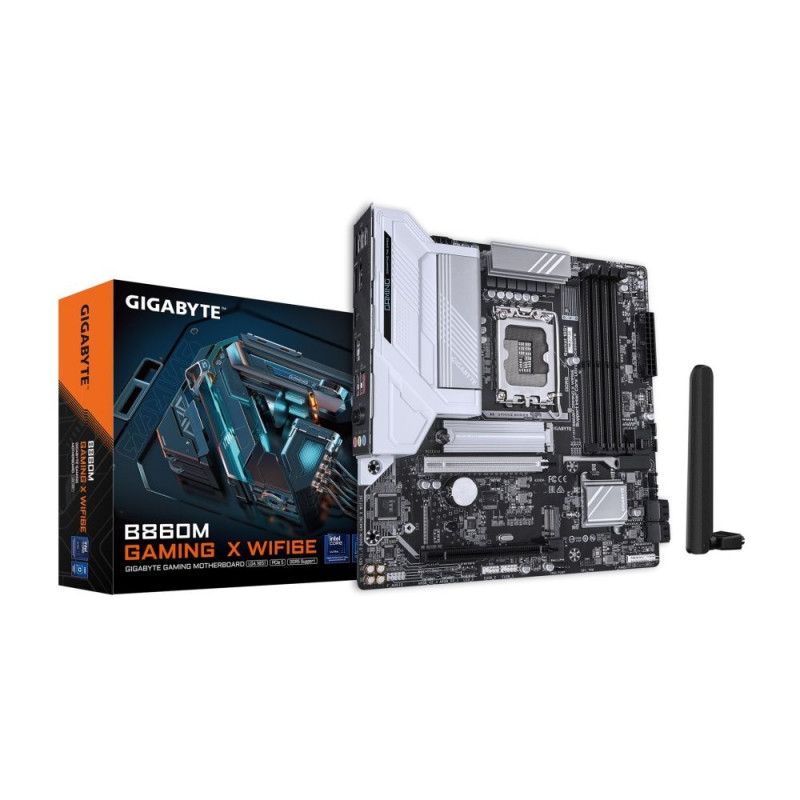

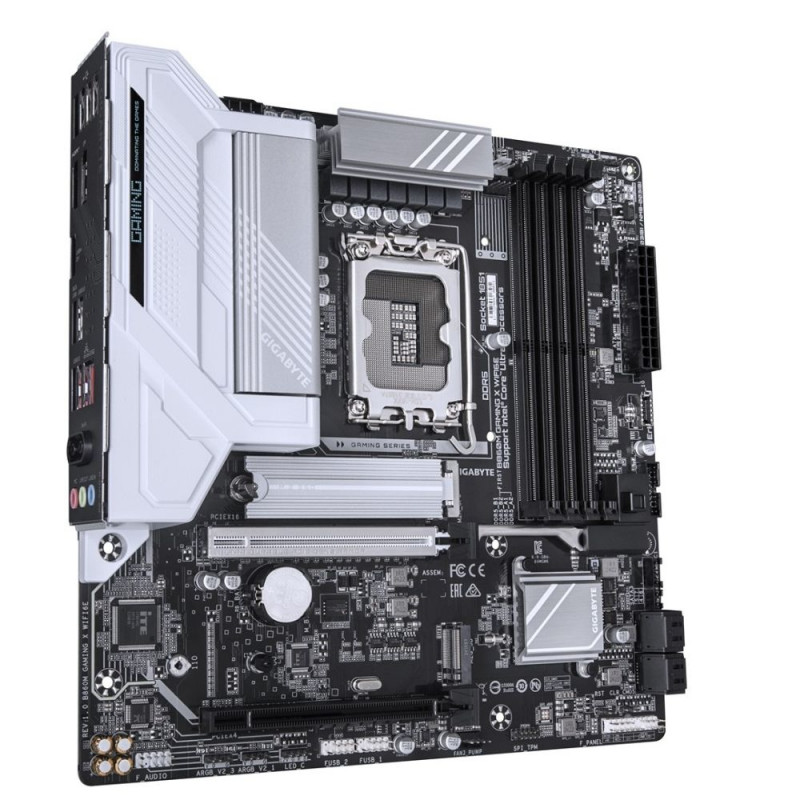

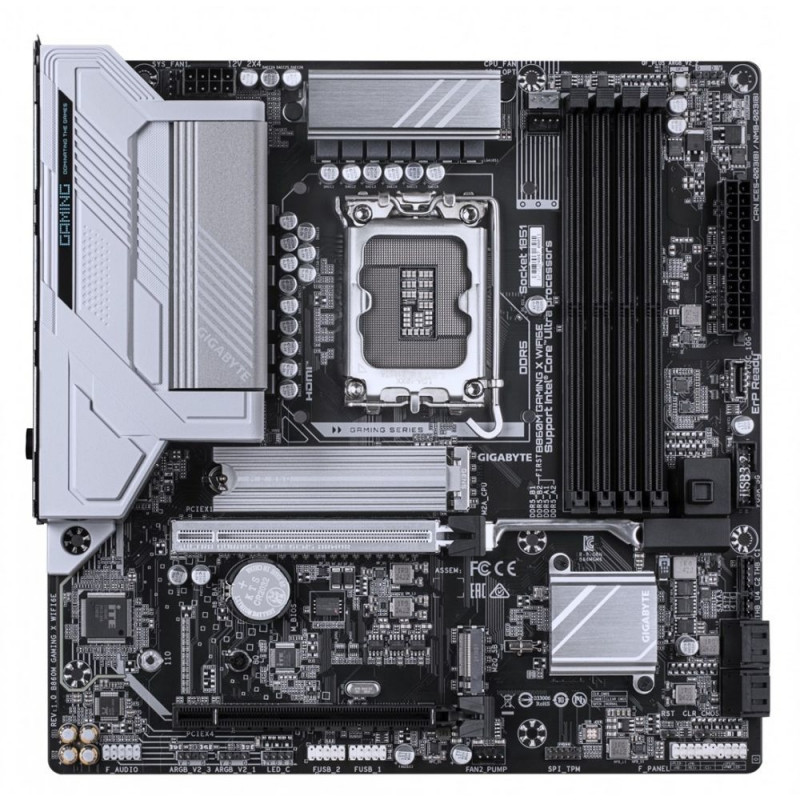

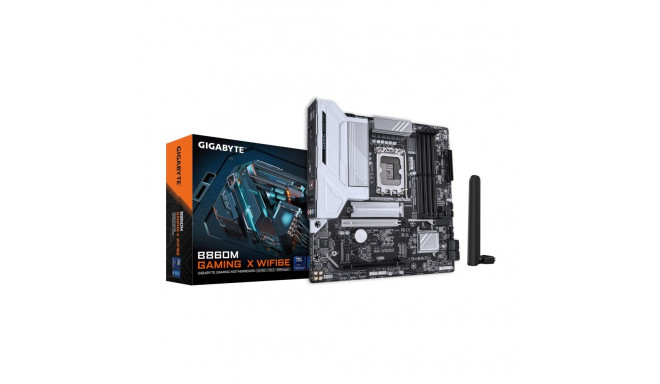

GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to

Main info

Product has been archived


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Motherboard chipset Intel B860
Front panel audio connector Yes
WiFi-AP antenna jack 2
Country of origin China
Maximum resolution 4096 x 2160 pixels
Supported storage drive interfaces M.2, SATA III
Package weight 1.43 kg
Audio chip Realtek ALC897
TPM connector Yes
Supported memory clock speed (max) 9200 MHz
Weight 1.23 kg
Product colour Dark brown
Package depth 268 mm
Windows operating systems supported Windows 11 x64
Package width 270 mm
Audio output channels 7.1 channels
Antenna included Yes
Supported storage drive types HDD & SSD
Headphone outputs 1
RAID support Yes
Products per shipping (inner) case 1 pc(s)
Number of storage drives supported 6
Unbuffered memory Yes
RGB LED pin header Yes
Parallel processing technology support Not supported
Number of SATA III connectors 4
Depth 244 mm
WLAN controller model Intel Wi-Fi 6E AX211
USB 2.0 connectors 2
Maximum internal memory 256 GB
Number of chassis fan connectors 2
Number of memory slots 4
Number of battery cells 1
Wi-Fi Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Ethernet LAN (RJ-45) ports 1
HDCP Yes
ATX Power connector (24-pin) Yes
Supported memory types DDR5-SDRAM
2nd M.2 largest key size 25110
DisplayPorts quantity 1
Ethernet LAN Yes
Maximum internal memory per slot 64 GB
Front panel connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Width 244 mm
Number of HDDs supported 4
Bluetooth version 5.3
Cooling type Passive
Processor socket LGA 1851 (Socket V1)
Line-in Yes
PCI Express x16 (Gen 5.x) slots 1
Supported processor sockets LGA 1851
Power source type ATX
Bluetooth Yes
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Warranty period 3 year(s)
HDMI version 2.1
EPS power connector (8-pin) Yes
Memory channels Dual-channel
LAN controller Realtek RTL8125
Height 35 mm
USB 2.0 ports quantity 5
Processor manufacturer Intel
Number of water pump connectors 2
PCI Express x16 (Gen 4.x) slots 1
Battery weight 3 g
DisplayPort version 2.1
Lithium weight per battery 0.07 g
Microphone in Yes
CPU fan connector Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Clear CMOS jumper Yes
USB4 Gen 2x2 ports quantity 1
HDMI ports quantity 1
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
1st M.2 highest PCI Express generation 5.0
ECC сompatibility ECC & Non-ECC
Number of CPU fan connectors 2
1st M.2 largest key size 2280
Screws included Yes
Number of RGB LED pin headers 4
Motherboard chipset family Intel
DirectX version 12.0
Package height 68 mm
Batteries included Yes
Number of M.2 (M) slots 2
Thunderbolt headers 2
Motherboard form factor micro ATX
Memory slots type DIMM
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of EPS power connectors (8-pin) 1
BIOS type UEFI AMI
Desktop Management Interface (DMI) version 2.7
2nd M.2 highest PCI Express generation 4.0
Warranty 24 (G)
Warnings When disposing of the product, follow local regulations for the recycling of electronics.
Compatible processor series Intel® Core™ Ultra (Series 1)
RAID levels 10
Wi-Fi standards Wi-Fi 5 (802.11ac)
PC health monitoring Water cooling
Supported memory clock speeds 5600

Dimensions and weights

Package width
277 cm
Package height
275 cm
Package length
76 cm

Product codes

EAN
4719331867133
Manufacturer code
B860M GAMING X WIFI6E
