Home page » Computers & IT»Computer components»Mainboards»Gigabyte H510M H V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0

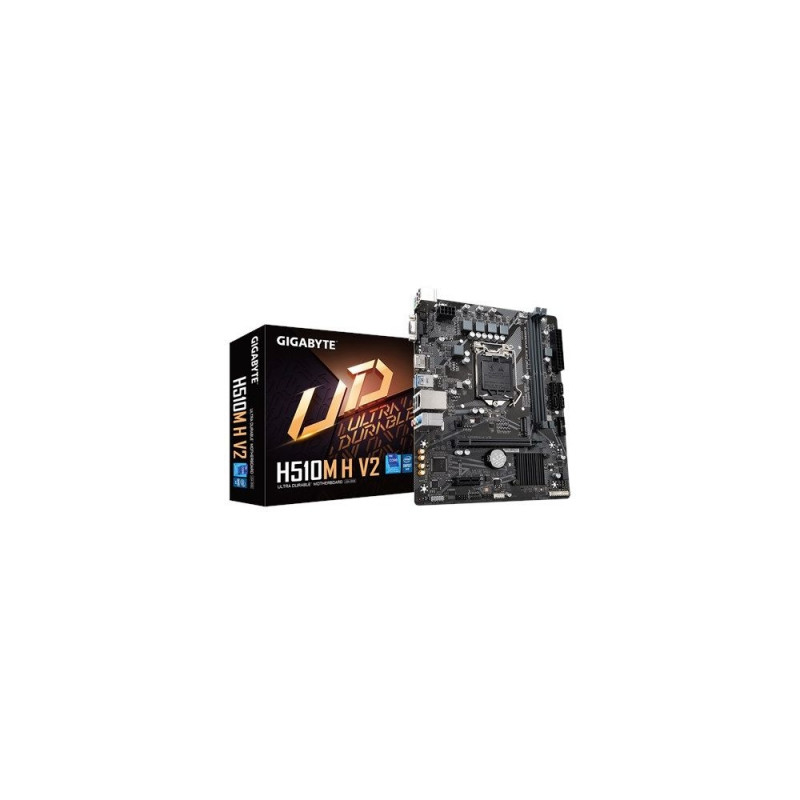

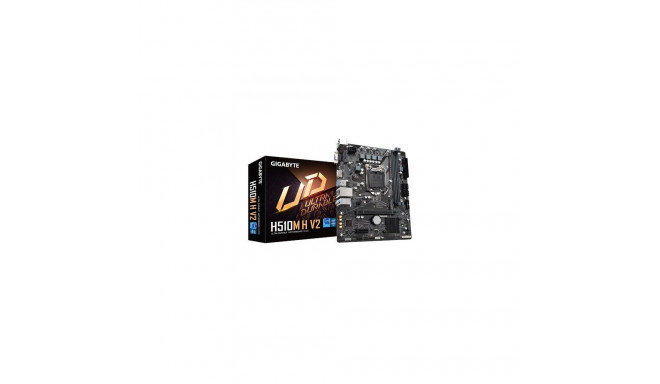

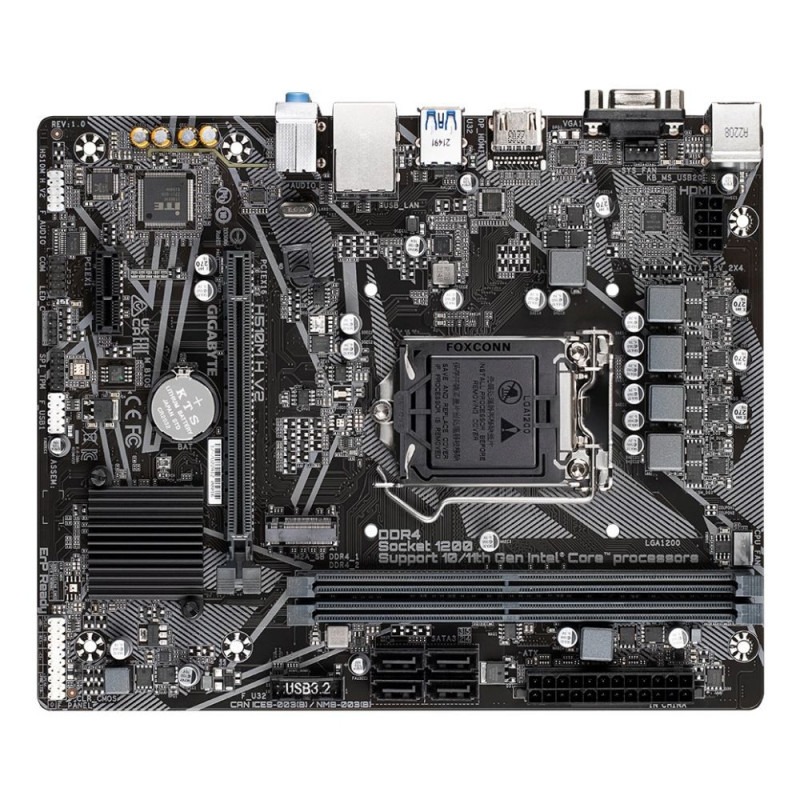

Gigabyte H510M H V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0

Main info

Product has been archived


Front panel audio connector Yes
ATX Power connector (24-pin) Yes
Audio output channels 7.1 channels
Country of origin China
Windows operating systems supported Windows 10 x64
EPS power connector (8-pin) Yes
Clear CMOS jumper Yes
HDCP Yes
Supported storage drive types HDD & SSD
Number of SATA III connectors 4
Component for PC
Package weight 756 g
Cables included SATA
Supported storage drive interfaces M.2, PCI Express 3.0, SATA III
Package depth 235 mm
Motherboard form factor micro ATX
Maximum resolution 4096 x 2304 pixels
Package width 265 mm
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 ports quantity 4
TPM connector Yes
Front panel connector Yes
CPU fan connector Yes
Motherboard chipset family Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
Battery type CR2032
Motherboard chipset Intel H510 Express
PCI Express x16 slots 1
USB connector type USB Type-A
BIOS type UEFI AMI
Product colour Bronze
DirectX version 12.0
Maximum internal memory 64 GB
Serial port headers 1
Number of chassis fan connectors 2
Number of M.2 (M) slots 1
BIOS memory size 128 Mbit
Supported processor sockets LGA 1200 (Socket H5)
Package height 52 mm
USB 2.0 connectors 2
Parallel processing technology support Not supported
ACPI version 5.0
Unbuffered memory Yes
Ethernet LAN Yes
Width 226 mm
Processor manufacturer Intel
Wi-Fi No
Depth 185 mm
HDMI version 1.4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
HDMI ports quantity 1
Batteries included Yes
VGA (D-Sub) ports quantity 1
Number of storage drives supported 5
Memory channels Dual-channel
Drivers included Yes
PS/2 ports quantity 2
Microphone in Yes
Processor socket LGA 1200 (Socket H5)
ECC сompatibility ECC & Non-ECC
Lithium weight per battery 0.07 g
Desktop Management Interface (DMI) version 2.7
Products per shipping (inner) case 1 pc(s)
System Management BIOS (SMBIOS) version 2.7
Memory slots type DIMM
RGB LED pin header Yes
Battery weight 3 g
Number of memory slots 2
PCI Express x1 slots 2
12V power connector Yes
Number of battery cells 1
Number of displays supported 2
Supported memory types DDR4-SDRAM
Ethernet interface type Gigabit Ethernet
Height 35 mm
Warranty period 3 year(s)
Warranty 24 (G)
Supported memory clock speeds 2933
PC health monitoring Temperature
Compatible processor series Intel® Core™ i3

Dimensions and weights

Package width
272 cm
Package height
241 cm
Package length
59 cm

Product codes

EAN
4719331854942
Manufacturer code
H510M H V2
