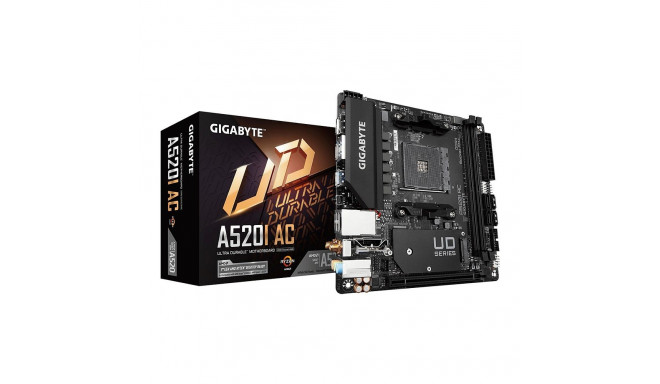

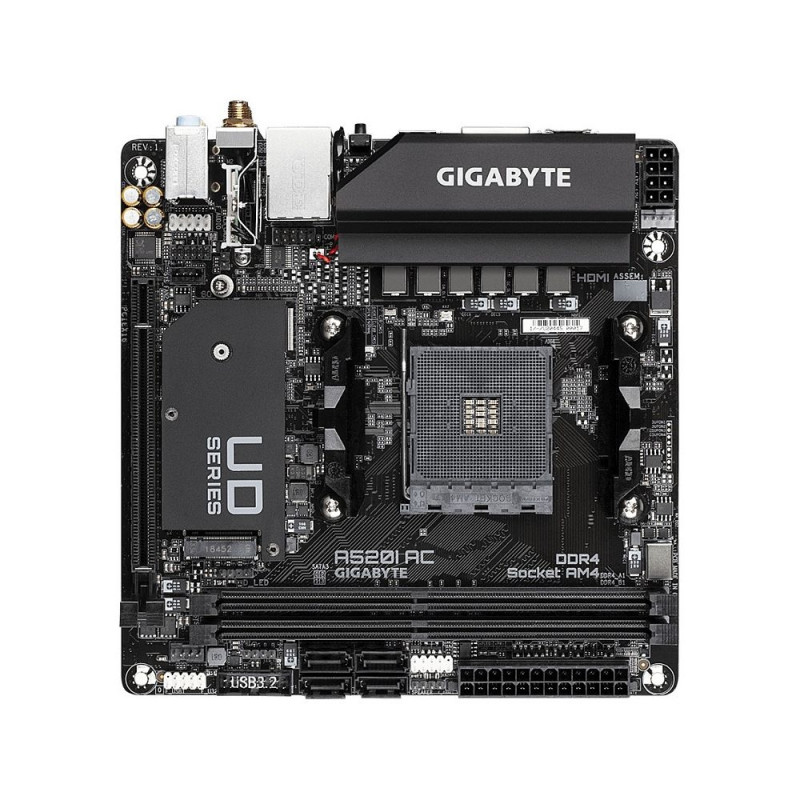

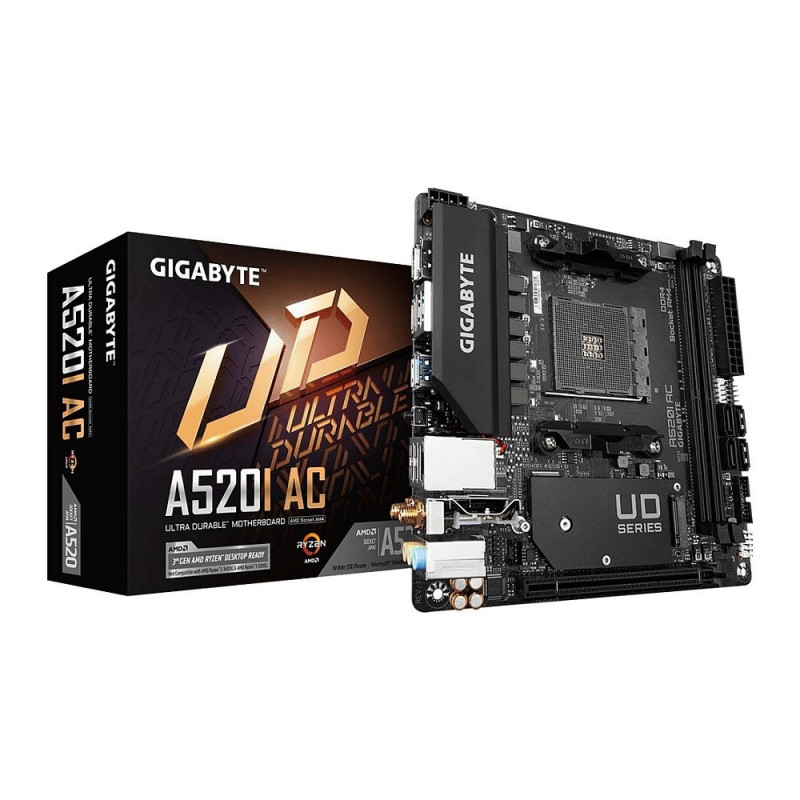

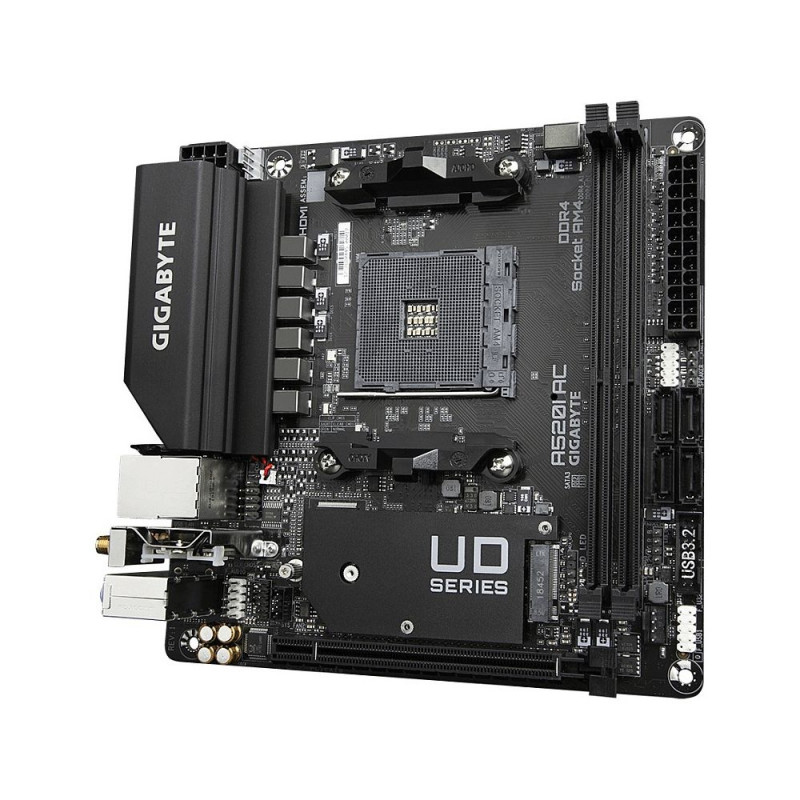

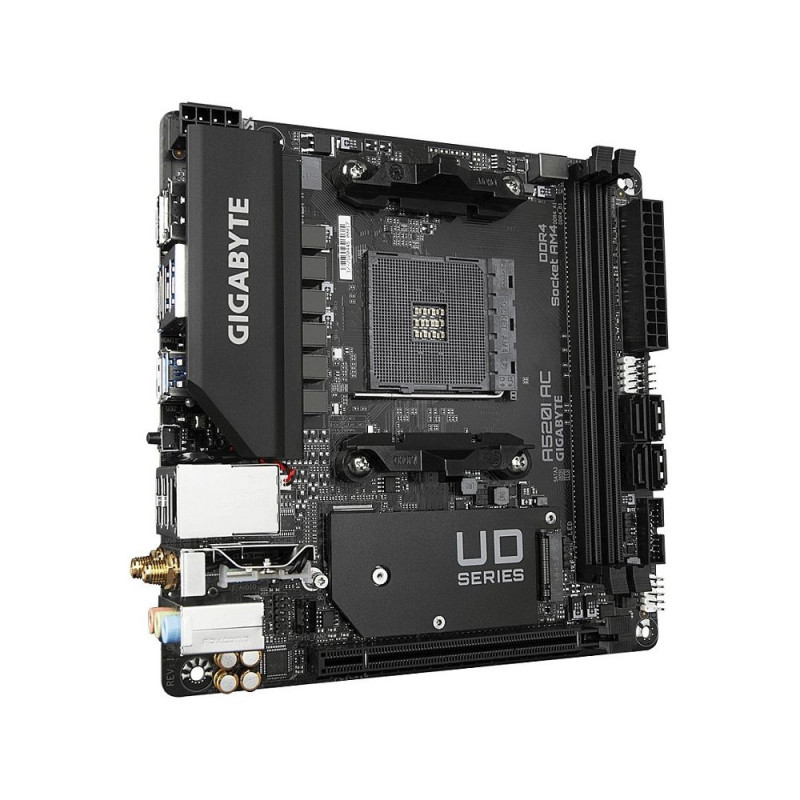

"Gigabyte A520I AC (A520.AM4.mITX.DDR4)"

Addional discount of 6%
will be applied in shopping cart
(min. 12€ purchase)
134,99 €

Monthly payment starting from 4,60 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

"GIGABYTE A520I AC Motherboard - Unterstützt AMD Ryzen 5000 Series AM4 CPUs, 6 Phasen Digital VRM, bis zu 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1. Prozessorhersteller: AMD, Prozessorsockel: Sockel AM4, Kompatible Prozessoren: AMD Ryzen 3000 Series. Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 64 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, RAID Level: 0, 1, 10. Maximale Auflösung: 5120 x 2880 Pixel. Ethernet Schnittstellen Typ: Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 5 (802.11ac), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)"
Prozessorhersteller AMD
Prozessorsockel Sockel AM4
Kompatible Prozessoren AMD Ryzen 3000 Series
Unterstützte Prozessorsteckplätze Sockel AM4
Maximaler interner Speicher, vom Prozessor unterstützt 64 GB
Unterstützte Arbeitsspeicher DDR4-SDRAM
Anzahl der Speichersteckplätze 2
Arbeitsspeicher Typ DIMM
Speicherkanäle Zweikanalig
ECC-Kompatibilität ECC & Nicht-ECC
Unterstützte Arbeitsspeichergeschwindigkeit 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Unterstützte Speichertaktrate (max.) 5300 MHz
RAM-Speicher maximal 64 GB
Unterstützte Speichermodulkapazitäten 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Eigenschaft Akkus/Batterien enthalten
Unterstützte Speicherlaufwerk-Schnittstellen M.2, SATA III
Maximale unterstützte Anzahl der HDD 4
Anzahl der unterstützten Speicherlaufwerke 5
RAID Level 0, 1, 10
Parallele Verarbeitungstechnologie Nicht unterstützt
Maximale Auflösung 5120 x 2880 Pixel
DirectX-Version 12.0
Anzahl der Display unterstützt 3
Anzahl USB 2.0 Schnittstellen 1
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse 1
SATA III Anschlüsse 4
Gesamtanzahl der SATA-Anschlüsse 4
Serielle Port-Headers 1
Anzahl USB 2.0 Anschlüsse 2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A 4
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) 1
Anzahl HDMI-Anschlüsse 2
HDMI-Version 2.1
Anzahl DisplayPort Anschlüsse 1
DisplayPorts-Version 1.4
Kopfhörerausgänge 3
WiFi-AP-Antennenbuchse 2
Ethernet Schnittstellen Typ Gigabit Ethernet
Top WLAN-Standard Wi-Fi 5 (802.11ac)
WLAN-Standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth-Version 4.2
Motherboard Chipsatz AMD A520
Audio-Chip Realtek ALC887
Audio Kanäle 7.1 Kanäle
Produktfarbe Schwarz
PC Gesundheitsüberwachung Ventilator, Temperatur, Spannung
Komponente für PC
Motherboardformfaktor mini ITX
Motherboard Chipsatz Familie AMD
Unterstützt Windows-Betriebssysteme Windows 10 x64, Windows 11 x64
PCI-Express x16-Slots 1
Anzahl der M.2 (M)-Steckplätze 1
BIOS-Typ UEFI AMI
BIOS-Speichergröße 128 Mbit
ACPI-Version 5.0
Desktop Management Interface (DMI) Version 2.7
Systemverwaltung BIOS (SMBIOS) Version 2.7
Ursprungsland China
Menge pro Versandkarton 1 Stück(e)
Batteriegewicht 3 g
Lithiumgewicht pro Akku 0,07 g
Anzahl Batteriezellen 1
Akku-/Batterietechnologie Lithium-Manganese Dioxide (LiMnO2)
Akku-/Batterietyp CR2032
Verpackungsbreite 222 mm
Verpackungstiefe 189 mm
Verpackungshöhe 78 mm
Paketgewicht 800 g
Mitgelieferte Software Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Garantiezeit 3 Jahr(e)

Dimensions and weights

Gross weight
0.8 kg
Package width
17 cm
Package height
3.5 cm
Package length
17 cm

Product codes

EAN
4719331809867
