Home page » Computers & IT»Computer components»Mainboards»Motherboard - Asrock B850M Pro RS AM5 Micro ATX DDR5, 4 DIMM, 3 M.2, 7.1 Audio

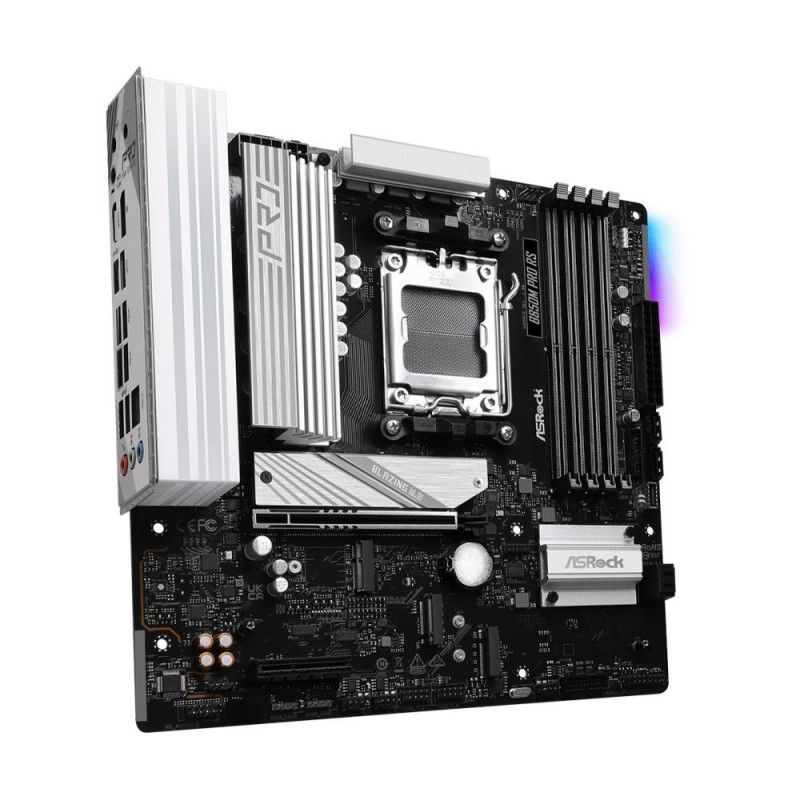

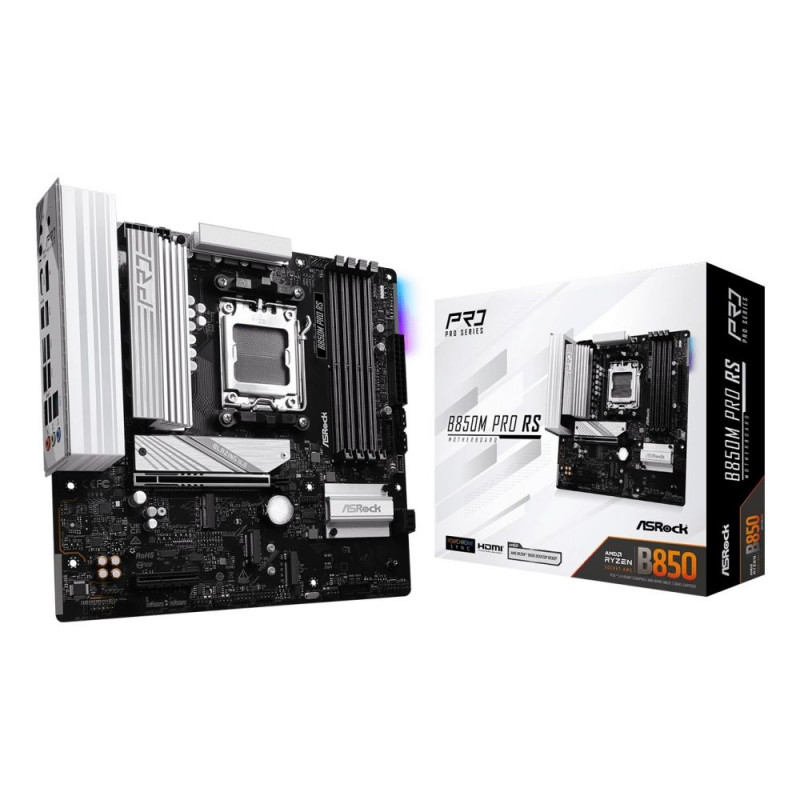

Motherboard - Asrock B850M Pro RS AM5 Micro ATX DDR5, 4 DIMM, 3 M.2, 7.1 Audio

255,99 €

Monthly payment starting from 8,72 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Supports AMD Ryzen 7000, 8000, and 9000 series processors with a Socket AM5. Features include 4 DIMM slots for up to 256 GB DDR5 memory, 3 M.2 slots, and 7.1 channel audio.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Asrock B850M Pro Rs AMD B850 Socket Am5 Micro Atx

Supports AMD Ryzen 7000, 8000, and 9000 series processors with a Socket AM5. Features include 4 DIMM slots for up to 256 GB DDR5 memory, 3 M.2 slots, and 7.1 channel audio.


  • Supports AMD Ryzen 8000, 9000, and 7000 Series processors with Socket AM5.
  • Equipped with 4 DIMM slots, allowing for up to 256 GB of DDR5 memory.
  • Features advanced connectivity options including 2.5 Gigabit Ethernet and multiple USB ports.
  • Micro ATX form factor, ideal for compact builds without sacrificing performance.

Processor
Processor socket Socket AM5
Compatible processor series AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor manufacturer AMD
Graphics
Parallel processing technology support Not supported
HDCP Yes
Maximum resolution 3840 x 2160 pixels
Features
Motherboard chipset AMD B850
Product colour Black
Audio chip Realtek ALC897
Motherboard form factor micro ATX
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64, Windows 11 x64
Memory
Unbuffered memory Yes
Maximum internal memory 256 GB
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Number of memory slots 4
ECC compatibility ECC & Non-ECC
Weight & Dimensions
Depth 244 mm
Width 244 mm
Network
LAN controller Dragon RTL8125BG
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Internal I/O
USB 3.2 Gen 1 connectors 3
Number of SATA III connectors 4
USB 2.0 connectors 2
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
TPM connector Yes
EPS power connector (8-pin) Yes
RGB LED pin header Yes
CPU fan connector Yes
12V power connector Yes
Number of chassis fan connectors 3
Number of CPU fan connectors 2
Number of RGB LED pin headers 1
Number of EPS power connectors (8-pin) 1
BIOS
BIOS type UEFI AMI
Storage Controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces PCI Express 4.0, PCI Express 5.0, SATA III
RAID support Yes
RAID levels 1, 0, 10
Number of storage drives supported 7
Rear Panel I/O Ports
USB 2.0 ports quantity 4
USB connector type USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports 1
DisplayPort version 1.4
DisplayPorts quantity 1
Line-in Yes
Microphone in Yes
Headphone outputs 3
USB 3.2 Gen 2 Type-A ports quantity 1
HDMI version 2.1
USB 3.2 Gen 2 Type-C ports quantity 1
USB 3.2 Gen 1 Type-A ports quantity 2
HDMI ports quantity 1
Expansion Slots
Number of M.2 (M) slots 3
1st M.2 highest PCI Express generation 5.0
3rd M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
PCI Express x4 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
2nd M.2 largest key size 2280
3rd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0

Width 240 mm
Height 30 mm
Length 300 mm
Product Weight 800 g
Country TW

Dimensions and weights

Gross weight
1.2 kg
Package width
30 cm
Package height
5 cm
Package length
40 cm

Product codes

EAN
4711581490345
