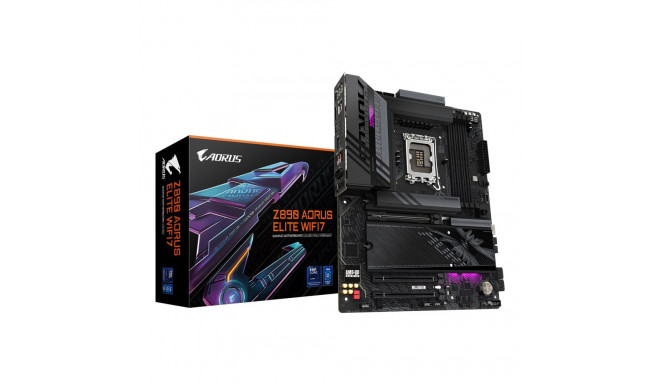

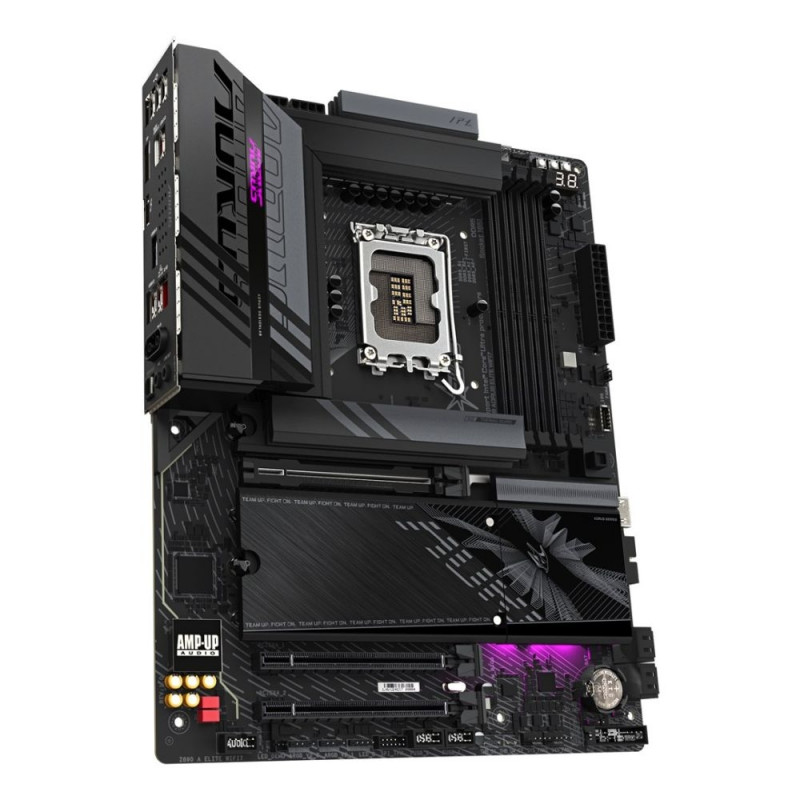

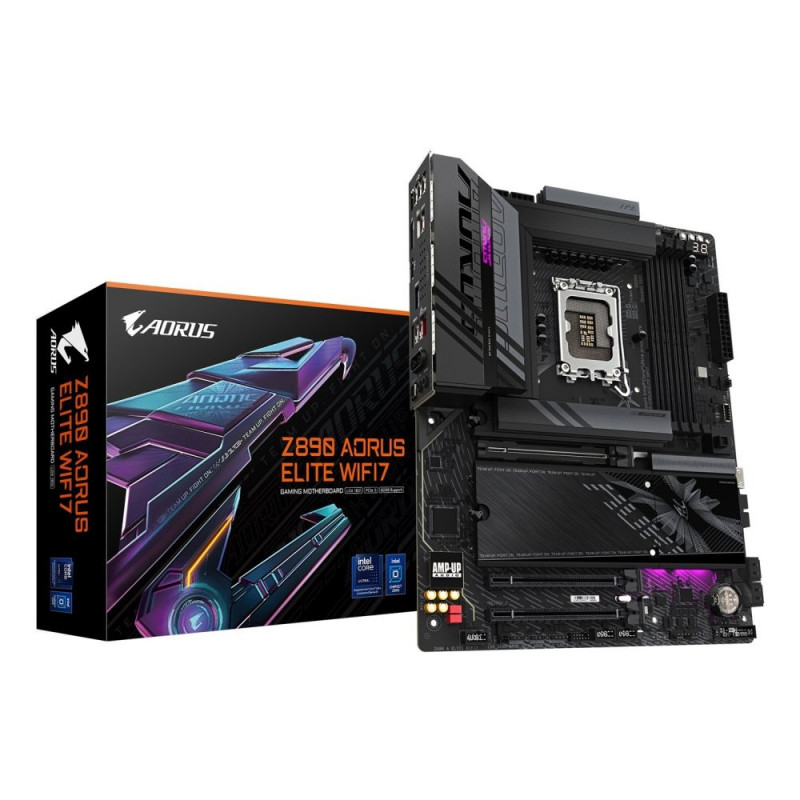

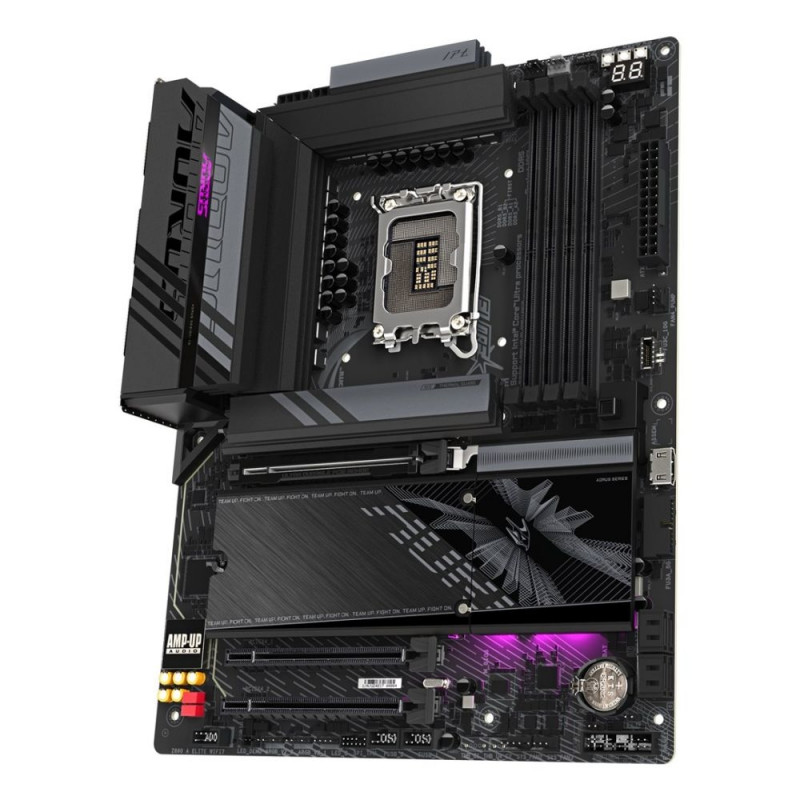

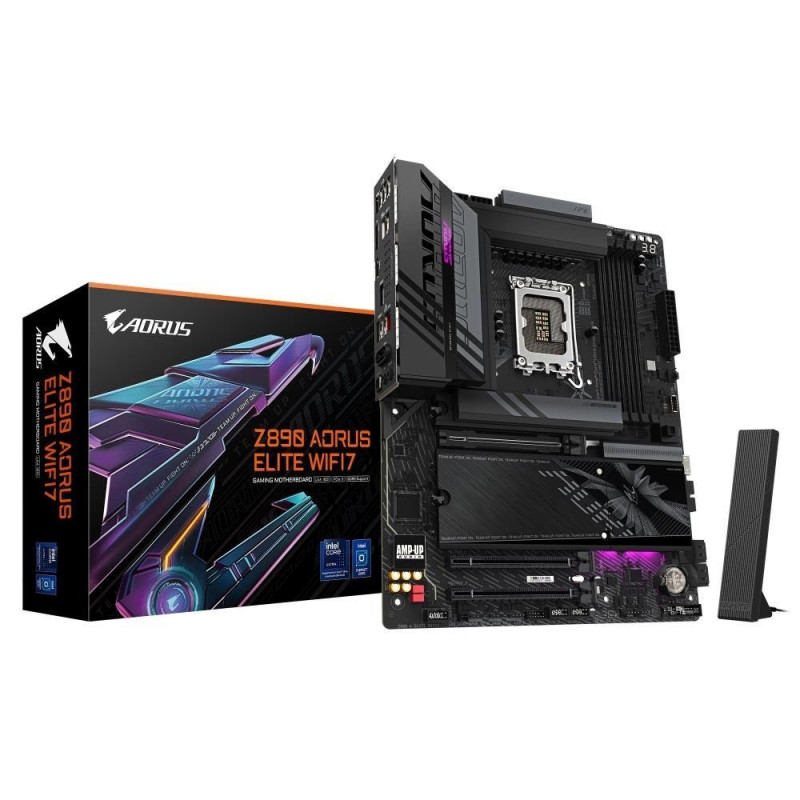

GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phas

Main info

Product has been archived


Warranty 24 (G)
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Desktop Management Interface (DMI) version 2.7
Memory slots type DIMM
Clear CMOS jumper Yes
On-board graphics card No
Warranty period 3 year(s)
HDMI ports quantity 1
Maximum internal memory supported by processor 256 GB
BIOS type UEFI AMI
Component for PC
Wi-Fi standards Wi-Fi 7 (802.11be)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
ATX Power connector (24-pin) Yes
BIOS memory size 256 Mbit
RGB LED pin header Yes
USB 2.0 ports quantity 4
WLAN controller model MediaTek MT7925
Ethernet LAN Yes
Processor socket LGA 1851 (Socket V1)
PCI Express x16 (Gen 5.x) slots 1
Ethernet LAN (RJ-45) ports 1
Number of SATA III connectors 4
Package width 335 mm
EPS power connector (8-pin) Yes
Memory channels Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Products per shipping (inner) case 1 pc(s)
Number of battery cells 1
Clear CMOS button Yes
Total number of SATA connectors 4
Bluetooth version 5.4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
RAID support Yes
Compatible processor series Intel Core Ultra (Series 2)
Number of HDDs supported 8
Depth 244 mm
Width 305 mm
Weight 2.23 kg
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Supported memory types DDR5-SDRAM
Microphone in Yes
Package weight 2.5 kg
Number of storage drives supported 4
System Management BIOS (SMBIOS) version 2.7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
ACPI version 5.0
Supported processor sockets LGA 1851
Package height 80 mm
12V power connector Yes
Number of M.2 (M) slots 4
Batteries included Yes
Number of memory slots 4
Battery weight 3 g
Wi-Fi Yes
TPM connector Yes
Supported memory clock speed (max) 8800 MHz
Package depth 270 mm
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Thunderbolt ports quantity 1
Processor manufacturer Intel
Windows operating systems supported Windows 11 x64
Height 35 mm
PCI Express x16 (Gen 4.x) slots 2
Lithium weight per battery 0.07 g
ECC сompatibility Non-ECC
Number of EPS power connectors (8-pin) 1
Supported storage drive types HDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Bluetooth Yes
USB 2.0 connectors 2
Maximum internal memory 256 GB
S/PDIF out port Yes
Country of origin China
Audio output channels 7.1 channels
Motherboard chipset Intel Z890
DirectX version 12.0
DisplayPorts quantity 2
Motherboard form factor ATX
Audio chip Realtek ALC1220
Supported storage drive interfaces M.2, SATA III
Product colour Black
Motherboard chipset family Intel
RAID levels 0
Supported memory module capacities 64GB
PC health monitoring Temperature
Supported memory clock speeds 6000

Dimensions and weights

Package width
340 cm
Package height
270 cm
Package length
80 cm

Product codes

EAN
4719331864507
Manufacturer code
Z890 A ELITE WIFI7
